顺口溜

	公公原简单
	小乔组装是外带
	明泽姐弟中观被木房装册
	命责解迭中观备模访状策
	礼仪开合接地线

创建型模式-->对象怎么来
结构型模式-->对象和谁有关
行为型模式-->对象与对象在干嘛
J2EE 模式-->对象合起来要干嘛

设计模式的六大原则

1、开闭原则（Open Close Principle）对扩展开放，对修改关闭。
2、里氏代换原则（Liskov Substitution Principle） 任何基类可以出现的地方，子类一定可以出现
3、依赖倒转原则（Dependence Inversion Principle）真对接口编程，依赖于抽象而不依赖于具体
4、接口隔离原则（Interface Segregation Principle）使用多个隔离的接口，比使用单个接口要好。降低依赖，降低耦合。
5、迪米特法则（最少知道原则）（Demeter Principle）一个实体应当尽量少的与其他实体之间发生相互作用，使得系统功能模块相对独立。
6、合成复用原则（Composite Reuse Principle）原则是尽量使用合成/聚合的方式，而不是使用继承。

创建型
抽象工厂模式 http://www.cnblogs.com/java-my-life/archive/2012/03/28/2418836.html
工厂方法 http://www.cnblogs.com/java-my-life/archive/2012/03/25/2416227.html
建造者模式  http://www.cnblogs.com/java-my-life/archive/2012/04/07/2433939.html
原型模式 http://www.cnblogs.com/java-my-life/archive/2012/04/11/2439387.html
单态模式 http://www.cnblogs.com/java-my-life/archive/2012/03/31/2425631.html

结构型
适配器模式 http://www.cnblogs.com/java-my-life/archive/2012/04/13/2442795.html
桥接模式 http://blog.youkuaiyun.com/jason0539/article/details/22568865
组合模式 http://blog.youkuaiyun.com/jason0539/article/details/22642281
外观模式 http://blog.youkuaiyun.com/jason0539/article/details/22775311
装饰者模式 http://www.cnblogs.com/java-my-life/archive/2012/04/20/2455726.html
享元模式 http://www.cnblogs.com/java-my-life/archive/2012/04/26/2468499.html
代理模式 http://www.cnblogs.com/java-my-life/archive/2012/04/23/2466712.html

行为型
责任链模式 http://blog.youkuaiyun.com/zhouyong0/article/details/7909456
命令模式 http://www.cnblogs.com/java-my-life/archive/2012/06/01/2526972.html
解释器模式 http://www.cnblogs.com/java-my-life/archive/2012/06/19/2552617.html
迭代模式 http://www.cnblogs.com/java-my-life/archive/2012/05/22/2511506.html
中介者模式 http://blog.youkuaiyun.com/chenhuade85/article/details/8141831
备忘录模式 http://www.cnblogs.com/java-my-life/archive/2012/06/06/2534942.html
观察者模式 http://www.cnblogs.com/java-my-life/archive/2012/05/16/2502279.html
状态模式 http://www.cnblogs.com/java-my-life/archive/2012/06/08/2538146.html
策略模式 http://www.cnblogs.com/java-my-life/archive/2012/05/10/2491891.html
模板方法模式 http://www.cnblogs.com/java-my-life/archive/2012/05/14/2495235.html
访问者模式 http://www.cnblogs.com/java-my-life/archive/2012/06/14/2545381.html

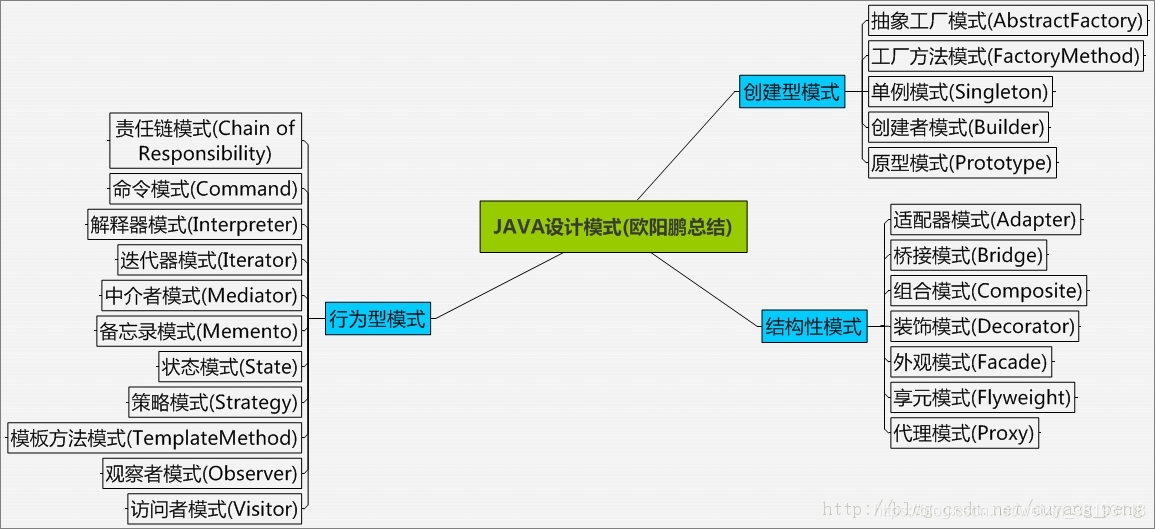

在这里插入图片描述

适配器模式
装饰模式类的适配器模式桥接模式
代理模式对象的适配器模式组合模式
外观模式接口的适配器模式享元模式
父子关系兄弟关系状态中间类
策略模式观察者模式备忘录模式访问者模式
模板方法模式迭代子模式状态模式中介者模式
责任链模式解释权模式
命令模式

~~ ~~

对象怎么来

工厂方法

抽象工厂

原型

建造者

单例

结构型模式–>对象和谁有关

享元

桥接

组合

装饰器

适配器

外观

代理

过滤

行为型模式–>对象与对象在干嘛

命令command

责任链chain

解释器interpreter

迭代子iterator

中介者mediator

观察者observer

备忘录memento

模板方法template

访问者visitor

状态state

策略strategy

工厂方法

public interface Color {
	void fill();
}
---------------------
public class Blue implements Color{
	@Override
	public void fill() {
		 System.out.println("Inside Blue:fill() method.");
	}
}
public class Green implements Color{
	@Override
	public void fill() {
		 System.out.println("Inside Green :fill() method.");
	}
}
public class Red implements Color{
	@Override
	public void fill() {
		 System.out.println("Inside Red:fill() method.");
	}
}
---------------------------------------------
---------------------------------------------
public interface Shape {
	void draw();
}
public class Circle implements Shape{
	@Override
	public void draw() {
		System.out.println("Inside Square:draw() method.");
	}
}
public class Square implements Shape{
	@Override
	public void draw() {
		System.out.println("Inside Square:draw() method.");
	}
}
public class Rectangle implements Shape{
	@Override
	public void draw() {
		System.out.println("Inside Rectangle:draw() method.");
	}
}
---------------------------------------------
---------------------------------------------
public abstract class AbstractFactory {
	   abstract Color getColor(String color);
	   abstract Shape getShape(String shape) ;
}
public class ShapeFactory extends AbstractFactory {
	@Override
	Color getColor(String color) {
		return null;
	}
	@Override
	Shape getShape(String shapeType) {
		if (shapeType == null) {
			return null;
		}
		if (shapeType.equalsIgnoreCase("CIRCLE")) {
			return new Circle();
		} else if (shapeType.equalsIgnoreCase("RECTANGLE")) {
			return new Rectangle();
		} else if (shapeType.equalsIgnoreCase("SQUARE")) {
			return new Square();
		}
		return null;
	}
}
public class ColorFactory extends AbstractFactory {
	@Override
	Color getColor(String color) {
		if(color == null){
	         return null;
	      }
	      if(color.equalsIgnoreCase("RED")){
	         return new Red();
	      } else if(color.equalsIgnoreCase("GREEN")){
	         return new Green();
	      } else if(color.equalsIgnoreCase("BLUE")){
	         return new Blue();
	      }
	      return null;
	}
	@Override
	Shape getShape(String shape) {
		return null;
	}
}
public class FactoryProducer {
	public static AbstractFactory getFactory(String choice){
	      if(choice.equalsIgnoreCase("SHAPE")){
	         return new ShapeFactory();
	      } else if(choice.equalsIgnoreCase("COLOR")){
	         return new ColorFactory();
	      }
	      return null;
	   }
}
package com.creational.abstract_Factory;
/*
 * 使用 FactoryProducer 来获取 AbstractFactory，通过传递类型信息来获取实体类的对象。
 */
public class AbstractFactoryPatternDemo {
	public static void main(String[] args) {
	      //获取形状工厂
	      AbstractFactory shapeFactory = FactoryProducer.getFactory("SHAPE");
	      //获取形状为 Circle 的对象
	      Shape shape1 = shapeFactory.getShape("CIRCLE");
	      //调用 Circle 的 draw 方法
	      shape1.draw();
	      //获取形状为 Rectangle 的对象
	      Shape shape2 = shapeFactory.getShape("RECTANGLE");
	      //调用 Rectangle 的 draw 方法
	      shape2.draw();
	      //获取形状为 Square 的对象
	      Shape shape3 = shapeFactory.getShape("SQUARE");
	      //调用 Square 的 draw 方法
	      shape3.draw();
	      //获取颜色工厂
	      AbstractFactory colorFactory = FactoryProducer.getFactory("COLOR");
	      //获取颜色为 Red 的对象
	      Color color1 = colorFactory.getColor("RED");
	      //调用 Red 的 fill 方法
	      color1.fill();
	      //获取颜色为 Green 的对象
	      Color color2 = colorFactory.getColor("Green");
	      //调用 Green 的 fill 方法
	      color2.fill();
	      //获取颜色为 Blue 的对象
	      Color color3 = colorFactory.getColor("BLUE");
	      //调用 Blue 的 fill 方法
	      color3.fill();
	   }
}

抽象工厂

public interface Shape {
	void draw();
}
public class Circle implements Shape {
	@Override
	public void draw() {
		 System.out.println("Inside Circle::draw() method.");
	}
}
public class Rectangle implements Shape {
	@Override
	public void draw() {
		 System.out.println("Inside Rectangle::draw() method.");
	}
}
public class Square implements Shape {
	@Override
	public void draw() {
		 System.out.println("Inside Square::draw() method.");
	}
}
public class ShapeFactory {
	//使用 getShape 方法获取形状类型的对象
	   public Shape getShape(String shapeType){
	      if(shapeType == null){
	         return null;
	      }
	      // 圆形
	      if(shapeType.equalsIgnoreCase("CIRCLE")){
	         return new Circle();
		  // 长方形
	      } else if(shapeType.equalsIgnoreCase("RECTANGLE")){
	         return new Rectangle();
		  // 正方形
	      } else if(shapeType.equalsIgnoreCase("SQUARE")){
	         return new Square();
	      }
	      return null;
	   }
}

原型

重点：浅复制，深复制

浅复制：将一个对象复制后，基本数据类型的变量都会重新创建，
而引用类型，指向的还是原对象所指向的。

深复制：将一个对象复制后，不论是基本数据类型还有引用类型，都是重新创建的。
简单来说，就是深复制进行了完全彻底的复制，而浅复制不彻底。

class SerializableObject implements Serializable {
    private String name = "deep clone";
}

public class Prototype implements Cloneable, Serializable {
    private String string;
    private SerializableObject obj;
    /* 浅复制 */
    public Object clone() throws CloneNotSupportedException {
        Prototype proto = (Prototype) super.clone();
        return proto;
    }
    /* 深复制 */
    public Object deepClone() throws IOException, ClassNotFoundException {
        /* 写入当前对象的二进制流 */
        ByteArrayOutputStream bos = new ByteArrayOutputStream();
        ObjectOutputStream oos = new ObjectOutputStream(bos);
        oos.writeObject(this);
        /* 读出二进制流产生的新对象 */
        ByteArrayInputStream bis = new ByteArrayInputStream(bos.toByteArray());
        ObjectInputStream ois = new ObjectInputStream(bis);
        return ois.readObject();
    }
    public String getString() {
        return string;
    }
    public void setString(String string) {
        this.string = string;
    }
    public SerializableObject getObj() {
        return obj;
    }
    public void setObj(SerializableObject obj) {
        this.obj = obj;
    }
}

------------------------------------------------
原型模式有两种表现形式：（1）简单形式、（2）登记形式，这两种表现形式仅仅是原型模式的不同实现。
简单形式
public interface Prototype{
    /**
     * 克隆自身的方法
     * @return 一个从自身克隆出来的对象
     */
    public Object clone();
}
public class ConcretePrototype1 implements Prototype {
    public Prototype clone(){
        //最简单的克隆，新建一个自身对象，由于没有属性就不再复制值了
        Prototype prototype = new ConcretePrototype1();
        return prototype;
    }
}
public class ConcretePrototype2 implements Prototype {
    public Prototype clone(){
        //最简单的克隆，新建一个自身对象，由于没有属性就不再复制值了
        Prototype prototype = new ConcretePrototype2();
        return prototype;
    }
}
public class Client {
    /**
     * 持有需要使用的原型接口对象
     */
    private Prototype prototype;
    /**
     * 构造方法，传入需要使用的原型接口对象
     */
    public Client(Prototype prototype){
        this.prototype = prototype;
    }
    public void operation(Prototype example){
        //需要创建原型接口的对象
        Prototype copyPrototype = prototype.clone();
    }
}
登记形式
多了一个原型管理器(PrototypeManager)角色，该角色的作用是：创建具体原型类的对象，并记录每一个被创建的对象。
public interface Prototype{
    public Prototype clone();
    public String getName();
    public void setName(String name);
}
public class ConcretePrototype1 implements Prototype {
    private String name;
    public Prototype clone(){
        ConcretePrototype1 prototype = new ConcretePrototype1();
        prototype.setName(this.name);
        return prototype;
    }
    public String toString(){
        return "Now in Prototype1 , name = " + this.name;
    }
    @Override
    public String getName() {
        return name;
    }
    @Override
    public void setName(String name) {
        this.name = name;
    }
}
public class ConcretePrototype2 implements Prototype {
    private String name;
    public Prototype clone(){
        ConcretePrototype2 prototype = new ConcretePrototype2();
        prototype.setName(this.name);
        return prototype;
    }
    public String toString(){
        return "Now in Prototype2 , name = " + this.name;
    }
    @Override
    public String getName() {
        return name;
    }
    @Override
    public void setName(String name) {
        this.name = name;
    }
}
public class PrototypeManager {
    /**
     * 用来记录原型的编号和原型实例的对应关系
     */
    private static Map<String,Prototype> map = new HashMap<String,Prototype>();
    /**
     * 私有化构造方法，避免外部创建实例
     */
    private PrototypeManager(){}
    /**
     * 向原型管理器里面添加或是修改某个原型注册
     * @param prototypeId 原型编号
     * @param prototype    原型实例
     */
    public synchronized static void setPrototype(String prototypeId , Prototype prototype){
        map.put(prototypeId, prototype);
    }
    /**
     * 从原型管理器里面删除某个原型注册
     * @param prototypeId 原型编号
     */
    public synchronized static void removePrototype(String prototypeId){
        map.remove(prototypeId);
    }
    /**
     * 获取某个原型编号对应的原型实例
     * @param prototypeId    原型编号
     * @return    原型编号对应的原型实例
     * @throws Exception    如果原型编号对应的实例不存在，则抛出异常
     */
    public synchronized static Prototype getPrototype(String prototypeId) throws Exception{
        Prototype prototype = map.get(prototypeId);
        if(prototype == null){
            throw new Exception("您希望获取的原型还没有注册或已被销毁");
        }
        return prototype;
    }
}
public class Client {
    public static void main(String[]args){
        try{
            Prototype p1 = new ConcretePrototype1();
            PrototypeManager.setPrototype("p1", p1);
            //获取原型来创建对象
            Prototype p3 = PrototypeManager.getPrototype("p1").clone();
            p3.setName("张三");
            System.out.println("第一个实例：" + p3);
            //有人动态的切换了实现
            Prototype p2 = new ConcretePrototype2();
            PrototypeManager.setPrototype("p1", p2);
            //重新获取原型来创建对象
            Prototype p4 = PrototypeManager.getPrototype("p1").clone();
            p4.setName("李四");
            System.out.println("第二个实例：" + p4);
            //有人注销了这个原型
            PrototypeManager.removePrototype("p1");
            //再次获取原型来创建对象
            Prototype p5 = PrototypeManager.getPrototype("p1").clone();
            p5.setName("王五");
            System.out.println("第三个实例：" + p5);
        }catch(Exception e){
            e.printStackTrace();
        }
    }
}
clone()方法将对象复制了一份并返还给调用者。所谓“复制”的含义与clone()方法是怎么实现的。一般而言，clone()方法满足以下的描述：
　　（1）对任何的对象x，都有：x.clone()!=x。换言之，克隆对象与原对象不是同一个对象。
　　（2）对任何的对象x，都有：x.clone().getClass() == x.getClass()，换言之，克隆对象与原对象的类型一样。
　　（3）如果对象x的equals()方法定义其恰当的话，那么x.clone().equals(x)应当成立的。

建造者

public interface Packing {
      public String pack();
}
public class Bottle implements Packing{
      @Override
      public String pack() {
             return "Bottle";
      }
}
public class Wrapper implements Packing{
      @Override
      public String pack() {
             return "Wrapper";
      }
}
public interface Item {
      public String name();
      public Packing packing();
      public float price();
}
public abstract class Burger implements Item{
         @Override
         public Packing packing() {
            return new Wrapper();
         }
         @Override
         public abstract float price();
}
public class VegBurger extends Burger {
      @Override
      public float price() {
            return 25.0f;
      }
      @Override
      public String name() {
            return "Veg Burger";
      }
}
public class ChickenBurger extends Burger {
      @Override
      public float price() {
            return 50.5f;
      }
      @Override
      public String name() {
            return "Chicken Burger";
      }
}
public abstract class ColdDrink implements Item {
      @Override
      public Packing packing() {
            return new Bottle();
      }
      @Override
      public abstract float price();
}
public class Coke extends ColdDrink{
      @Override
         public float price() {
            return 30.0f;
         }
         @Override
         public String name() {
            return "Coke";
         }
}
public class Pepsi extends ColdDrink {
      @Override
      public float price() {
            return 35.0f;
      }
      @Override
      public String name() {
            return "Pepsi";
      }
}
---------------------------------------------------------------------------
---------------------------------------------------------------------------
public class Meal {
      /*
       * 创建一个 Meal 类，带有上面定义的 Item 对象。
       */
      private List<Item> items = new ArrayList<Item>();
      public void addItem(Item item) {
            items.add(item);
      }
      public float getCost() {
            float cost = 0.0f;
            for (Item item : items) {
                  cost += item.price();
            }
            return cost;
      }
      public void showItems() {
            for (Item item : items) {
                  System.out.print("Item : " + item.name());
                  System.out.print(", Packing : " + item.packing().pack());
                  System.out.println(", Price : " + item.price());
            }
      }
}
public class MealBuilder {
      /*
       * 创建一个 MealBuilder 类，实际的 builder 类负责创建 Meal 对象。
       */
      public Meal prepareVegMeal() {
            Meal meal = new Meal();
            meal.addItem(new VegBurger());
            meal.addItem(new Coke());
            return meal;
      }
      public Meal prepareNonVegMeal() {
            Meal meal = new Meal();
            meal.addItem(new ChickenBurger());
            meal.addItem(new Pepsi());
            return meal;
      }
}
public class BuilderPatternDemo {
      /*
       * BuiderPatternDemo 使用 MealBuider 来演示建造者模式（Builder Pattern）。
       */
      public static void main(String[] args) {
            MealBuilder mealBuilder = new MealBuilder();
            Meal vegMeal = mealBuilder.prepareVegMeal();
            System.out.println("Veg Meal");
            vegMeal.showItems();
            System.out.println("Total Cost: " + vegMeal.getCost());
            Meal nonVegMeal = mealBuilder.prepareNonVegMeal();
            System.out.println("\n\nNon-Veg Meal");
            nonVegMeal.showItems();
            System.out.println("Total Cost: " + nonVegMeal.getCost());
      }
}
----------------------------------------------------------------

单例

public class SingleObject {
    // 创建 SingleObject 的一个对象
    private static SingleObject instance = new SingleObject();

    // 让构造函数为 private，这样该类就不会被实例化
    private SingleObject() {
    }
    // 获取唯一可用的对象
    public static SingleObject getInstance() {
        return instance;
    }
    public void showMessage() {
        System.out.println("Hello World!");
    }
    public static void main(String[] args) {
        // 不合法的构造函数
        // 编译时错误：构造函数 SingleObject() 是不可见的
        // SingleObject object = new SingleObject();
        // 获取唯一可用的对象
        SingleObject object = SingleObject.getInstance();
        // 显示消息
        object.showMessage();
    }
}
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
public class Singleton1 {
    /*
    1、懒汉式，线程不安全
    是否 Lazy 初始化：是
    是否多线程安全：否
    实现难度：易
    描述：这种方式是最基本的实现方式，这种实现最大的问题就是不支持多线程。因为没有加锁 synchronized，所以严格意义上它并不算单例模式。
    这种方式 lazy loading 很明显，不要求线程安全，在多线程不能正常工作。
*/
     private static Singleton1 instance;
        private Singleton1 (){}
        public static Singleton1 getInstance() {
        if (instance == null) {
            instance = new Singleton1();
        }
        return instance;
        }
        public void showMessage() {
            System.out.println("Hello World!");
        }
        public static void main(String[] args) {
            Singleton1.getInstance().showMessage();
        }
}
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
public class Singleton2 {
    /*
    2、懒汉式，线程安全
    是否 Lazy 初始化：是
    是否多线程安全：是
    实现难度：易
    描述：这种方式具备很好的 lazy loading，能够在多线程中很好的工作，但是，效率很低，99% 情况下不需要同步。
    优点：第一次调用才初始化，避免内存浪费。
    缺点：必须加锁 synchronized 才能保证单例，但加锁会影响效率。
    getInstance() 的性能对应用程序不是很关键（该方法使用不太频繁）。
    */
    private static Singleton2 instance;
    private Singleton2 (){}
    public static synchronized Singleton2 getInstance() {
    if (instance == null) {
        instance = new Singleton2();
    }
    return instance;
    }
    public void showMessage() {
        System.out.println("Hello World!");
    }
    //-----------
    public static void main(String[] args) {
        Singleton2.getInstance().showMessage();
    }
}
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
public class Singleton3 {
    /*
    3、饿汉式
    是否 Lazy 初始化：否
    是否多线程安全：是
    实现难度：易
    描述：这种方式比较常用，但容易产生垃圾对象。
    优点：没有加锁，执行效率会提高。
    缺点：类加载时就初始化，浪费内存。
    它基于 classloder 机制避免了多线程的同步问题，不过，instance 在类装载时就实例化，虽然导致类装载的原因有很多种，在单例模式中大多数都是调用 getInstance 方法， 但是也不能确定有其他的方式（或者其他的静态方法）导致类装载，这时候初始化 instance 显然没有达到 lazy loading 的效果。
    */
     private static Singleton3 instance = new Singleton3();
        private Singleton3 (){}
        public static Singleton3 getInstance() {
        return instance;
        }
        public void showMessage() {
            System.out.println("Hello World!");
        }
        //-----------
        public static void main(String[] args) {
            Singleton3.getInstance().showMessage();
        }

}
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
public class Singleton4 {
    /*
    4、双检锁/双重校验锁（DCL，即 double-checked locking）
    JDK 版本：JDK1.5 起
    是否 Lazy 初始化：是
    是否多线程安全：是
    实现难度：较复杂
    描述：这种方式采用双锁机制，安全且在多线程情况下能保持高性能。
    getInstance() 的性能对应用程序很关键。
    */
    private volatile static Singleton4 Singleton4;
    private Singleton4 (){}
    public static Singleton4 getSingleton4() {
    if (Singleton4 == null) {
        synchronized (Singleton4.class) {
        if (Singleton4 == null) {
            Singleton4 = new Singleton4();
        }
        }
    }
    return Singleton4;
    }
    public void showMessage() {
        System.out.println("Hello World!");
    }
    //-----------
    public static void main(String[] args) {
        Singleton4.getSingleton4().showMessage();
    }

}
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
public class Singleton5 {
    /*
    5、登记式/静态内部类
    是否 Lazy 初始化：是
    是否多线程安全：是
    实现难度：一般
    描述：这种方式能达到双检锁方式一样的功效，但实现更简单。对静态域使用延迟初始化，应使用这种方式而不是双检锁方式。这种方式只适用于静态域的情况，双检锁方式可在实例域需要延迟初始化时使用。
    */
    private static class SingletonHolder {
        private static final Singleton5 INSTANCE = new Singleton5();
    }
    private Singleton5() {
    }
    public static final Singleton5 getInstance() {
        return SingletonHolder.INSTANCE;
    }
    public void showMessage() {
        System.out.println("Hello World!");
    }
    // -----------
    public static void main(String[] args) {
        Singleton5.getInstance().showMessage();
    }
}
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
public enum Singleton6 {
    /*
    6、枚举
    JDK 版本：JDK1.5 起
    是否 Lazy 初始化：否
    是否多线程安全：是
    实现难度：易
    描述：这种实现方式还没有被广泛采用，但这是实现单例模式的最佳方法。它更简洁，自动支持序列化机制，绝对防止多次实例化。
    */
     INSTANCE;
    public void whateverMethod() {
    }
}

享元

public interface Shape {
    void draw();
}

public class Circle implements Shape {
    private String color;
    private int x;
    private int y;
    private int radius;
    public Circle(String color) {
        this.color = color;
    }
...
    @Override
    public void draw() {
        System.out.println("Circle: Draw() [Color : " + color + ", x : " + x + ", y :" + y + ", radius :" + radius);
    }
}

public class ShapeFactory {
    private static final HashMap<String, Shape> circleMap = new HashMap<>();
    public static Shape getCircle(String color) {
        Circle circle = (Circle) circleMap.get(color);
        if (circle == null) {
            circle = new Circle(color);
            circleMap.put(color, circle);
            System.out.println("Creating circle of color : " + color);
        }
        return circle;
    }
}

public class FlyweightPatternDemo {
    private static final String colors[] = { "Red", "Green", "Blue", "White", "Black" };
    public static void main(String[] args) {
        for (int i = 0; i < 20; ++i) {
            Circle circle = (Circle) ShapeFactory.getCircle(getRandomColor());
            circle.setX(getRandomX());
            circle.setY(getRandomY());
            circle.setRadius(100);
            circle.draw();
        }
    }
    private static String getRandomColor() {
        return colors[(int) (Math.random() * colors.length)];
    }
    private static int getRandomX() {
        return (int) (Math.random() * 100);
    }
    private static int getRandomY() {
        return (int) (Math.random() * 100);
    }
}
-------------------------
单纯享元模式　　所有的享元对象都是可以共享的。
 public interface Flyweight {
    //一个示意性方法，参数state是外蕴状态
    public void operation(String state);
}
public class ConcreteFlyweight implements Flyweight {
    private Character intrinsicState = null;
    /**
     * 构造函数，内蕴状态作为参数传入
     * @param state
     */
    public ConcreteFlyweight(Character state){
        this.intrinsicState = state;
    }
    /**
     * 外蕴状态作为参数传入方法中，改变方法的行为，
     * 但是并不改变对象的内蕴状态。
     */
    @Override
    public void operation(String state) {
        // TODO Auto-generated method stub
        System.out.println("Intrinsic State = " + this.intrinsicState);
        System.out.println("Extrinsic State = " + state);
    }
}
public class FlyweightFactory {
    private Map<Character,Flyweight> files = new HashMap<Character,Flyweight>();
    public Flyweight factory(Character state){
        //先从缓存中查找对象
        Flyweight fly = files.get(state);
        if(fly == null){
            //如果对象不存在则创建一个新的Flyweight对象
            fly = new ConcreteFlyweight(state);
            //把这个新的Flyweight对象添加到缓存中
            files.put(state, fly);
        }
        return fly;
    }
}

复合享元模式
public interface Flyweight {
    //一个示意性方法，参数state是外蕴状态
    public void operation(String state);
}
public class ConcreteFlyweight implements Flyweight {
    private Character intrinsicState = null;
    /**
     * 构造函数，内蕴状态作为参数传入
     * @param state
     */
    public ConcreteFlyweight(Character state){
        this.intrinsicState = state;
    }
    /**
     * 外蕴状态作为参数传入方法中，改变方法的行为，
     * 但是并不改变对象的内蕴状态。
     */
    @Override
    public void operation(String state) {
        // TODO Auto-generated method stub
        System.out.println("Intrinsic State = " + this.intrinsicState);
        System.out.println("Extrinsic State = " + state);
    }
}
public class ConcreteCompositeFlyweight implements Flyweight {
    private Map<Character,Flyweight> files = new HashMap<Character,Flyweight>();
    /**
     * 增加一个新的单纯享元对象到聚集中
     */
    public void add(Character key , Flyweight fly){
        files.put(key,fly);
    }
    /**
     * 外蕴状态作为参数传入到方法中
     */
    @Override
    public void operation(String state) {
        Flyweight fly = null;
        for(Object o : files.keySet()){
            fly = files.get(o);
            fly.operation(state);
        }
    }
}
public class FlyweightFactory {
    private Map<Character,Flyweight> files = new HashMap<Character,Flyweight>();
    /**
     * 复合享元工厂方法
     */
    public Flyweight factory(List<Character> compositeState){
        ConcreteCompositeFlyweight compositeFly = new ConcreteCompositeFlyweight();
        for(Character state : compositeState){
            compositeFly.add(state,this.factory(state));
        }
        return compositeFly;
    }
    /**
     * 单纯享元工厂方法
     */
    public Flyweight factory(Character state){
        //先从缓存中查找对象
        Flyweight fly = files.get(state);
        if(fly == null){
            //如果对象不存在则创建一个新的Flyweight对象
            fly = new ConcreteFlyweight(state);
            //把这个新的Flyweight对象添加到缓存中
            files.put(state, fly);
        }
        return fly;
    }
}

桥接

public interface DrawAPI {
    public void drawCircle(int radius, int x, int y);
}
---------------------------------------------------------------------------
public class GreenCircle implements DrawAPI {
    @Override
    public void drawCircle(int radius, int x, int y) {
         System.out.println("Drawing Circle[ color: green, radius: "
                 + radius +", x: " +x+", "+ y +"]");
    }
}
---------------------------------------------------------------------------
public class RedCircle implements DrawAPI {
    @Override
    public void drawCircle(int radius, int x, int y) {
        System.out.println("Drawing Circle[ color: red, radius: "
                 + radius +", x: " +x+", "+ y +"]");
    }
}
---------------------------------------------------------------------------
public abstract class Shape {
      protected DrawAPI drawAPI;
       protected Shape(DrawAPI drawAPI){
          this.drawAPI = drawAPI;
       }
       public abstract void draw();
}

public class Circle extends Shape {
    private int x;
    private int y;
    private int radius;
       public Circle(int x, int y, int radius, DrawAPI drawAPI) {
          super(drawAPI);
          this.x = x;
          this.y = y;
          this.radius = radius;
       }
       public void draw() {
          drawAPI.drawCircle(radius,x,y);
       }
}
---------------------------------------------------------------------------
public class BridgePatternDemo {
    public static void main(String[] args) {
        Shape redCircle = new Circle(100, 100, 10, new RedCircle());
        Shape greenCircle = new Circle(100, 100, 10, new GreenCircle());
        redCircle.draw();
        greenCircle.draw();
    }
}

组合

public class Employee {
  private String name;
  private String dept;
  private int salary;
  private List<Employee> subordinates;
  // 构造函数
  public Employee(String name, String dept, int sal) {
    this.name = name;
    this.dept = dept;
    this.salary = sal;
    subordinates = new ArrayList<Employee>();
  }
  public void add(Employee e) {
    subordinates.add(e);
  }
  public void remove(Employee e) {
    subordinates.remove(e);
  }
  public List<Employee> getSubordinates() {
    return subordinates;
  }
  public String toString() {
    return ("Employee :[ Name : " + name + ", dept : " + dept + ", salary :" + salary + " ]");
  }
}

public class CompositePatternDemo {
  public static void main(String[] args) {
    Employee CEO = new Employee("John", "CEO", 30000);
    Employee headSales = new Employee("Robert", "Head Sales", 20000);
    Employee headMarketing = new Employee("Michel", "Head Marketing", 20000);
    Employee clerk1 = new Employee("Laura", "Marketing", 10000);
    Employee clerk2 = new Employee("Bob", "Marketing", 10000);
    Employee salesExecutive1 = new Employee("Richard", "Sales", 10000);
    Employee salesExecutive2 = new Employee("Rob", "Sales", 10000);
    CEO.add(headSales);
    CEO.add(headMarketing);
    headSales.add(salesExecutive1);
    headSales.add(salesExecutive2);
    headMarketing.add(clerk1);
    headMarketing.add(clerk2);
    // 打印该组织的所有员工
    System.out.println(CEO);
    for (Employee headEmployee : CEO.getSubordinates()) {
      System.out.println(headEmployee);
      for (Employee employee : headEmployee.getSubordinates()) {
        System.out.println(employee);
        for (Employee employee2 : employee.getSubordinates()) {
          System.out.println(employee2);
        }
      }
    }
  }
}

装饰器

public interface Shape {
    void draw();
}
---------------------------------------------------------------------------
public class Circle implements Shape {
    @Override
    public void draw() {
         System.out.println("Shape: Circle");
    }
}
---------------------------------------------------------------------------
public class Rectangle implements Shape {
    @Override
    public void draw() {
        System.out.println("Shape: Rectangle");
    }
}
---------------------------------------------------------------------------
public abstract class ShapeDecorator implements Shape {
   protected Shape decoratedShape;
   public ShapeDecorator(Shape decoratedShape){
      this.decoratedShape = decoratedShape;
   }
   public void draw(){
      decoratedShape.draw();
   }
}
---------------------------------------------------------------------------
public class RedShapeDecorator extends ShapeDecorator {
    public RedShapeDecorator(Shape decoratedShape) {
        super(decoratedShape);
    }
    @Override
    public void draw() {
        decoratedShape.draw();
        setRedBorder(decoratedShape);
    }
    private void setRedBorder(Shape decoratedShape) {
        System.out.println("Border Color: Red");
    }
}
---------------------------------------------------------------------------
public class DecoratorPatternDemo {
    public static void main(String[] args) {
        Shape circle = new Circle();
        Shape redCircle = new RedShapeDecorator(new Circle());
        Shape redRectangle = new RedShapeDecorator(new Rectangle());
        System.out.println("Circle with normal border");
        circle.draw();
        System.out.println("\nCircle of red border");
        redCircle.draw();
        System.out.println("\nRectangle of red border");
        redRectangle.draw();
    }
}

适配器

public interface Target {
    void method1();
    void method2();
}
public class Adaptee {
    public void method1(){
        System.out.println("method 1");
    }
}

类适配器
public class Adapter extends Adaptee implements Target {
    @Override
    public void method2() {
        System.out.println("method 2");
    }
}

// 测试
class AdapterTest {
    public static void main(String[] args) {
        Adapter adapter = new Adapter();
        adapter.method1();
        adapter.method2();
    }
}
对象适配器
public class Adapter implements Target {
    private Adaptee adaptee;
    public Adapter(Adaptee adaptee) {
        this.adaptee = adaptee;
    }
    @Override
    public void method1() {
        adaptee.method1();
    }
    @Override
    public void method2() {
        System.out.println("method 2");
    }
}
接口适配器
interface 窗口{
  public void 关闭();
  public void 移动();
  public ovid 最大化();
  ...
  ...
}
public abstract Frame implements 窗口{
public void 关闭(){
}
public void 移动(){
}
public ovid 最大化(){
}
...
}
public CloseFrame extends Frame{
public void 关闭(){
System.out.println("关闭窗口");

}
}
--------------
---------------------------------------------------------------------------
---------------------------------------------------------------------------

public interface AdvancedMediaPlayer {
       public void playVlc(String fileName);
       public void playMp4(String fileName);
}
public class Mp4Player implements AdvancedMediaPlayer{
     @Override
       public void playVlc(String fileName) {
        //什么也不做
       }
       @Override
       public void playMp4(String fileName) {
           System.out.println("Playing Mp4 file. Name: "+ fileName);
       }
}
---------------------------------------------------------------------------
---------------------------------------------------------------------------
public class VlcPlayer implements AdvancedMediaPlayer{
     @Override
       public void playVlc(String fileName) {
          System.out.println("Playing vlc file. Name: "+ fileName);
       }
       @Override
       public void playMp4(String fileName) {
          //什么也不做
       }
}
---------------------------------------------------------------------------
---------------------------------------------------------------------------
public interface MediaPlayer {
     public void play(String audioType, String fileName);
}
---------------------------------------------------------------------------
---------------------------------------------------------------------------
public class AudioPlayer implements MediaPlayer {
     MediaAdapter mediaAdapter;
       @Override
       public void play(String audioType, String fileName) {
          //播放 mp3 音乐文件的内置支持
          if(audioType.equalsIgnoreCase("mp3")){
             System.out.println("Playing mp3 file. Name: "+ fileName);
          }
          //mediaAdapter 提供了播放其他文件格式的支持
          else if(audioType.equalsIgnoreCase("vlc")
             || audioType.equalsIgnoreCase("mp4")){
             mediaAdapter = new MediaAdapter(audioType);
             mediaAdapter.play(audioType, fileName);
          }
          else{
             System.out.println("Invalid media. "+
                audioType + " format not supported");
          }
       }

}
---------------------------------------------------------------------------
---------------------------------------------------------------------------
public class MediaAdapter implements MediaPlayer {
       private  AdvancedMediaPlayer advancedMusicPlayer;
       public MediaAdapter(String audioType){
          if(audioType.equalsIgnoreCase("vlc") ){
             advancedMusicPlayer = new VlcPlayer();
          } else if (audioType.equalsIgnoreCase("mp4")){
             advancedMusicPlayer = new Mp4Player();
          }
       }
       @Override
       public void play(String audioType, String fileName) {
          if(audioType.equalsIgnoreCase("vlc")){
             advancedMusicPlayer.playVlc(fileName);
          }else if(audioType.equalsIgnoreCase("mp4")){
             advancedMusicPlayer.playMp4(fileName);
          }
       }
}

---------------------------------------------------------------------------
---------------------------------------------------------------------------
public class AdapterPatternDemo {
    public static void main(String[] args) {
        AudioPlayer audioPlayer = new AudioPlayer();
        audioPlayer.play("mp3", "beyond the horizon.mp3");
        audioPlayer.play("mp4", "alone.mp4");
        audioPlayer.play("vlc", "far far away.vlc");
        audioPlayer.play("avi", "mind me.avi");
    }
}
---------------------------------------------------------------------------
---------------------------------------------------------------------------

外观

public interface Shape {
  void draw();
}
----------------------------------------------------------------------
----------------------------------------------------------------------
public class Rectangle implements Shape {
  @Override
  public void draw() {
    System.out.println("Rectangle::draw()");
  }
}
----------------------------------------------------------------------
----------------------------------------------------------------------
public class Circle implements Shape {
  @Override
  public void draw() {
     System.out.println("Circle::draw()");
  }
}
----------------------------------------------------------------------
----------------------------------------------------------------------
public class Square implements Shape {
  @Override
  public void draw() {
    System.out.println("Square::draw()");
  }
}
----------------------------------------------------------------------
----------------------------------------------------------------------
public class ShapeMaker {
  private Shape circle;
  private Shape rectangle;
  private Shape square;
  public ShapeMaker() {
    circle = new Circle();
    rectangle = new Rectangle();
    square = new Square();
  }
  public void drawCircle() {
    circle.draw();
  }
  public void drawRectangle() {
    rectangle.draw();
  }
  public void drawSquare() {
    square.draw();
  }
}
----------------------------------------------------------------------
----------------------------------------------------------------------
public class FacadePatternDemo {
  public static void main(String[] args) {
    ShapeMaker shapeMaker = new ShapeMaker();
    shapeMaker.drawCircle();
    shapeMaker.drawRectangle();
    shapeMaker.drawSquare();
  }
}

代理

public interface Image {
	void display();
}
public class RealImage implements Image {
	private String fileName;
	public RealImage(String fileName) {
		this.fileName = fileName;
		loadFromDisk(fileName);
	}
	public void display() {
		System.out.println("Displaying " + fileName);
	}
	private void loadFromDisk(String fileName) {
		System.out.println("Loading " + fileName);
	}
}
public class ProxyImage implements Image {
	 private RealImage realImage;
	   private String fileName;
	   public ProxyImage(String fileName){
	      this.fileName = fileName;
	   }
	   @Override
	   public void display() {
	      if(realImage == null){
	         realImage = new RealImage(fileName);
	      }
	      realImage.display();
	   }
}

public class ProxyPatternDemo {
	public static void main(String[] args) {
		Image image = new ProxyImage("test_10mb.jpg");
		// 图像将从磁盘加载
		image.display();
		System.out.println("");
		// 图像将无法从磁盘加载
		image.display();
	}
}

过滤

public class Person implements Serializable {
	private static final long serialVersionUID = 1L;
	private String name;
	private String gender;
	private String maritalStatus;
	public Person(String name, String gender, String maritalStatus) {
		this.name = name;
		this.gender = gender;
		this.maritalStatus = maritalStatus;
	}
   ...
}
--------------------------------------------------------------------------------------
--------------------------------------------------------------------------------------
public interface Criteria {
	public List<Person> meetCriteria(List<Person> persons);
}
--------------------------------------------------------------------------------------
--------------------------------------------------------------------------------------
public class CriteriaFemale implements Criteria {
	@Override
	public List<Person> meetCriteria(List<Person> persons) {
		List<Person> femalePersons = new ArrayList<Person>();
	      for (Person person : persons) {
	         if(person.getGender().equalsIgnoreCase("FEMALE")){
	            femalePersons.add(person);
	         }
	      }
	      return femalePersons;
	}
}
--------------------------------------------------------------------------------------
--------------------------------------------------------------------------------------
public class CriteriaMale implements Criteria {
	@Override
	public List<Person> meetCriteria(List<Person> persons) {
		List<Person> malePersons = new ArrayList<Person>();
		for (Person person : persons) {
			if (person.getGender().equalsIgnoreCase("MALE")) {
				malePersons.add(person);
			}
		}
		return malePersons;
	}
}
--------------------------------------------------------------------------------------
--------------------------------------------------------------------------------------
public class CriteriaSingle implements Criteria {
	@Override
	public List<Person> meetCriteria(List<Person> persons) {
		List<Person> singlePersons = new ArrayList<Person>();
	      for (Person person : persons) {
	         if(person.getMaritalStatus().equalsIgnoreCase("SINGLE")){
	            singlePersons.add(person);
	         }
	      }
	      return singlePersons;
	}
}
--------------------------------------------------------------------------------------
--------------------------------------------------------------------------------------
public class AndCriteria implements Criteria {
	private Criteria criteria;
	private Criteria otherCriteria;
	public AndCriteria(Criteria criteria, Criteria otherCriteria) {
		this.criteria = criteria;
		this.otherCriteria = otherCriteria;
	}
	@Override
	public List<Person> meetCriteria(List<Person> persons) {
		List<Person> firstCriteriaPersons = criteria.meetCriteria(persons);
		return otherCriteria.meetCriteria(firstCriteriaPersons);
	}
}
--------------------------------------------------------------------------------------
--------------------------------------------------------------------------------------
public class OrCriteria implements Criteria {
	private Criteria criteria;
	private Criteria otherCriteria;
	public OrCriteria(Criteria criteria, Criteria otherCriteria) {
		this.criteria = criteria;
		this.otherCriteria = otherCriteria;
	}
	@Override
	public List<Person> meetCriteria(List<Person> persons) {
		List<Person> firstCriteriaItems = criteria.meetCriteria(persons);
		List<Person> otherCriteriaItems = otherCriteria.meetCriteria(persons);
		for (Person person : otherCriteriaItems) {
			if (!firstCriteriaItems.contains(person)) {
				firstCriteriaItems.add(person);
			}
		}
		return firstCriteriaItems;
	}
}
--------------------------------------------------------------------------------------
--------------------------------------------------------------------------------------
public class CriteriaPatternDemo {
	public static void main(String[] args) {
		  List<Person> persons = new ArrayList<Person>();
	      persons.add(new Person("Robert","Male", "Single"));
	      persons.add(new Person("John","Male", "Married"));
	      persons.add(new Person("Laura","Female", "Married"));
	      persons.add(new Person("Diana","Female", "Single"));
	      persons.add(new Person("Mike","Male", "Single"));
	      persons.add(new Person("Bobby","Male", "Single"));
	      Criteria male = new CriteriaMale();
	      Criteria female = new CriteriaFemale();
	      Criteria single = new CriteriaSingle();
	      Criteria singleMale = new AndCriteria(single, male);
	      Criteria singleOrFemale = new OrCriteria(single, female);
	      System.out.println("Males: ");
	      printPersons(male.meetCriteria(persons));
	      System.out.println("\nFemales: ");
	      printPersons(female.meetCriteria(persons));
	      System.out.println("\nSingle Males: ");
	      printPersons(singleMale.meetCriteria(persons));
	      System.out.println("\nSingle Or Females: ");
	      printPersons(singleOrFemale.meetCriteria(persons));
	   }

	   public static void printPersons(List<Person> persons){
	      for (Person person : persons) {
	         System.out.println("Person : [ Name : " + person.getName()
	            +", Gender : " + person.getGender()
	            +", Marital Status : " + person.getMaritalStatus()
	            +" ]");
	      }
	   }
}
--------------------------------------------------------------------------------------
--------------------------------------------------------------------------------------

命令command

public class Stock {
	private String name = "ABC";
	private int quantity = 10;
	public void buy() {
		System.out.println("Stock [ Name: " + name + ",	         Quantity: " + quantity + " ] bought");
	}
	public void sell() {
		System.out.println("Stock [ Name: " + name + ", 	         Quantity: " + quantity + " ] sold");
	}
}
--------------------------------------------------------------------------
--------------------------------------------------------------------------
public interface Order {
	void execute();
}
--------------------------------------------------------------------------
--------------------------------------------------------------------------
public class BuyStock implements Order{
	private Stock abcStock;
	public BuyStock(Stock abcStock) {
		this.abcStock = abcStock;
	}
	public void execute() {
		abcStock.buy();
	}
}
--------------------------------------------------------------------------
--------------------------------------------------------------------------
public class SellStock implements Order {
	private Stock abcStock;
	public SellStock(Stock abcStock) {
		this.abcStock = abcStock;
	}
	public void execute() {
		abcStock.sell();
	}
}
--------------------------------------------------------------------------
--------------------------------------------------------------------------
public class Broker {
	private List<Order> orderList = new ArrayList<Order>();
	public void takeOrder(Order order) {
		orderList.add(order);
	}
	public void placeOrders() {
		for (Order order : orderList) {
			order.execute();
		}
		orderList.clear();
	}
}
--------------------------------------------------------------------------
--------------------------------------------------------------------------
public class CommandPatternDemo {
	public static void main(String[] args) {
		Stock abcStock = new Stock();
		BuyStock buyStockOrder = new BuyStock(abcStock);
		SellStock sellStockOrder = new SellStock(abcStock);
		Broker broker = new Broker();
		broker.takeOrder(buyStockOrder);
		broker.takeOrder(sellStockOrder);
		broker.placeOrders();
	}
}

责任链chain

-----------------------------------------------------------------
-----------------------------------------------------------------
public abstract class AbstractLogger {
	public static int INFO = 1;
	public static int DEBUG = 2;
	public static int ERROR = 3;
	protected int level;
	// 责任链中的下一个元素
	protected AbstractLogger nextLogger;
	public void setNextLogger(AbstractLogger nextLogger) {
		this.nextLogger = nextLogger;
	}
	public void logMessage(int level, String message) {
		if (this.level <= level) {
			write(message);
		}
		if (nextLogger != null) {
			nextLogger.logMessage(level, message);
		}
	}
	abstract protected void write(String message);
}
-----------------------------------------------------------------
-----------------------------------------------------------------
public class ConsoleLogger extends AbstractLogger {
	 public ConsoleLogger(int level){
	      this.level = level;
	   }
	   @Override
	   protected void write(String message) {
	      System.out.println("Standard Console::Logger: " + message);
	   }
}
-----------------------------------------------------------------
-----------------------------------------------------------------
public class ErrorLogger extends AbstractLogger {
	public ErrorLogger(int level){
	      this.level = level;
	   }
	   @Override
	   protected void write(String message) {
	      System.out.println("Error Console::Logger: " + message);
	   }
}
-----------------------------------------------------------------
-----------------------------------------------------------------
public class FileLogger extends AbstractLogger {
	 public FileLogger(int level){
	      this.level = level;
	   }
	   @Override
	   protected void write(String message) {
	      System.out.println("File::Logger: " + message);
	   }
}
-----------------------------------------------------------------
-----------------------------------------------------------------
public class ChainPatternDemo {
	private static AbstractLogger getChainOfLoggers() {
		AbstractLogger errorLogger = new ErrorLogger(AbstractLogger.ERROR);
		AbstractLogger fileLogger = new FileLogger(AbstractLogger.DEBUG);
		AbstractLogger consoleLogger = new ConsoleLogger(AbstractLogger.INFO);
		fileLogger.setNextLogger(consoleLogger);
		errorLogger.setNextLogger(fileLogger);
		return errorLogger;
	}
	public static void main(String[] args) {
		AbstractLogger loggerChain = getChainOfLoggers();
		loggerChain.logMessage(AbstractLogger.INFO, "This is an information.");
		loggerChain.logMessage(AbstractLogger.DEBUG, "This is an debug level information.");
		loggerChain.logMessage(AbstractLogger.ERROR, "This is an error information.");
	}
}

解释器interpreter

public interface Expression {
	public boolean interpret(String context);
}
-------------------------------------------------------------------
-------------------------------------------------------------------
public class AndExpression implements Expression {
	private Expression expr1 = null;
	private Expression expr2 = null;
	public AndExpression(Expression expr1, Expression expr2) {
		this.expr1 = expr1;
		this.expr2 = expr2;
	}
	@Override
	public boolean interpret(String context) {
		return expr1.interpret(context) && expr2.interpret(context);
	}
}
-------------------------------------------------------------------
-------------------------------------------------------------------
public class OrExpression implements Expression {
	private Expression expr1 = null;
	private Expression expr2 = null;
	public OrExpression(Expression expr1, Expression expr2) {
		this.expr1 = expr1;
		this.expr2 = expr2;
	}
	@Override
	public boolean interpret(String context) {
		return expr1.interpret(context) || expr2.interpret(context);
	}
}
-------------------------------------------------------------------
-------------------------------------------------------------------
public class TerminalExpression implements Expression {
	private String data;
	public TerminalExpression(String data) {
		this.data = data;
	}
	@Override
	public boolean interpret(String context) {
		if (context.contains(data)) {
			return true;
		}
		return false;
	}
}
-------------------------------------------------------------------
-------------------------------------------------------------------
public class InterpreterPatternDemo {
	// 规则：Robert 和 John 是男性
	public static Expression getMaleExpression() {
		Expression robert = new TerminalExpression("Robert");
		Expression john = new TerminalExpression("John");
		return new OrExpression(robert, john);
	}
	// 规则：Julie 是一个已婚的女性
	public static Expression getMarriedWomanExpression() {
		Expression julie = new TerminalExpression("Julie");
		Expression married = new TerminalExpression("Married");
		return new AndExpression(julie, married);
	}
	public static void main(String[] args) {
		Expression isMale = getMaleExpression();
		Expression isMarriedWoman = getMarriedWomanExpression();
		System.out.println("John is male? " + isMale.interpret("John"));
		System.out.println("Julie is a married women? " + isMarriedWoman.interpret("Married Julie"));
	}
}

迭代子iterator

----------------------------------------------------------------
----------------------------------------------------------------
public interface Iterator {
	public boolean hasNext();
	public Object next();
}
----------------------------------------------------------------
----------------------------------------------------------------
public interface Container {
	public Iterator getIterator();
}
----------------------------------------------------------------
----------------------------------------------------------------
public class NameRepository implements Container {
	public String names[] = { "Robert", "John", "Julie", "Lora" };
	@Override
	public Iterator getIterator() {
		return new NameIterator();
	}
	private class NameIterator implements Iterator {
		int index;
		@Override
		public boolean hasNext() {
			if (index < names.length) {
				return true;
			}
			return false;
		}
		@Override
		public Object next() {
			if (this.hasNext()) {
				return names[index++];
			}
			return null;
		}
	}
}
----------------------------------------------------------------
----------------------------------------------------------------
public class IteratorPatternDemo {
	 public static void main(String[] args) {
	      NameRepository namesRepository = new NameRepository();
	      for(Iterator iter = namesRepository.getIterator(); iter.hasNext();){
	         String name = (String)iter.next();
	         System.out.println("Name : " + name);
	      }
	   }
}

中介者mediator

//创建中介类。
public class ChatRoom {
	public static void showMessage(User user, String message){
	      System.out.println(new Date().toString()
	         + " [" + user.getName() +"] : " + message);
	   }
}
--------------------------------------------------------------------------------------
--------------------------------------------------------------------------------------
//创建 user 类。
public class User {
	 private String name;
	   public String getName() {
	      return name;
	   }
	   public void setName(String name) {
	      this.name = name;
	   }
	   public User(String name){
	      this.name  = name;
	   }
	   public void sendMessage(String message){
	      ChatRoom.showMessage(this,message);
	   }
}
--------------------------------------------------------------------------------------
--------------------------------------------------------------------------------------
public class MediatorPatternDemo {
	public static void main(String[] args) {
	      User robert = new User("Robert");
	      User john = new User("John");
	      robert.sendMessage("Hi! John!");
	      john.sendMessage("Hello! Robert!");
	   }
}

观察者observer

public class Subject {
	private List<Observer> observers = new ArrayList<Observer>();
	private int state;
	public int getState() {
		return state;
	}
	public void setState(int state) {
		this.state = state;
		notifyAllObservers();
	}
	public void attach(Observer observer) {
		observers.add(observer);
	}
	public void notifyAllObservers() {
		for (Observer observer : observers) {
			observer.update();
		}
	}
}
---------------------------------------------------------------------
---------------------------------------------------------------------
public abstract class Observer {
	protected Subject subject;
	public abstract void update();
}
---------------------------------------------------------------------
---------------------------------------------------------------------
public class BinaryObserver extends Observer {
	public BinaryObserver(Subject subject) {
		this.subject = subject;
		this.subject.attach(this);
	}
	@Override
	public void update() {
		System.out.println("Binary String: " + Integer.toBinaryString(subject.getState()));
	}
}
---------------------------------------------------------------------
---------------------------------------------------------------------
public class HexaObserver extends Observer {
	public HexaObserver(Subject subject) {
		this.subject = subject;
		this.subject.attach(this);
	}
	@Override
	public void update() {
		System.out.println("Hex String: " + Integer.toHexString(subject.getState()).toUpperCase());
	}
}
---------------------------------------------------------------------
---------------------------------------------------------------------
public class OctalObserver extends Observer {
	public OctalObserver(Subject subject) {
		this.subject = subject;
		this.subject.attach(this);
	}
	@Override
	public void update() {
		System.out.println("Octal String: " + Integer.toOctalString(subject.getState()));
	}
}
---------------------------------------------------------------------
---------------------------------------------------------------------
public class ObserverPatternDemo {
	public static void main(String[] args) {
		Subject subject = new Subject();
		new HexaObserver(subject);
		new OctalObserver(subject);
		new BinaryObserver(subject);
		System.out.println("First state change: 15");
		subject.setState(15);
		System.out.println("Second state change: 10");
		subject.setState(10);
	}
}
---------------------------------------------------------------------
---------------------------------------------------------------------

备忘录memento

--------------------------------------------------------------------------------
--------------------------------------------------------------------------------
public class Memento {
    private String state;
    public Memento(String state) {
        this.state = state;
    }
    public String getState() {
        return state;
    }
}
--------------------------------------------------------------------------------
--------------------------------------------------------------------------------
public class Originator {
    private String state;
    public void setState(String state) {
        this.state = state;
    }
    public String getState() {
        return state;
    }
    public Memento saveStateToMemento() {
        return new Memento(state);
    }
    public void getStateFromMemento(Memento Memento) {
        state = Memento.getState();
    }
}
--------------------------------------------------------------------------------
--------------------------------------------------------------------------------
public class CareTaker {
    private List<Memento> mementoList = new ArrayList<Memento>();
    public void add(Memento state) {
        mementoList.add(state);
    }
    public Memento get(int index) {
        return mementoList.get(index);
    }
}

--------------------------------------------------------------------------------
--------------------------------------------------------------------------------
public class MementoPatternDemo {
    public static void main(String[] args) {
          Originator originator = new Originator();
          CareTaker careTaker = new CareTaker();
          originator.setState("State #1");
          originator.setState("State #2");
          careTaker.add(originator.saveStateToMemento());
          originator.setState("State #3");
          careTaker.add(originator.saveStateToMemento());
          originator.setState("State #4");

          System.out.println("Current State: " + originator.getState());
          originator.getStateFromMemento(careTaker.get(0));
          System.out.println("First saved State: " + originator.getState());
          originator.getStateFromMemento(careTaker.get(1));
          System.out.println("Second saved State: " + originator.getState());
       }
}

模板方法template

------------------------------------------------------------------------------
------------------------------------------------------------------------------
public abstract class Game {
  protected abstract void initialize();
  protected abstract void startPlay();
  protected abstract void endPlay();
  // 模板
  public final void play() {
    // 初始化游戏
    initialize();
    // 开始游戏
    startPlay();
    // 结束游戏
    endPlay();
  }
}
------------------------------------------------------------------------------
------------------------------------------------------------------------------
public class Cricket extends Game {
     @Override
     protected void endPlay() {
        System.out.println("Cricket Game Finished!");
     }
     @Override
     protected void initialize() {
        System.out.println("Cricket Game Initialized! Start playing.");
     }
     @Override
     protected void startPlay() {
        System.out.println("Cricket Game Started. Enjoy the game!");
     }
}
------------------------------------------------------------------------------
------------------------------------------------------------------------------
public class Football extends Game {
  @Override
  protected void endPlay() {
    System.out.println("Football Game Finished!");
  }
  @Override
  protected void initialize() {
    System.out.println("Football Game Initialized! Start playing.");
  }
  @Override
  protected void startPlay() {
    System.out.println("Football Game Started. Enjoy the game!");
  }
}
------------------------------------------------------------------------------
------------------------------------------------------------------------------
public class TemplatePatternDemo {
  public static void main(String[] args) {
    Game game = new Cricket();
    game.play();
    System.out.println();
    game = new Football();
    game.play();
  }
}

访问者visitor

---------------------------------------------------------------------------------------------
public interface ComputerPart {
  public void accept(ComputerPartVisitor computerPartVisitor);
}
---------------------------------------------------------------------------------------------
public class Computer implements ComputerPart {
  ComputerPart[] parts;
  public Computer() {
    parts = new ComputerPart[] { new Mouse(), new Keyboard(), new Monitor() };
  }
  @Override
  public void accept(ComputerPartVisitor computerPartVisitor) {
    for (int i = 0; i < parts.length; i++) {
      parts[i].accept(computerPartVisitor);
    }
    computerPartVisitor.visit(this);
  }
}
---------------------------------------------------------------------------------------------
public class Keyboard implements ComputerPart {
  @Override
  public void accept(ComputerPartVisitor computerPartVisitor) {
    computerPartVisitor.visit(this);
  }
}
---------------------------------------------------------------------------------------------
public class Monitor implements ComputerPart {
   @Override
     public void accept(ComputerPartVisitor computerPartVisitor) {
        computerPartVisitor.visit(this);
     }
}
---------------------------------------------------------------------------------------------
public class Mouse implements ComputerPart {
  @Override
  public void accept(ComputerPartVisitor computerPartVisitor) {
    computerPartVisitor.visit(this);
  }
}
---------------------------------------------------------------------------------------------
public interface ComputerPartVisitor {
  public void visit(Computer computer);
  public void visit(Mouse mouse);
  public void visit(Keyboard keyboard);
  public void visit(Monitor monitor);
}
---------------------------------------------------------------------------------------------
public class ComputerPartDisplayVisitor implements ComputerPartVisitor {
  @Override
  public void visit(Computer computer) {
    System.out.println("Displaying Computer.");
  }
  @Override
  public void visit(Mouse mouse) {
    System.out.println("Displaying Mouse.");
  }
  @Override
  public void visit(Keyboard keyboard) {
    System.out.println("Displaying Keyboard.");
  }
  @Override
  public void visit(Monitor monitor) {
    System.out.println("Displaying Monitor.");
  }
}
---------------------------------------------------------------------------------------------
public class VisitorPatternDemo {
  public static void main(String[] args) {
    ComputerPart computer = new Computer();
    computer.accept(new ComputerPartDisplayVisitor());
  }
}

状态state

---------------------------------------------------------------------------
public interface State {
   public void doAction(Context context);
}
---------------------------------------------------------------------------
public class StartState implements State {
     public void doAction(Context context) {
        System.out.println("Player is in start state");
        context.setState(this);
     }
     public String toString(){
        return "Start State";
     }
  }
---------------------------------------------------------------------------
public class StopState implements State {
  public void doAction(Context context) {
    System.out.println("Player is in stop state");
    context.setState(this);
  }
  public String toString() {
    return "Stop State";
  }
}
---------------------------------------------------------------------------
public class Context {
   private State state;
     public Context(){
        state = null;
     }
     public void setState(State state){
        this.state = state;
     }
     public State getState(){
        return state;
     }
}
---------------------------------------------------------------------------
public class StatePatternDemo {
   public static void main(String[] args) {
        Context context = new Context();
        StartState startState = new StartState();
        startState.doAction(context);
        System.out.println(context.getState().toString());
        StopState stopState = new StopState();
        stopState.doAction(context);
        System.out.println(context.getState().toString());
     }
}

策略strategy

--------------------------------------------------------------------
public interface Strategy {
  public int doOperation(int num1, int num2);
}
--------------------------------------------------------------------
public class OperationAdd implements Strategy {
  @Override
  public int doOperation(int num1, int num2) {
    return num1 + num2;
  }
}
--------------------------------------------------------------------
public class OperationMultiply implements Strategy {
  @Override
  public int doOperation(int num1, int num2) {
    return num1 * num2;
  }
}
--------------------------------------------------------------------
public class OperationSubstract implements Strategy {
  @Override
  public int doOperation(int num1, int num2) {
    return num1 - num2;
  }
}

--------------------------------------------------------------------
public class Context {
  private Strategy strategy;
  public Context(Strategy strategy) {
    this.strategy = strategy;
  }
  public int executeStrategy(int num1, int num2) {
    return strategy.doOperation(num1, num2);
  }
}

--------------------------------------------------------------------
public class StrategyPatternDemo {
  public static void main(String[] args) {
    Context context = new Context(new OperationAdd());
    System.out.println("10 + 5 = " + context.executeStrategy(10, 5));
    context = new Context(new OperationSubstract());
    System.out.println("10 - 5 = " + context.executeStrategy(10, 5));
    context = new Context(new OperationMultiply());
    System.out.println("10 * 5 = " + context.executeStrategy(10, 5));
  }
}

数组前m拦业务空传

数据访问对象模式dataAccess
组合实体模式compositeentity
前端控制模式frontcontroller
MVC 模式
拦截过滤器模式interceptingFilte
业务代表模式businessDelegate
服务器定位模式servicelocator
空对象模式nullobject
传输对象模式transferObject

------------------------------------------------------------------------------
public class Student {
    private String name;
    private int rollNo;
    Student(String name, int rollNo) {
        this.name = name;
        this.rollNo = rollNo;
    }
    g/s...
}
------------------------------------------------------------------------------
public interface StudentDao {
    public List<Student> getAllStudents();
    public Student getStudent(int rollNo);
    public void updateStudent(Student student);
    public void deleteStudent(Student student);
}
------------------------------------------------------------------------------
public class StudentDaoImpl implements StudentDao {
    // 列表是当作一个数据库
    List<Student> students;
    public StudentDaoImpl() {
        students = new ArrayList<Student>();
        Student student1 = new Student("Robert", 0);
        Student student2 = new Student("John", 1);
        students.add(student1);
        students.add(student2);
    }
    public void deleteStudent(Student student) {
        students.remove(student.getRollNo());
        System.out.println("Student: Roll No " + student.getRollNo() + ", deleted from database");
    }
    // 从数据库中检索学生名单
    public List<Student> getAllStudents() {
        return students;
    }
    @Override
    public Student getStudent(int rollNo) {
        return students.get(rollNo);
    }
    @Override
    public void updateStudent(Student student) {
        students.get(student.getRollNo()).setName(student.getName());
        System.out.println("Student: Roll No " + student.getRollNo() + ", updated in the database");
    }
}
------------------------------------------------------------------------------
public class DaoPatternDemo {
    public static void main(String[] args) {
        StudentDao studentDao = new StudentDaoImpl();
        // 输出所有的学生
        for (Student student : studentDao.getAllStudents()) {
            System.out.println("Student: [RollNo : " + student.getRollNo() + ", Name : " + student.getName() + " ]");
        }
        // 更新学生
        Student student = studentDao.getAllStudents().get(0);
        student.setName("Michael");
        studentDao.updateStudent(student);
        // 获取学生
        studentDao.getStudent(0);
        System.out.println("Student: [RollNo : " + student.getRollNo() + ", Name : " + student.getName() + " ]");
    }
}

// 创建依赖对象。
public class DependentObject1 {
    private String data;
    public void setData(String data) {
        this.data = data;
    }
    public String getData() {
        return data;
    }
}
------------------------------------------------------------------------
public class DependentObject2 {
    private String data;
    public void setData(String data) {
        this.data = data;
    }
    public String getData() {
        return data;
    }
}
------------------------------------------------------------------------
// 创建粗粒度对象
public class CoarseGrainedObject {
    DependentObject1 do1 = new DependentObject1();
    DependentObject2 do2 = new DependentObject2();
    public void setData(String data1, String data2) {
        do1.setData(data1);
        do2.setData(data2);
    }
    public String[] getData() {
        return new String[] { do1.getData(), do2.getData() };
    }
}
------------------------------------------------------------------------
// 创建组合实体。
public class CompositeEntity {
    private CoarseGrainedObject cgo = new CoarseGrainedObject();
    public void setData(String data1, String data2) {
        cgo.setData(data1, data2);
    }
    public String[] getData() {
        return cgo.getData();
    }
}
------------------------------------------------------------------------
//创建使用组合实体的客户端类。
public class Client {
    private CompositeEntity compositeEntity = new CompositeEntity();
    public void printData() {
        for (int i = 0; i < compositeEntity.getData().length; i++) {
            System.out.println("Data: " + compositeEntity.getData()[i]);
        }
    }
    public void setData(String data1, String data2) {
        compositeEntity.setData(data1, data2);
    }
}
------------------------------------------------------------------------
public class CompositeEntityPatternDemo {
    public static void main(String[] args) {
        Client client = new Client();
        client.setData("Test", "Data");
        client.printData();
        client.setData("Second Test", "Data1");
        client.printData();
    }
}


public class HomeView {
    public void show() {
        System.out.println("Displaying Home Page");
    }
}
------------------------------------------------------------------------
public class StudentView {
    public void show() {
        System.out.println("Displaying Student Page");
    }
}
------------------------------------------------------------------------
public class Dispatcher {
    private StudentView studentView;
    private HomeView homeView;
    public Dispatcher() {
        studentView = new StudentView();
        homeView = new HomeView();
    }
    public void dispatch(String request) {
        if (request.equalsIgnoreCase("STUDENT")) {
            studentView.show();
        } else {
            homeView.show();
        }
    }
}
------------------------------------------------------------------------
public class FrontController {
    private Dispatcher dispatcher;
    public FrontController() {
        dispatcher = new Dispatcher();
    }
    private boolean isAuthenticUser() {
        System.out.println("User is authenticated successfully.");
        return true;
    }
    private void trackRequest(String request) {
        System.out.println("Page requested: " + request);
    }
    public void dispatchRequest(String request) {
        // 记录每一个请求
        trackRequest(request);
        // 对用户进行身份验证
        if (isAuthenticUser()) {
            dispatcher.dispatch(request);
        }
    }
}
------------------------------------------------------------------------
public class FrontControllerPatternDemo {
    public static void main(String[] args) {
        FrontController frontController = new FrontController();
        frontController.dispatchRequest("HOME");
        frontController.dispatchRequest("STUDENT");
    }
}
------------------------------------------------------------------------

-----------------------------------------
public class Student {
    private String rollNo;
    private String name;
    g/s...
}
-----------------------------------------
public class StudentController {
    private Student model;
    private StudentView view;
    public StudentController(Student model, StudentView view) {
        this.model = model;
        this.view = view;
    }
    g/s...
    public void updateView() {
        view.printStudentDetails(model.getName(), model.getRollNo());
    }
}
-----------------------------------------
public class StudentView {
    public void printStudentDetails(String studentName, String studentRollNo) {
        System.out.println("Student: ");
        System.out.println("Name: " + studentName);
        System.out.println("Roll No: " + studentRollNo);
    }
}
-----------------------------------------
public class MVCPatternDemo {
    public static void main(String[] args) {
        // 从数据可获取学生记录
        Student model = retriveStudentFromDatabase();
        // 创建一个视图：把学生详细信息输出到控制台
        StudentView view = new StudentView();
        StudentController controller = new StudentController(model, view);
        controller.updateView();
        // 更新模型数据
        controller.setStudentName("John");
        controller.updateView();
    }
    private static Student retriveStudentFromDatabase() {
        Student student = new Student();
        student.setName("Robert");
        student.setRollNo("10");
        return student;
    }
}

--------------------------------------------------------------------------------
public interface Filter {
    public void execute(String request);
}
--------------------------------------------------------------------------------
public class AuthenticationFilter implements Filter {
    @Override
    public void execute(String request) {
        System.out.println("Authenticating request: " + request);
    }
}
--------------------------------------------------------------------------------
public class DebugFilter implements Filter {
    @Override
    public void execute(String request) {
        System.out.println("request log: " + request);
    }
}
--------------------------------------------------------------------------------
public class Target {
    public void execute(String request) {
        System.out.println("Executing request: " + request);
    }
}
--------------------------------------------------------------------------------
public class FilterChain {
    private List<Filter> filters = new ArrayList<Filter>();
    private Target target;
    public void addFilter(Filter filter) {
        filters.add(filter);
    }
    public void execute(String request) {
        for (Filter filter : filters) {
            filter.execute(request);
        }
        target.execute(request);
    }
    public void setTarget(Target target) {
        this.target = target;
    }
}
--------------------------------------------------------------------------------
public class FilterManager {
    FilterChain filterChain;
    public FilterManager(Target target) {
        filterChain = new FilterChain();
        filterChain.setTarget(target);
    }
    public void setFilter(Filter filter) {
        filterChain.addFilter(filter);
    }
    public void filterRequest(String request) {
        filterChain.execute(request);
    }
}
--------------------------------------------------------------------------------
public class Client {
    FilterManager filterManager;
    public void setFilterManager(FilterManager filterManager) {
        this.filterManager = filterManager;
    }
    public void sendRequest(String request) {
        filterManager.filterRequest(request);
    }
}
--------------------------------------------------------------------------------
public class InterceptingFilterDemo {
    public static void main(String[] args) {
        FilterManager filterManager = new FilterManager(new Target());
        filterManager.setFilter(new AuthenticationFilter());
        filterManager.setFilter(new DebugFilter());
        Client client = new Client();
        client.setFilterManager(filterManager);
        client.sendRequest("HOME");
    }
}

-------------------------------------------------------------------
public interface BusinessService {
    public void doProcessing();
}
-------------------------------------------------------------------
public class EJBService implements BusinessService {
    public void doProcessing() {
        System.out.println("Processing task by invoking EJB Service");
    }
}
-------------------------------------------------------------------
public class JMSService implements BusinessService {
    public void doProcessing() {
        System.out.println("Processing task by invoking JMS Service");
    }
}
-------------------------------------------------------------------
public class BusinessLookUp {
    public BusinessService getBusinessService(String serviceType) {
        if (serviceType.equalsIgnoreCase("EJB")) {
            return new EJBService();
        } else {
            return new JMSService();
        }
    }
}
-------------------------------------------------------------------
public class BusinessDelegate {
    private BusinessLookUp lookupService = new BusinessLookUp();
    private BusinessService businessService;
    private String serviceType;
    public void setServiceType(String serviceType) {
        this.serviceType = serviceType;
    }
    public void doTask() {
        businessService = lookupService.getBusinessService(serviceType);
        businessService.doProcessing();
    }
}
-------------------------------------------------------------------
public class Client {
    BusinessDelegate businessService;
    public Client(BusinessDelegate businessService) {
        this.businessService = businessService;
    }
    public void doTask() {
        businessService.doTask();
    }
}
-------------------------------------------------------------------
public class BusinessDelegatePatternDemo {
    public static void main(String[] args) {
        BusinessDelegate businessDelegate = new BusinessDelegate();
        businessDelegate.setServiceType("EJB");
        Client client = new Client(businessDelegate);
        client.doTask();
        businessDelegate.setServiceType("JMS");
        client.doTask();
    }
}

--------------------------------------------------------------------------
public interface Service {
    public String getName();
    public void execute();
}
--------------------------------------------------------------------------
public class Service1 implements Service {
    @Override
    public void execute() {
        System.out.println("Executing Service1");
    }
    @Override
    public String getName() {
        return "Service1";
    }
}
--------------------------------------------------------------------------
public class Service2 implements Service {
    @Override
    public void execute() {
        System.out.println("Executing Service2");
    }
    @Override
    public String getName() {
        return "Service2";
    }
}
--------------------------------------------------------------------------
public class Cache {
    private List<Service> services;
    public Cache() {
        services = new ArrayList<Service>();
    }
    public Service getService(String serviceName) {
        for (Service service : services) {
            if (service.getName().equalsIgnoreCase(serviceName)) {
                System.out.println("Returning cached  " + serviceName + " object");
                return service;
            }
        }
        return null;
    }
    public void addService(Service newService) {
        boolean exists = false;
        for (Service service : services) {
            if (service.getName().equalsIgnoreCase(newService.getName())) {
                exists = true;
            }
        }
        if (!exists) {
            services.add(newService);
        }
    }
}
--------------------------------------------------------------------------
public class InitialContext {
    public Object lookup(String jndiName) {
        if (jndiName.equalsIgnoreCase("SERVICE1")) {
            System.out.println("Looking up and creating a new Service1 object");
            return new Service1();
        } else if (jndiName.equalsIgnoreCase("SERVICE2")) {
            System.out.println("Looking up and creating a new Service2 object");
            return new Service2();
        }
        return null;
    }
}
--------------------------------------------------------------------------
public class ServiceLocator {
    private static Cache cache;
    static {
        cache = new Cache();
    }
    public static Service getService(String jndiName) {
        Service service = cache.getService(jndiName);
        if (service != null) {
            return service;
        }
        InitialContext context = new InitialContext();
        Service service1 = (Service) context.lookup(jndiName);
        cache.addService(service1);
        return service1;
    }
}
--------------------------------------------------------------------------
public class ServiceLocatorPatternDemo {
    public static void main(String[] args) {
        Service service = ServiceLocator.getService("Service1");
        service.execute();
        service = ServiceLocator.getService("Service2");
        service.execute();
        service = ServiceLocator.getService("Service1");
        service.execute();
        service = ServiceLocator.getService("Service2");
        service.execute();
    }
}

----------------------------------------------------------------------------------
public abstract class AbstractCustomer {
    protected String name;
    public abstract boolean isNil();
    public abstract String getName();
}
----------------------------------------------------------------------------------
public class NullCustomer extends AbstractCustomer {
    @Override
    public String getName() {
        return "Not Available in Customer Database";
    }
    @Override
    public boolean isNil() {
        return true;
    }
}
----------------------------------------------------------------------------------
public class RealCustomer extends AbstractCustomer {
    public RealCustomer(String name) {
        this.name = name;
    }
    @Override
    public String getName() {
        return name;
    }
    @Override
    public boolean isNil() {
        return false;
    }
}
----------------------------------------------------------------------------------
public class CustomerFactory {
    public static final String[] names = { "Rob", "Joe", "Julie" };
    public static AbstractCustomer getCustomer(String name) {
        for (int i = 0; i < names.length; i++) {
            if (names[i].equalsIgnoreCase(name)) {
                return new RealCustomer(name);
            }
        }
        return new NullCustomer();
    }
}
----------------------------------------------------------------------------------
public class NullPatternDemo {
    public static void main(String[] args) {
        AbstractCustomer customer1 = CustomerFactory.getCustomer("Rob");
        AbstractCustomer customer2 = CustomerFactory.getCustomer("Bob");
        AbstractCustomer customer3 = CustomerFactory.getCustomer("Julie");
        AbstractCustomer customer4 = CustomerFactory.getCustomer("Laura");
        System.out.println("Customers");
        System.out.println(customer1.getName());
        System.out.println(customer2.getName());
        System.out.println(customer3.getName());
        System.out.println(customer4.getName());
    }
}




-------------------------------------------------------
public class StudentVO {
    private String name;
    private int rollNo;
    StudentVO(String name, int rollNo) {
        this.name = name;
        this.rollNo = rollNo;
    }
    g/s...
}
-------------------------------------------------------
public class StudentBO {
    // 列表是当作一个数据库
    List<StudentVO> students;
    public StudentBO() {
        students = new ArrayList<StudentVO>();
        StudentVO student1 = new StudentVO("Robert", 0);
        StudentVO student2 = new StudentVO("John", 1);
        students.add(student1);
        students.add(student2);
    }
    public void deleteStudent(StudentVO student) {
        students.remove(student.getRollNo());
        System.out.println("Student: Roll No " + student.getRollNo() + ", deleted from database");
    }
    // 从数据库中检索学生名单
    public List<StudentVO> getAllStudents() {
        return students;
    }
    public StudentVO getStudent(int rollNo) {
        return students.get(rollNo);
    }
    public void updateStudent(StudentVO student) {
        students.get(student.getRollNo()).setName(student.getName());
        System.out.println("Student: Roll No " + student.getRollNo() + ", updated in the database");
    }
}
-------------------------------------------------------
public class TransferObjectPatternDemo {
    public static void main(String[] args) {
        StudentBO studentBusinessObject = new StudentBO();
        // 输出所有的学生
        for (StudentVO student : studentBusinessObject.getAllStudents()) {
            System.out.println("Student: [RollNo : " + student.getRollNo() + ", Name : " + student.getName() + " ]");
        }
        // 更新学生
        StudentVO student = studentBusinessObject.getAllStudents().get(0);
        student.setName("Michael");
        studentBusinessObject.updateStudent(student);
        // 获取学生
        studentBusinessObject.getStudent(0);
        System.out.println("Student: [RollNo : " + student.getRollNo() + ", Name : " + student.getName() + " ]");
    }
}
ServletRequest为什么可以强转HttpServletRequest
码海淹没的小强的博客
06-27 2662
代码中常见这样的代码： HttpServletRequest httpRequest = (HttpServletRequest) servletRequest String usertoken = httpRequest.getHeader("usertoken"); String url = httpRequest.getRequestURI().substring(httpRequest.getContextPath().length()); 转换原因 HttpServletRequest和S
HttpServletRequest、ServerHttpRequest获取访问者真实IP，并设置ip白名单
SHUKAI618的博客
05-12 2902
在项目记录日志的时候和网关处理IP白名单的时候，通常会获取用户IP，一般都会从HttpServletRequest、ServerHttpRequest获取访问者真实IP 1.从HttpServletRequest中获取(日志打印的情况)： public static String getIpAddr(HttpServletRequest request){ String ip = null; // X-Forwarded-For：Squid 服务代理 Str
HttpServletRequestS
06-27
HttpservletRequest简介，获取请求行的相关信息，获取网络连接信息
java HttpServletRequest 和 HttpServletResponse
最新发布
qq_48763502的博客
04-11 972
这两个对象是 Java Web 开发的核心，几乎所有 Web 框架（如 Spring MVC）底层都依赖它们进行 HTTP 请求和响应处理。是 Java Servlet API 提供的接口，用于封装服务器对客户端的 HTTP 响应。是 Java Servlet API 提供的接口，用于封装客户端的 HTTP 请求信息。，并增加了 HTTP 协议相关的功能。，并增加了 HTTP 协议相关的功能。
http-server 超轻量级web服务器
weixin_33785972的博客
02-11 910
有的时候做前端，想要运行一些代码，但是又没有必要使用tomcat或者Apache http server，这个时候一个轻量级的简单的http server就可以搞定了。 Http-server是基于nodejs的http服务器，它最大好处就是： 　　可以使任意一个目录成为服务器的目录，完全抛开后台的沉重工程，直接运行想要的js代码。 　　1 安装nodejs 　　为了运行http-...
HttpServletRequest
Thewei666的博客
04-19 2438
在Servlet API中，定义了一个HttpServletRequest接口，它继承自ServletRequest接口，专门用于封装HTTP请求消息。
ServerHttpRequest 和 HttpServletRequest区别以及获取IP
热门推荐
qililong88的博客
08-04 1万+
获取ip
NodeJs——（8）http.ServerRequest的过程
weixin_33762321的博客
06-26 506
（25）http.ServerRequest的过程 ①http.ServerRequest提供了3个事件用于控制请求体传输： 【1】data：当请求体数据到来时，该事件被触发，提供一个参数给回调函数，是接受到的数据，该事件可能被多次调用（所有data按顺序的集合，是请求体数据）。如果该事件没有被监听，请求体将被抛弃； 【2】end：当请求体数据完成...
java HttpServletRequest和HttpServletResponse详解
08-31
在进行Java Web开发时，理解HttpServletRequest和HttpServletResponse的工作原理和使用方法至关重要，这有助于你有效地处理客户端和服务器之间的交互，提供正确的服务和反馈。这两个接口的熟练掌握是成为专业Java ...
HttpServletRequest 和ServerHttpRequest
09-22
HttpServletRequest 和 ServerHttpRequest 是用于获取客户端的 IP 地址的两个接口。HttpServletRequest 是Java Servlet API 中的一部分，用于获取客户端发送的 HTTP 请求的信息，包括IP 地址。而 ServerHttpRequest ...
获取访问者真实IP：HttpServletRequest、ServerHttpRequest
fo_xi的博客
11-28 776
HttpServletRequest、ServerHttpRequest获取访问者真实IP
HTTP请求头概述（HttpServletRequest）
01-18
HTTP客户程序（例如浏览器），向服务器发送请求的时候必须指明请求类型（一般是GET或者POST）。如有必要，客户程序还可以选择发送其他的请求头。大多数请求头并不是必需的，但Content-Length除外。对于POST请求来说Content-Length必须出现。 　下面是一些最常见的请求头 ......
HttpServletRequest概述、相关方法、获取请求行信息、获取请求头信息相关方法及获取请求参数相关方法
m0_61961937的博客
09-22 1万+
HttpServletRequest概述及相关方法
【Servlet】HttpServletRequest、HttpServletResponse
qq_41233305的博客
06-29 3267
HttpServletRequest、HttpServletResponse、以及前后端交互案例：表白墙
ServerHttpRequest 和 HttpServletRequest 获取 IP 地址 学习笔记
qq_39960204的博客
08-16 9485
ServerHttpRequest 和 HttpServletRequest 获取 IP 地址 学习笔记 最近在做一个请求白名单IP地址的功能；在拦截器 或者 service 层做校验判断，就用到了ServerHttpRequest 和 HttpServletRequest 获取 IP 地址的两种方式 做个记录笔记，如果有不对的地方可以直接私信我 代码 ServerHttpRequest 获取 IP 地址 这个是在拦截器里面用的，我本来是写到公用的的工具包里面的，但是运行会报错，把方法封装到拦截器里面运行又
HttpServletRequest、通过request获得请求头、请求体等、解决中文乱码等问题
weixinhmz的博客
05-03 200
HttpServletRequest、通过request获得请求头、请求体等、解决中文乱码等问题
HttpServletRequest和HttpServletResponse API
时间海绵
09-12 1363
HttpServletRequest接口 在Servlet中，通过HttpServletRequest对象来获取来自客户和服务器端的一些数据 类别 方法 说明 协议 getMethod() getProtocol() getScheme() HTTP协议信息 客户信息 getRemoteAddr() getRemoteHost()
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
