文档地址：https://learnku.com/docs/laravel/7.x/horizon/7514

安装
提示：由于 Horizon 使用了异步进程信号，所以 PHP 7.1+ 以上版本才可以使用。
队列数据是存在Redis里的，所以要确保队列连接在 queue 配置文件的 redis 项已经正确设置。
我们使用 Composer 安装 Horizon 到 Laravel 项目：

composer require laravel/horizon

安装完成后，使用 Artisan 命令 vendor:publish 发布前端资源：

php artisan vendor:publish --provider="Laravel\Horizon\HorizonServiceProvider"

配置
分别是配置文件 config/horizon.php 和存放在 public/vendor/horizon 文件夹中的 CSS 、JS 等页面资源文件。
balance 配置项
Horizon 提供了三种负载均衡策略以供选择：simple、auto 和 false，simple 是默认策略，在进程之间平均分配进入任务：
'balance' => 'simple',
auto 策略基于队列当前负载调整每个队列的工作进程数量。例如，如果 notifications 队列有 1000 个等待执行的任务而 render 队列是空的，那么 Horizon 将会为 notifications 队列分配更多的工作进程直到队列为空。
如果把 balance 选项设置为 false，就会使用默认的 Laravel 行为，也就是按照配置文件中的排列顺序处理队列。

<?php

return [

    /*
    |--------------------------------------------------------------------------
    | Horizon Domain
    |--------------------------------------------------------------------------
    |
    | This is the subdomain where Horizon will be accessible from. If this
    | setting is null, Horizon will reside under the same domain as the
    | application. Otherwise, this value will serve as the subdomain.
    |
    */

    'domain' => null,

    /*
    |--------------------------------------------------------------------------
    | Horizon Path
    |--------------------------------------------------------------------------
    |
    | This is the URI path where Horizon will be accessible from. Feel free
    | to change this path to anything you like. Note that the URI will not
    | affect the paths of its internal API that aren't exposed to users.
    |
    */

    'path' => 'horizon',

    /*
    |--------------------------------------------------------------------------
    | Horizon Redis Connection
    |--------------------------------------------------------------------------
    |
    | This is the name of the Redis connection where Horizon will store the
    | meta information required for it to function. It includes the list
    | of supervisors, failed jobs, job metrics, and other information.
    |
    */

    'use' => 'default',

    /*
    |--------------------------------------------------------------------------
    | Horizon Redis Prefix
    |--------------------------------------------------------------------------
    |
    | This prefix will be used when storing all Horizon data in Redis. You
    | may modify the prefix when you are running multiple installations
    | of Horizon on the same server so that they don't have problems.
    |
    */

    'prefix' => env('HORIZON_PREFIX', 'horizon:'),

    /*
    |--------------------------------------------------------------------------
    | Horizon Route Middleware
    |--------------------------------------------------------------------------
    |
    | These middleware will get attached onto each Horizon route, giving you
    | the chance to add your own middleware to this list or change any of
    | the existing middleware. Or, you can simply stick with this list.
    |
    */

    'middleware' => ['web'],

    /*
    |--------------------------------------------------------------------------
    | Queue Wait Time Thresholds
    |--------------------------------------------------------------------------
    |
    | This option allows you to configure when the LongWaitDetected event
    | will be fired. Every connection / queue combination may have its
    | own, unique threshold (in seconds) before this event is fired.
    |
    */

    'waits' => [
        'redis:default'         => 600,
        'DtCubeTuyaDeviceData'  => 600,
        'DtCubeTuyaDeviceEvent' => 600,
        'DtCubeOrderAutoClose'  => 600,
        'DtCubeDeaultQueue'     => 600,
        'DtCubeAzureData'       => 600,
        'DtCubeAzureEvent'      => 600
    ],

    /*
    |--------------------------------------------------------------------------
    | Job Trimming Times
    |--------------------------------------------------------------------------
    |
    | Here you can configure for how long (in minutes) you desire Horizon to
    | persist the recent and failed jobs. Typically, recent jobs are kept
    | for one hour while all failed jobs are stored for an entire week.
    |
    */

    'trim' => [
        'recent'        => 60,
        'completed'     => 60,
        'recent_failed' => 10080,
        'failed'        => 10080,
        'monitored'     => 10080,
    ],

    /*
    |--------------------------------------------------------------------------
    | Fast Termination
    |--------------------------------------------------------------------------
    |
    | When this option is enabled, Horizon's "terminate" command will not
    | wait on all of the workers to terminate unless the --wait option
    | is provided. Fast termination can shorten deployment delay by
    | allowing a new instance of Horizon to start while the last
    | instance will continue to terminate each of its workers.
    |
    */

    'fast_termination' => false,

    /*
    |--------------------------------------------------------------------------
    | Memory Limit (MB)
    |--------------------------------------------------------------------------
    |
    | This value describes the maximum amount of memory the Horizon worker
    | may consume before it is terminated and restarted. You should set
    | this value according to the resources available to your server.
    |
    */

    'memory_limit' => 64,

    /*
    |--------------------------------------------------------------------------
    | Queue Worker Configuration
    |--------------------------------------------------------------------------
    |
    | Here you may define the queue worker settings used by your application
    | in all environments. These supervisors and settings handle all your
    | queued jobs and will be provisioned by Horizon during deployment.
    |
    */

    'environments' => [
        'production' => [
            'production-1'   => [
                'connection' => 'rabbitmq',
                'queue'      => [],
                'balance'    => 'auto',
                'processes'  => 50,
                'tries'      => 3,
            ],
        ],

        'local' => [
            'local-1'   => [
                'connection' => 'rabbitmq',
                'queue'      => [
                    'test1',
                    'test2',
                ],
                'balance'    => 'auto',
                'minProcesses'  => 1,
                'minProcesses'  => 10,
                'tries'      => 3,
            ],
            'local-2'   => [
                'connection' => 'rabbitmq',
                'queue'      => [
                    'test6',
                    'test7',
                ],
                'balance'    => 'auto',
                'minProcesses'  => 1,
                'minProcesses'  => 10,
                'tries'      => 3,
            ],
        ],
    ],
];
?>

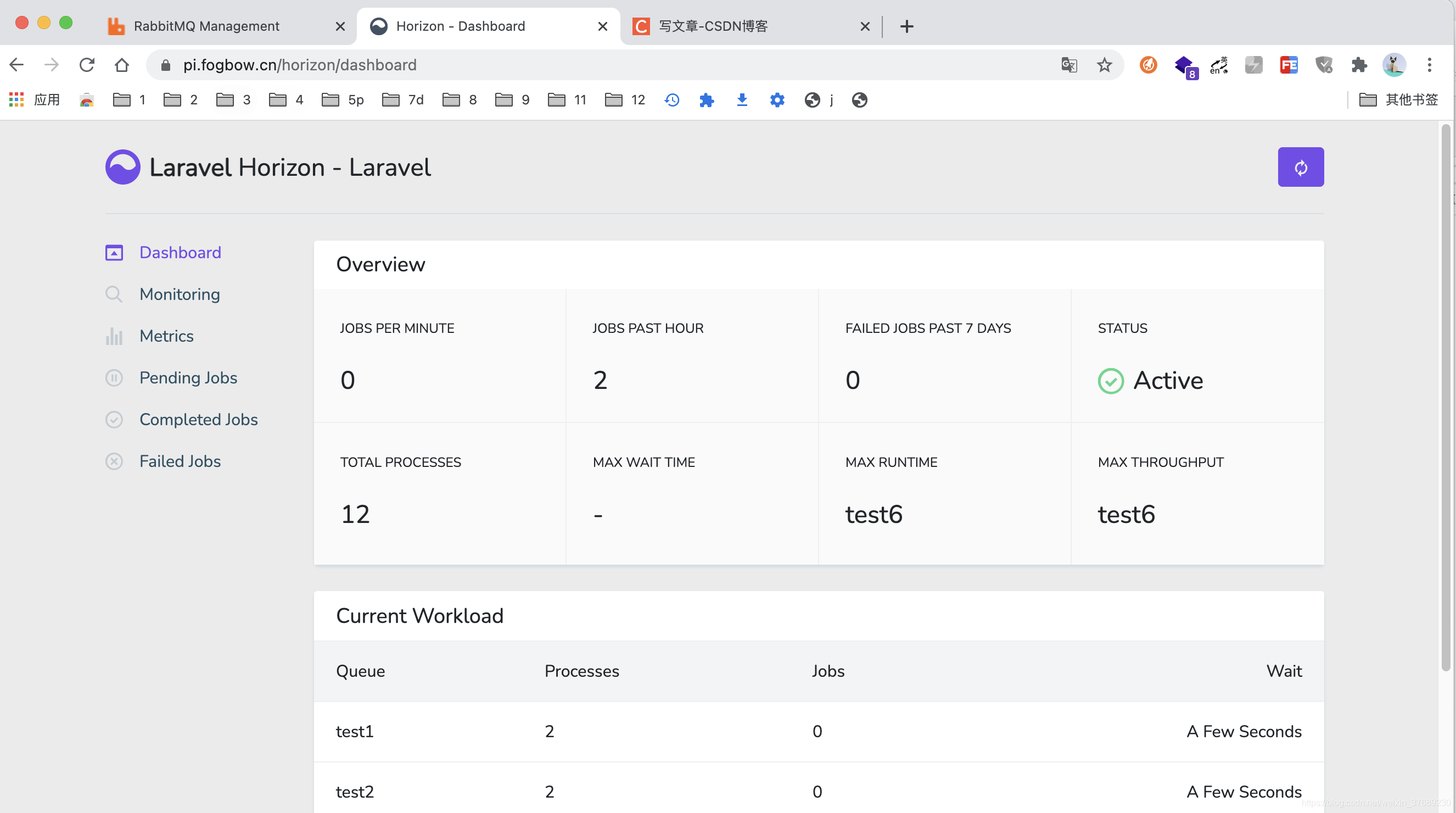

至此安装配置完毕，浏览器打开 https://pi.fogbow.cn/horizon 访问控制台

运行 Horizon
如果你已经在配置文件 config/horizon.php 中配置过工作进程，就可以使用 Artisan 命令 horizon 来启动 Horizon，该命令会启动所有配置的工作进程：
Linux 命令后面加 & 表示设置此进程为后台进程

php artisan horizon

你可以使用 Artisan 命令 horizon:pause 和 horizon:continue 来暂停或继续处理队列任务：
php artisan horizon:pause
php artisan horizon:continue
你还可以使用 Artisan 命令 horizon:terminate 来优雅地终止 Horizon 主进程 —— Horizon 会在所有当前正在执行的任务全部完成后退出：
php artisan horizon:terminate

这个时候后可以把 php artisan queue:work省略
