Vue-滑动轮播

查看完整代码直接跳到结尾git链接🔗。

1.项目结构

2.设计组件

2.1 swiper设计

<template>
  <!--id,class用来设计样式;因为我不是很熟悉，所以不做说明。-->
  <div id="r-swiper">
    <div class="swiper"
      @touchstart="touchStart"
      @touchend="touchEnd"> <!--用来获取点击事件-->
      <slot name="picslot"></slot>
    </div>
  </div>
  <!--之所以平级设计是因为小圆点之后position:absolute是相对于父组件的位置，
  因此想要固定在最上方就要评级设计是的相对id='app'固定-->
  <div class="indicator">
    <div
      v-for="index in swiperItemCount"
      :key="index"
      class="indicator-item"
      :class="{active: index === currentIndex+1}"
    ></div><!--动态绑定，用来显示小圆点-->
  </div>
</template>

2.2 swiper-item设计

<template>
  <!-- 子组件插入图片 -->
  <div class="r-swiper-item">
    <slot></slot>
  </div>
</template>

3.设计样式

3.1 App.vue

<style>

  #app {
    overflow: hidden;
    position: relative;
  }
</style>

3.2 swiper

<style scoped>
/* #r-swiper {
  overflow: hidden;
  position: relative;
} */

.swiper {
  display: flex;
}
.indicator {
  display: flex;
  /* 子元素水平居中 */
  justify-content: center;
  /* 相对父元素绝对位置，抽离出显示流 */
  position: absolute;
  width: 100%;
  bottom: 10px;
}

.indicator-item {
  /* 为元素指定的任何内边距和边框
     都将在已设定的宽度和高度内进行绘制 */
  box-sizing: border-box;
  width: 8px;
  height: 8px;
  border-radius: 4px;
  background-color: rgb(122, 122, 122);
  margin: 8px;
  line-height: 8px;
}

.active {
  background-color: rgba(212, 62, 46, 1);
}
</style>

3.3 swiper-item

<style scoped>
  .r-swiper-item {
    width: 100%;
    /* 等比例缩小个元素，为0则不进行缩放。
       但是上面的属性依然生效。 */
    flex-shrink: 0;
  }
  .r-swiper-item img{
    width: 100%;
  }
</style>

4.设计响应事件(较困难涉及js知识)

4.1 App

<script>
export default {
  name: "app",
  components: {
    swiper,
    swiperItem,
  },
  data() {
    return {
      list: [
        {
          src: require("./assets/pic/001.jpg"),
          alt: 'first-picture.'
        },
        {
          src: require("./assets/pic/003.jpg"),
        },
        {
          src: require("./assets/pic/006.jpg"),
        },
        {
          src: require("./assets/pic/007.jpg"),
        },
      ],
      current:0,
    };
  },
  methods:{
    transitionEnd(currentIndex){
      if(typeof currentIndex === 'number'){
        this.current = currentIndex;
      }
    }
  }
};

import swiper from "./components/swiper";
import swiperItem from "./components/swiper-item";
</script>

4.2 swiper

<script>
export default {
  name: "swiper",
  props: {
    interval: {
      type: Number,
      default: 3000,
    },
  },
  data() {
    return {
      swiperItemCount: 0,
      currentIndex: 0,
      swiperStyle: {},
      totalWidth: 0,
      scrolling: false,
    };
  },
  mounted: function () {
    setTimeout(() => {
      this.handleDOM();
      this.startTimer();
    }, 200);
  },
  methods: {
    handleDOM() {
      // 找到要操作的元素，swiper和swiperItem
      let swiperElement = document.querySelector("#r-swiper");
      let swiperItemElements = swiperElement.getElementsByClassName(
        "r-swiper-item"
      );
      this.swiperItemCount = swiperItemElements.length;
      this.swiperStyle = swiperElement.style;
      this.totalWidth = swiperElement.offsetWidth;
    },
    startTimer() {
      this.playTimer = window.setInterval(() => {
        this.currentIndex++;
        if (this.currentIndex >= this.swiperItemCount) {
          this.currentIndex = this.currentIndex % this.swiperItemCount;
        }
        this.$emit("transitionEnd", this.currentIndex);
        this.scrollContent(-this.currentIndex * this.totalWidth);
      }, this.interval);
      console.log("startTimer:" + this.startTimer);
    },
    stopTimer(){
      window.clearInterval(this.playTimer);
    },
    scrollContent(movedis) {
      this.scrolling = true;
      this.swiperStyle.transition = `transform 1000ms`;
      this.setTransform(movedis);

      this.scrolling = false;
    },
    setTransform(movedis) {
      // 设置滚动位置
      this.swiperStyle.transform = `translate3d(${movedis}px,0,0)`;
      this.swiperStyle["-webkit-transform"] = `translate3d(${movedis}px, 0, 0)`;
      this.swiperStyle["-ms-transform"] = `translate3d(${movedis}px, 0, 0)`;
    },
    /**
     * 处理滑动事件
     */
    touchStart:function(event){
      // 滚动过程中不能拖动，结束此函数。
      if(this.scrolling) return;
      // 停止定时器。
      this.stopTimer();
      // 保存开始滚动的位置
      this.startX = event.targetTouches[0].clientX;
    },
    touchEnd(e){
      this.endX = e.changedTouches[0].clientX;
      let currentMove = this.endX - this.startX;
      this.checkPosition(currentMove);
      this.scrollContent(-this.currentIndex * this.totalWidth);
      this.startTimer();
    },
    checkPosition(currentMove){
      if(Math.abs(currentMove) > 0.3*this.totalWidth){
        if(currentMove > 0) {
          if(this.currentIndex > 0){
            this.currentIndex--;
          }else {
            this.currentIndex = this.swiperItemCount-1;
          }

        }else if(currentMove < 0) {
          if(this.currentIndex<this.swiperItemCount-1){
            this.currentIndex++;
          }else {
            this.currentIndex = 0;
          }
        } else {
        }
      }
    }
  },
};
</script>

4.3 swiper-item

<script>
export default {
  name: 'swiperitem',
}
</script>

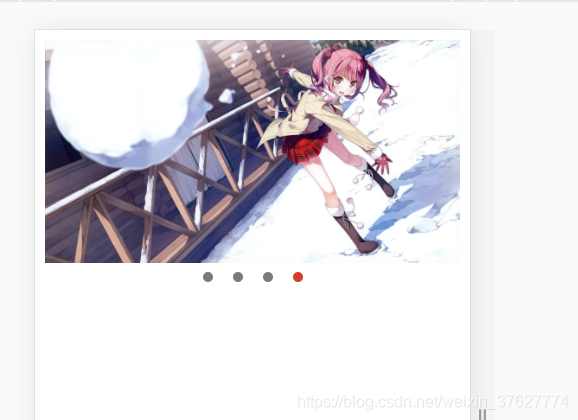

5.运行效果

参考链接：https://github.com/coderwhy/supermall.git
