Activity从无到有都经历了些什么？

1.Activity的启动的代码在哪？

ActivityThread

-> startActivityNow

-> performLaunchActivity

2.Activity和Window的关系？

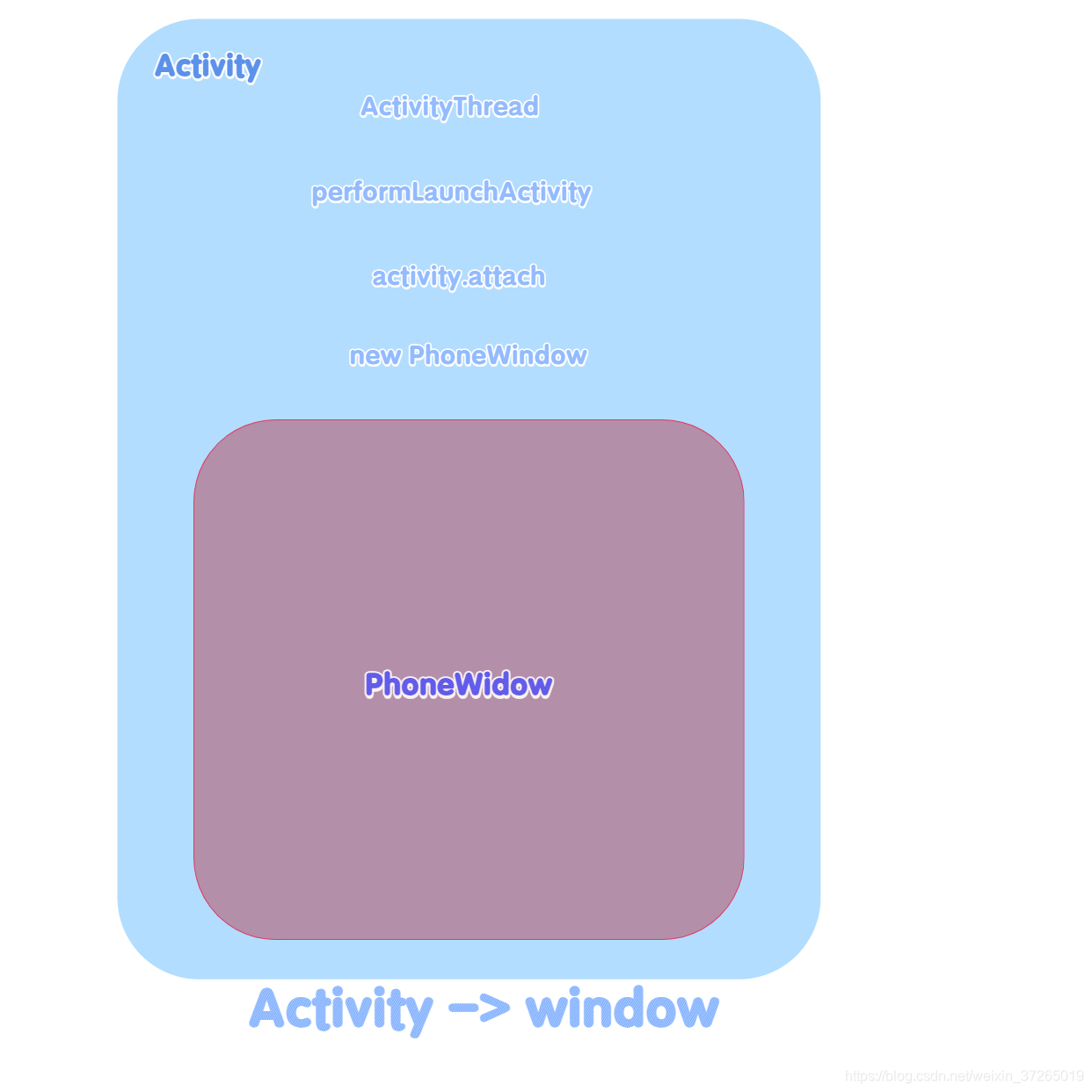

  Window的唯一实现PhoneWindow在Activity的attach方法中初始化

ActivityThread:

    /**  Core implementation of activity launch. */
    private Activity performLaunchActivity(ActivityClientRecord r, Intent customIntent) {
        ActivityInfo aInfo = r.activityInfo;
        if (r.packageInfo == null) {
            r.packageInfo = getPackageInfo(aInfo.applicationInfo, r.compatInfo,
                    Context.CONTEXT_INCLUDE_CODE);
        }
... ...
                activity.attach(appContext, this, getInstrumentation(), r.token,
                        r.ident, app, r.intent, r.activityInfo, title, r.parent,
                        r.embeddedID, r.lastNonConfigurationInstances, config,
                        r.referrer, r.voiceInteractor, window, r.configCallback,
                        r.assistToken);

                if (customIntent != null) {
                    activity.mIntent = customIntent;
                }
... ...
        return activity;
    }

Activity:

    @UnsupportedAppUsage
    final void attach(Context context, ActivityThread aThread,
            Instrumentation instr, IBinder token, int ident,
            Application application, Intent intent, ActivityInfo info,
            CharSequence title, Activity parent, String id,
            NonConfigurationInstances lastNonConfigurationInstances,
            Configuration config, String referrer, IVoiceInteractor voiceInteractor,
            Window window, ActivityConfigCallback activityConfigCallback, IBinder assistToken) {
        attachBaseContext(context);
        mFragments.attachHost(null /*parent*/);

        mWindow = new PhoneWindow(this, window, activityConfigCallback);
        mWindow.setWindowControllerCallback(this);
        mWindow.setCallback(this);
... ...
        mWindow.setWindowManager(
                (WindowManager)context.getSystemService(Context.WINDOW_SERVICE),
                mToken, mComponent.flattenToString(),
                (info.flags & ActivityInfo.FLAG_HARDWARE_ACCELERATED) != 0);
... ...
    }

3.那么为什么要初始化PhoneWindow? mWindow.setWindowManager中的WindowManager具体是谁呢？

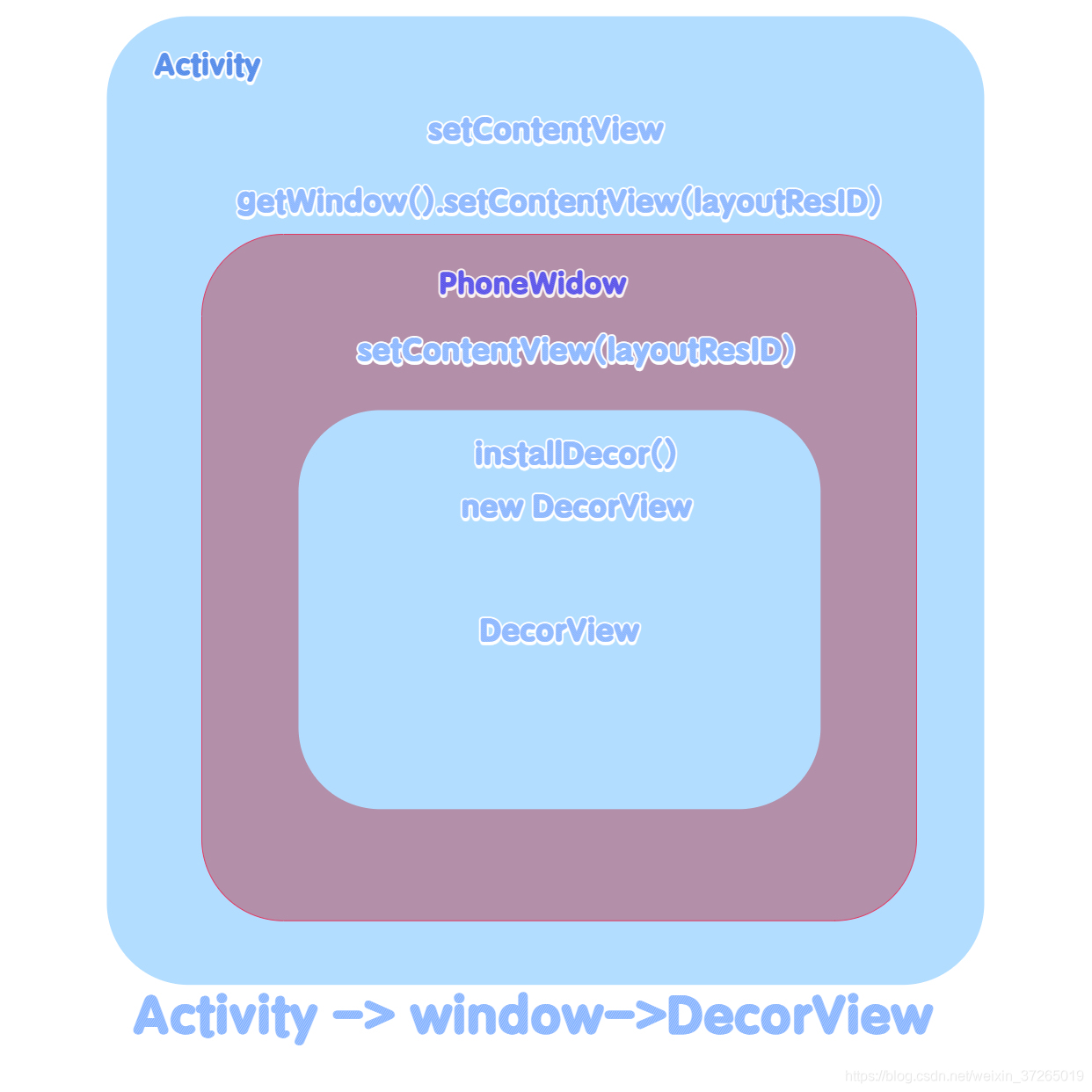

   Activity调用setContent方法的时候，实际上调用的是PhoneWindow的setContent方法，这时候又会引入一个成员DecorView，这个就是Activity的顶层布局

Activity:

    public void setContentView(@LayoutRes int layoutResID) {
        getWindow().setContentView(layoutResID);
        initWindowDecorActionBar();
    }

PhoneWindow:

    @Override
    public void setContentView(int layoutResID) {
        // Note: FEATURE_CONTENT_TRANSITIONS may be set in the process of installing the window
        // decor, when theme attributes and the like are crystalized. Do not check the feature
        // before this happens.
        if (mContentParent == null) {
            installDecor();
        } else if (!hasFeature(FEATURE_CONTENT_TRANSITIONS)) {
            mContentParent.removeAllViews();
        }
... ...
    }

  phoneWindow就是Activity和View的解耦的中间关联，它用来管理View。

  mWindow.setWindowManager的具体管理者是WindowManagerGlobal

Window：
    /**
     * Set the window manager for use by this Window to, for example,
     * display panels.  This is <em>not</em> used for displaying the
     * Window itself -- that must be done by the client.
     *
     * @param wm The window manager for adding new windows.
     */
    public void setWindowManager(WindowManager wm, IBinder appToken, String appName,
            boolean hardwareAccelerated) {
        mAppToken = appToken;
        mAppName = appName;
        mHardwareAccelerated = hardwareAccelerated;
        if (wm == null) {
            wm = (WindowManager)mContext.getSystemService(Context.WINDOW_SERVICE);
        }
        mWindowManager = ((WindowManagerImpl)wm).createLocalWindowManager(this);
    }

WindowManagerImpl：
public final class WindowManagerImpl implements WindowManager {
    @UnsupportedAppUsage
    private final WindowManagerGlobal mGlobal = WindowManagerGlobal.getInstance();
    private final Context mContext;
    private final Window mParentWindow;

    private IBinder mDefaultToken;

    public WindowManagerImpl(Context context) {
        this(context, null);
    }

    private WindowManagerImpl(Context context, Window parentWindow) {
        mContext = context;
        mParentWindow = parentWindow;
    }

    public WindowManagerImpl createLocalWindowManager(Window parentWindow) {
        return new WindowManagerImpl(mContext, parentWindow);
    }
... ...

4.那么WindowManagerGlobal的作用是什么？

  在Activity执行完onCreate方法以后就会去执行onResume方法，那么就要说到ActivityThread类中的handleResumeActivity方法：

    @Override
    public void handleResumeActivity(IBinder token, boolean finalStateRequest, boolean isForward,
            String reason) {
... ...

        final Activity a = r.activity;
... ...
        if (r.window == null && !a.mFinished && willBeVisible) {
            r.window = r.activity.getWindow();
            View decor = r.window.getDecorView();
            decor.setVisibility(View.INVISIBLE);
            ViewManager wm = a.getWindowManager();
            WindowManager.LayoutParams l = r.window.getAttributes();
            a.mDecor = decor;
            l.type = WindowManager.LayoutParams.TYPE_BASE_APPLICATION;
            l.softInputMode |= forwardBit;
            if (r.mPreserveWindow) {
                a.mWindowAdded = true;
                r.mPreserveWindow = false;
                // Normally the ViewRoot sets up callbacks with the Activity
                // in addView->ViewRootImpl#setView. If we are instead reusing
                // the decor view we have to notify the view root that the
                // callbacks may have changed.
                ViewRootImpl impl = decor.getViewRootImpl();
                if (impl != null) {
                    impl.notifyChildRebuilt();
                }
            }
            if (a.mVisibleFromClient) {
                if (!a.mWindowAdded) {
                    a.mWindowAdded = true;
                    wm.addView(decor, l);
                } else {
                    a.onWindowAttributesChanged(l);
                }
            }

       ... ...
        Looper.myQueue().addIdleHandler(new Idler());
    }

调用了  wm.addView(decor, l) 也就是 WindowManagerGlobal 的addView方法，由此引入了新成员ViewRootImpl

WindowManagerGlobal:

    public void addView(View view, ViewGroup.LayoutParams params,
            Display display, Window parentWindow) {
        if (view == null) {
            throw new IllegalArgumentException("view must not be null");
        }
        if (display == null) {
            throw new IllegalArgumentException("display must not be null");
        }
        if (!(params instanceof WindowManager.LayoutParams)) {
            throw new IllegalArgumentException("Params must be WindowManager.LayoutParams");
        }
... ...

        ViewRootImpl root;
        View panelParentView = null;

... ...
            root = new ViewRootImpl(view.getContext(), display);
            view.setLayoutParams(wparams);
            mViews.add(view);
            mRoots.add(root);
            mParams.add(wparams);
            // do this last because it fires off messages to start doing things
            try {
                root.setView(view, wparams, panelParentView);
            } catch (RuntimeException e) {
                // BadTokenException or InvalidDisplayException, clean up.
                if (index >= 0) {
                    removeViewLocked(index, true);
                }
                throw e;
            }
        }
    }

ViewRootImpl:

       /**
     * We have one child
     */
    public void setView(View view, WindowManager.LayoutParams attrs, View panelParentView) {
... ....

                try {
                    mOrigWindowType = mWindowAttributes.type;
                    mAttachInfo.mRecomputeGlobalAttributes = true;
                    collectViewAttributes();
                    res = mWindowSession.addToDisplay(mWindow, mSeq, mWindowAttributes,
                            getHostVisibility(), mDisplay.getDisplayId(), mTmpFrame,
                            mAttachInfo.mContentInsets, mAttachInfo.mStableInsets,
                            mAttachInfo.mOutsets, mAttachInfo.mDisplayCutout, mInputChannel,
                            mTempInsets);
                    setFrame(mTmpFrame);
                } catch (RemoteException e) {
                    mAdded = false;
                    mView = null;
                    mAttachInfo.mRootView = null;
                    mInputChannel = null;
                    mFallbackEventHandler.setView(null);
                    unscheduleTraversals();
                    setAccessibilityFocus(null, null);
                    throw new RuntimeException("Adding window failed", e);
                } finally {
                    if (restore) {
                        attrs.restore();
                    }
                }
... ...

                view.assignParent(this);

                mAddedTouchMode = (res & WindowManagerGlobal.ADD_FLAG_IN_TOUCH_MODE) != 0;
                mAppVisible = (res & WindowManagerGlobal.ADD_FLAG_APP_VISIBLE) != 0;

                if (mAccessibilityManager.isEnabled()) {
                    mAccessibilityInteractionConnectionManager.ensureConnection();
                }
... ...
            }
        }
    }

5.ViewRootImpl的作用是什么？

   在ViewRootImpl中setView方法里最后有一行代码 view.assignParent(this); 这里的this其实就是decorView ，也就是说在这行代码执行完 decorView的父类就是ViewRootImpl，这样做的原因是 Activity把View的绘制工作交给了ViewRootImpl统一管理

在decorView的子类View调用requestLayout的时候都会调用到ViewRootImpl的requestLayout方法中，进行 测量 定位 绘制

View:
    public void requestLayout() {
... ...
        mPrivateFlags |= PFLAG_FORCE_LAYOUT;
        mPrivateFlags |= PFLAG_INVALIDATED;

        if (mParent != null && !mParent.isLayoutRequested()) {
            mParent.requestLayout();
        }
        if (mAttachInfo != null && mAttachInfo.mViewRequestingLayout == this) {
            mAttachInfo.mViewRequestingLayout = null;
        }
    }

ViewRootImpl：
    @Override
    public void requestLayout() {
        if (!mHandlingLayoutInLayoutRequest) {
            checkThread();
            mLayoutRequested = true;
            scheduleTraversals();
        }
    }

    scheduleTraversals()
           ->performMeasure()
           ->performLayout()
           ->performDraw()

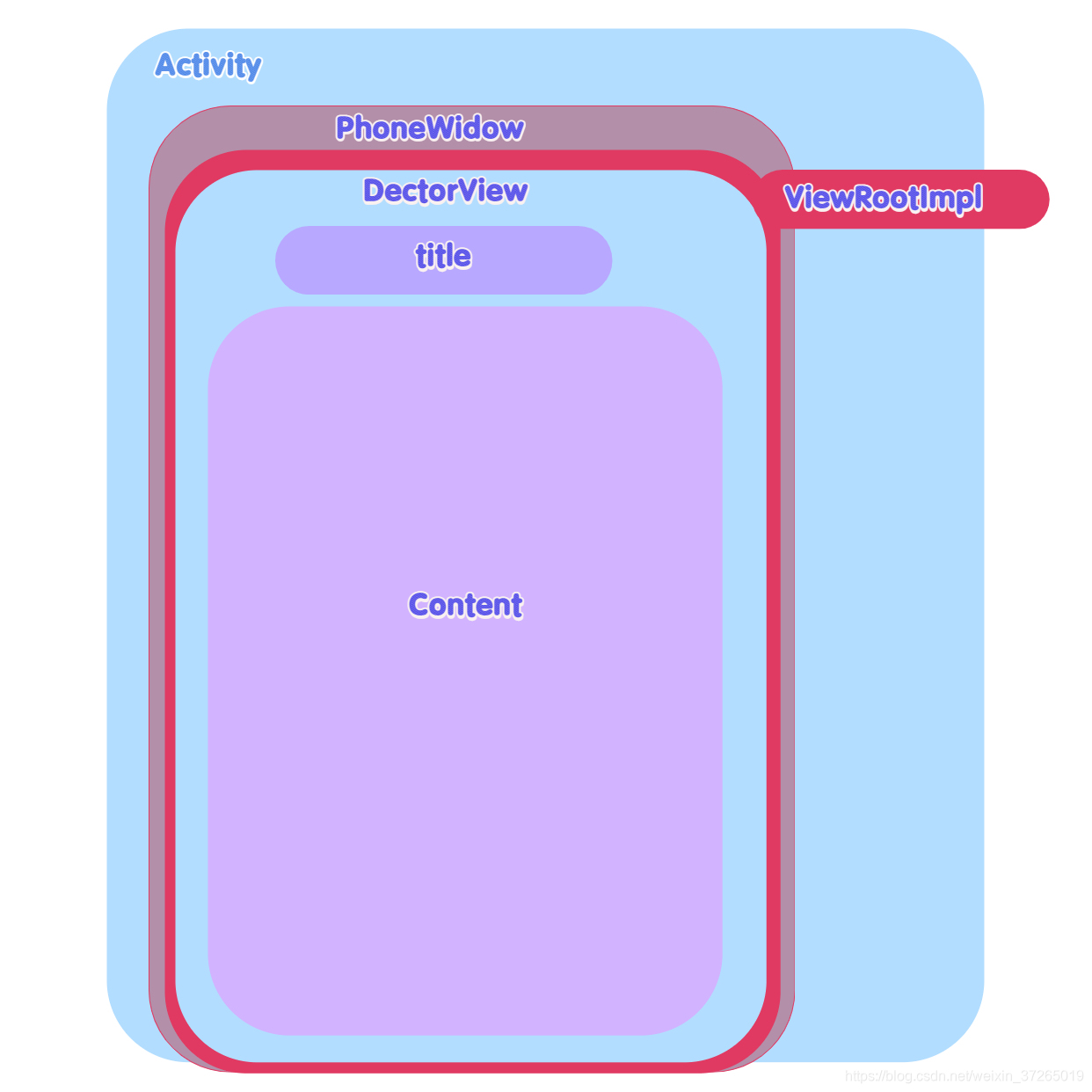

总结：Acitity的一次启动会引入 PhoneWindow、DecorView、ViewRootImpl 这三个成员，其中 DecorView是Activity的顶层布局，PhoneWindow帮助Activity管理View，ViewRootImpl帮助Activity绘制显示View

附图：
