尚硅谷SpringCloud框架开发教程(SpringCloudAlibaba微服务分布式架构丨Spring Cloud)

1、是什么：Spring Cloud是一系列框架的有序集合
2、版本选型：Spring Cloud H + SpringBOOT 2.2以上

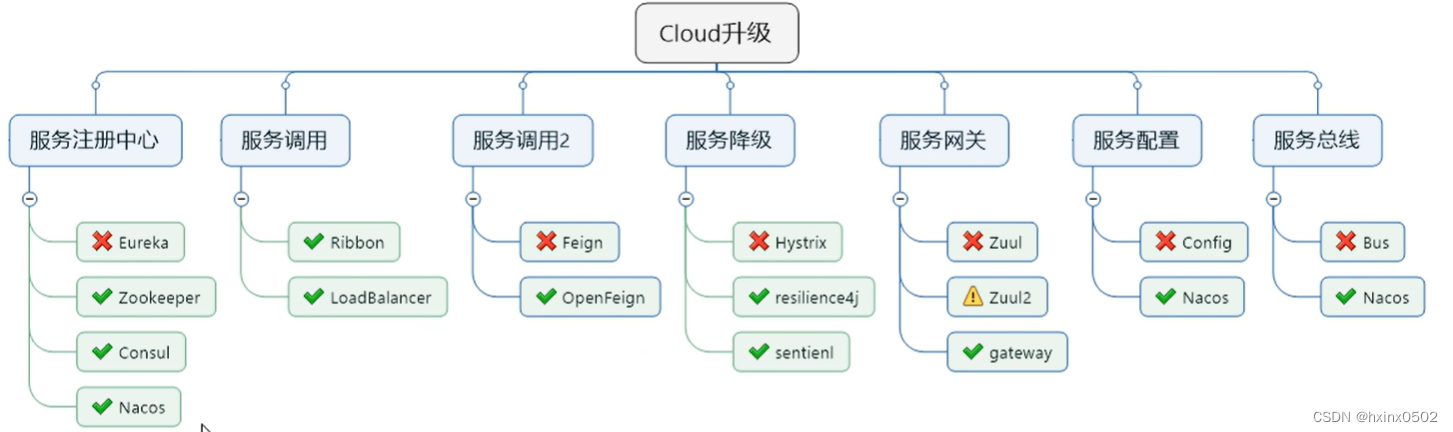

Cloud升级

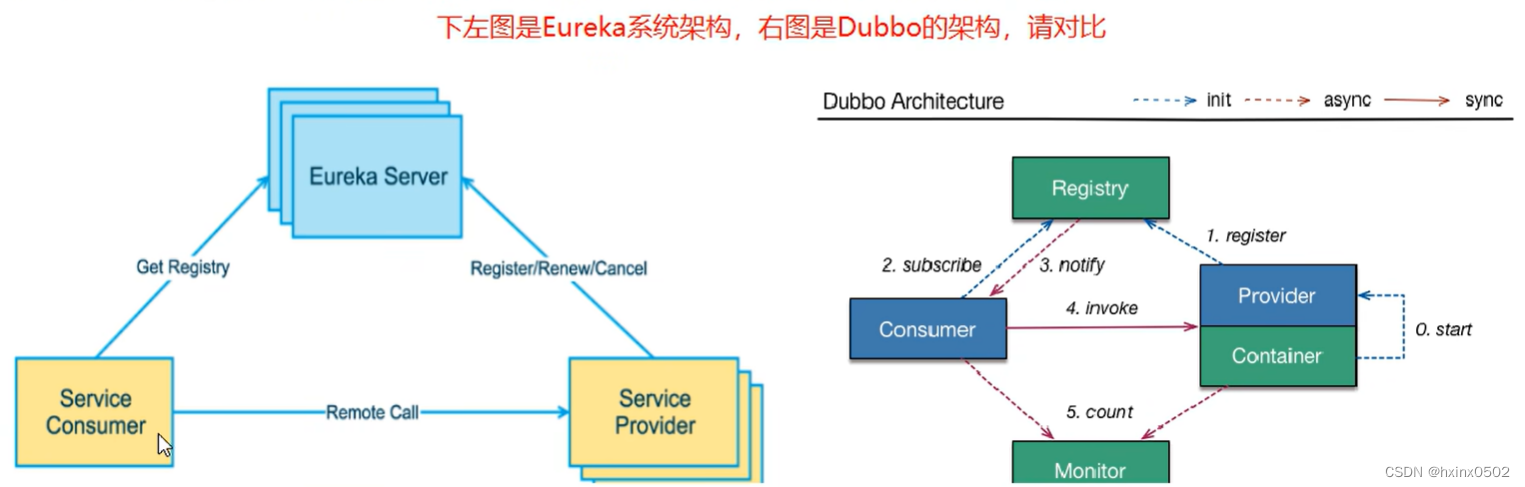

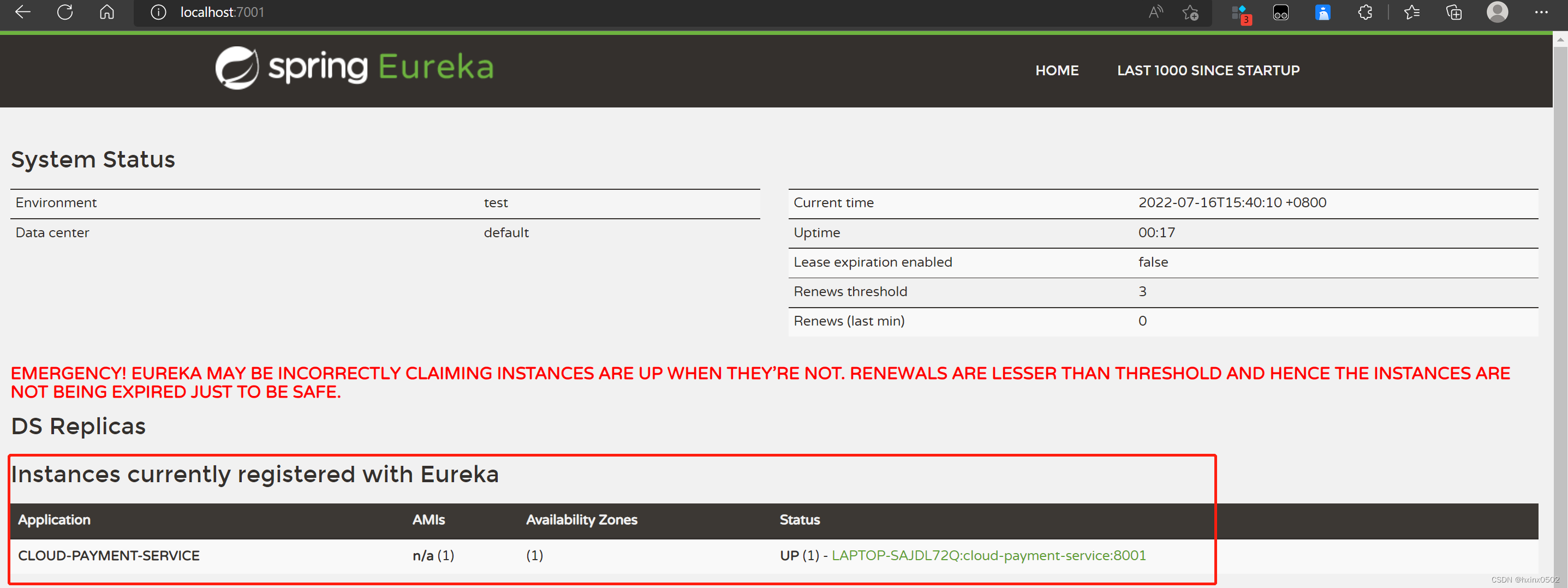

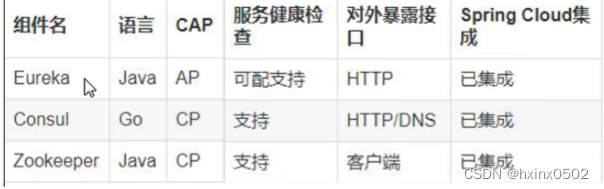

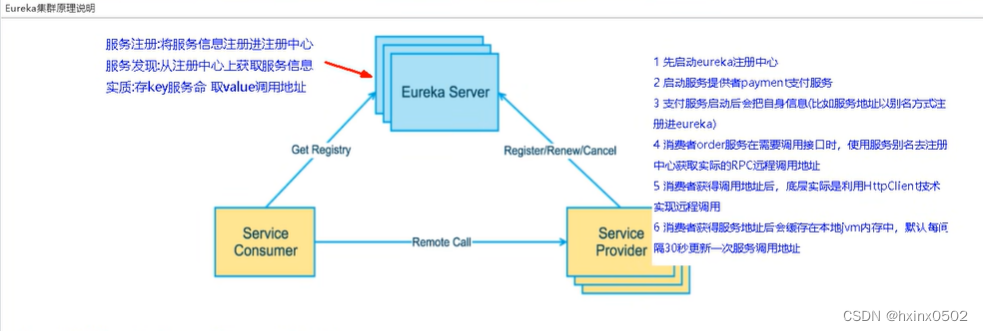

注册中心：①Eureka（SpringCloud自带，已停止更新）×
②Zookeeper √

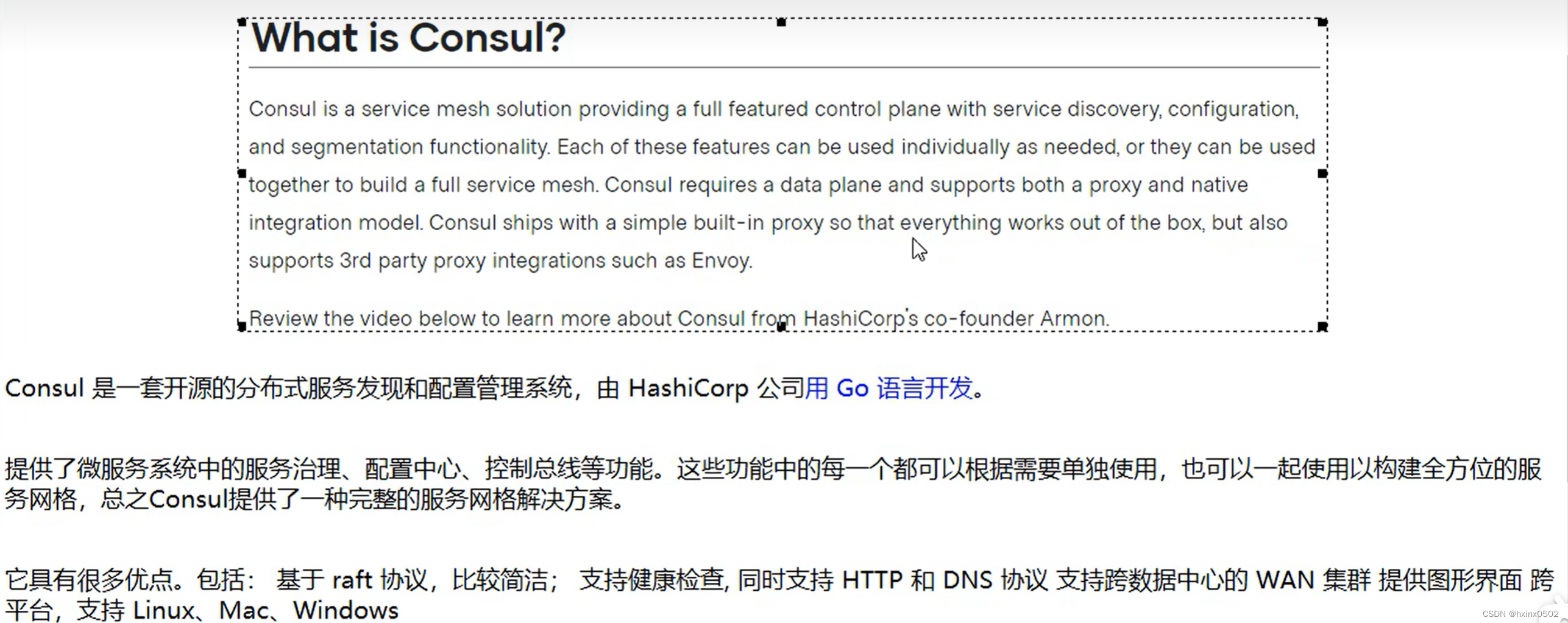

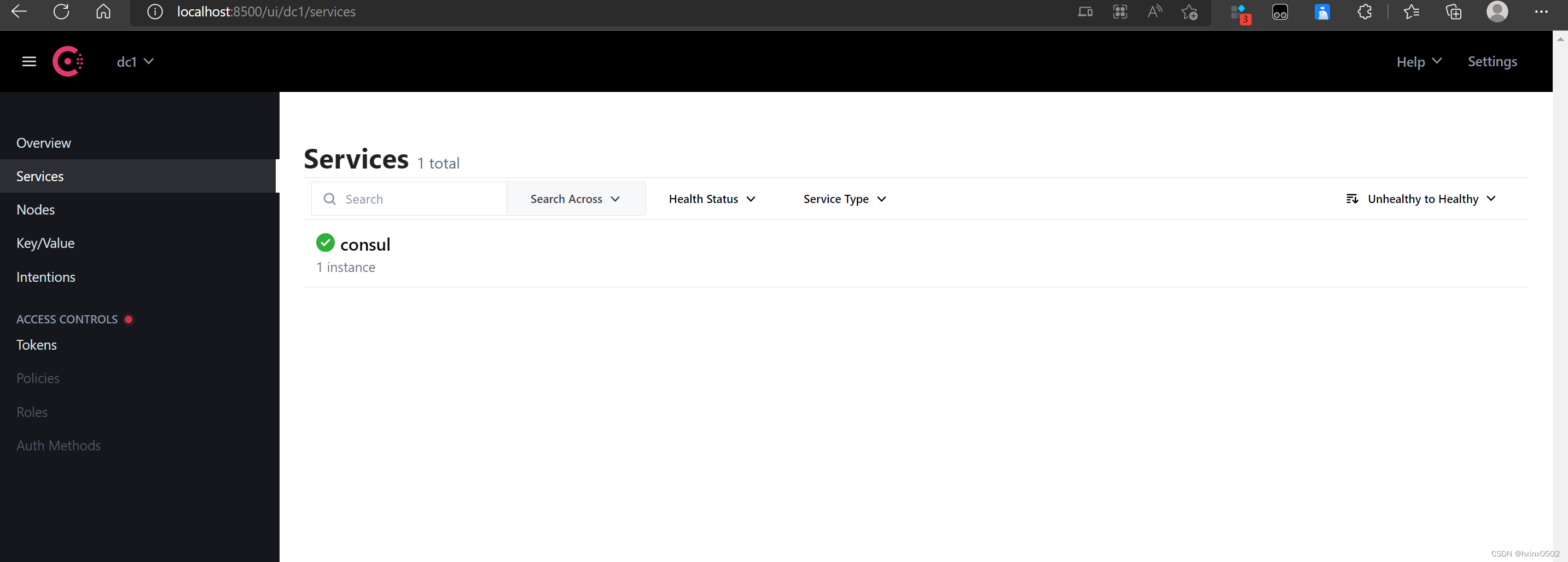

③Consul √
④Nacos - SpringCloud alibaba（强烈推荐使用）√
服务调用：①Ribbon √
②LoadBalancer √
服务调用2：①Feign ×
②OpenFeign √
服务降级：①Hystrix（SpringCloud自带降级和熔断机制）官网不推荐使用，国内企业还在大量用 ×
②resilience4j 官网推荐，国外在用 √
③sentienl - SpringCloud alibaba （国内强烈推荐使用） √
服务网关：①Zuul ×
②gateway √
服务配置：①Config ×
②Nacos - SpringCloud alibaba （推荐使用）√
服务总线：①Bus ×
②Nacos - SpringCloud alibaba （推荐使用）√
在这里插入图片描述

1、新建父工程atguigu-springcloud

maven架构选择org.apache.maven.archetypes:maven-archetype-site(并且删除里面的src，只留下pom.xml)
dependencyManagement里只是声明依赖，并不实现引入，因此子项目需要显示的生命需要用的依赖
pom.xml:

<?xml version="1.0" encoding="UTF-8"?>

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.atguigu.springcloud</groupId>
    <artifactId>cloud2020</artifactId>
    <version>1.0-SNAPSHOT</version>

    <modules>
        <module>cloud-provider-payment8001</module>
    </modules>
    <packaging>pom</packaging>

    <!--统一管理jar包版本-->
    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <maven.compiler.source>1.8</maven.compiler.source>
        <maven.compiler.target>1.8</maven.compiler.target>
        <junit.version>4.12</junit.version>
        <log4j.version>1.2.17</log4j.version>
        <lombok.version>1.16.18</lombok.version>
        <mysql.version>8.0.27</mysql.version>
        <druid.version>1.1.16</druid.version>
        <mybatis.spring.boot.version>2.2.2</mybatis.spring.boot.version>
    </properties>
    <!--子模块继承之后，提供作用：锁定版本+子module不用谢groupId和version-->
    <dependencyManagement>
        <dependencies>
            <!--spring boot 2.2.2-->
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-dependencies</artifactId>
                <version>2.2.2.RELEASE</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <!--spring cloud Hoxton.SR1-->
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>Hoxton.SR1</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <!--spring cloud 阿里巴巴-->
            <dependency>
                <groupId>com.alibaba.cloud</groupId>
                <artifactId>spring-cloud-alibaba-dependencies</artifactId>
                <version>2.1.0.RELEASE</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <!--mysql-->
            <dependency>
                <groupId>mysql</groupId>
                <artifactId>mysql-connector-java</artifactId>
                <version>${mysql.version}</version>
                <scope>runtime</scope>
            </dependency>
            <!-- druid-->
            <dependency>
                <groupId>com.alibaba</groupId>
                <artifactId>druid</artifactId>
                <version>${druid.version}</version>
            </dependency>
            <!--mybatis-->
            <dependency>
                <groupId>org.mybatis.spring.boot</groupId>
                <artifactId>mybatis-spring-boot-starter</artifactId>
                <version>${mybatis.spring.boot.version}</version>
            </dependency>
            <!--junit-->
            <dependency>
                <groupId>junit</groupId>
                <artifactId>junit</artifactId>
                <version>${junit.version}</version>
            </dependency>
            <!--log4j-->
            <dependency>
                <groupId>log4j</groupId>
                <artifactId>log4j</artifactId>
                <version>${log4j.version}</version>
            </dependency>
        </dependencies>
    </dependencyManagement>
    <!--bulid是这样的用springboot默认的build方式-->
    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <configuration>
                    <fork>true</fork>
                    <addResources>true</addResources>
                </configuration>
            </plugin>
        </plugins>
    </build>
</project>

2、构建支付模块cloud-provider-payment8001

建module、改pom、写yml、主启动、业务类

2.1 pom.xml:

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>cloud2020</artifactId>
        <groupId>com.atguigu.springcloud</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>cloud-provider-payment8001</artifactId>

    <dependencies>
        <!--spring-boot-starter-web与spring-boot-starter-actuator一般成对出现-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
        </dependency>
        <!--子类写了version就用子类的版本号，没写就有父类的-->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid-spring-boot-starter</artifactId>
            <version>1.1.10</version>
        </dependency>
        <!--mysql-connector-java-->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jdbc</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>
</project>

2.2 application.yml

server:
  port: 8001

spring:
  application:
    name: cloud-payment-service
  datasource:
    type: com.alibaba.druid.pool.DruidDataSource      #当前数据源操作类型
    driver-class-name: com.mysql.cj.jdbc.Driver        #mysql驱动包(8用这个驱动)
    url: jdbc:mysql://localhost:3306/db-springcloud?useUnicode=true&characterEncoding-utr-8&useSSL=false&serverTimezone=UTC  #()并且加入时区
    username: root
    password: root

mybatis:
  mapper-locations: classpath:mapper/*.xml
  type-aliases-package: com.atguigu.springcloud.entities       #所有Entity别名类所在包

2.3 主启动 PaymentMain8001:

public class PaymentMain8001 {
    public static void main(String[] args) {
        SpringApplication.run(PaymentMain8001.class, args);
    }
}

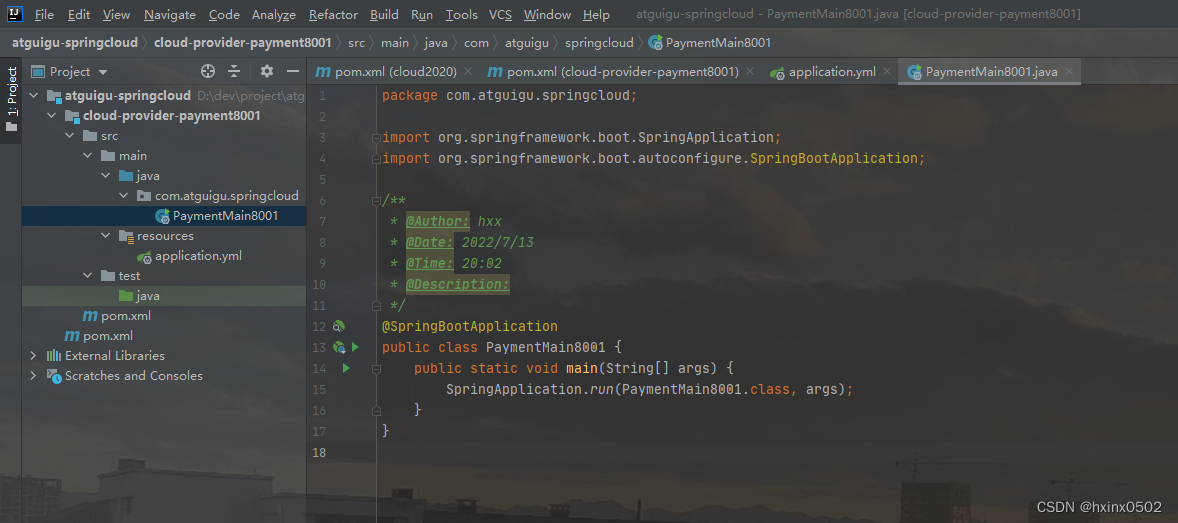

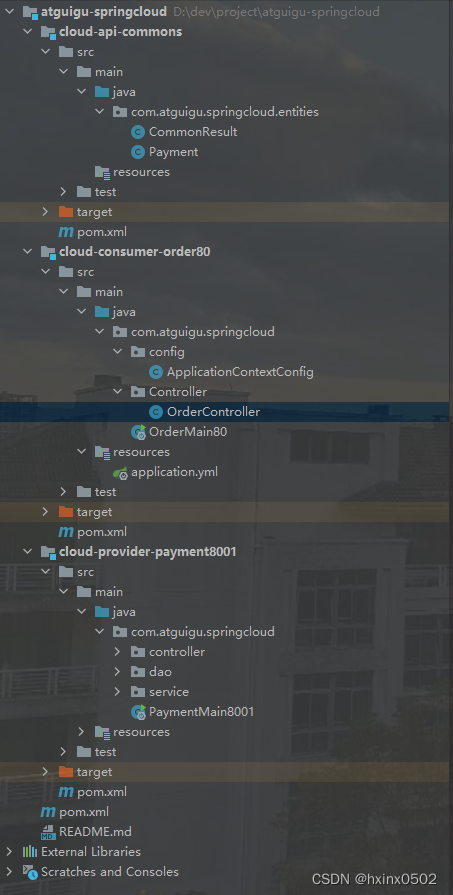

2.4 目前结构：

在这里插入图片描述

2.5 建表SQL：

CREATE TABLE `payment`(
	`id` BIGINT(20) NOT NULL AUTO_INCREMENT COMMENT 'ID',
	`serial` VARCHAR(200) DEFAULT '',
	 PRIMARY KEY (`id`)
)ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8

2.6 CommonResult 结果返回类

@Data
@AllArgsConstructor
@NoArgsConstructor
public class CommonResult<T> {
    private Integer code;
    private String message;
    private T data;

    public CommonResult(Integer code,String message){
        this(code,message,null);
    }
}

2.7 业务类

Payment:

@Data
@AllArgsConstructor
@NoArgsConstructor
public class Payment implements Serializable {
    private Long id;
    private String serial;
}

PaymentDao:

@Mapper
public interface PaymentDao {

    public int create(Payment payment);

    public Payment getPaymentById(@Param("id") Long id);
}

PaymentMapper.xml:

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="com.atguigu.springcloud.dao.PaymentDao">
    <insert id="create" parameterType="Payment" useGeneratedKeys="true" keyProperty="id">
        insert into payment(serial) values (#{serial})
    </insert>
    <!--映射-->
    <resultMap id="BaseResultMap" type="com.atguigu.springcloud.entities.Payment">
        <id column="id" property="id" jdbcType="BIGINT" />
        <id column="serial" property="serial" jdbcType="VARCHAR" />
    </resultMap>
    <select id="getPaymentById" parameterType="long" resultMap="BaseResultMap">
        select * from payment where id = #{id}
    </select>
</mapper>

PaymentService:

public interface PaymentService {
    public int create(Payment payment);
    public Payment getPaymentById(@Param("id") Long id);
}

PaymentServiceImpl:

@Service
public class PaymentServiceImpl implements PaymentService {
    //@Resource是java自带的,@Autowired是spring的
    @Resource
    private PaymentDao paymentDao;
    public int create(Payment payment){
        return paymentDao.create(payment);
    }
    public Payment getPaymentById(Long id){
        return paymentDao.getPaymentById(id);
    }
}

PaymentController:

@RestController
@Slf4j
public class PaymentController {
    @Resource
    private PaymentService paymentService;

    @PostMapping(value = "/payment/create")
    public CommonResult create(Payment payment) {
        int result = paymentService.create(payment);
        log.info("*****插入结果：" + result);
        if (result > 0) {
            return new CommonResult(200, "插入数据库成功", result);
        } else {
            return new CommonResult(444, "插入数据库失败");
        }
    }


    @GetMapping(value = "/payment/get/{id}")
    public CommonResult getaPaymentById(@PathVariable("id") Long id){
        Payment payment = paymentService.getPaymentById(id);
        log.info("*****查询结果：" + payment);
        if (payment != null) {
            return new CommonResult(200, "查询成功", payment);
        } else {
            return new CommonResult(444, "没有对应记录，查询ID："+id,null);
        }
    }
}

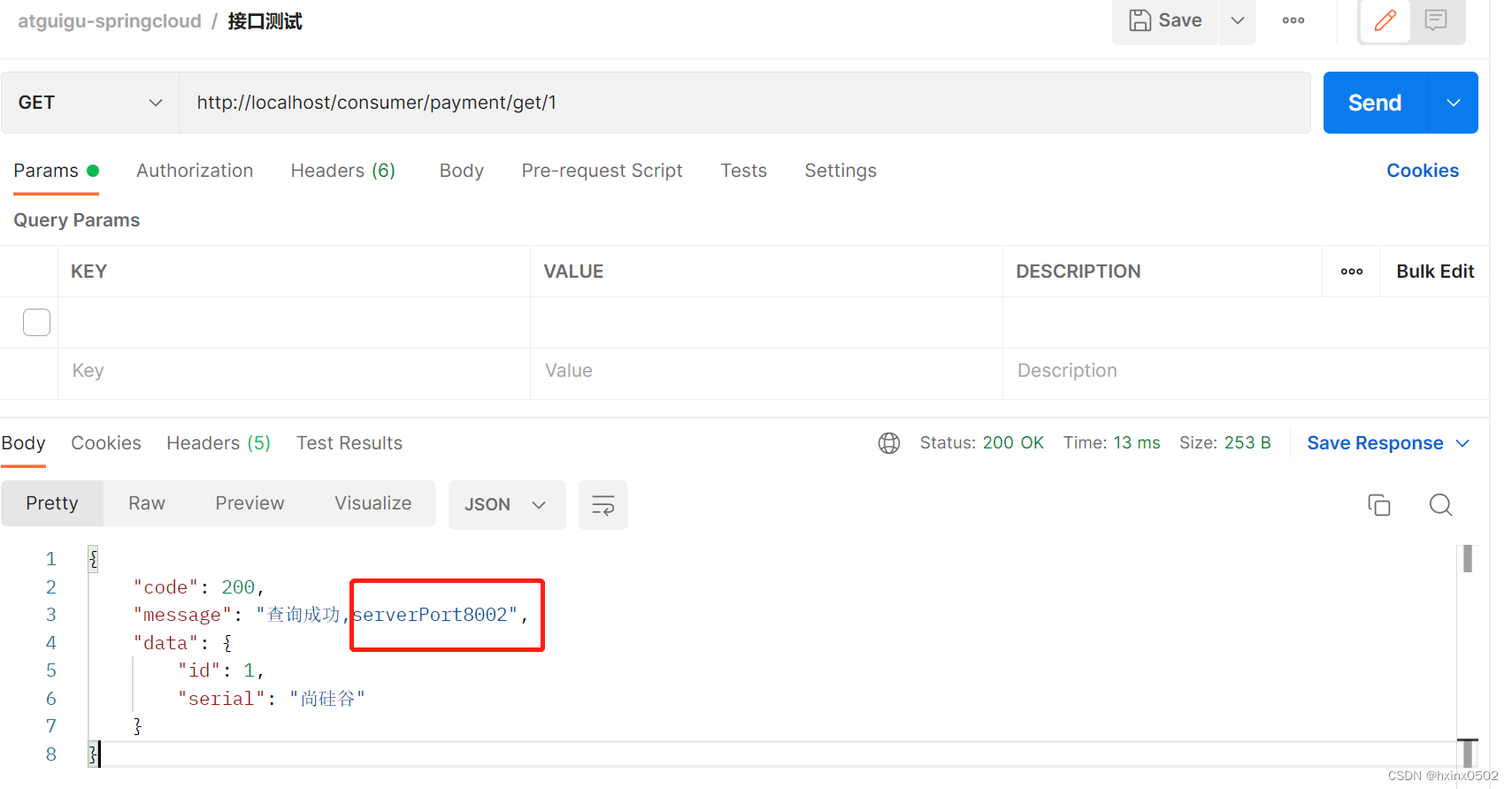

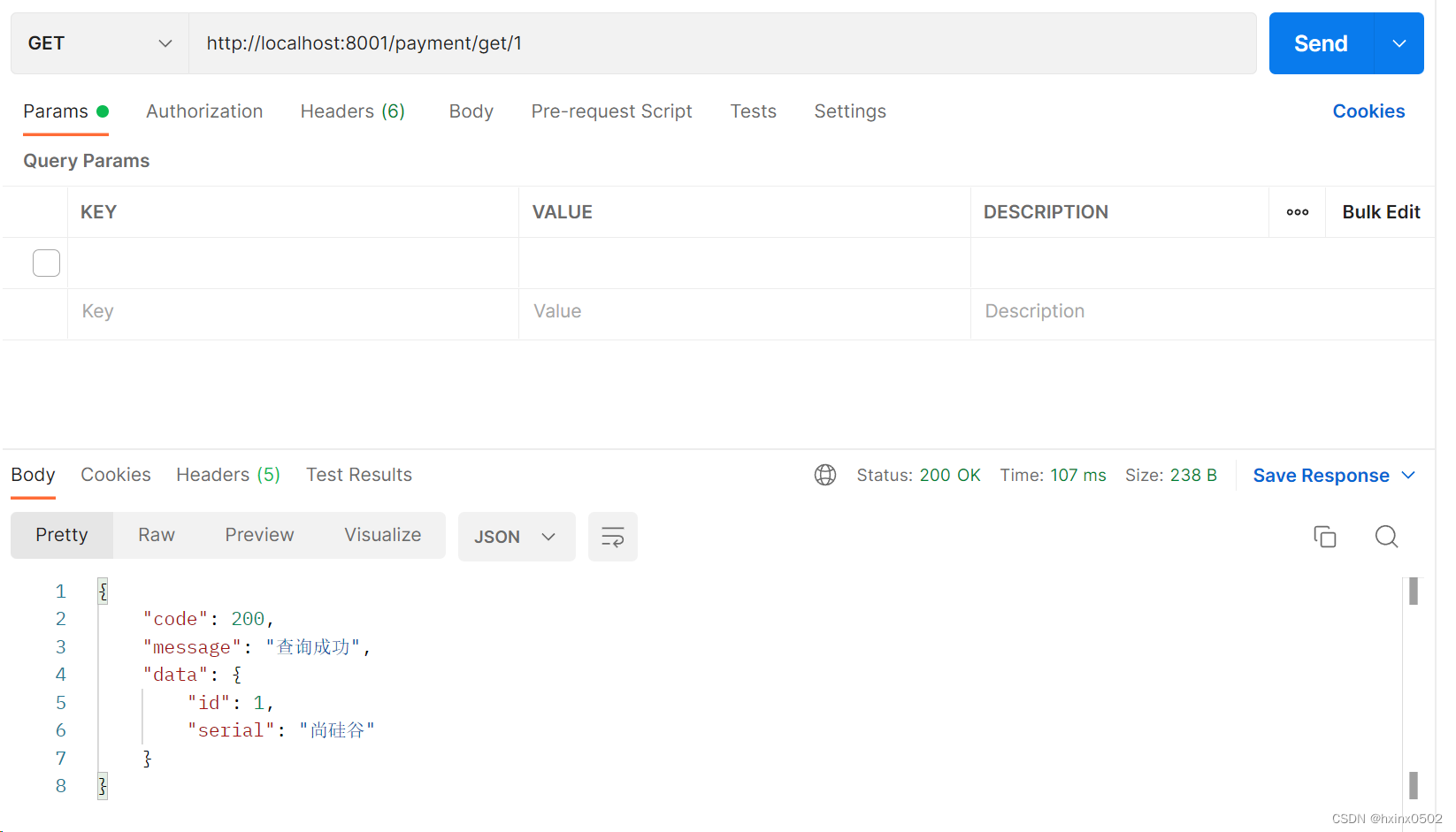

2.8 测试

在这里插入图片描述

3、建立消费者订单模块cloud-consumer-order80

3.1 pom.xml:

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>cloud2020</artifactId>
        <groupId>com.atguigu.springcloud</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>cloud-consumer-order80</artifactId>

    <dependencies>
        <!--spring-boot-starter-web与spring-boot-starter-actuator一般成对出现-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
        <!--mysql-connector-java-->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <!--引入自己定义的api通用包，可以使用payment支付Entity-->
        <dependency>
            <groupId>com.atguigu.springcloud</groupId>
            <artifactId>cloud-api-commons</artifactId>
            <version>${project.version}</version>
        </dependency>
    </dependencies>
</project>

3.2 application.yml:

server:
  port: 80

3.3 主启动类：

@SpringBootApplication
public class OrderMain80 {
    public static void main(String[] args) {
        SpringApplication.run(OrderMain80.class, args);
    }
}

3.4 RestTemplate

首说RestTemplate：
RestTemplate提供了多种便捷访问远程Http服务的方法，是一种简单便捷的访问restful服务模板类，是Spring提供的用于访问Rest服务的客户端模板工具集，实现80到8001的远程调用。
使用restTemplate访问restful接口非常的简单粗暴，（url、requestMap、ResponseBean.class）这三个参数分别代表REST请求地址、请求参数、HTTP响应转换被转换成的对象类型。
官网参考地址：https://docs.spring.io/spring-framework/docs/5.2.2.RELEASE/javadoc-api/org/springframework/web/client/RestTemplate.html
ApplicationContextConfig：

@Configuration
public class ApplicationContextConfig {
    @Bean
    public RestTemplate getRestTemplate(){
        return new RestTemplate();
    }
}

3.5 OrderController：

@RestController
@Slf4j
public class OrderController {

    public static final String PAYMENT_URL = "HTTP://localhost:8001";
    @Resource
    private RestTemplate restTemplate;

    @GetMapping("/consumer/payment/create")
    public CommonResult<Payment> create(Payment payment){
        return restTemplate.postForObject(PAYMENT_URL+"/payment/create",payment, CommonResult.class);
    }

    @GetMapping("/consumer/payment/get/{id}")
    public CommonResult<Payment> getPayment(@PathVariable("id") long id){
        return restTemplate.getForObject(PAYMENT_URL+"/payment/get/"+id,CommonResult.class);
    }

4 工程重构（去重复代码）：

目前结构：
在这里插入图片描述
并在需要使用共有模块的模块中引入通用包

<!--引入自己定义的api通用包，可以使用payment支付Entity-->
<dependency>
    <groupId>com.atguigu.springcloud</groupId>
    <artifactId>cloud-api-commons</artifactId>
    <version>${project.version}</version>
</dependency>

5、Eureka服务注册与发现

5.1 服务治理：

SpringCloud 封装了Netflix公司开发的Eureka模块来实现服务治理
在传统的rpc远程调用框架中，管理每个服务与服务之间依赖关系比较复杂，所以需要使用服务治理，管理服务与服务之间的依赖关系，可以实现服务调用、负载均衡、容错等，实现服务发现与注册

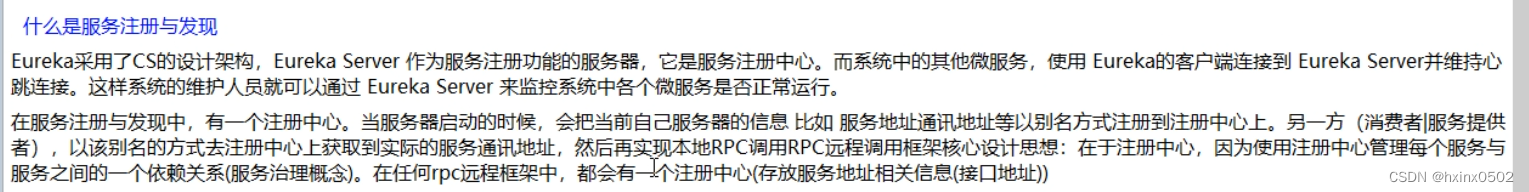

5.2 服务注册：

在这里插入图片描述

5.3 Eureka两组件

Eureka Server: 提供服务注册服务
各个微服务节点通过配置启动后，会在Eureka Server中进行注册，这样Eureka Server中的服务注册表中将会存储所有可用服务节点的信息，服务节点的信息可以在界面中直观看到。
Eureka Client: 通过注册中心进行访问
是一个Java客户端，用于简化Eureka Server的交互，客户端同时也具备一个内置的、使用轮询（round-robin）负载算法的负载均衡器。在应用启动后，将会向Eureka Server发送心跳（默认周期为30秒）。如果Eureka Server在多个心跳周期内没有接收到某个节点的心跳，Eureka Server将会从服务注册表中把这个服务节点移除（默认90秒）

5.4 IDEA生成eurekaServer端服务注册中心类似物业公司

5.4.1 pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>cloud2020</artifactId>
        <groupId>com.atguigu.springcloud</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>cloud-eureka-server7001</artifactId>

    <dependencies>
        <!--eureka server-->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-server</artifactId>
        </dependency>
        <!--引入自己定义的api通用包，可以使用payment支付Entity-->
        <dependency>
            <groupId>com.atguigu.springcloud</groupId>
            <artifactId>cloud-api-commons</artifactId>
            <version>${project.version}</version>
        </dependency>
        <!--boot web actuator-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
        <!--一般通用配置-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
        </dependency>
    </dependencies>
</project>

5.4.2 application.yml

server:
  port: 7001

eureka:
  instance:
    hostname: localhost #eureka服务端的实例名称
  client:
    #false表示不向注册中心注册自己
    register-with-eureka: false
    #false表示自己端就是注册中心，我的职责就是维护服务实例，并不需要去检测服务
    fetch-registry: false
    service-url:
      defaultZone: http://${eureka.instance.hostname}:${server.port}/eureka/

5.4.3 主启动 EurekaMain7001

@SpringBootApplication
@EnableEurekaServer
public class EurekaMain7001 {
    public static void main(String[] args) {
        SpringApplication.run(EurekaMain7001.class, args);
    }
}

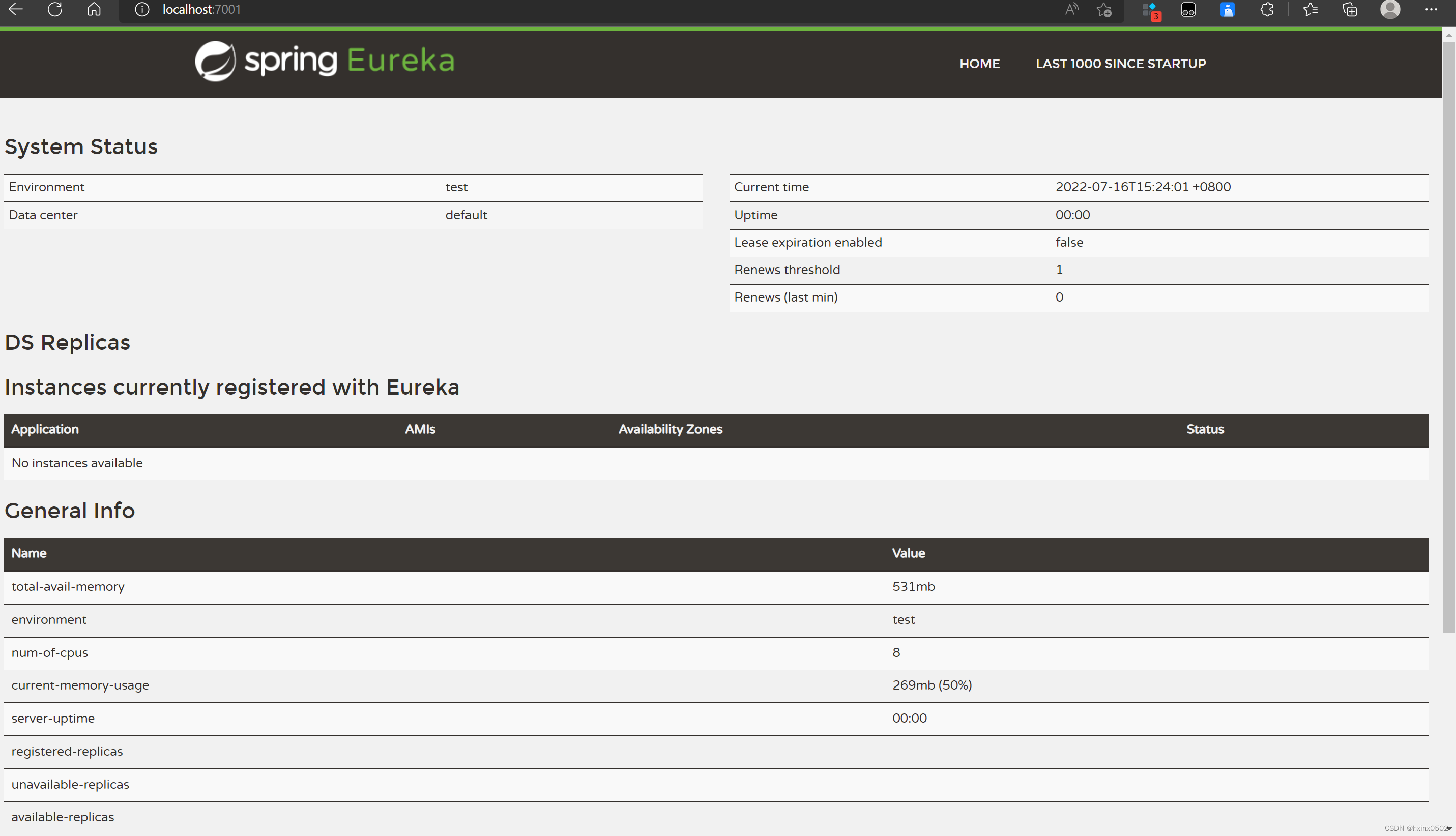

5.4.4 测试
在这里插入图片描述

5.5 支付微服务8001入驻进eurekaServer

5.5.1 改pom.xml，加入：

<!--eureka-client-->
<dependency>
     <groupId>org.springframework.cloud</groupId>
     <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
</dependency>

5.5.2 改application.yml，加入

eureka:
  client:
    #表示是否将自己注册进EurekaServer 默认为true
    register-with-eureka: true
    #是否从EurekaServer抓取已有的注册信息，默认为true。单节点无所谓，集群必须设置为true才能配合ribbon使用负载均衡
    fetch-registry: true
    service-url: http://localhost:7001/eureka

5.5.3 主启动PaymentMain8001
加入注解@EnableEurekaClient

5.5.4测试
先启动eurekaServer再启动client，会发现对应的client被注册进去，如下图，红字为Eureka自我保护机制
在这里插入图片描述

5.6 订单微服务80入驻进eurekaServer

5.6.1 改pom.xml 加入：

<dependency>
      <groupId>org.springframework.cloud</groupId>
       <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
</dependency>

5.6.2 改application.yml 加入

eureka:
  client:
    #表示是否将自己注册进EurekaServer 默认为true
    register-with-eureka: true
    #是否从EurekaServer抓取已有的注册信息，默认为true。单节点无所谓，集群必须设置为true才能配合ribbon使用负载均衡
    fetch-registry: true
    service-url:
      defaultZone: http://localhost:7001/eureka

5.6.3主启动OrderMain80
加入注解@EnableEurekaClient

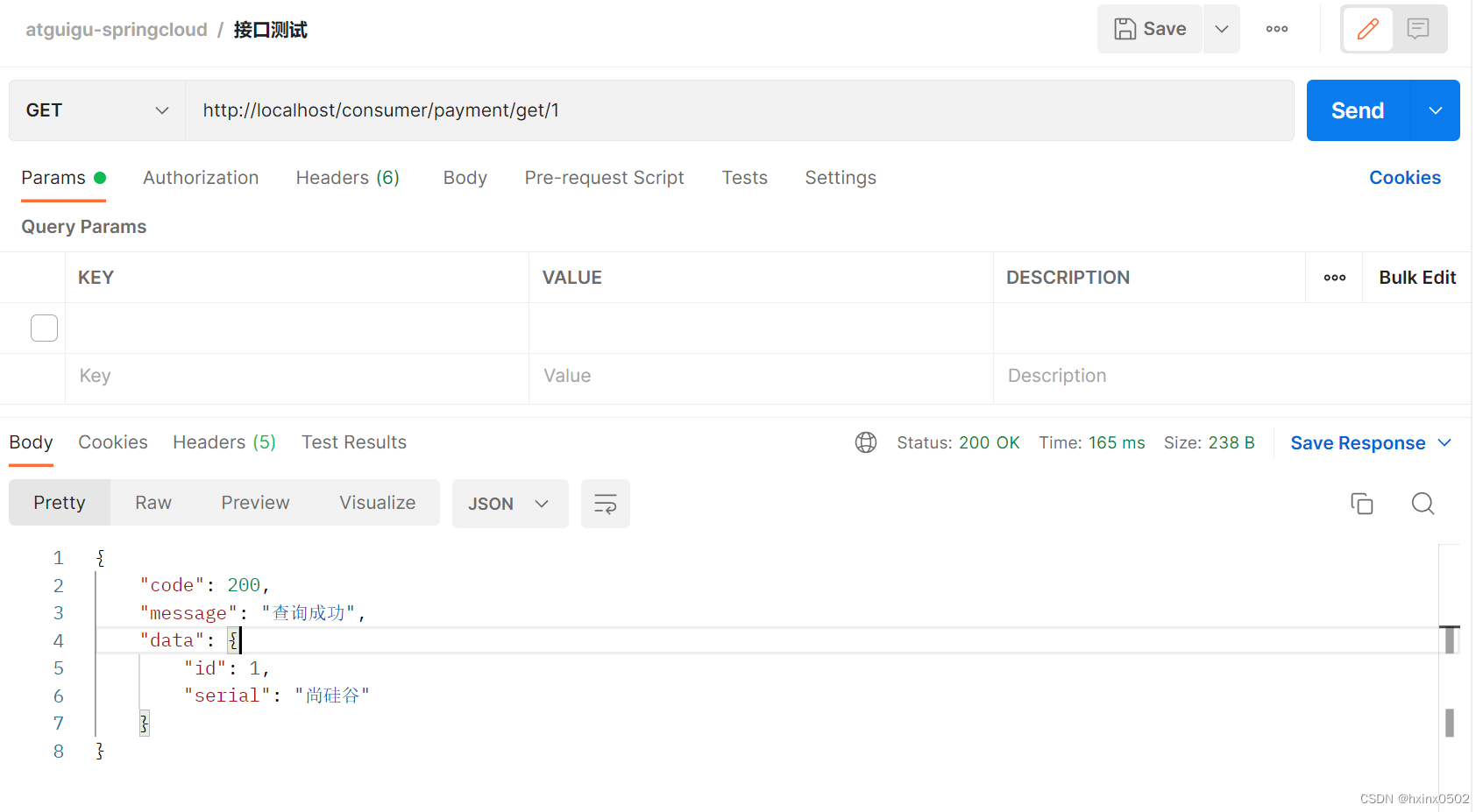

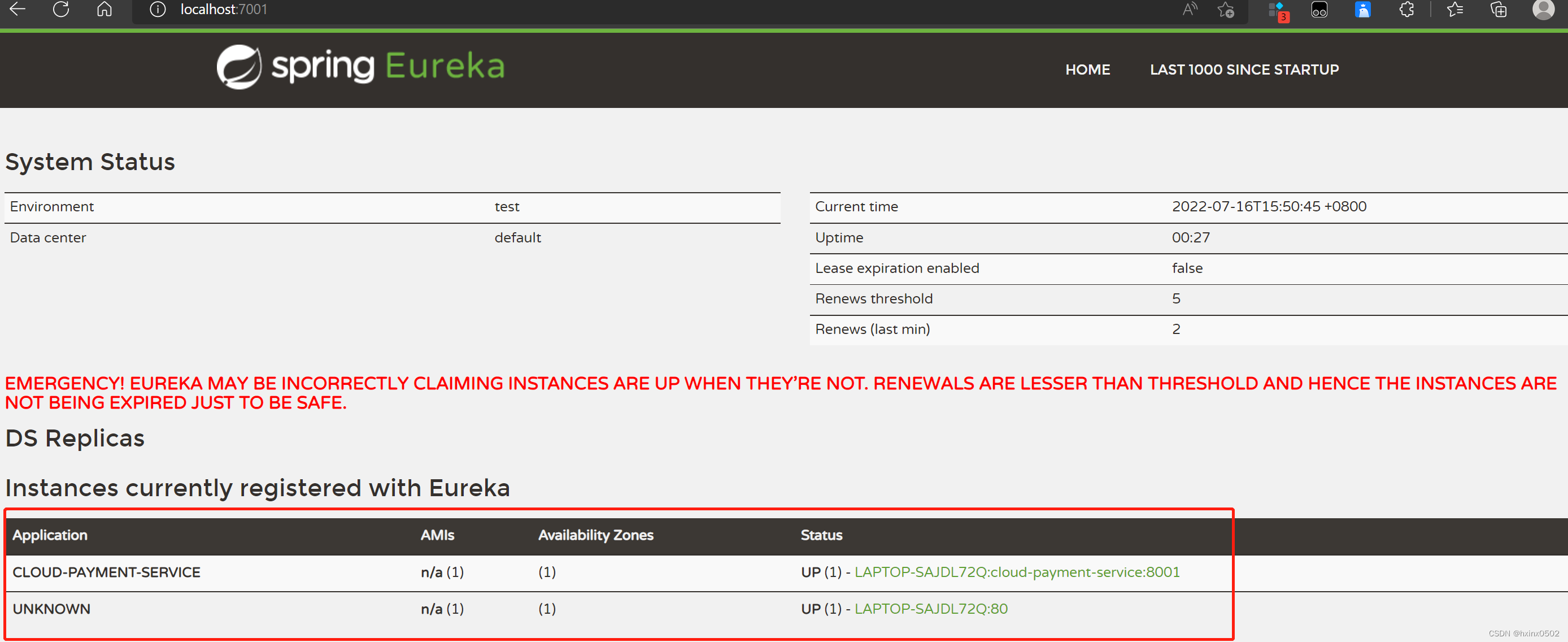

5.6.4 测试
在这里插入图片描述

5.7 Eureka集群原理(互相注册，相互守望)

在这里插入图片描述
问题：微服务RPC远程服务调用最核心的是什么
答：高可用，试想你的注册中心只有only one, 它出故障了就会导致整个微服务环境不可能用
所以解决办法：搭建eureka注册中心集群，实现负载均衡+容错故障

5.8 EurekaServer集群环境搭建

5.8.1 建module cloud-eureka-server7002
5.8.2 改pom.xml：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>cloud2020</artifactId>
        <groupId>com.atguigu.springcloud</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>cloud-eureka-server7002</artifactId>

    <dependencies>
        <!--eureka server-->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-server</artifactId>
        </dependency>
        <!--引入自己定义的api通用包，可以使用payment支付Entity-->
        <dependency>
            <groupId>com.atguigu.springcloud</groupId>
            <artifactId>cloud-api-commons</artifactId>
            <version>${project.version}</version>
        </dependency>
        <!--boot web actuator-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
        <!--一般通用配置-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
        </dependency>
    </dependencies>
</project>

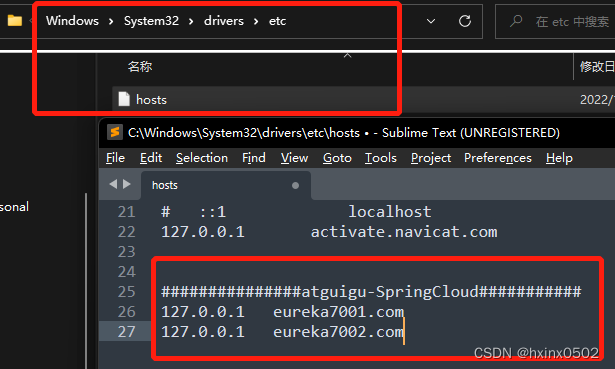

5.8.3 修改映射配置
在这里插入图片描述
5.8.4 改yml
7001和7002的都要改
7001：

server:
  port: 7001

eureka:
  instance:
    hostname: eureka7001.com #eureka服务端的实例名称
  client:
    #false表示不向注册中心注册自己
    register-with-eureka: false
    #false表示自己端就是注册中心，我的职责就是维护服务实例，并不需要去检测服务
    fetch-registry: false
    service-url:
      defaultZone: http://eureka7002.com:7002/eureka/

7002：

server:
  port: 7002

eureka:
  instance:
    hostname: eureka7002.com #eureka服务端的实例名称
  client:
    #false表示不向注册中心注册自己
    register-with-eureka: false
    #false表示自己端就是注册中心，我的职责就是维护服务实例，并不需要去检测服务
    fetch-registry: false
    service-url:
      defaultZone: http://eureka7001.com:7001/eureka/

5.8.5 主启动：

@SpringBootApplication
@EnableEurekaServer
public class EurekaMain7002 {
    public static void main(String[] args) {
        SpringApplication.run(EurekaMain7002.class, args);
    }
}

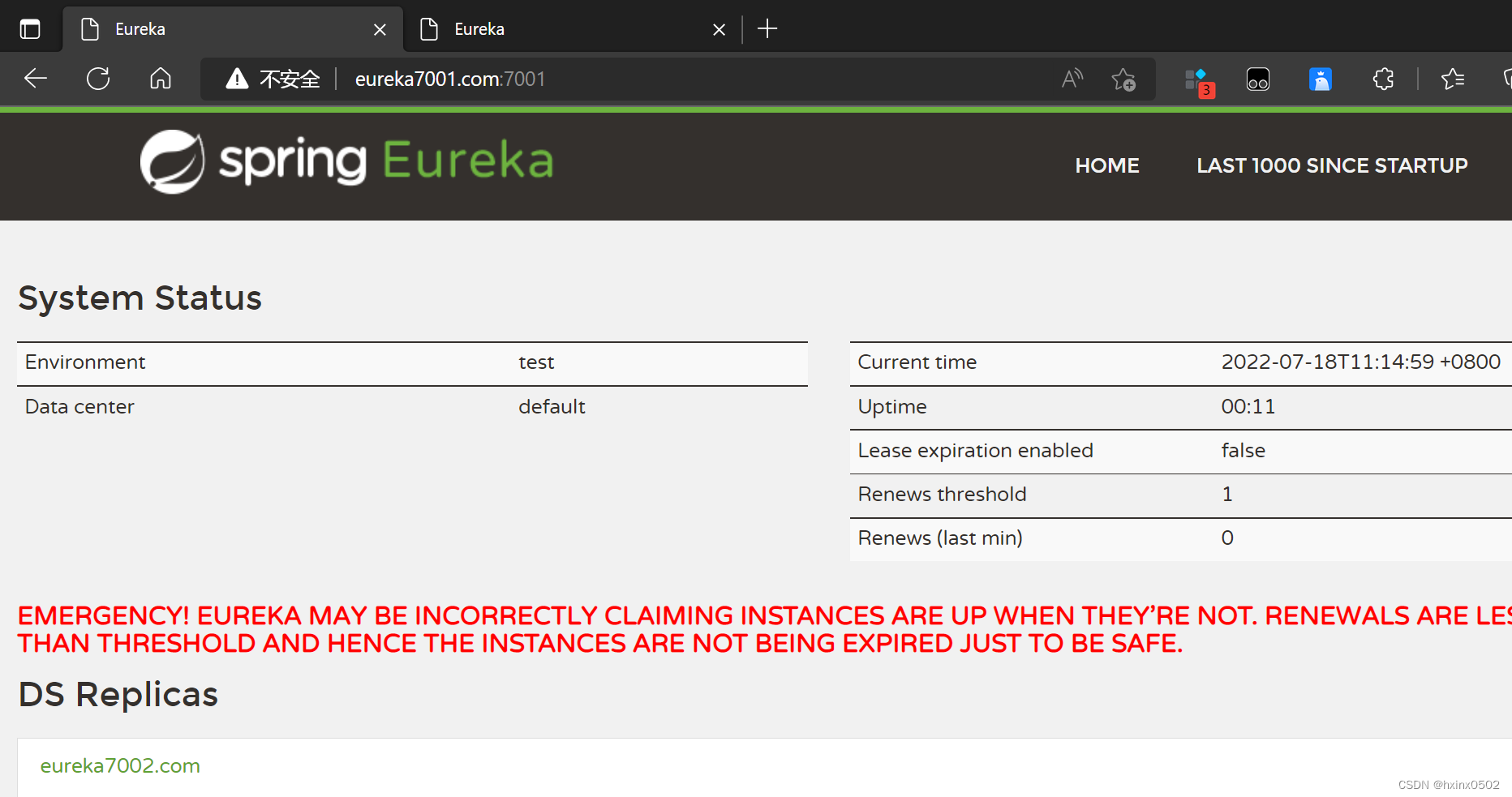

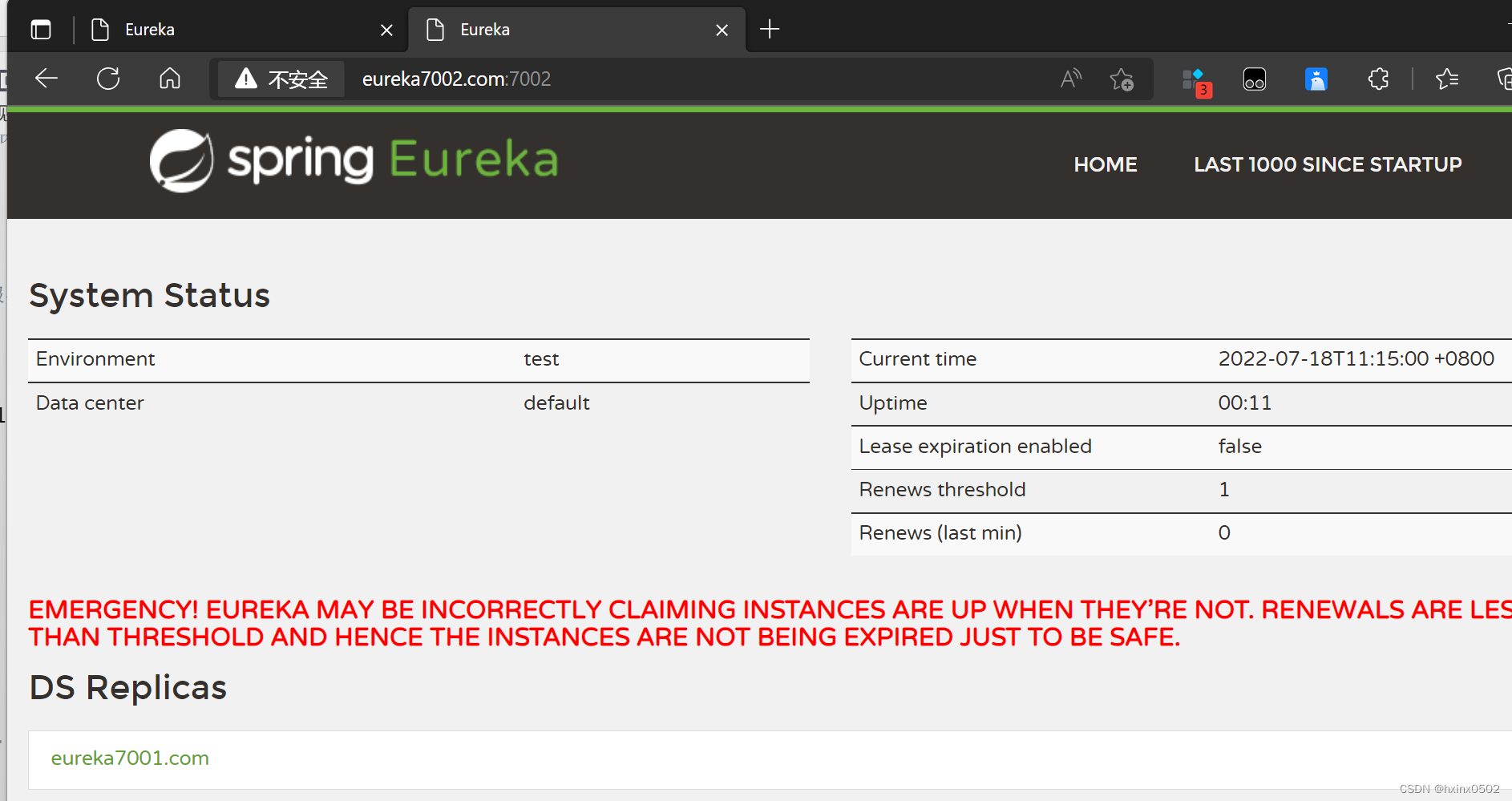

5.8.6 测试
在这里插入图片描述

5.9 订单支付两微服务注册进Eureka集群

5.9.1 修改yml
8001的Application.yml中加入：
defaultZone: http://eureka7001.com:7001/eureka,http://eureka7002.com:7002/eureka #集群版
80的Application.yml中加入：
defaultZone: http://eureka7001.com:7001/eureka,http://eureka7002.com:7002/eureka #集群版

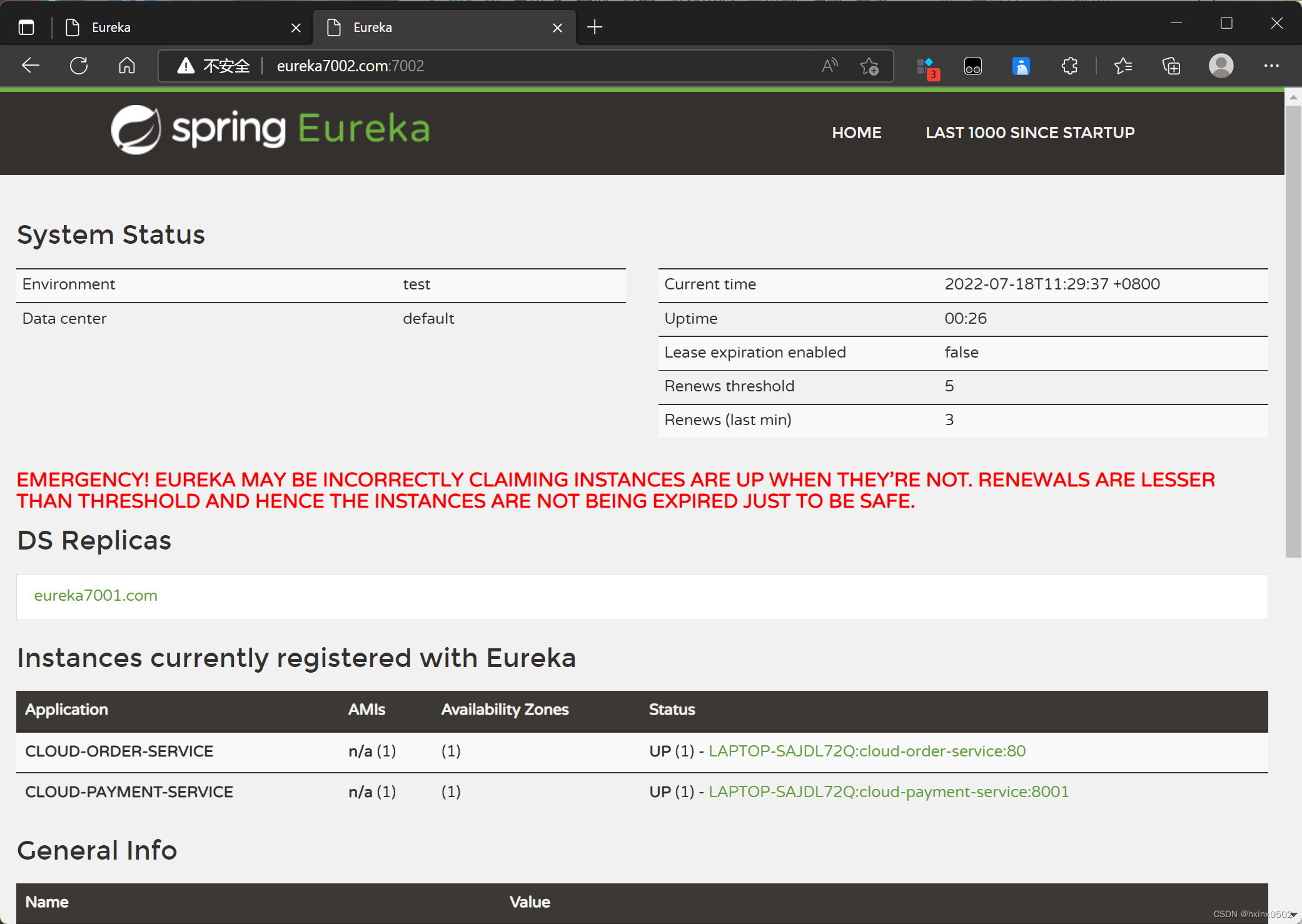

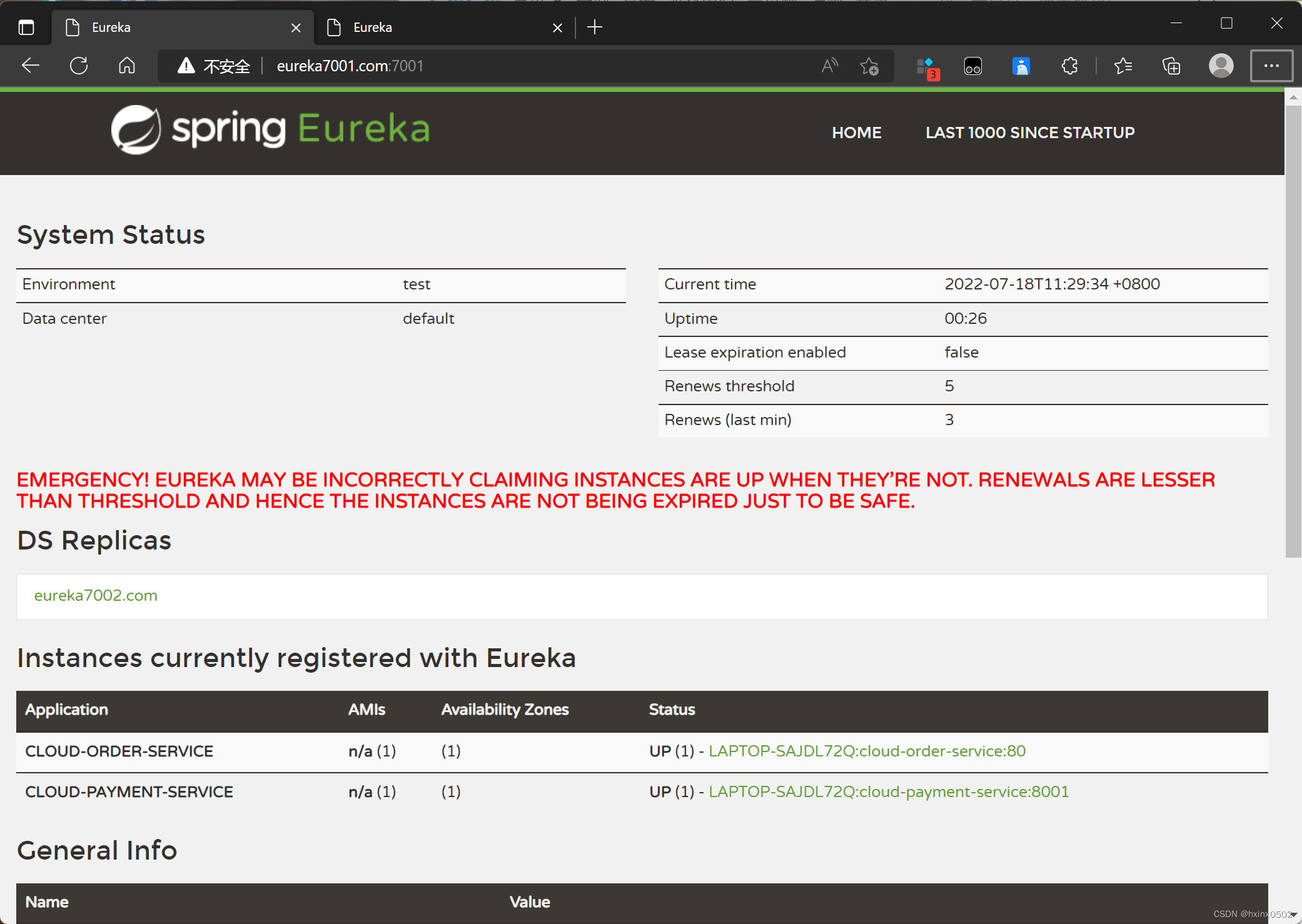

5.9.2 测试
在这里插入图片描述

5.10 支付微服务集群配置（8001的克隆）

5.10.1 新建module cloud-provider-payment8002
5.10.2 赋值pom.xml application.yml与业务类
5.10.3 修改8001和8002的controller，默认的负载均衡方式是轮询，看执行查询具体调用那台provider
在这里插入图片描述

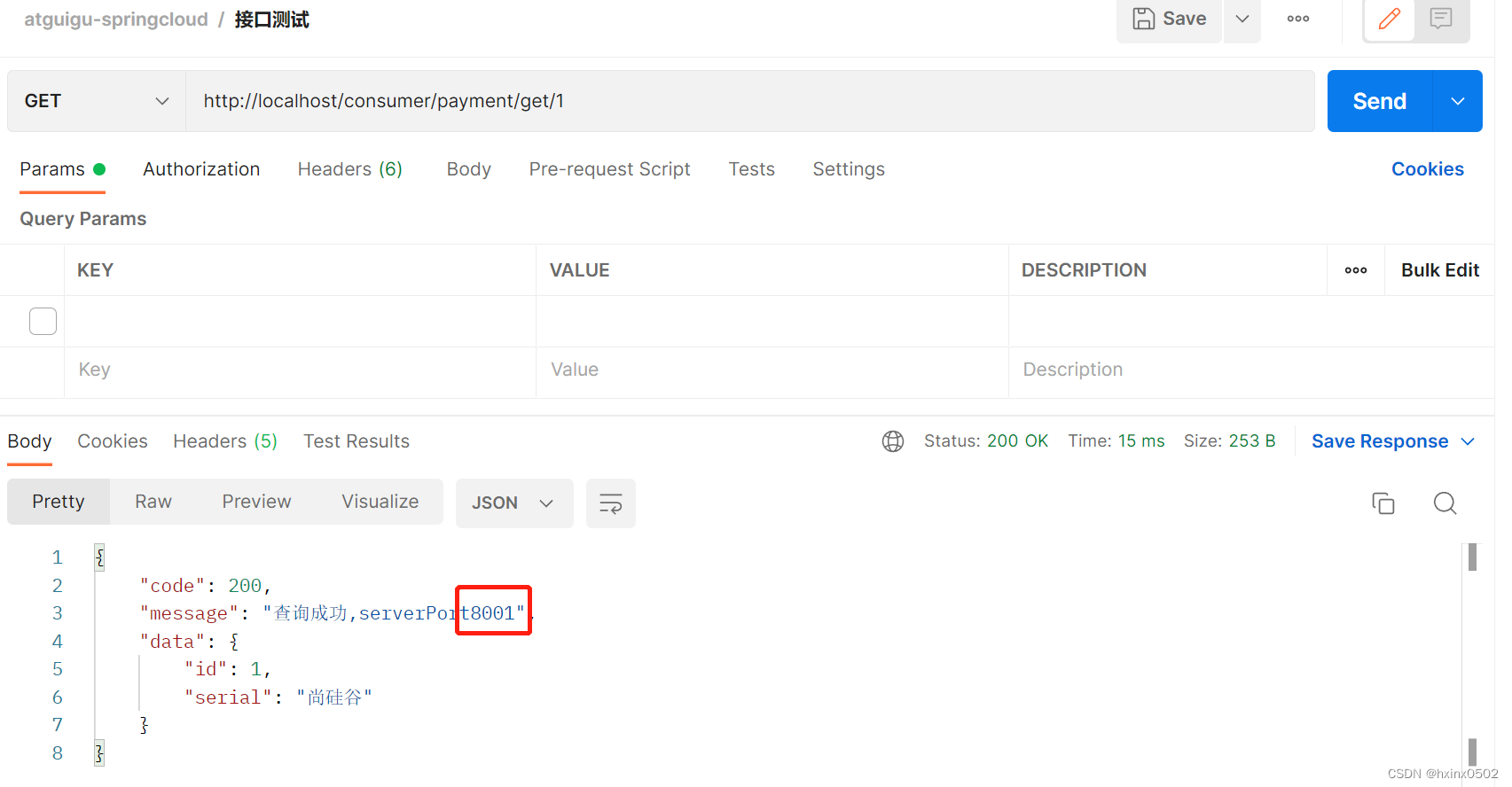

5.10.4 测试
先修改80 controller
PAYMENT_URL = “HTTP://localhost:8001” 改成
在ApplicationContextConfig中加入@LoadBalanced注解开启RestTemplate负载均衡功能
通过测试可以看到8001和8002交替出现

5.11 actuator微服务信息完善

服务名称修改和访问信息有ip信息提示
在8001与8002的application.yml中加入

  instance:
    instance-id: payment8002
    prefer-ip-address: true

5.12 服务发现Discovery

对于注册进eureka里面的微服务，可以通过服务发现来获得该服务的信息
在8001的controller下面加入

 @Resource
    private DiscoveryClient discoveryClient;
    @GetMapping(value = "/payment/discovery")
    public Object discovery(){
        List<String> services = discoveryClient.getServices();
        for(String element : services){
            log.info("*****element:"+element);
        }
        List<ServiceInstance> instances = discoveryClient.getInstances("CLOUD-PAYMENT-SERVICE");
        for (ServiceInstance instance : instances) {
            log.info(instance.getServiceId()+"\t"+instance.getHost()+"\t"+instance.getPort()+"\t"+instance.getUri());
        }
        return this.discoveryClient;
    }

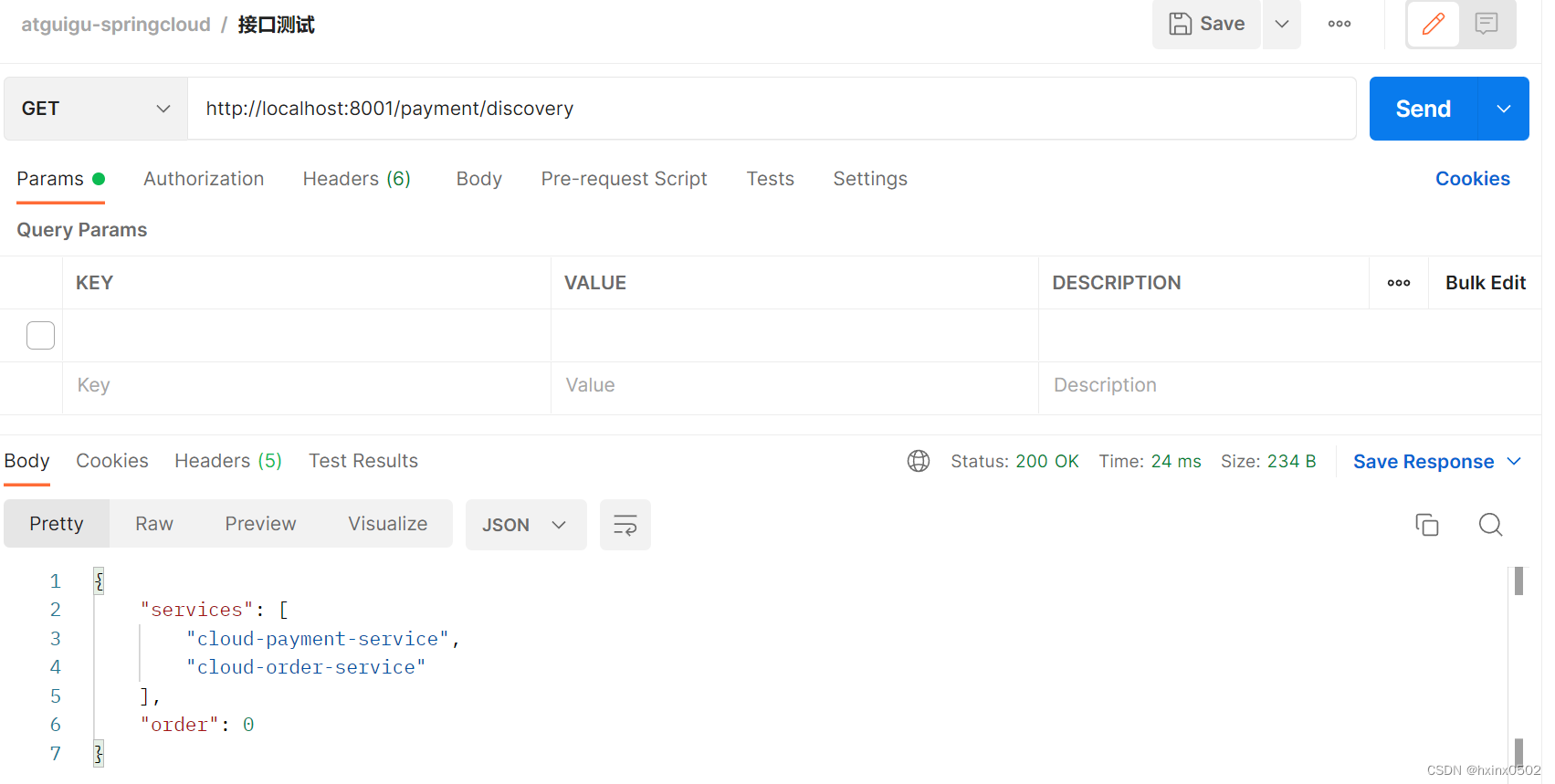

测试：
在这里插入图片描述

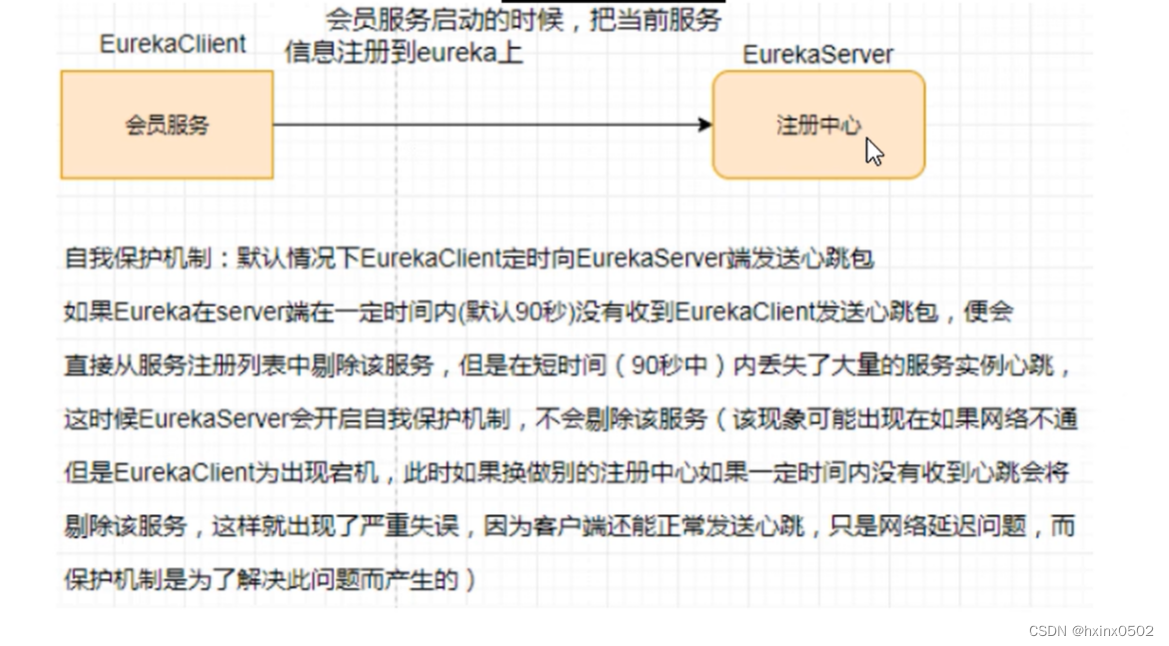

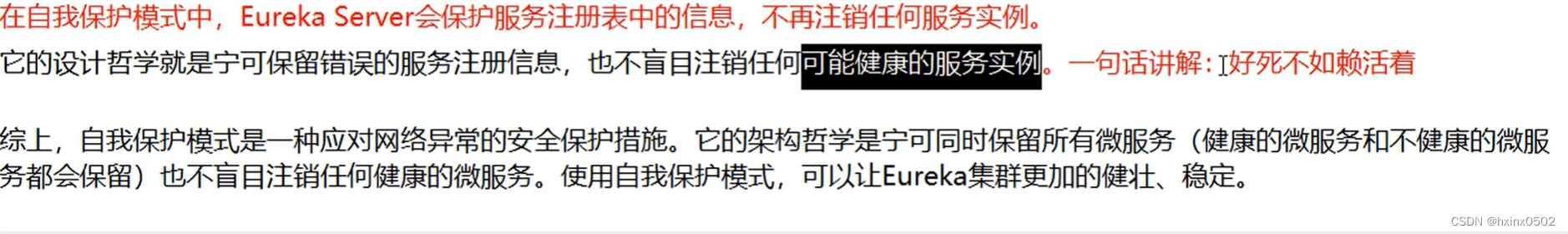

5.13 Eureka自我保护

5.13.1 概述：
保护模式主要用于一组客户端和Eureka Server之间存在网络分区场景下的保护。
一旦进入保护模式，Eureka Server将会尝试保护其服务注册表中的信息，不再删除服务注册表中的数据，也就不会注销任何微服务

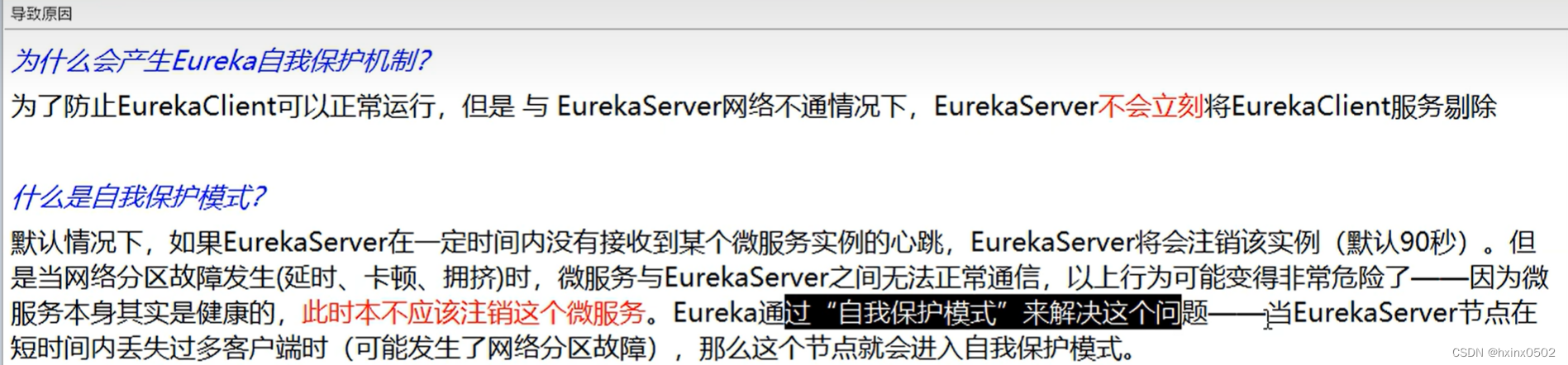

5.13.2 导致原因：
一句话：某时刻某一个微服务不可用了，Eureka不会立刻清理，依旧会对该微服务的信息进行保存
属于CAP里面的AP分支
在这里插入图片描述

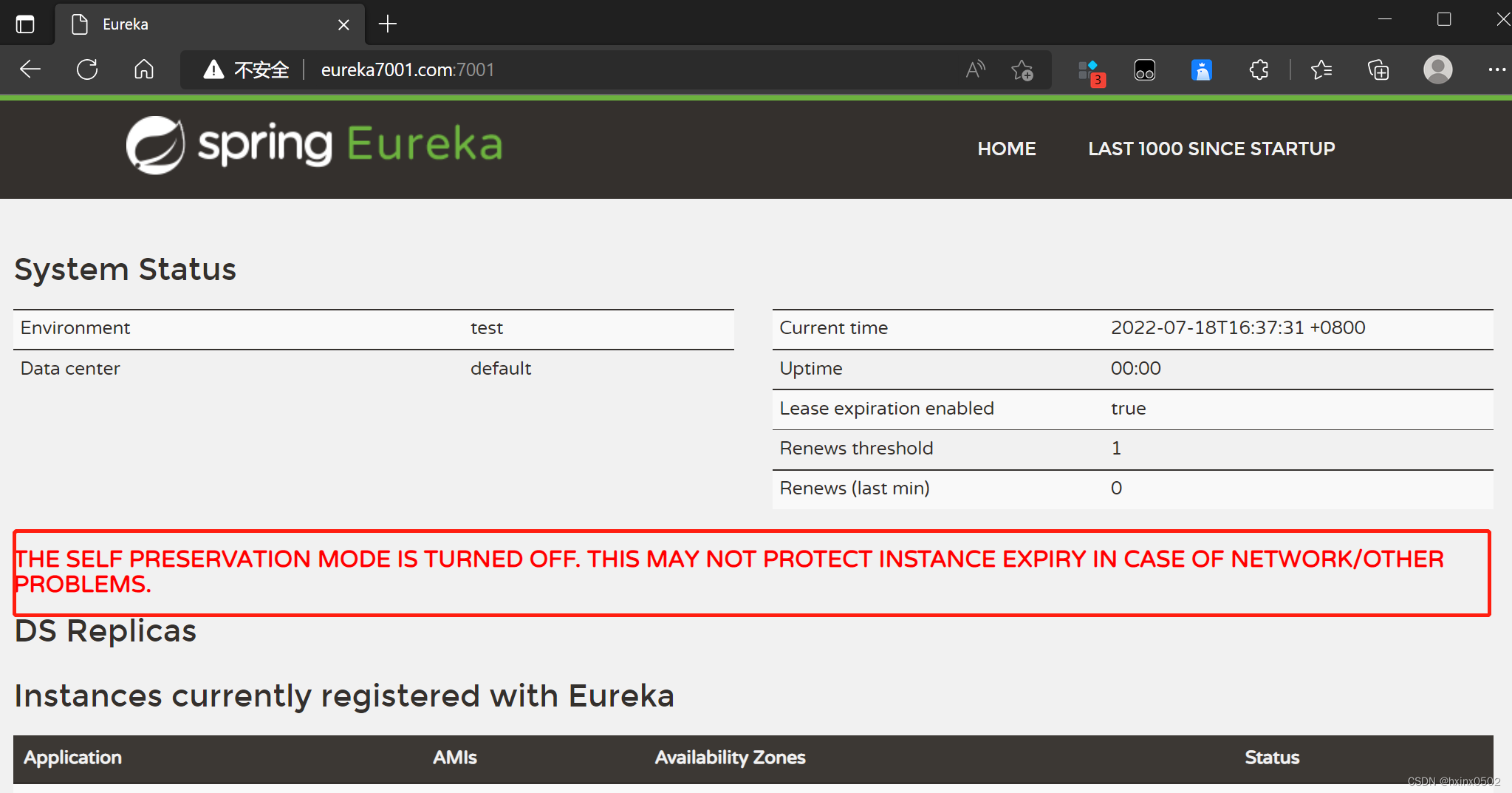

5.13.3 如何禁止自我保护
7001

eureka:
  server:
    #关闭自我保护机制，保证不可用服务被即使剔除
    enable-self-preservation: false
    eviction-interval-timer-in-ms: 2000

在这里插入图片描述
8001

#Eureka客户端向服务端发送心跳的时间间隔，单位为秒（默认是30秒）
lease-renewal-interval-in-seconds: 1
#Eureka服务端在收到最后一次心跳后等待时间上线，单位为秒（默认是90秒），超时将剔除服务
lease-expiration-duration-in-seconds: 2

6 Zookeeper

6.1 支付服务注册进zookeeper

6.1.1 建module cloud-provider-payment8004
6.1.2 改pom.xml：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>cloud2020</artifactId>
        <groupId>com.atguigu.springcloud</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>cloud-provider-payment8004</artifactId>

    <dependencies>
        <!--SpringBoot整合web组件-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <!--引入自己定义的api通用包,可以使用Payment支付Entity-->
        <dependency>
            <groupId>com.atguigu.springcloud</groupId>
            <artifactId>cloud-api-commons</artifactId>
            <version>${project.version}</version>
        </dependency>
        <!-- SpringBoot整合zookeeper客户端 -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-zookeeper-discovery</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>
</project>

6.1.3 写yaml:

server:
  port: 8004
spring:
  application:
    name: cloud-provider-payment
  cloud:
    zookeeper:
      connect-string: 127.0.0.1:2181

6.1.4 主启动

@SpringBootApplication
@EnableDiscoveryClient //该注解用于向使用consul或者zookeeper作为注册中心时注册服务
public class PaymentMain8004 {
    public static void main(String[] args) {
        SpringApplication.run(PaymentMain8004.class, args);
    }
}

6.1.5 controller：

@RestController
@Slf4j
public class PaymentController {
    @Value("${server.port}")
    private String serverPort;

    @GetMapping(value = "/payment/zk")
    public String paymentzk(){
        return "springcloud with zookeeper:"+serverPort+"\t"+ UUID.randomUUID().toString();
    }
}

6.1.6 查看zookeeper注册服务
我这里的zookeeper是用docker装的，所以用docker进入zookeeper查看
按顺序使用如下命令
cd bin/
zkCli.sh
ls /services
在这里插入图片描述
可以看到模块成功注册进zookeeper

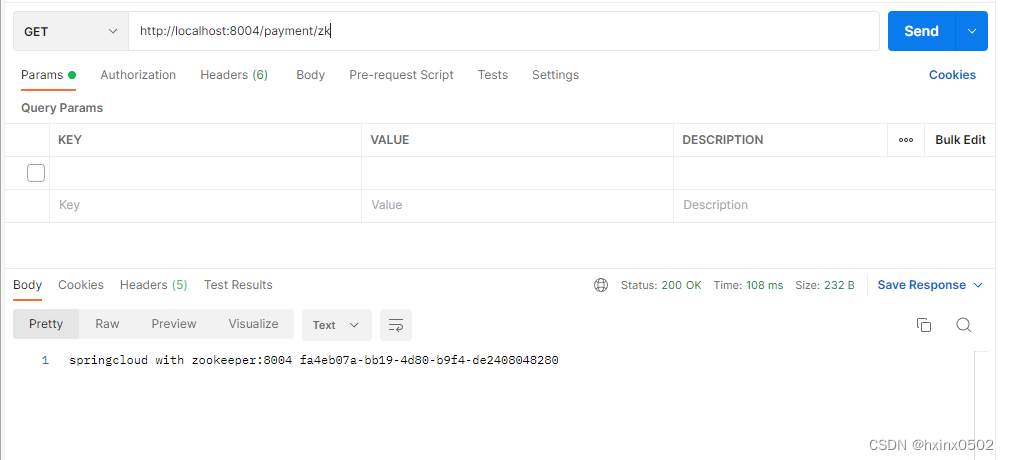

6.1.7 测试
在这里插入图片描述
6.1.8 服务节点是临时性的

6.2 订单服务注册进zookeeper

6.2.1 新建module cloud-consumerzk-order80
6.2.2 改pom.xml:

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>cloud2020</artifactId>
        <groupId>com.atguigu.springcloud</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>cloud-consumerzk-order80</artifactId>

    <dependencies>
        <!--SpringBoot整合web组件-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <!--引入自己定义的api通用包,可以使用Payment支付Entity-->
        <dependency>
            <groupId>com.atguigu.springcloud</groupId>
            <artifactId>cloud-api-commons</artifactId>
            <version>${project.version}</version>
        </dependency>
        <!-- SpringBoot整合zookeeper客户端 -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-zookeeper-discovery</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>
</project>

6.2.3 新建application.yml:

server:
  port: 80
spring:
  application:
    name: cloud-consumer-order
  cloud:
    zookeeper:
      connect-string: 127.0.0.1:2181

6.2.4 主启动：

@SpringBootApplication
@EnableDiscoveryClient
public class OrderZKMain80 {
    public static void main(String[] args) {
        SpringApplication.run(OrderZKMain80.class, args);
    }
}

6.2.5 业务类
ApplicationContextConfig:

@Configuration
public class ApplicationContextConfig {
    @Bean
    @LoadBalanced
    public RestTemplate getRestTemplate(){
        return new RestTemplate();
    }
}

OrderZKController:

@RestController
@Slf4j
public class OrderZKController {
    public static final String INVOKE_URL = "HTTP://cloud-provider-payment";

    @Resource
    private RestTemplate restTemplate;

    @GetMapping(value = "/consumer/payment/zk")
    public String paymentInfo(){
        String result = restTemplate.getForObject(INVOKE_URL+"/payment/zk",String.class);
        return result;
    }
}

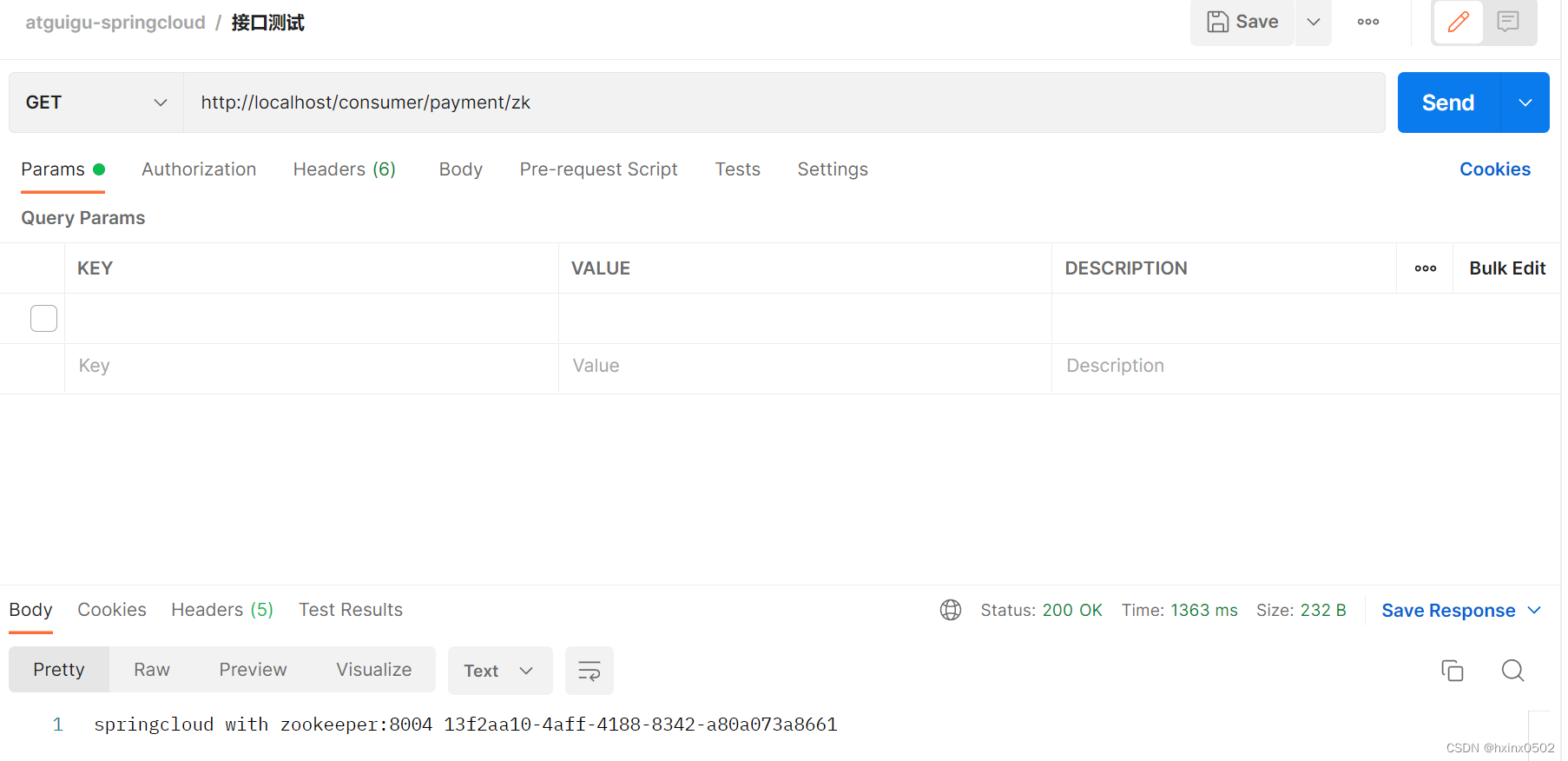

6.2.6 测试：
在这里插入图片描述

在这里插入图片描述

7 Consul

7.1 Consul 简介

7.1.1 是什么
（如果没有nacos，这个应该就是eureka的接班人）
官网：https://www.consul.io/intro/index.html
在这里插入图片描述
7.1.2 能干嘛
① 服务发现：提供HTTP和DNS两种发现法师
② 健康监测：支持多种协议， HTTP\TCP\Docker\Shel脚本定制化
③ KV存储： key value的存储方式（有点类似redis）
④ 多数据中心
⑤ 可视化Web界面

7.1.3 去哪儿下
https://www.consul.io/downloads.html
（我自己用的docker，比较方便）

7.1.4 怎么玩
https://www.springcloud.cc/spring-cloud-consul.html

7.2 consul 安装启动

我这里以docker为例
7.2.1 下载
docker pull consul
7.2.2 启动
docker run -d -p 8500:8500 -p 8300:8300 -p 8301:8301 -p 8302:8302 -p 8600:8600/udp --name=consul consul consul agent -dev -client=0.0.0.0

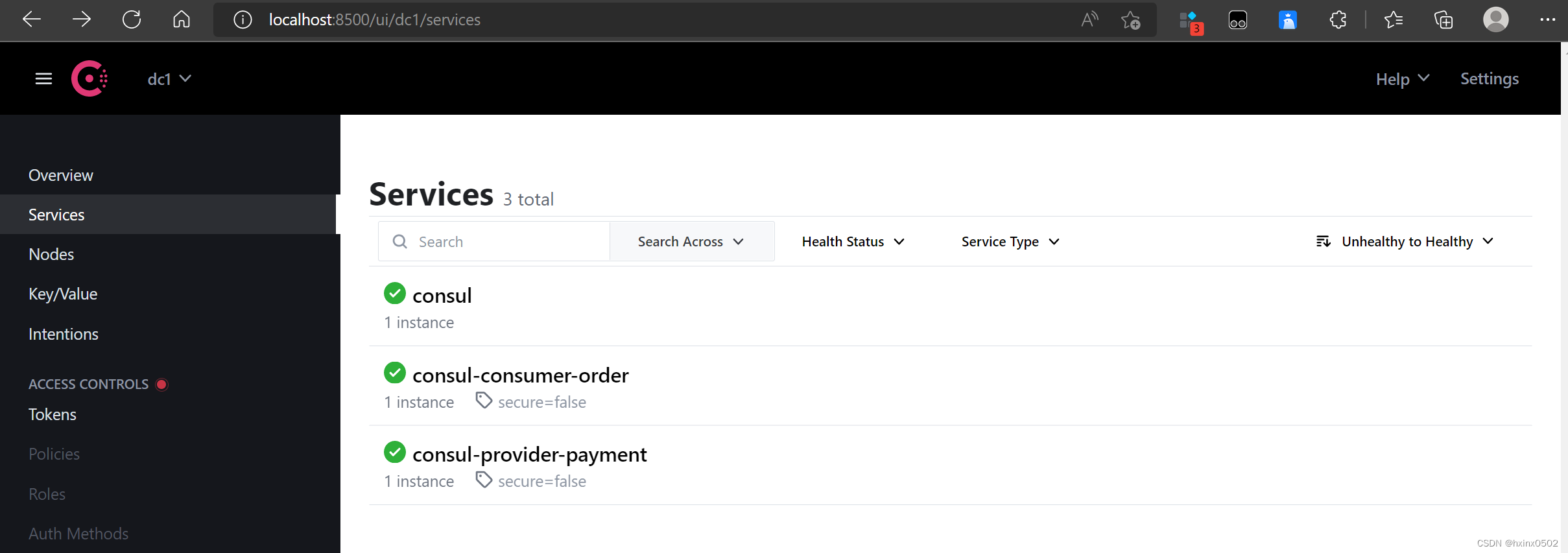

7.2.3 结果页面
http://localhost:8500/
在这里插入图片描述

7.3 服务提供者注册进Consul

7.3.1 新建module cloud-providerconsul-payment8006
7.3.2 改pom.xml:

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>cloud2020</artifactId>
        <groupId>com.atguigu.springcloud</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>cloud-providerconsul-payment8006</artifactId>

    <dependencies>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-consul-discovery</artifactId>
        </dependency>
        <!--SpringBoot整合web组件-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
        <!--日常通用jar包配置-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>
</project>

7.3.3 新建application.yml:

server:
  port: 8006

spring:
  application:
    name: consul-provider-payment
  cloud:
    consul:
      host: localhost
      port: 8500
      discovery:
        service-name: ${spring.application.name}

7.3.4 业务类controller：

@RestController
@Slf4j
public class PaymentController {
    @Value("${server.port}")
    private String serverPort;

    @GetMapping(value = "/payment/consul")
    public String paymentConsul(){
        return "springcloud with consul:"+serverPort+"\t"+ UUID.randomUUID().toString();
    }
}

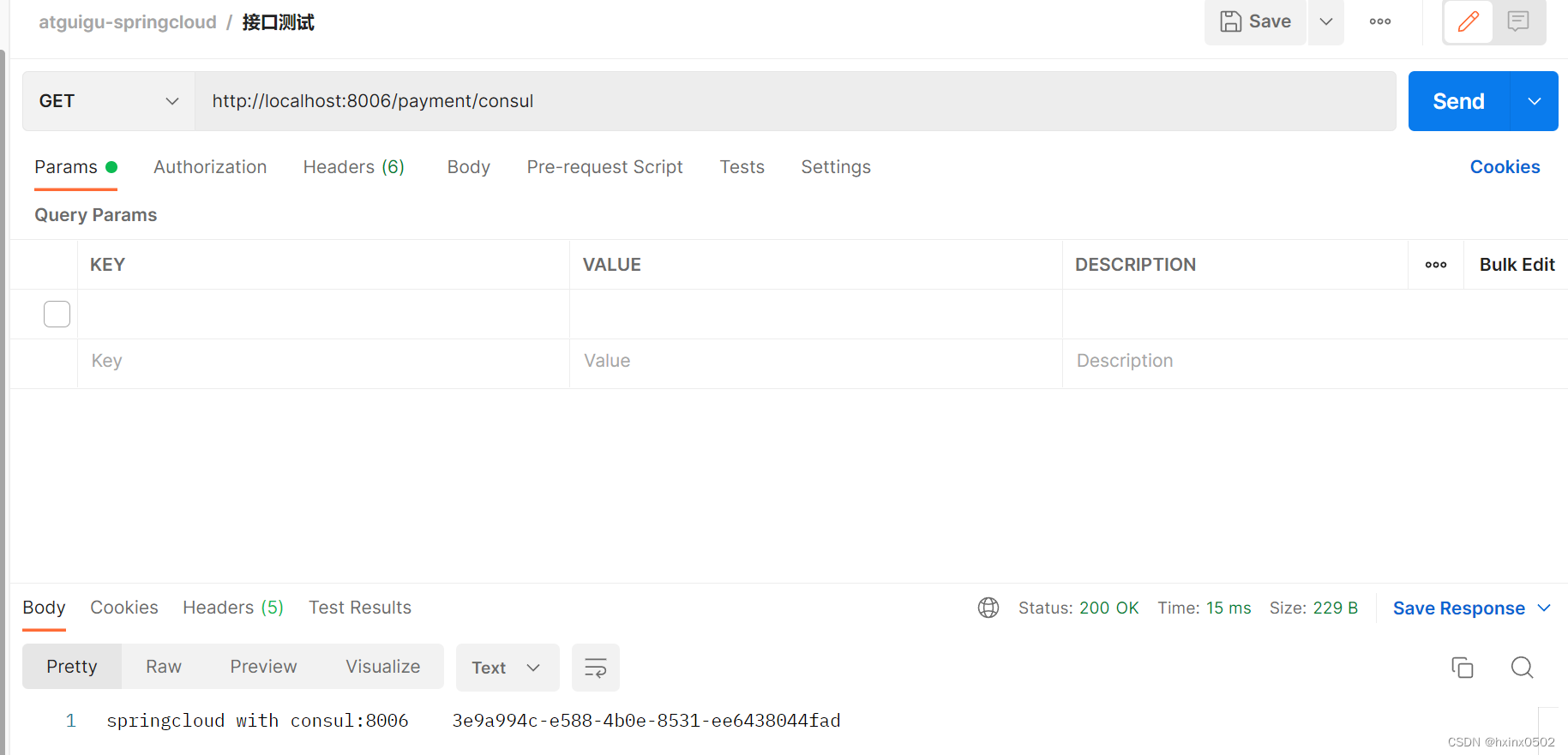

7.3.5 测试
在这里插入图片描述

7.4 服务消费者注册进consul

7.4.1 新建module cloud-consumerconsul-order80
7.4.2 改pom.xml:

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>cloud2020</artifactId>
        <groupId>com.atguigu.springcloud</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>cloud-consumerconsul-order80</artifactId>

    <dependencies>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-consul-discovery</artifactId>
        </dependency>
        <!--SpringBoot整合web组件-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
        <!--日常通用jar包配置-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

    </dependencies>
</project>

7.4.3 新建application.yml:

server:
  port: 80

spring:
  application:
    name: consul-consumer-order
  cloud:
    consul:
      host: localhost
      port: 8500
      discovery:
        service-name: ${spring.application.name}

7.4.4 config

@Configuration
public class ApplicationContextConfig {
    @Bean
    @LoadBalanced
    public RestTemplate getRestTemplate(){
        return new RestTemplate();
    }
}

7.4.5 业务类

@RestController
@Slf4j
public class OrderConsulController {
    public static final String INVOKE_URL = "HTTP://consul-provider-payment";
    @Resource
    private RestTemplate restTemplate;

    @GetMapping("/consumer/payment/consul/")
    public String paymentInfo(){
        return restTemplate.getForObject(INVOKE_URL+"/payment/consul/",String.class);
    }
}
