169 SAP报错：BAPI_BATCH_CREATE创建批次后，MSC2N分类页签没有创建分类视图数据(Batch is not classified when created by BAPI)

目录

业务说明

报错截图

Before

After

问题回顾

报错分析

解决方案

Before

After

再次尝试

前台MSC2N查看

SAP Note 3457131

Symptom

Reproducing the Issue

Cause

Resolution

Keywords

---

业务说明

BAPI_BATCH_CREATE 创建批次主数据后，使用事务码MSC2N查看批次时，发现分类页签并没有创建分类视图数据。

报错截图

分类页签没有创建分类视图数据

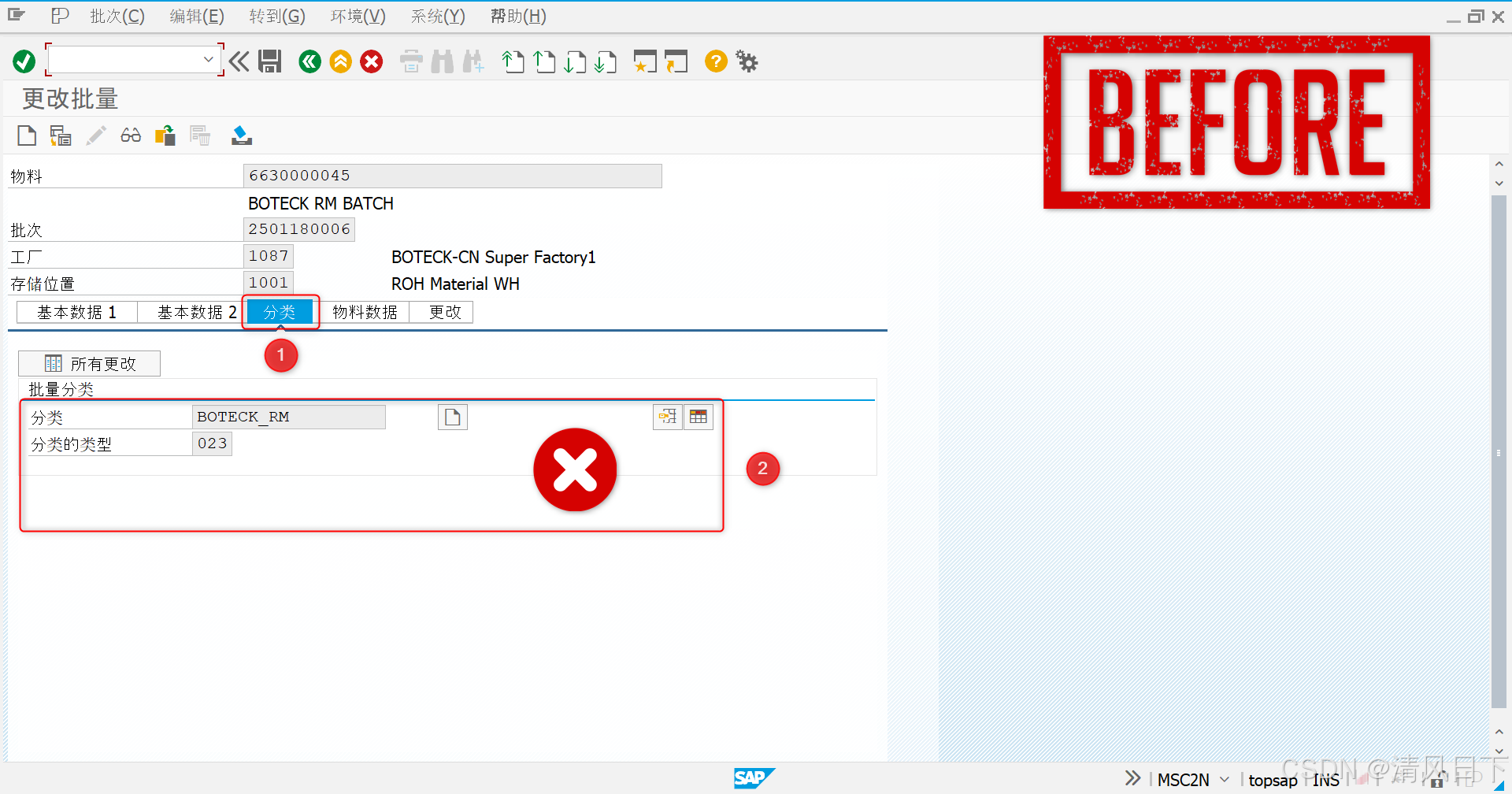

Before

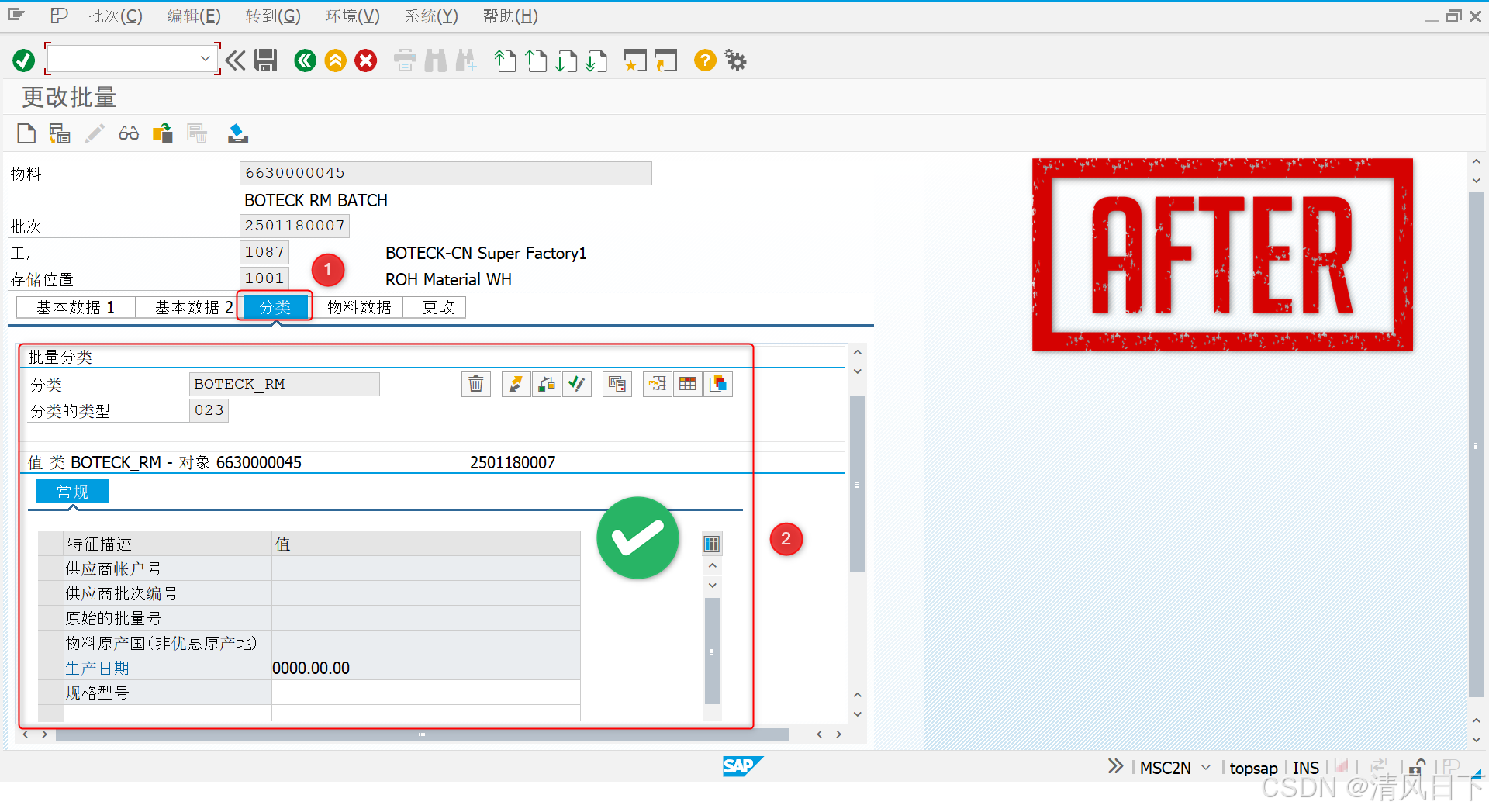

After

问题回顾

131 SAP报错：MIGO界面批次页签下的分类图标不能正常显示(事务码OMCV-激活 IM 中货物移动的批分类)_sapmigo 分类 按钮打不开-优快云博客

报错分析

BAPI入参字段 ls_batchcontrolfields-doclassify = ' '.            "直接给BAPI入参赋值-分类对象

报错根本原因：没有赋值导致报错

BAPI入参字段 ls_batchcontrolfields-doclassify = 'X'.            "直接给BAPI入参赋值-分类对象

需要给这个字段赋值'X' 即可

解决方案

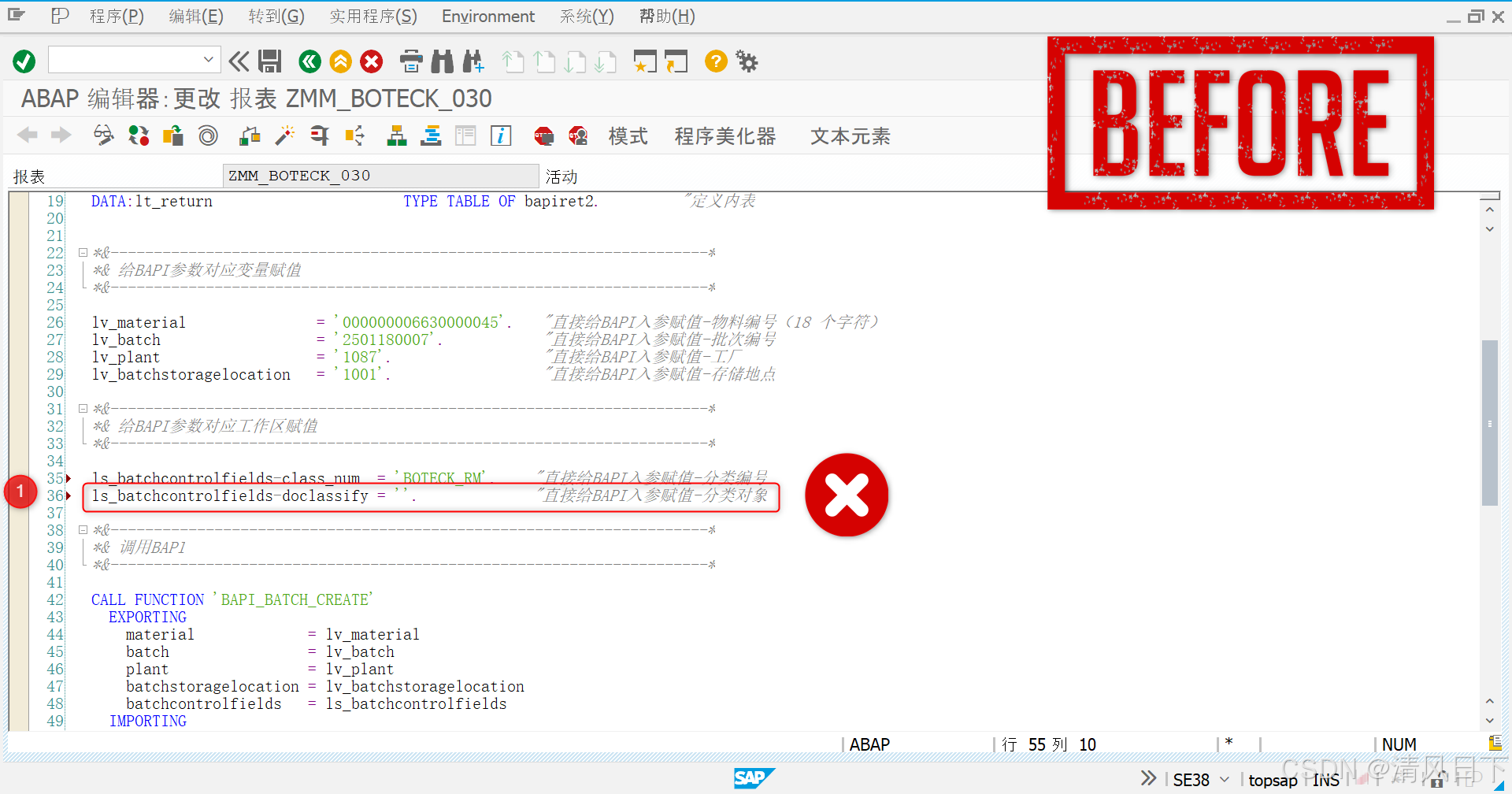

Before

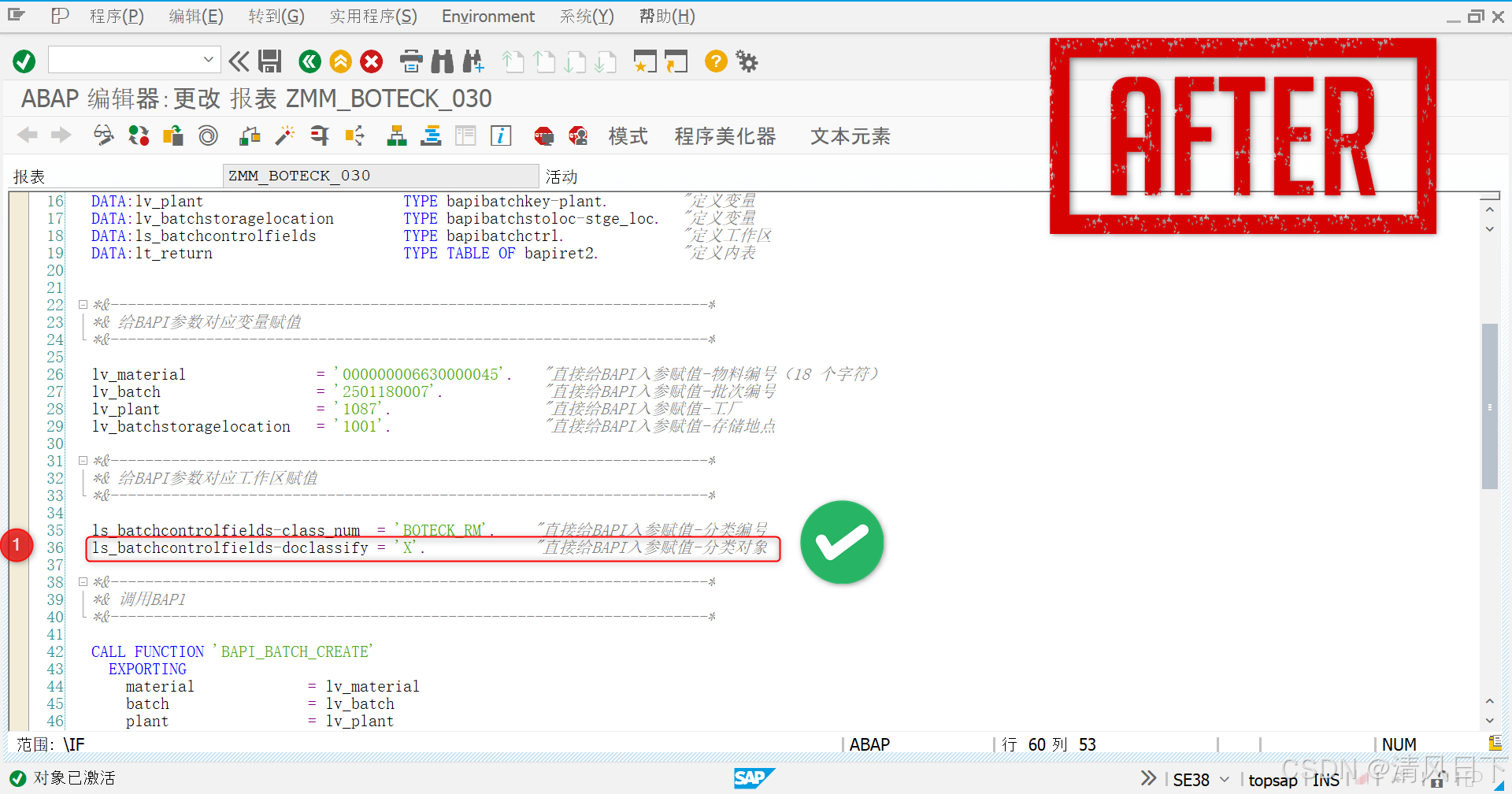

After

再次尝试

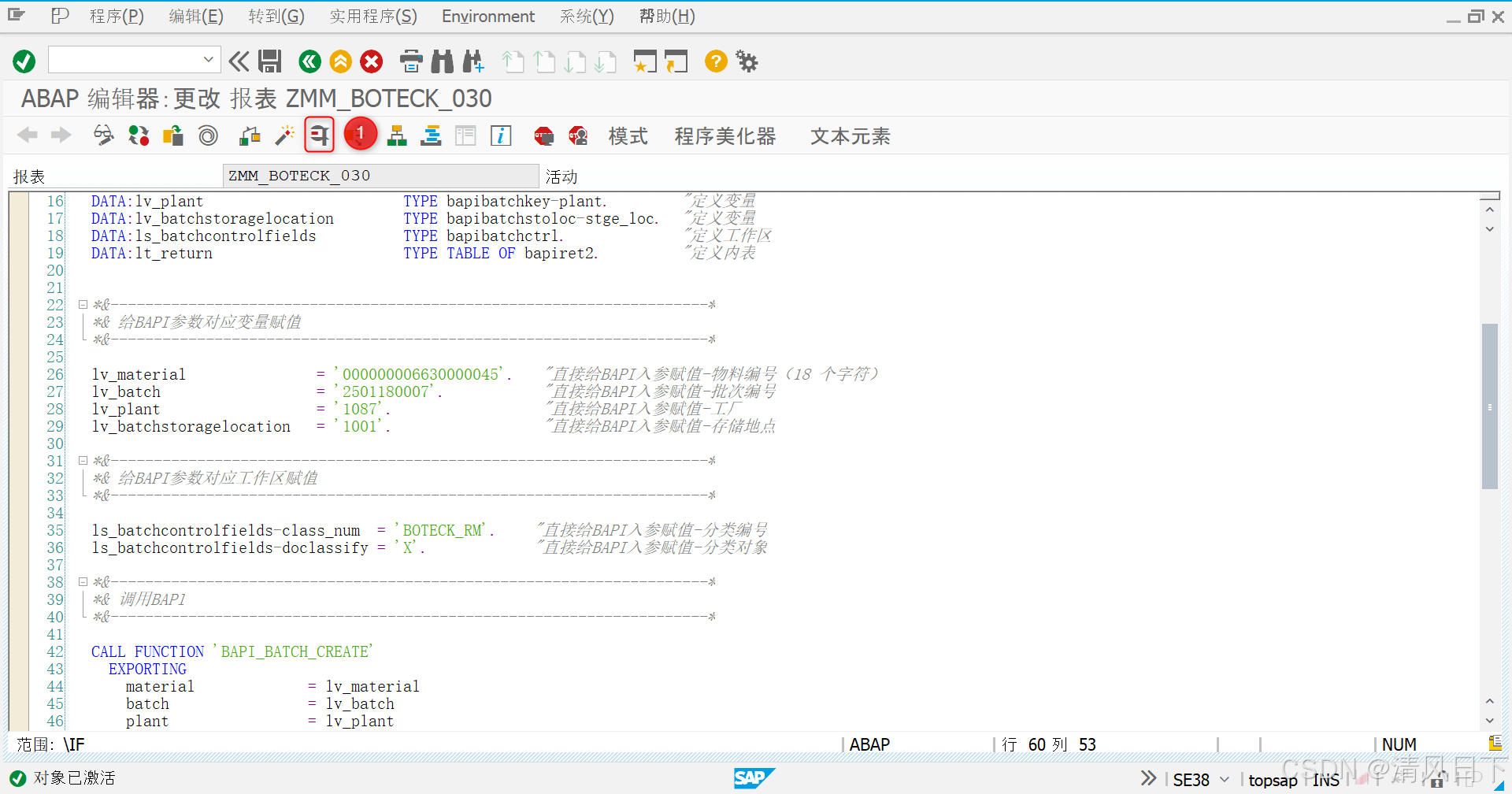

BAPI执行-SE38

1处，点击 程序执行按钮

 批次主数据创建成功！批次号2501180007
 批次主数据创建成功！物料号6630000045
 批次主数据创建成功！工厂号1087
 批次主数据创建成功！库位号1001

前台MSC2N查看

事务码MSC2N进入

SAP Note 3457131

3457131 - Batch is not classified when created by BAPI_BATCH_CREATE

Symptom

When a batch is created using BAPI_BATCH_CREATE, it is not classified automatically. Consequently, field CUOBJ_BM of tables MCHA/MCH1 is not maintained.

Reproducing the Issue

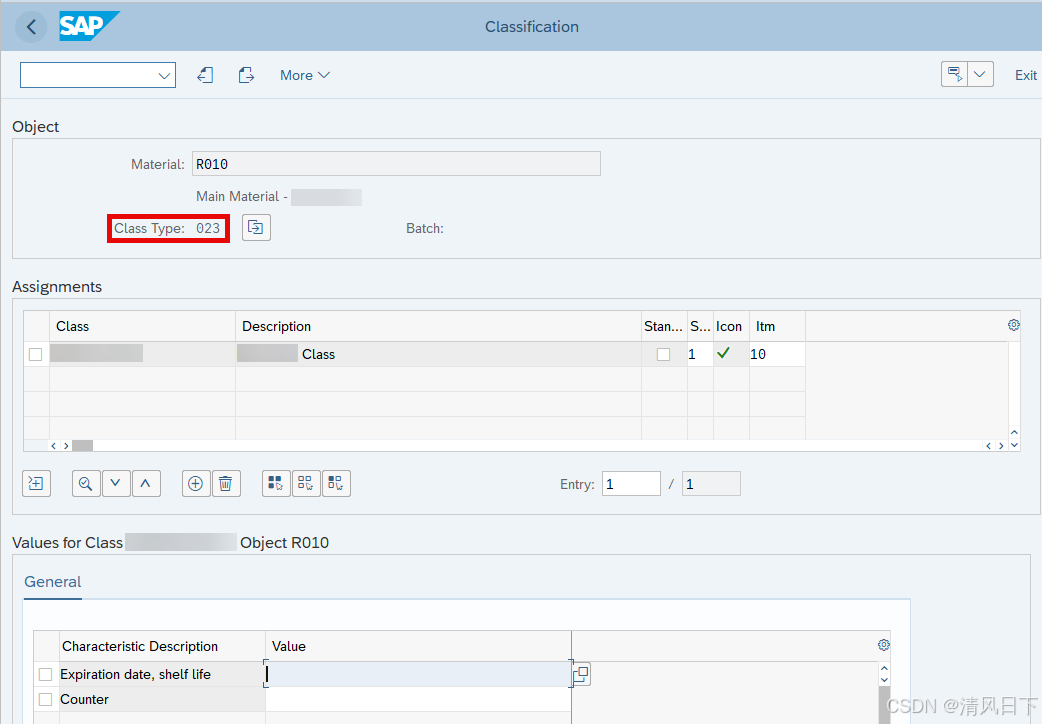

1. Maintain a class type 022 or 023 in transaction MM02.

2. Use BAPI_BATCH_CREATE to create a batch.

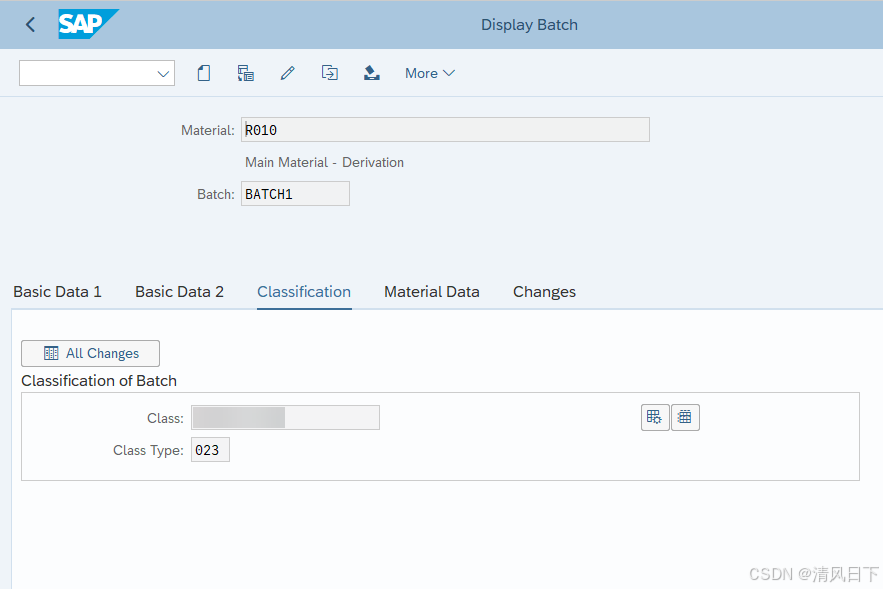

3. Check the batch classification in transaction MSC3N.

Batch is not classified.

Cause

Parameter BATCHCONTROLFIELDS-DOCLASSIFY is not maintained.

Resolution

When calling BAPI_BATCH_CREATE, the parameter BATCHCONTROLFIELDS-DOCLASSIFY must be maintained to classify batches.

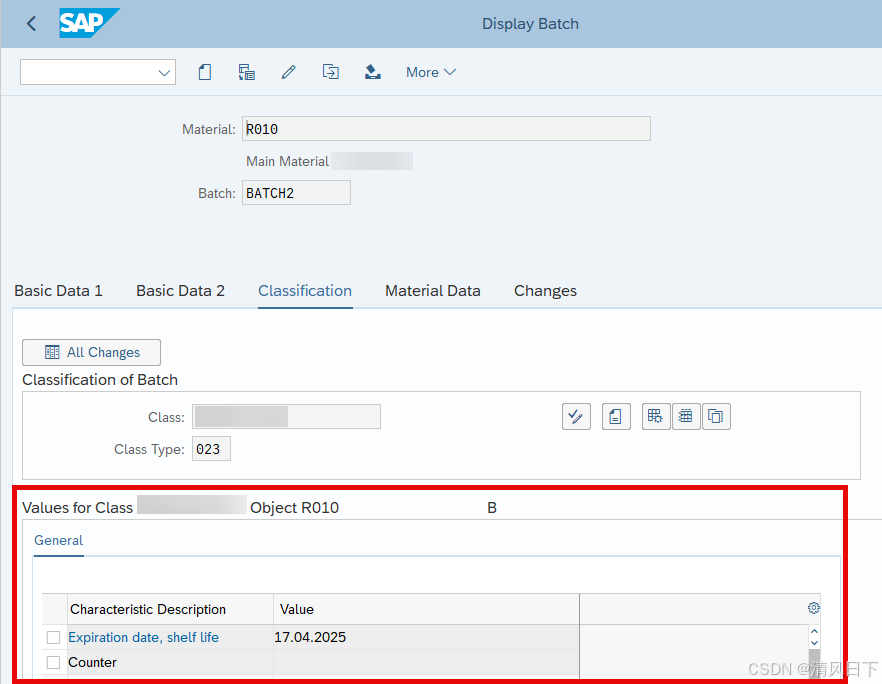

After maintaining the parameter, the batch is successfully classified.

Keywords

doclassify, create batch, classification, cuobj_bm, batch not classified, BAPI_BATCH_CREATE, mcha, mch1

问题已解决！

Done.

Created on 19th January, 2025
