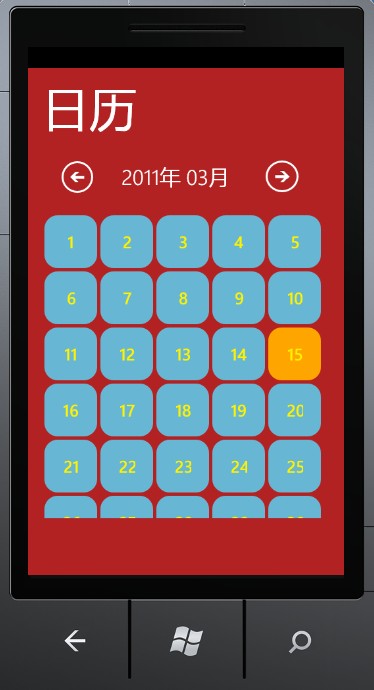

在Windows Phone 7上实现一个日历的程序有很多种的方式,下面将用一种很简单的方法来实现一个日历的应用程序。日历主体是用一个WrapPanel面板加上多了Button控件来实现的,每个日期用一个Button来表示。WrapPanel根据其中Button元素的尺寸和其自身可能的大小自动地把其中的Button元素排列到下一行或下一列。该日历程序实现的功能包括显示当前的日期,可以通过上下按钮来查看不同月份的日期。
<phone:PhoneApplicationPage
x:Class="CalendarControl.MainPage"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:phone="clr-namespace:Microsoft.Phone.Controls;assembly=Microsoft.Phone"
xmlns:shell="clr-namespace:Microsoft.Phone.Shell;assembly=Microsoft.Phone"
xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
xmlns:toolkit="clr-namespace:Microsoft.Phone.Controls;assembly=Microsoft.Phone.Controls.Toolkit"
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
mc:Ignorable="d" d:DesignWidth="480" d:DesignHeight="768"
FontFamily="{StaticResource PhoneFontFamilyNormal}"
FontSize="{StaticResource PhoneFontSizeNormal}"
Foreground="{StaticResource PhoneForegroundBrush}"
SupportedOrientations="Portrait" Orientation="Portrait"
shell:SystemTray.IsVisible="True">
<phone:PhoneApplicationPage.Resources>
<ResourceDictionary>
<ResourceDictionary.MergedDictionaries>
<ResourceDictionary Source="style.xaml"/>
</ResourceDictionary.MergedDictionaries>
</ResourceDictionary>
</phone:PhoneApplicationPage.Resources>
<!--LayoutRoot is the root grid where all page content is placed-->
<Grid x:Name="LayoutRoot" Background="Firebrick">
<Grid.RowDefinitions>
<RowDefinition Height="Auto"/>
<RowDefinition Height="*"/>
</Grid.RowDefinitions>
<!--TitlePanel contains the name of the application and page title-->
<StackPanel x:Name="TitlePanel" Grid.Row="0" Margin="12,17,0,28">
<TextBlock x:Name="PageTitle" Text="日历" Margin="9,-7,0,0" Style="{StaticResource PhoneTextTitle1Style}" Height="90" />
</StackPanel>
<!--ContentPanel - place additional content here-->
<Grid x:Name="ContentPanel" Grid.Row="1" Margin="12,0,12,0">
<Grid>
<Grid>
<Button x:Name="BackBtn" VerticalAlignment="Top" HorizontalAlignment="Left" Style="{StaticResource RoundButton}" Height="72" Width="72" Margin="27,1,0,0" Click="OnChangeMonth" BorderBrush="White">
<Image Source="/CalendarControl;component/Images/appbar.back.png" Height="42" Width="42" VerticalAlignment="Top" HorizontalAlignment="Left" />
</Button>
<TextBlock x:Name="MonthYear" Text="November 2010" Style="{StaticResource PhoneTextLargeStyle}" Margin="101,14,124,0" HorizontalAlignment="Center" VerticalAlignment="Top" Width="231" TextAlignment="Center" Foreground="White"/>
<Button x:Name="NextBtn" VerticalAlignment="Top" HorizontalAlignment="Right" Style="{StaticResource RoundButton}" Height="72" Width="74" Margin="0,0,45,0" Click="OnChangeMonth" Foreground="White" BorderBrush="White">
<Image Source="/CalendarControl;component/Images/appbar.next.png" Height="42" Width="42" VerticalAlignment="Top" HorizontalAlignment="Right" />
</Button>
</Grid>
<ListBox x:Name="CalendarListBox" Margin="1,78,0,70" Height="459">
<ListBoxItem Margin="12,0,0,0">
<toolkit:WrapPanel x:Name="CalendarWrapPanel" HorizontalAlignment="Left" VerticalAlignment="Top"/>
</ListBoxItem>
</ListBox>
</Grid>
</Grid>
</Grid>
</phone:PhoneApplicationPage>
using System;
using System.Collections.Generic;
using System.Linq;
using System.Net;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Animation;
using System.Windows.Shapes;
using Microsoft.Phone.Controls;
using Microsoft.Phone.Shell;
namespace CalendarControl
{
public partial class MainPage : PhoneApplicationPage
{
DateTime? _entryDate = DateTime.Now;//"?"加上之后表示可以有空值(null) Nullable<T>
public MainPage()
{
InitializeComponent();
InitializeCalendar(_entryDate.Value);//第一次进入日历程序 初始化当前日期的显示
}
/// <summary>
///月份前进后退事件
/// </summary>
/// <param name="sender"></param>
/// <param name="e"></param>
private void OnChangeMonth(object sender, RoutedEventArgs e)
{
if (((Button)sender).Name == "NextBtn")//如果是点击下一个月的按钮
_entryDate = _entryDate.Value.AddMonths(1);
else
_entryDate = _entryDate.Value.AddMonths(-1);
CalendarListBox.Visibility = Visibility.Collapsed;
//初始化该日期的显示
InitializeCalendar(_entryDate.Value);
}
/// <summary>
/// 初始化日历不同月份的日期
/// </summary>
/// <param name="entryDate"></param>
protected void InitializeCalendar(DateTime entryDate)
{
MonthYear.Text = String.Format("{0:yyyy年 MM月 }", _entryDate.Value);
DateTime todaysDate = DateTime.Now;
int numDays = DateTime.DaysInMonth(entryDate.Year, entryDate.Month);//获取显示的月份的天数
int count = CalendarWrapPanel.Children.Count;//CalendarWrapPanel面板中检查按钮的数量
if (count > numDays)
{//从最后减去多余的日期的按钮 日期用的是按钮控件
for (int i = 1; i <= count - numDays; i++)
CalendarWrapPanel.Children.RemoveAt(count - i);
}
else
{//从最后加上缺少的日期的按钮
int start = count + 1;
for (int i = start; i <= numDays; i++)
{
Border border = new Border();
border.Background = new SolidColorBrush(Color.FromArgb(255, 103, 183, 212));
border.Margin = new Thickness(0, 0, 5, 5);
border.Width = 80;
border.Height = 80;
border.CornerRadius = new CornerRadius(20);
Button btn = new Button();
btn.Name = "Day" + i;
btn.Content = i.ToString();
btn.BorderBrush = new SolidColorBrush(Colors.Transparent);
btn.Width = 75;
btn.Height = 75;
btn.FontSize = 25;
border.Child = btn;//Button放进Border里面
btn.Style = this.Resources["HasDataButtonStyle"] as Style;
CalendarWrapPanel.Children.Add(border);//将按钮添加到面板中
}
}
for (int i = 0; i < numDays; i++)
{
Border border = (Border)CalendarWrapPanel.Children[i];
if (border != null)
{
Button btn = (Button)border.Child;
DateTime currDate = new DateTime(entryDate.Year, entryDate.Month, i + 1);
//如果是日期是今天则设置日期的按钮为橙色
if (currDate.Date.CompareTo(DateTime.Now.Date) == 0)
{
border.Background = new SolidColorBrush(Color.FromArgb(255, 255, 165, 0));
btn.Style = this.Resources["TodayHasDataButtonStyle"] as Style;
// isToday = true;
}
else
{
border.Background = new SolidColorBrush(Color.FromArgb(255, 103, 183, 212));
}
}
}
CalendarWrapPanel.UpdateLayout();//更新CalendarWrapPanel的显示
CalendarListBox.Visibility = Visibility.Visible;//设置为可见
}
}
}
样式文件
style.xaml
<ResourceDictionary xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" > <Style x:Key="ButtonStyle1" TargetType="Button"> <Setter Property="Background" Value="Transparent"/> <Setter Property="BorderBrush" Value="{StaticResource PhoneForegroundBrush}"/> <Setter Property="BorderThickness" Value="{StaticResource PhoneBorderThickness}"/> <Setter Property="FontFamily" Value="{StaticResource PhoneFontFamilySemiBold}"/> <Setter Property="FontSize" Value="{StaticResource PhoneFontSizeMediumLarge}"/> <Setter Property="Padding" Value="10,3,10,5"/> <Setter Property="Template"> <Setter.Value> <ControlTemplate TargetType="Button"> <Grid Background="Transparent"> <VisualStateManager.VisualStateGroups> <VisualStateGroup x:Name="CommonStates"> <VisualState x:Name="Normal"> <Storyboard> <ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Foreground" Storyboard.TargetName="ContentContainer"> <DiscreteObjectKeyFrame KeyTime="0" Value="#FFFFFF"/> </ObjectAnimationUsingKeyFrames> </Storyboard> </VisualState> <VisualState x:Name="MouseOver"/> <VisualState x:Name="Pressed"> <Storyboard> <ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Foreground" Storyboard.TargetName="ContentContainer"> <DiscreteObjectKeyFrame KeyTime="0" Value="{StaticResource PhoneBackgroundBrush}"/> </ObjectAnimationUsingKeyFrames> <ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Background" Storyboard.TargetName="ButtonBackground"> <DiscreteObjectKeyFrame KeyTime="0" Value="{StaticResource PhoneForegroundBrush}"/> </ObjectAnimationUsingKeyFrames> <ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="BorderBrush" Storyboard.TargetName="ButtonBackground"> <DiscreteObjectKeyFrame KeyTime="0" Value="{StaticResource PhoneForegroundBrush}"/> </ObjectAnimationUsingKeyFrames> </Storyboard> </VisualState> <VisualState x:Name="Disabled"> <Storyboard> <ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Foreground" Storyboard.TargetName="ContentContainer"> <DiscreteObjectKeyFrame KeyTime="0" Value="{StaticResource PhoneDisabledBrush}"/> </ObjectAnimationUsingKeyFrames> <ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="BorderBrush" Storyboard.TargetName="ButtonBackground"> <DiscreteObjectKeyFrame KeyTime="0" Value="Transparent"/> </ObjectAnimationUsingKeyFrames> <ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Background" Storyboard.TargetName="ButtonBackground"> <DiscreteObjectKeyFrame KeyTime="0" Value="Transparent"/> </ObjectAnimationUsingKeyFrames> </Storyboard> </VisualState> </VisualStateGroup> </VisualStateManager.VisualStateGroups> <Border x:Name="ButtonBackground" BorderBrush="{TemplateBinding BorderBrush}" BorderThickness="{TemplateBinding BorderThickness}" Background="{TemplateBinding Background}" CornerRadius="0" Margin="{StaticResource PhoneTouchTargetOverhang}"> <ContentControl x:Name="ContentContainer" ContentTemplate="{TemplateBinding ContentTemplate}" Content="{TemplateBinding Content}" Foreground="{TemplateBinding Foreground}" HorizontalContentAlignment="{TemplateBinding HorizontalContentAlignment}" Padding="{TemplateBinding Padding}" VerticalContentAlignment="{TemplateBinding VerticalContentAlignment}"/> </Border> </Grid> </ControlTemplate> </Setter.Value> </Setter> </Style> <Style x:Key="HasDataButtonStyle" TargetType="Button"> <Setter Property="Background" Value="Transparent"/> <Setter Property="BorderBrush" Value="{StaticResource PhoneForegroundBrush}"/> <Setter Property="BorderThickness" Value="{StaticResource PhoneBorderThickness}"/> <Setter Property="FontFamily" Value="{StaticResource PhoneFontFamilySemiBold}"/> <Setter Property="FontSize" Value="{StaticResource PhoneFontSizeMediumLarge}"/> <Setter Property="Padding" Value="10,3,10,5"/> <Setter Property="Template"> <Setter.Value> <ControlTemplate TargetType="Button"> <Grid Background="Transparent"> <VisualStateManager.VisualStateGroups> <VisualStateGroup x:Name="CommonStates"> <VisualState x:Name="Normal"> <Storyboard> <ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Foreground" Storyboard.TargetName="ContentContainer"> <DiscreteObjectKeyFrame KeyTime="0" Value="#FFF200"/> </ObjectAnimationUsingKeyFrames> </Storyboard> </VisualState> <VisualState x:Name="MouseOver"/> <VisualState x:Name="Pressed"> <Storyboard> <ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Foreground" Storyboard.TargetName="ContentContainer"> <DiscreteObjectKeyFrame KeyTime="0" Value="#FFF200"/> </ObjectAnimationUsingKeyFrames> <ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Background" Storyboard.TargetName="ButtonBackground"> <DiscreteObjectKeyFrame KeyTime="0" Value="{StaticResource PhoneForegroundBrush}"/> </ObjectAnimationUsingKeyFrames> <ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="BorderBrush" Storyboard.TargetName="ButtonBackground"> <DiscreteObjectKeyFrame KeyTime="0" Value="{StaticResource PhoneForegroundBrush}"/> </ObjectAnimationUsingKeyFrames> </Storyboard> </VisualState> <VisualState x:Name="Disabled"> <Storyboard> <ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Foreground" Storyboard.TargetName="ContentContainer"> <DiscreteObjectKeyFrame KeyTime="0" Value="{StaticResource PhoneDisabledBrush}"/> </ObjectAnimationUsingKeyFrames> <ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="BorderBrush" Storyboard.TargetName="ButtonBackground"> <DiscreteObjectKeyFrame KeyTime="0" Value="Transparent"/> </ObjectAnimationUsingKeyFrames> <ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Background" Storyboard.TargetName="ButtonBackground"> <DiscreteObjectKeyFrame KeyTime="0" Value="Transparent"/> </ObjectAnimationUsingKeyFrames> </Storyboard> </VisualState> </VisualStateGroup> </VisualStateManager.VisualStateGroups> <Border x:Name="ButtonBackground" BorderBrush="{TemplateBinding BorderBrush}" BorderThickness="{TemplateBinding BorderThickness}" Background="{TemplateBinding Background}" CornerRadius="0" Margin="{StaticResource PhoneTouchTargetOverhang}"> <ContentControl x:Name="ContentContainer" ContentTemplate="{TemplateBinding ContentTemplate}" Content="{TemplateBinding Content}" Foreground="{TemplateBinding Foreground}" HorizontalContentAlignment="{TemplateBinding HorizontalContentAlignment}" Padding="{TemplateBinding Padding}" VerticalContentAlignment="{TemplateBinding VerticalContentAlignment}"/> </Border> </Grid> </ControlTemplate> </Setter.Value> </Setter> </Style> <Style x:Key="TodayHasDataButtonStyle" TargetType="Button"> <Setter Property="Background" Value="Transparent"/> <Setter Property="BorderBrush" Value="{StaticResource PhoneForegroundBrush}"/> <Setter Property="BorderThickness" Value="{StaticResource PhoneBorderThickness}"/> <Setter Property="FontFamily" Value="{StaticResource PhoneFontFamilySemiBold}"/> <Setter Property="FontSize" Value="{StaticResource PhoneFontSizeMediumLarge}"/> <Setter Property="Padding" Value="10,3,10,5"/> <Setter Property="Template"> <Setter.Value> <ControlTemplate TargetType="Button"> <Grid Background="Transparent"> <VisualStateManager.VisualStateGroups> <VisualStateGroup x:Name="CommonStates"> <VisualState x:Name="Normal"> <Storyboard> <ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Foreground" Storyboard.TargetName="ContentContainer"> <DiscreteObjectKeyFrame KeyTime="0" Value="#FFF200"/> </ObjectAnimationUsingKeyFrames> </Storyboard> </VisualState> <VisualState x:Name="MouseOver"/> <VisualState x:Name="Pressed"> <Storyboard> <ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Foreground" Storyboard.TargetName="ContentContainer"> <DiscreteObjectKeyFrame KeyTime="0" Value="#FFF200"/> </ObjectAnimationUsingKeyFrames> <ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Background" Storyboard.TargetName="ButtonBackground"> <DiscreteObjectKeyFrame KeyTime="0" Value="{StaticResource PhoneForegroundBrush}"/> </ObjectAnimationUsingKeyFrames> <ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="BorderBrush" Storyboard.TargetName="ButtonBackground"> <DiscreteObjectKeyFrame KeyTime="0" Value="{StaticResource PhoneForegroundBrush}"/> </ObjectAnimationUsingKeyFrames> </Storyboard> </VisualState> <VisualState x:Name="Disabled"> <Storyboard> <ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Foreground" Storyboard.TargetName="ContentContainer"> <DiscreteObjectKeyFrame KeyTime="0" Value="{StaticResource PhoneDisabledBrush}"/> </ObjectAnimationUsingKeyFrames> <ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="BorderBrush" Storyboard.TargetName="ButtonBackground"> <DiscreteObjectKeyFrame KeyTime="0" Value="Transparent"/> </ObjectAnimationUsingKeyFrames> <ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Background" Storyboard.TargetName="ButtonBackground"> <DiscreteObjectKeyFrame KeyTime="0" Value="Transparent"/> </ObjectAnimationUsingKeyFrames> </Storyboard> </VisualState> </VisualStateGroup> </VisualStateManager.VisualStateGroups> <Border x:Name="ButtonBackground" BorderBrush="{TemplateBinding BorderBrush}" BorderThickness="{TemplateBinding BorderThickness}" Background="{TemplateBinding Background}" CornerRadius="0" Margin="{StaticResource PhoneTouchTargetOverhang}"> <ContentControl x:Name="ContentContainer" ContentTemplate="{TemplateBinding ContentTemplate}" Content="{TemplateBinding Content}" Foreground="{TemplateBinding Foreground}" HorizontalContentAlignment="{TemplateBinding HorizontalContentAlignment}" Padding="{TemplateBinding Padding}" VerticalContentAlignment="{TemplateBinding VerticalContentAlignment}"/> </Border> </Grid> </ControlTemplate> </Setter.Value> </Setter> </Style> <Style x:Key="RoundButton" TargetType="Button"> <Setter Property="Background" Value="Transparent"/> <Setter Property="BorderBrush" Value="{StaticResource PhoneForegroundBrush}"/> <Setter Property="Foreground" Value="{StaticResource PhoneForegroundBrush}"/> <Setter Property="BorderThickness" Value="{StaticResource PhoneBorderThickness}"/> <Setter Property="FontFamily" Value="{StaticResource PhoneFontFamilySemiBold}"/> <Setter Property="FontSize" Value="{StaticResource PhoneFontSizeMediumLarge}"/> <Setter Property="Padding" Value="10,3,10,5"/> <Setter Property="Template"> <Setter.Value> <ControlTemplate TargetType="Button"> <Grid Background="Transparent"> <VisualStateManager.VisualStateGroups> <VisualStateGroup x:Name="CommonStates"> <VisualState x:Name="Normal"/> <VisualState x:Name="MouseOver"/> <VisualState x:Name="Pressed"> <Storyboard> <ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Foreground" Storyboard.TargetName="ContentContainer"> <DiscreteObjectKeyFrame KeyTime="0" Value="{StaticResource PhoneBackgroundBrush}"/> </ObjectAnimationUsingKeyFrames> <ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Background" Storyboard.TargetName="ButtonBackground"> <DiscreteObjectKeyFrame KeyTime="0" Value="{StaticResource PhoneForegroundBrush}"/> </ObjectAnimationUsingKeyFrames> <ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="BorderBrush" Storyboard.TargetName="ButtonBackground"> <DiscreteObjectKeyFrame KeyTime="0" Value="{StaticResource PhoneForegroundBrush}"/> </ObjectAnimationUsingKeyFrames> </Storyboard> </VisualState> <VisualState x:Name="Disabled"> <Storyboard> <ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Foreground" Storyboard.TargetName="ContentContainer"> <DiscreteObjectKeyFrame KeyTime="0" Value="{StaticResource PhoneDisabledBrush}"/> </ObjectAnimationUsingKeyFrames> <ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="BorderBrush" Storyboard.TargetName="ButtonBackground"> <DiscreteObjectKeyFrame KeyTime="0" Value="{StaticResource PhoneDisabledBrush}"/> </ObjectAnimationUsingKeyFrames> <ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Background" Storyboard.TargetName="ButtonBackground"> <DiscreteObjectKeyFrame KeyTime="0" Value="Transparent"/> </ObjectAnimationUsingKeyFrames> </Storyboard> </VisualState> </VisualStateGroup> </VisualStateManager.VisualStateGroups> <Border x:Name="ButtonBackground" BorderBrush="{TemplateBinding BorderBrush}" BorderThickness="{TemplateBinding BorderThickness}" Background="{TemplateBinding Background}" CornerRadius="33" Margin="{StaticResource PhoneTouchTargetOverhang}"> <ContentControl x:Name="ContentContainer" Content="{TemplateBinding Content}" RenderTransformOrigin="0.5,0.5"> <ContentControl.RenderTransform> <ScaleTransform x:Name="buttonScale" /> </ContentControl.RenderTransform> </ContentControl> </Border> </Grid> </ControlTemplate> </Setter.Value> </Setter> </Style> </ResourceDictionary>
