zabbix监控mysql

zabbix自带MySQL的监控模板(Template App MySQL)，但不能直接使用，需要在客户端上进行一些设置。

1、在客户端编写mysql监控脚本

#!/bin/bash

MYSQL_SOCK="/var/lib/mysql/mysql.sock"
ARGS=1
if [ $# -ne "$ARGS" ];then
    echo "Please input one arguement:"
fi
case $1 in
    Uptime)
        result=`/usr/bin/mysqladmin -uzabbix -ppassword -S $MYSQL_SOCK status 2>/dev/null|awk -F'[: ]+' '{print $2}'`
        echo $result
        ;;
    Com_update)
        result=`/usr/bin/mysqladmin -uzabbix -ppassword -S $MYSQL_SOCK extended-status 2>/dev/null|awk -F'[ |]+' '/Com_update\>/{print $3}'`
        echo $result
        ;;
    Slow_queries)
        result=`/usr/bin/mysqladmin -uzabbix -ppassword -S $MYSQL_SOCK status 2>/dev/null|awk -F'[: ]+' '{print $9}'`
        echo $result
        ;;
    Com_select)
        result=`/usr/bin/mysqladmin -uzabbix -ppassword -S $MYSQL_SOCK extended-status 2>/dev/null|awk -F'[ |]+' '/Com_select\>/{print $3}'`
        echo $result
        ;;
    Com_rollback)
        result=`/usr/bin/mysqladmin -uzabbix -ppassword -S $MYSQL_SOCK extended-status 2>/dev/null|awk -F'[ |]+' '/Com_rollback\>/{print $3}'`
        echo $result
        ;;
    Questions)
        result=`/usr/bin/mysqladmin -uzabbix -ppassword -S $MYSQL_SOCK status 2>/dev/null|awk -F'[: ]+' '{print $6}'`
        echo $result
        ;;
    Com_insert)
        result=`/usr/bin/mysqladmin -uzabbix -ppassword -S $MYSQL_SOCK extended-status 2>/dev/null|awk -F'[ |]+' '/Com_insert\>/{print $3}'`
        echo $result
        ;;
    Com_delete)
        result=`/usr/bin/mysqladmin -uzabbix -ppassword -S $MYSQL_SOCK extended-status 2>/dev/null|awk -F'[ |]+' '/Com_delete\>/{print $3}'`
        echo $result
        ;;
    Com_commit)
        result=`/usr/bin/mysqladmin -uzabbix -ppassword -S $MYSQL_SOCK extended-status 2>/dev/null|awk -F'[ |]+' '/Com_commit\>/{print $3}'`
        echo $result
        ;;
    Bytes_sent)
        result=`/usr/bin/mysqladmin -uzabbix -ppassword -S $MYSQL_SOCK extended-status 2>/dev/null|awk -F'[ |]+' '/Bytes_sent\>/{print $3}'`
        echo $result
        ;;
    Bytes_received)
        result=`/usr/bin/mysqladmin -uzabbix -ppassword -S $MYSQL_SOCK extended-status 2>/dev/null|awk -F'[ |]+' '/Bytes_received\>/{print $3}'`
        echo $result
        ;;
    Com_begin)
        result=`/usr/bin/mysqladmin -uzabbix -ppassword -S $MYSQL_SOCK extended-status 2>/dev/null|awk -F'[ |]+' '/Com_begin\>/{print $3}'`
        echo $result
        ;;
    *)
        echo "Usage:$0(Uptime|Com_update|Slow_queries|Com_select|Com_rollback|Questions)"
        ;;
esac

2、在mysql服务器上面创建一个用于zabbix监控的用户（无权限）

GRANT USAGE ON *.* TO 'zabbix'@'localhost' IDENTIFIED BY 'password';

3、修改客户端zabbix设置

编辑zabbix_agentd.conf配置文件，添加如下内容：

UserParameter=mysql.version,mysql -V
UserParameter=mysql.ping,mysqladmin -uzabbix -plkpower -S /var/lib/mysql/mysql.sock ping 2>/dev/null| grep -c alive
UserParameter=mysql.status[*],/data/zabbix/externalscripts/zabbix_mysql_status.sh $1

然后重启zabbix_agentd服务。

4、服务端测试是否可以正常取值

5、在zabbix的监控上添加MySQL的模板（Template App MySQL）

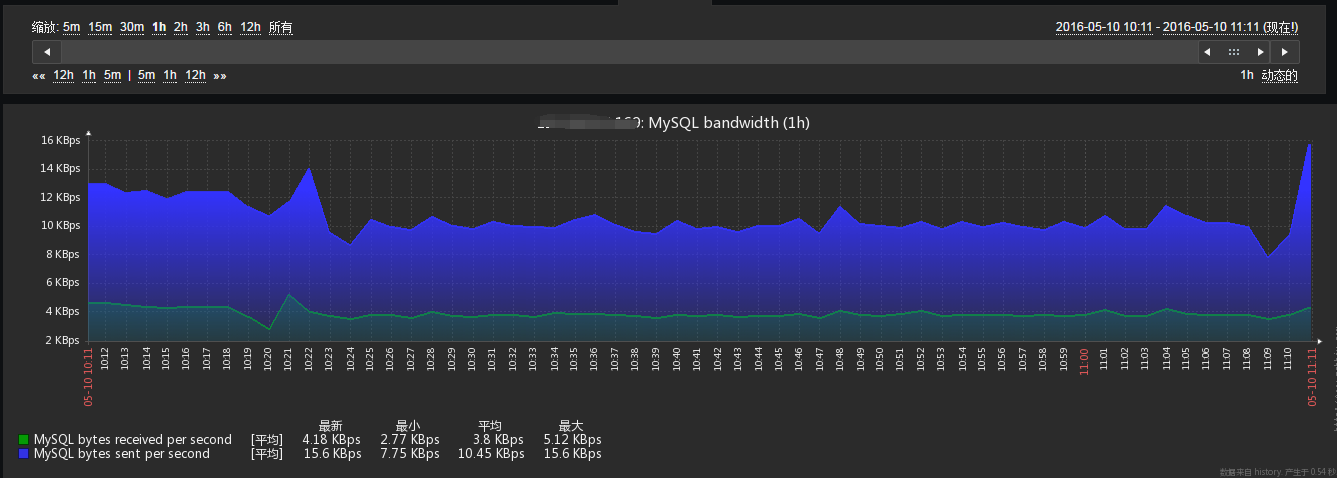

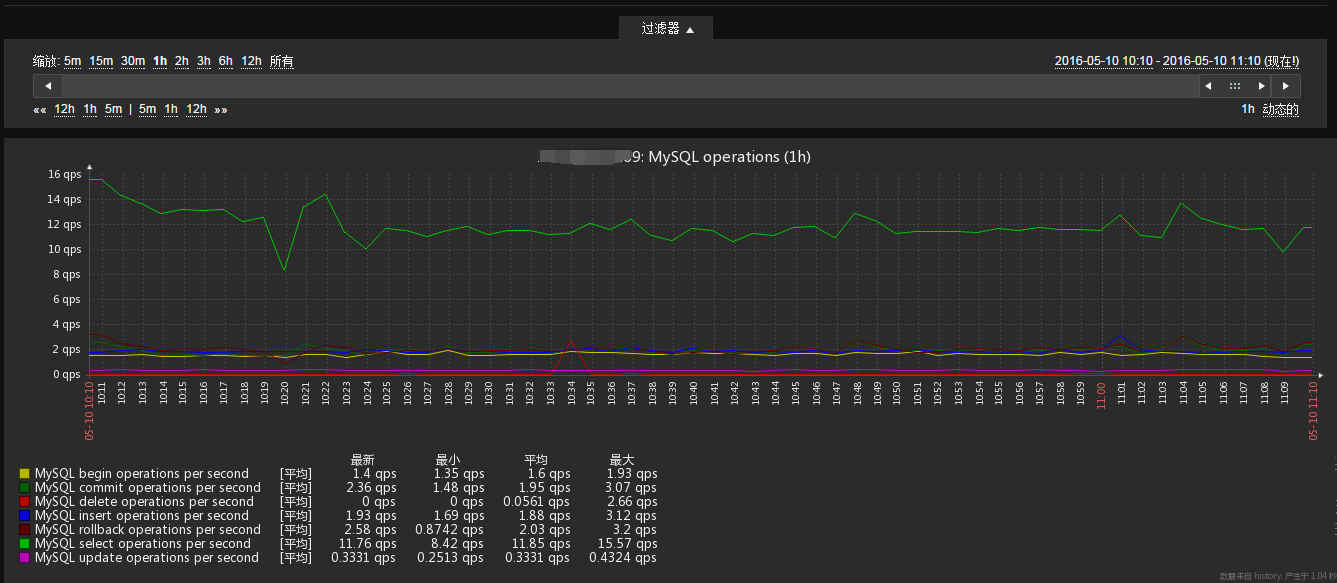

监控效果图如下：
