zabbix 3.0.3 安装graphtree



1. 备份目前使用的/data/zabbix

       cp –a /data/zabbix /data/zabbix-backp





2. 下载graphtree,并上传到服务器/mnt/soft/zabbix-3.0.3/frontends/php/



  https://raw.githubusercontent.com/OneOaaS/graphtrees/master/graphtree3-0-1.patch

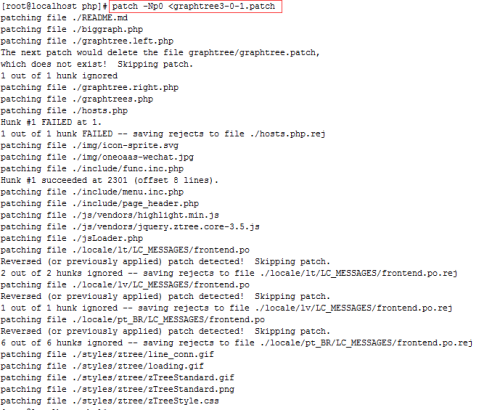

3. 打补丁

       cd /mnt/soft/zabbix-3.0.3/frontends/php/

       patch -Np0 <graphtree3-0-1.patch

4. 删除之前的/data/zabbix,把刚才的/mnt/soft/zabbix-3.0.3/frontends/php/全部复制到/data/zabbix

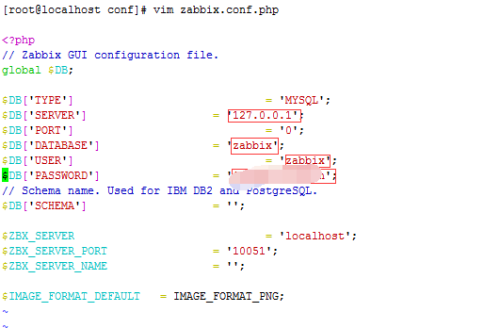

5. 修改数据库连接

   cd /data/zabbix/conf

cp -azabbix.conf.php.example zabbix.conf.php

vimzabbix.conf.php

6. 重启nginx/fpm/zabbix-server

7. 测试查看
