<?xml version="1.0" encoding="utf-8"?>
<s:Application xmlns:fx="http://ns.adobe.com/mxml/2009"
xmlns:s="library://ns.adobe.com/flex/spark"
xmlns:mx="library://ns.adobe.com/flex/mx" minWidth="955" minHeight="600"
creationComplete="init()">
<fx:Declarations>
<!-- 将非可视元素(例如服务、值对象)放在此处 -->
</fx:Declarations>
<fx:Script>
<![CDATA[
import mx.collections.ArrayCollection;
import mx.rpc.events.ResultEvent;
import mx.rpc.soap.LoadEvent;
import mx.rpc.soap.WebService;
/* SOAP:简单对象访问协议,
简单对象访问协议(SOAP)是一种轻量的、简单的、基于 XML 的协议,它被设计成在 WEB 上交换结构化的和固化的信息。
SOAP 可以和现存的许多因特网协议和格式结合使用,包括超文本传输协议( HTTP),简单邮件传输协议(SMTP),
多用途网际邮件扩充协议(MIME)。它还支持从消息系统到远程过程调用(RPC)等大量的应用程序。
*/
[Bindable]
private var city:ArrayCollection =new ArrayCollection();
private var web:WebService;//定义
private function init():void
{
web=new WebService();
web.wsdl="http://www.webservicex.net/globalweather.asmx?wsdl";//wsdl: Web Services Description Language
web.loadWSDL();
web.GetCitiesByCountry.addEventListener(ResultEvent.RESULT, OnGetCity);
web.GetCitiesByCountry("china");
//wsdl文件中
/*
<s:element name="GetCitiesByCountry">
<s:complexType>
<s:sequence>
<s:element minOccurs="0" maxOccurs="1" name="CountryName" type="s:string"/>
</s:sequence>
</s:complexType>
</s:element>
<s:element name="GetCitiesByCountryResponse">
<s:complexType>
<s:sequence>
<s:element minOccurs="0" maxOccurs="1" name="GetCitiesByCountryResult" type="s:string"/>
</s:sequence>
</s:complexType>
</s:element>
*/
web.GetWeather.addEventListener(ResultEvent.RESULT,OnGetWeather);
//wsdl文件中
/*
<s:element name="GetWeatherResponse">
<s:complexType>
<s:sequence>
<s:element minOccurs="0" maxOccurs="1" name="GetWeatherResult" type="s:string"/>
</s:sequence>
</s:complexType>
</s:element>
*/
}
private function OnLoad(event:Event):void
{
pnlWeather.title+="------ webservice connected ... "
}
private function OnGetCity(event:ResultEvent ):void
{
var xml:XML=new XML(event.result);
for each ( var name:XML in xml..City ) {
//city.push(name);
city.addItem(name);
}
cmbCity.selectedIndex=0;
}
private function OnGetWeather(event:ResultEvent ):void
{
txtRWeather.text="";
var xml:XML=new XML(event.result);
var xmlList:XMLList=xml.children();//???
for (var i:int =0;i<xmlList.length();i++)
{
txtRWeather.text+= xmlList[i].toXMLString()+"\n"+"\n";
}
}
private function onClick():void
{
web.GetWeather(cmbCity.textInput.text,"china");
//wsdl文件中的格式
/*
<s:element name="GetWeather">
<s:complexType>
<s:sequence>
<s:element minOccurs="0" maxOccurs="1" name="CityName" type="s:string"/>
<s:element minOccurs="0" maxOccurs="1" name="CountryName" type="s:string"/>
</s:sequence>
</s:complexType>
</s:element>
*/
}
]]>
</fx:Script>
<s:Panel title="Weather" height="262" width="421" id="pnlWeather">
<s:Label text="city:" x="74" y="24"/>
<s:ComboBox x="130" y="24" width="106" id="cmbCity" dataProvider="{city}" />
<s:Button x="258" y="24" label="submit" click="onClick()"/>
<s:TextArea x="130" y="54" width="261" height="156" id="txtRWeather"/>
<s:Label x="74" y="53" text="weather"/>
</s:Panel>
</s:Application>

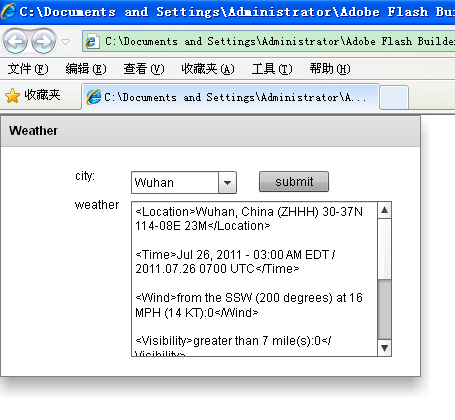

运行截图:
