也谈TcpTrace跟踪WCF消息

在WCF中一些基于HTTP之上的绑定可以用TcpTrace跟踪消息。借助此工具可以使我们有机会了解一些功能的工作方式，如可靠性会话在网络断开的情况下是如何向服务端发送消息。

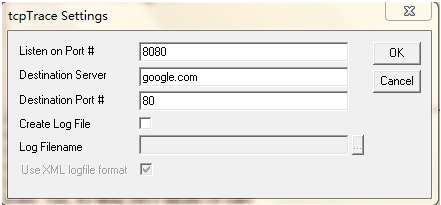

TcpTrace的界面非常简洁，简洁的有点让人不知所措。

Listen on Port：TcpTrace要监听的本机端口

Destination Server：对TcpTrace监听的端口的任何访问都将转发到目标服务器

Destination Port：对TcpTrace监听的端口的任何访问都将转发到目标服务器的这个端口

如在浏览地址栏输入：http://127.0.0.1:8080或者http://localhost:8080，将会自动转发到对http://www.google.com:80的访问，

结果如图：

简单的了解了下TcpTrace如何工作的，下面写个实例来演示用它如何跟踪WCF消息。

实体类：

using System.ServiceModel;
using System.Runtime.Serialization;

namespace FruitModel
{
[DataContract(Namespace = " http://www.cnblogs.com/qiuwuyu " )]
public class Fruit
{
private string m_Name;
private string m_Price;
[DataMember]
public string Name
{
get { return m_Name; }
set { m_Name = value;}
}
[DataMember]
public string Price
{
get { return m_Price; }
set { m_Price = value;}
}
}
}

服务契约：

using System.ServiceModel;
using FruitModel;
namespace IFruit
{
[ServiceContract(Namespace = " http://www.cnblogs.com/qiuwuyu " )]
public interface IFruitService
{
[OperationContract]
Fruit GetFruit();
}
}

服务实现：

using System;
using FruitModel;
using IFruit;

namespace FruitSvc
{
public class FruitService:IFruitService
{
public Fruit GetFruit()
{
Fruit f = new Fruit();
f.Name = " banana " ;
f.Price = " 6.00 " ;
return f;
}
}
}

寄存服务：

using System;
using System.ServiceModel;
using System.ServiceModel.Description;
using IFruit;
using FruitSvc;

namespace FruitHost
{
class Program
{
static void Main( string [] args)
{
using (ServiceHost host = new ServiceHost( typeof (FruitService),
new Uri( " http://localhost:8000 " )))
{
WSHttpBinding binding = new WSHttpBinding();
binding.ReliableSession.Enabled = true ;
binding.Security.Mode = SecurityMode.None;
// 改变地址端口为8080，这样可以支持服务消息发送到8080端口，8000设置为监听端口
host.AddServiceEndpoint( typeof (IFruitService), binding, new Uri( " http://localhost:8080/FruitService " ),
new Uri( " http://localhost:8000/FruitService " ));

host.Open();
Console.WriteLine( " Fruit Service Is Running... " );
Console.ReadLine();
}
}
}
}

客户端调用：

using System;
using System.ServiceModel;
using IFruit;
using FruitModel;

namespace FruitClient
{
class Program
{
static void Main( string [] args)
{
EndpointAddress epAddr = new EndpointAddress( " http://localhost:8080/FruitService " );
WSHttpBinding wsbinding = new WSHttpBinding();
wsbinding.ReliableSession.Enabled = true ;
wsbinding.Security.Mode = SecurityMode.None;
using (ChannelFactory < IFruitService > factory = new ChannelFactory < IFruitService > (wsbinding, epAddr))
{
IFruitService proxy = factory.CreateChannel();

Fruit f = proxy.GetFruit();
if (f != null )
{
Console.WriteLine( " Name: " + f.Name + " Price: " + f.Price);
}
}
Console.WriteLine( " Fruit Client Is Running... " );
Console.ReadLine();
}
}
}

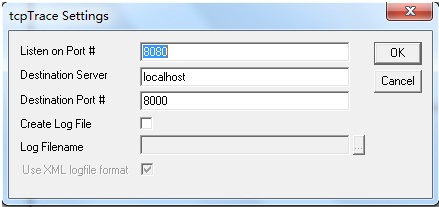

可以看到现在客户端访问的服务端口为8080，而服务监听端口为8000，此时，运行程序客户端将不能够调用服务，因为服务端不监听8080端口。可以用TcpTrace做个消息转发，让它监听8080端口，把任何访问8080端口的消息转发到8000端口。这样TcpTrace就有机会捕捉客户端与服务端的任何通讯消息。可以如下设置TcpTrace

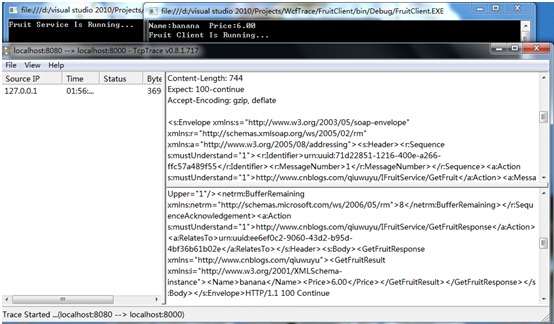

程序的运行结果如下：
