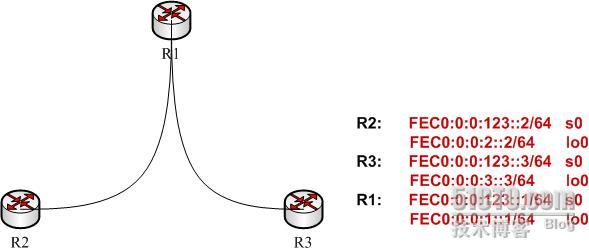

初始配置见 [url]http://matthewyin.blog.51cto.com/blog/49294/17194[/url]
配置RIP协议

R1
conf t
ipv6 router rip cisco                              /*cisco是启用此RIP协议所特指的进程
exit
int s2/0
ipv6 rip cisco enable                            /*在s2/0上启用ipv6的rip协议
exit
int l0
ipv6 rip cisco enable                            /*在loopback0上启用ipv6的rip协议
end

R2
conf t
ipv6 router rip cisco
exit
int s2/0
ipv6 rip cisco enable
exit
int l0
ipv6 rip cisco enable
end

R3
conf t
ipv6 router rip cisco
int s2/0
ipv6 rip cisco enable
exit
int l 0
ipv6 rip cisco enable
end


校验
R1#sh ipv6 route
IPv6 Routing Table - 10 entries
Codes: C - Connected, L - Local, S - Static, R - RIP, B - BGP
       U - Per-user Static route
       I1 - ISIS L1, I2 - ISIS L2, IA - ISIS interarea, IS - ISIS summary
       O - OSPF intra, OI - OSPF inter, OE1 - OSPF ext 1, OE2 - OSPF ext 2
       ON1 - OSPF NSSA ext 1, ON2 - OSPF NSSA ext 2
L   FE80::/10 [0/0]
     via ::, Null0
C   FEC0::/64 [0/0]
     via ::, Loopback0
L   FEC0::1:0:0:1/128 [0/0]
     via ::, Loopback0
C   FEC0:0:0:1::/64 [0/0]
     via ::, Loopback0
L   FEC0:0:0:1::1/128 [0/0]
     via ::, Loopback0
R   FEC0:0:0:2::/64 [120/2]
     via FE80::C800:DFF:FE44:0, Serial2/0
R   FEC0:0:0:3::/64 [120/2]
     via FE80::C800:AFF:FE80:0, Serial2/0
C   FEC0:0:0:123::/64 [0/0]
     via ::, Serial2/0
L   FEC0:0:0:123::1/128 [0/0]
     via ::, Serial2/0
L   FF00::/8 [0/0]
     via ::, Null0

R2#sh ipv6 route
IPv6 Routing Table - 8 entries
Codes: C - Connected, L - Local, S - Static, R - RIP, B - BGP
       U - Per-user Static route
       I1 - ISIS L1, I2 - ISIS L2, IA - ISIS interarea, IS - ISIS summary
       O - OSPF intra, OI - OSPF inter, OE1 - OSPF ext 1, OE2 - OSPF ext 2
       ON1 - OSPF NSSA ext 1, ON2 - OSPF NSSA ext 2
L   FE80::/10 [0/0]
     via ::, Null0
R   FEC0::/64 [120/2]
     via FE80::C800:8FF:FE90:0, Serial2/0
R   FEC0:0:0:1::/64 [120/2]
     via FE80::C800:8FF:FE90:0, Serial2/0
C   FEC0:0:0:2::/64 [0/0]
     via ::, Loopback0
L   FEC0:0:0:2::2/128 [0/0]
     via ::, Loopback0
C   FEC0:0:0:123::/64 [0/0]
     via ::, Serial2/0
L   FEC0:0:0:123::2/128 [0/0]
     via ::, Serial2/0
L   FF00::/8 [0/0]
     via ::, Null0


R3#sh ipv route
IPv6 Routing Table - 8 entries
Codes: C - Connected, L - Local, S - Static, R - RIP, B - BGP
       U - Per-user Static route
       I1 - ISIS L1, I2 - ISIS L2, IA - ISIS interarea, IS - ISIS summary
       O - OSPF intra, OI - OSPF inter, OE1 - OSPF ext 1, OE2 - OSPF ext 2
       ON1 - OSPF NSSA ext 1, ON2 - OSPF NSSA ext 2
L   FE80::/10 [0/0]
     via ::, Null0
R   FEC0::/64 [120/2]
     via FE80::C800:8FF:FE90:0, Serial2/0
R   FEC0:0:0:1::/64 [120/2]
     via FE80::C800:8FF:FE90:0, Serial2/0
C   FEC0:0:0:3::/64 [0/0]
     via ::, Loopback0
L   FEC0:0:0:3::3/128 [0/0]
     via ::, Loopback0
C   FEC0:0:0:123::/64 [0/0]
     via ::, Serial2/0
L   FEC0:0:0:123::3/128 [0/0]
     via ::, Serial2/0
L   FF00::/8 [0/0]
     via ::, Null0


配置OSPF
R1
conf t
int l 0
ip ad 1.1.1.1 255.255.255.255
exit
ipv6 router ospf 1
exit
int s2/0
ipv6 ospf priority 1
ipv6 ospf nei FE80::C800:DFF:FE44:0          /*配置邻居时，需要link-local地址
ipv6 ospf nei FE80::C800:AFF:FE80:0
ipv6 ospf 1 area 0
int l 0
ipv6 ospf 1 area 0
end

R2
conf t
int l 0
ip ad 2.2.2.2 255.255.255.255
exit
ipv6 router ospf 1
exit
int l0
ipv6 ospf 1 area 0
exit
int s2/0
ipv6 ospf nei FE80::C800:8FF:FE90:0
ipv6 ospf priority 0
ipv6 ospf 1 area 0
end

R3
conf t
int l 0
ip ad 3.3.3.3 255.255.255.255
exit
ipv6 router ospf 1
exit
int l 0
ipv6 ospf 1 area 0
exit
int s2/0
ipv6 ospf priority 0
ipv6 ospf nei FE80::C800:8FF:FE90:0
ipv6 ospf 1 area 0
end


校验
R1#sh ipv6 ospf neighbor
Neighbor ID     Pri   State           Dead Time   Interface ID    Interface
3.3.3.3           0   FULL/DROTHER    00:01:54    4               Serial2/0
2.2.2.2           0   FULL/DROTHER    00:01:32    4               Serial2/0

R1#sh ipv route ospf
IPv6 Routing Table - 8 entries
Codes: C - Connected, L - Local, S - Static, R - RIP, B - BGP
       U - Per-user Static route
       I1 - ISIS L1, I2 - ISIS L2, IA - ISIS interarea, IS - ISIS summary
       O - OSPF intra, OI - OSPF inter, OE1 - OSPF ext 1, OE2 - OSPF ext 2
       ON1 - OSPF NSSA ext 1, ON2 - OSPF NSSA ext 2
O   FEC0:0:0:2::2/128 [110/64]
     via FE80::C800:DFF:FE44:0, Serial2/0
O   FEC0:0:0:3::3/128 [110/64]
     via FE80::C800:AFF:FE80:0, Serial2/0

R2#sh ipv route ospf
IPv6 Routing Table - 8 entries
Codes: C - Connected, L - Local, S - Static, R - RIP, B - BGP
       U - Per-user Static route
       I1 - ISIS L1, I2 - ISIS L2, IA - ISIS interarea, IS - ISIS summary
       O - OSPF intra, OI - OSPF inter, OE1 - OSPF ext 1, OE2 - OSPF ext 2
       ON1 - OSPF NSSA ext 1, ON2 - OSPF NSSA ext 2
O   FEC0:0:0:1::1/128 [110/64]
     via FE80::C800:8FF:FE90:0, Serial2/0
O   FEC0:0:0:3::3/128 [110/64]
     via FE80::C800:AFF:FE80:0, Serial2/0


R3#sh ipv6 route ospf
IPv6 Routing Table - 8 entries
Codes: C - Connected, L - Local, S - Static, R - RIP, B - BGP
       U - Per-user Static route
       I1 - ISIS L1, I2 - ISIS L2, IA - ISIS interarea, IS - ISIS summary
       O - OSPF intra, OI - OSPF inter, OE1 - OSPF ext 1, OE2 - OSPF ext 2
       ON1 - OSPF NSSA ext 1, ON2 - OSPF NSSA ext 2
O   FEC0:0:0:1::1/128 [110/64]
     via FE80::C800:8FF:FE90:0, Serial2/0
O   FEC0:0:0:2::2/128 [110/64]
     via FE80::C800:DFF:FE44:0, Serial2/0
