软件测试作业3

程序代码

package cn.tju.scs;

public class Prime {
	/**
     * Finds and prints n prime integers
     * Jeff Offutt, Spring 2003
     */
    static void printPrimes(int n) {
        int curPrime; //Value currently considered for primeness
        int numPrimes; // Number of primes found so far;
        boolean isPrime; //Is curPrime prime?
        int[] primes = new int[1000];// The list of primes.

        // Initialize 2 into the list of primes.
        primes[0] = 2;
        numPrimes = 1;
        curPrime = 2;
        while(numPrimes < n) {
            curPrime++; // next number to consider...
            isPrime = true;
            for(int i = 0; i < numPrimes; i++ ) {
                //for each previous prime.
                if(curPrime%primes[i]==0) {
                    //Found a divisor, curPrime is not prime.
                    isPrime = false;
                    break;
                }
            }
            if(isPrime) {
                // save it!
                primes[numPrimes] = curPrime;
                numPrimes++;

            }
        }// End while

        // print all the primes out
        for(int i = 0; i < numPrimes; i++) {
            System.out.println("Prime: " + primes[i] );

        }

    }// End printPrimes.
}

　　a)Draw the control flow graph for the printPrime() method.

(b) Consider test cases ti = (n = 3) and t2 = ( n = 5). Although these tour the same prime paths in printPrime(), they don't necessarily find
the same faults. Design a simple fault that t2 would be more likely to discover than t1 would.

数组越界的错误

(c) For printPrime(), find a test case such that the corresponding test path visits the edge that connects the beginning of the while statement
to the for statement without going through the body of the while loop.

测试用例 t(n=1)

(d) Enumerate the test requirements for node coverage, edge coverage,and prime path coverage for the path for printPrimes().

1. 设计点覆盖{1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16}

2.设计边覆盖 [1,2] [2,3] [2,12] [3,4] [4,5] [5,6] [5,9] [6,7] [6,8] [7,5] [8,9] [9,10] [9,11] [10,11] [11,2] [12,13] [13,14] [13,16] [14,15] [15,13]

3.主路径覆盖

{(1,2,3,4,5,6,7),
(1,2,3,4,5,6,8,9,10,11),
(1,2,3,4,5,6,8,9,11),
(1,2,3,4,5,9,10,11),
(1,2,3,4,5,9,11),
(1,2,12,13,14,15),
(1,2,12,16),
(2,3,4,5,6,8,9,10,11,2),
(2,3,4,5,6,8,9,11,2),
(2,3,4,5,9,10,11,2),
(2,3,4,5,9,11,2),
(3,4,5,6,8,9,10,11,2,12,13,14,15),
(3,4,5,6,8,9,11,2,12,13,14,15),
(3,4,5,6,8,9,10,11,2,12,13,16),
(3,4,5,6,8,9,11,2,12,13,16),
(3,4,5,9,10,11,2,12,13,14,15),
(3,4,5,9,11,2,12,13,14,15),
(3,4,5,9,10,11,2,12,13,16),
(3,4,5,9,11,2,12,13,16),
(5,6,7,5),
(6,7,5,9,10,11,2,12,13,14,15),
(6,7,5,9,11,2,12,13,14,15),
(6,7,5,9,10,11,2,12,13,16),
(6,7,5,9,11,2,12,13,16),
(13,14,15,13),
(14,15,13,16)}

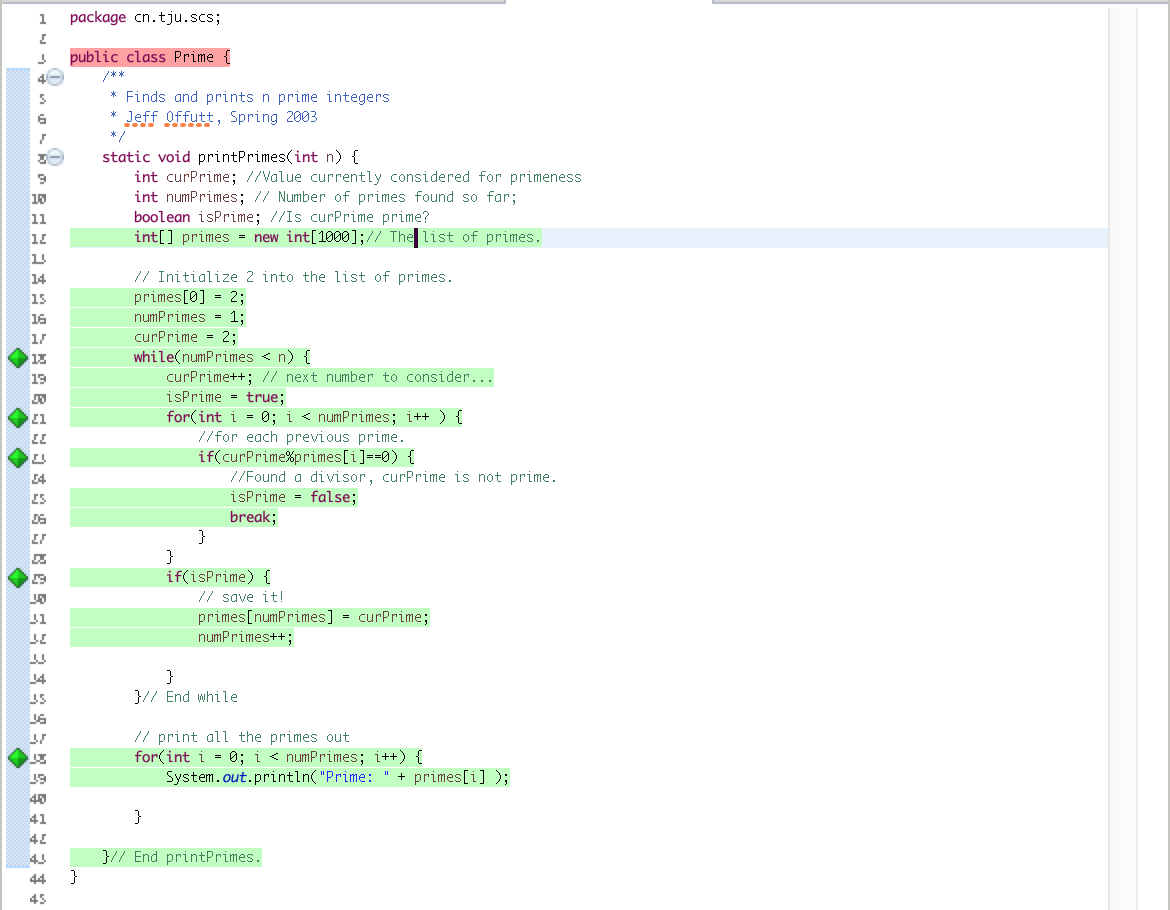

用eclemma实现主路径覆盖
