H3C S6300链型堆叠简单配置

实验环境

1. 两台H3C S6300

2. 两根40G堆叠线

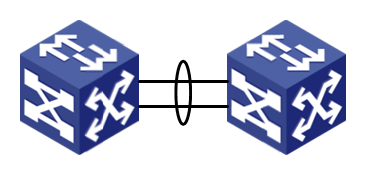

实验拓扑





irf-1交换机配置

interface range FortyGigE1/0/51 toFortyGigE1/0/52

shutdown

quit

irf-port 1/2

port group interface FortyGigE1/0/51

port group interface FortyGigE1/0/52

quit

interface range FortyGigE1/0/51 toFortyGigE1/0/52

undo shutdown

quit

irf-port-configuration active



irf-2交换机配置

irf member 1 remember 2

save

reboot



interface range FortyGigE2/0/51 toFortyGigE2/0/52

shutdown

quit

irf-port 2/1

port group interface FortyGigE2/0/51

port group interface FortyGigE2/0/52

quit

interface range FortyGigE2/0/51 toFortyGigE2/0/52

undo shutdown

quit

irf-port-configuration active



两台交换机连线

• 51口连接至51口

• 52口连接至52口

irf salve自动重启，重启完后，display irf 查看堆叠信息。
