本文介绍了一种基于FPGA实现的简单正弦信号发生器设计方案，详细阐述了直接数字频率合成（DDS）原理及其应用，并给出了DAC控制逻辑的具体实现代码。
-
概述
FPGA具有高度实时的特性。这里讨论基于FPGA设计一款简单的正弦信号发生器。
-
DDS原理

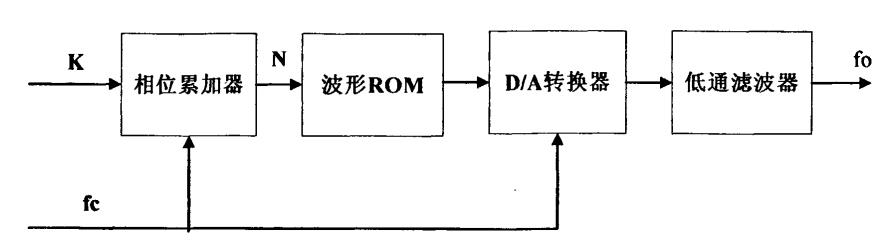

Direct Digital frequency Synthesis如下图所示：
3. DAC原理

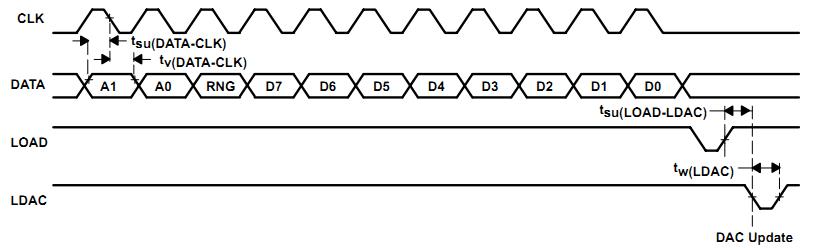

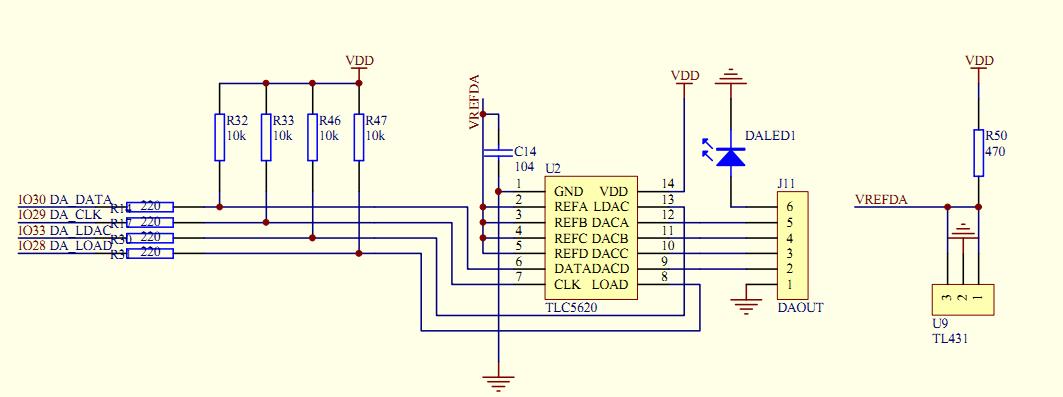

这里DAC采用TLC5620，下面分别给出DAC的原理图和时序图。
4. ROM文件的生成
ROM波形可以通过MIF或HEX文件保存在FPGA的ram或rom模块中，也可以自己编写HDL文件存储。这里我们采用后者。
利用win-tc或matlab生产所需格式的函数数据，参考C代码如下：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
|
#include "stdio.h"
#include "math.h"
#definePi 3.1416
#defineDEPTH 256
#defineLENTH DEPTH/2
intmain()
{
FILE
*fp;
int
j;
unsigned
char
i= 0;
unsigned
char
x= 0;
if
((fp=
fopen
(
"d:\\sin.txt"
,
"w"
))==NULL)
{
printf
(
"can't open this file..\n"
);
exit
(0);
}
for
(j=0;j<DEPTH;j++)
{
x=(
int
)(LENTH+LENTH*
sin
(2*Pi*i/DEPTH - 0.5*Pi));
fprintf
(fp,
" 'd%d: data = 'h%x;\n"
,i,x);
i++;
}
fprintf
(fp,
"\n"
);
fclose
(fp);
printf
(
"success\n"
);
return
0;
}
|
5. DAC控制逻辑设计
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
|
module dac_ctrl(
input clk,
input rst_n,
output reg dac_clk,
output reg dac_load,
output reg dac_ldac,
output reg dac_dat,
input [7:0] rom_dat,
output reg [7:0] rom_addr,
input [7:0] freq_ctrl
);
//=====================================
//The frequency of clk is divided by N
parameter bitsize = 4;
parameter N = 20;
reg [bitsize:0] cnt0;
always @(posedge clk or negedge rst_n)
begin
if
(!rst_n)
begin
cnt0 <= 0;
dac_clk <= 0;
end
else
begin
if
(cnt0 < (N/2-1))
cnt0 <= cnt0 + 1'b1;
else
cnt0 <= 0;
if
(cnt0==0 && cnt1 >=1 && cnt1 <= 4'hb)
dac_clk <= ~ dac_clk;
else
dac_clk <= dac_clk;
end
end
wire clk_1M;
assign clk_1M = (cnt0 == 0)?1
'b1:1'
b0;
//======================================
reg [3:0] cnt1;
always @(posedge clk or negedge rst_n)
begin
if
(!rst_n)
cnt1 <= 0;
else
if
(clk_1M)
cnt1 <= cnt1 + 1'b1;
else
cnt1 <= cnt1;
end
reg [7:0] cnt2;
always @(posedge clk or negedge rst_n)
begin
if
(!rst_n)
cnt2 <= 0;
else
if
(cnt1 == 4'hf)
if
(cnt2 != freq_ctrl)
cnt2 <= cnt2 + 1'b1;
else
cnt2 <= 0;
else
cnt2 <= cnt2;
end
always @(posedge clk or negedge rst_n)
begin
if
(!rst_n)
rom_addr <= 0;
else
if
(clk_1M && cnt1==4'hf && cnt2 == freq_ctrl)
rom_addr <= rom_addr + 1'b1;
else
rom_addr <= rom_addr;
end
always @(cnt1)
begin
case
(cnt1)
4'h1: begin
dac_dat <= 1'b0;
dac_load <= 1'b1;
dac_ldac <= 1'b1;
end
4'h2: begin
dac_dat <= 1'b0;
dac_load <= 1'b1;
dac_ldac <= 1'b1;
end
4'h3: begin
dac_dat <= 1'b1;
dac_load <= 1'b1;
dac_ldac <= 1'b1;
end
4'h4: begin
dac_dat <= rom_dat[7];
dac_load <= 1'b1;
dac_ldac <= 1'b1;
end
4'h5: begin
dac_dat <= rom_dat[6];
dac_load <= 1'b1;
dac_ldac <= 1'b1;
end
4'h6: begin
dac_dat <= rom_dat[5];
dac_load <= 1'b1;
dac_ldac <= 1'b1;
end
4'h7: begin
dac_dat <= rom_dat[4];
dac_load <= 1'b1;
dac_ldac <= 1'b1;
end
4'h8: begin
dac_dat <= rom_dat[3];
dac_load <= 1'b1;
dac_ldac <= 1'b1;
end
4'h9: begin
dac_dat <= rom_dat[2];
dac_load <= 1'b1;
dac_ldac <= 1'b1;
end
4'ha: begin
dac_dat <= rom_dat[1];
dac_load <= 1'b1;
dac_ldac <= 1'b1;
end
4'hb: begin
dac_dat <= rom_dat[0];
dac_load <= 1'b1;
dac_ldac <= 1'b1;
end
4'hc: begin
dac_dat <= 1'b0;
dac_load <= 1'b0;
dac_ldac <= 1'b1;
end
4'hd: begin
dac_dat <= 1'bx;
dac_load <= 1'b1;
dac_ldac <= 1'b0;
end
default
:
begin
dac_dat <= 1'bx;
dac_load <= 1'b1;
dac_ldac <= 1'b1;
end
endcase
end
endmodule
|

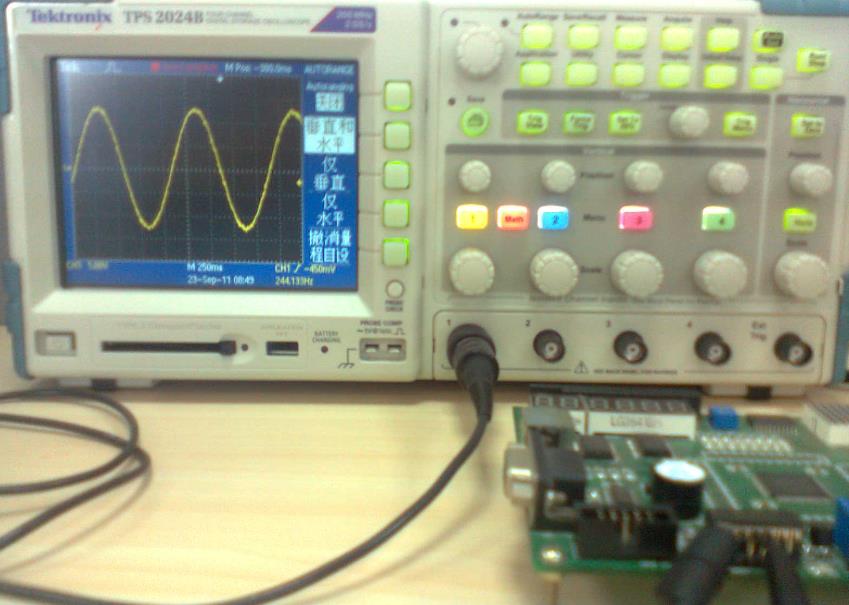

6. 测试结果
