本文深入剖析Hadoop中TextFile和SequenceFile的输入格式处理机制，包括TextInputFormat和SequenceFileInputFormat的具体实现细节，以及读取过程中的关键步骤。
首先所有的输入格式都继承FileInputFormat，对于TextFile和SequenceFile有对应的TextInputFormat和SequenceFileInputFormat。
我们先来看一下TextInputFormat的实现：
public class TextInputFormat extends FileInputFormat<LongWritable, Text>
implements JobConfigurable {
private CompressionCodecFactory compressionCodecs = null;
public void configure(JobConf conf) {
compressionCodecs = new CompressionCodecFactory(conf);
}
//是否可以被切分
//1、没压缩 return true
//2、压缩类是SplittableCompressionCodec的实例 return false 否则return false
protected boolean isSplitable(FileSystem fs, Path file) {
final CompressionCodec codec = compressionCodecs.getCodec(file);
if (null == codec) {
return true;
}
return codec instanceof SplittableCompressionCodec;
}
//创建出LineRecordReader，其中会读取配置中的textinputformat.record.delimiter
//已确定每行的分隔符
public RecordReader<LongWritable, Text> getRecordReader(
InputSplit genericSplit, JobConf job,
Reporter reporter)
throws IOException {
reporter.setStatus(genericSplit.toString());
String delimiter = job.get("textinputformat.record.delimiter");
byte[] recordDelimiterBytes = null;
if (null != delimiter) {
recordDelimiterBytes = delimiter.getBytes(Charsets.UTF_8);
}
return new LineRecordReader(job, (FileSplit) genericSplit,
recordDelimiterBytes);
}
}接下去，看一下LineRecordReader是如何读取记录的，以下是它的构造方法：
private SplitLineReader in; //读取一行记录的实现类
public LineRecordReader(Configuration job, FileSplit split,
byte[] recordDelimiter) throws IOException {
this.maxLineLength = job.getInt(org.apache.hadoop.mapreduce.lib.input.
LineRecordReader.MAX_LINE_LENGTH, Integer.MAX_VALUE);
start = split.getStart();//获取分片文件的启始位置
end = start + split.getLength();//获取分片文件的结束位置
final Path file = split.getPath();//获取分片文件对应的完整文件
compressionCodecs = new CompressionCodecFactory(job);
codec = compressionCodecs.getCodec(file);//获取压缩类
// open the file and seek to the start of the split
final FileSystem fs = file.getFileSystem(job);
fileIn = fs.open(file);
if (isCompressedInput()) {//是否是压缩过的流
decompressor = CodecPool.getDecompressor(codec);
if (codec instanceof SplittableCompressionCodec) {//是否是可切分的压缩
final SplitCompressionInputStream cIn =
((SplittableCompressionCodec)codec).createInputStream(
fileIn, decompressor, start, end,
SplittableCompressionCodec.READ_MODE.BYBLOCK);
in = new CompressedSplitLineReader(cIn, job, recordDelimiter);
start = cIn.getAdjustedStart();
end = cIn.getAdjustedEnd();
filePosition = cIn; // take pos from compressed stream
} else {
in = new SplitLineReader(codec.createInputStream(fileIn,
decompressor), job, recordDelimiter);
filePosition = fileIn;
}
} else {
fileIn.seek(start);
in = new SplitLineReader(fileIn, job, recordDelimiter);
filePosition = fileIn;
}
// If this is not the first split, we always throw away first record
// because we always (except the last split) read one extra line in
// next() method.
//如果不是第一个分片，放弃读取第一行数据，因为每个分片（除了最后一个分片文件）会多读一行。至于为啥要这么做后面会解释。
if (start != 0) {
start += in.readLine(new Text(), 0, maxBytesToConsume(start));
}
this.pos = start;
}
接下去客户端就可以调用来读取一行：
/** Read a line. */
public synchronized boolean next(LongWritable key, Text value)
throws IOException {//同步方法，因为pos是全局可变量
// We always read one extra line, which lies outside the upper
// split limit i.e. (end - 1)
//总是多读一行，getFilePosition() <= end ，可见当等于end还会执行一次in.readLine
while (getFilePosition() <= end || in.needAdditionalRecordAfterSplit()) {
key.set(pos);//当前位置作为key
int newSize = in.readLine(value, maxLineLength, Math.max(maxBytesToConsume(pos), maxLineLength));
if (newSize == 0) {
return false;
}
pos += newSize;
if (newSize < maxLineLength) {
return true;
}
// line too long. try again
LOG.info("Skipped line of size " + newSize + " at pos " + (pos - newSize));
}
return false;
}接下去，我们具体看下SplitLineReader里readLine的实现
public int readLine(Text str, int maxLineLength,
int maxBytesToConsume) throws IOException {
if (this.recordDelimiterBytes != null) {
//根据用户自定义的行分隔符读记录
return readCustomLine(str, maxLineLength, maxBytesToConsume);
} else {
//根据默认行分隔符读记录
return readDefaultLine(str, maxLineLength, maxBytesToConsume);
}
}我们先来看看readCustomLine(str, maxLineLength, maxBytesToConsume)的实现：
/**
* Read a line terminated by a custom delimiter.
*/
private int readCustomLine(Text str, int maxLineLength, int maxBytesToConsume)
throws IOException {
/* We're reading data from inputStream, but the head of the stream may be
* already captured in the previous buffer, so we have several cases:
*
* 1. 缓冲区的尾部不包含行分隔符的任何字符。我们计ambiguousByteCount=0
*
*
* 2. 缓冲区的尾部包含X个字符序列，是X个字符是行分隔符的头部，我们计ambiguousByteCount=X
*
* // *** 例子:输入片段
*
* " record 1792: I found this bug very interesting and
* I have completely read about it. record 1793: This bug
* can be solved easily record 1794: This ."
*
* delimiter = "record";
*
* supposing:- String at the end of buffer =
* "I found this bug very interesting and I have completely re"
* There for next buffer = "ad about it. record 179 ...."
*
* The matching characters in the input
* buffer tail and delimiter head = "re"
* Therefore, ambiguous byte count = 2 **** //
*
* 2.1 If the following bytes are the remaining characters of
* the delimiter, then we have to capture only up to the starting
* position of delimiter. That means, we need not include the
* ambiguous characters in str.
*
* 2.2 If the following bytes are not the remaining characters of
* the delimiter ( as mentioned in the example ),
* then we have to include the ambiguous characters in str.
*/
str.clear();
int txtLength = 0; // tracks str.getLength(), as an optimization
long bytesConsumed = 0;
int delPosn = 0;
int ambiguousByteCount=0; // To capture the ambiguous characters count
do {
int startPosn = bufferPosn; // Start from previous end position
if (bufferPosn >= bufferLength) {
startPosn = bufferPosn = 0;
bufferLength = fillBuffer(in, buffer, ambiguousByteCount > 0);
if (bufferLength <= 0) {
str.append(recordDelimiterBytes, 0, ambiguousByteCount);
break; // EOF
}
}
for (; bufferPosn < bufferLength; ++bufferPosn) {
if (buffer[bufferPosn] == recordDelimiterBytes[delPosn]) {
delPosn++;
if (delPosn >= recordDelimiterBytes.length) {
bufferPosn++;
break;
}
} else if (delPosn != 0) {
bufferPosn--;
delPosn = 0;
}
}
int readLength = bufferPosn - startPosn;
bytesConsumed += readLength;
int appendLength = readLength - delPosn;
if (appendLength > maxLineLength - txtLength) {
appendLength = maxLineLength - txtLength;
}
if (appendLength > 0) {
if (ambiguousByteCount > 0) {
str.append(recordDelimiterBytes, 0, ambiguousByteCount);
//appending the ambiguous characters (refer case 2.2)
bytesConsumed += ambiguousByteCount;
ambiguousByteCount=0;
}
str.append(buffer, startPosn, appendLength);
txtLength += appendLength;
}
if (bufferPosn >= bufferLength) {
if (delPosn > 0 && delPosn < recordDelimiterBytes.length) {
ambiguousByteCount = delPosn;
bytesConsumed -= ambiguousByteCount; //to be consumed in next
}
}
} while (delPosn < recordDelimiterBytes.length
&& bytesConsumed < maxBytesToConsume);
if (bytesConsumed > (long) Integer.MAX_VALUE) {
throw new IOException("Too many bytes before delimiter: " + bytesConsumed);
}
return (int) bytesConsumed;
}再来看看readDefaultLine
/**
* Read a line terminated by one of CR, LF, or CRLF.
*/
private int readDefaultLine(Text str, int maxLineLength, int maxBytesToConsume)
throws IOException {
/* We're reading data from in, but the head of the stream may be
* already buffered in buffer, so we have several cases:
* 1. No newline characters are in the buffer, so we need to copy
* everything and read another buffer from the stream.
* 2. An unambiguously terminated line is in buffer, so we just
* copy to str.
* 3. Ambiguously terminated line is in buffer, i.e. buffer ends
* in CR. In this case we copy everything up to CR to str, but
* we also need to see what follows CR: if it's LF, then we
* need consume LF as well, so next call to readLine will read
* from after that.
* We use a flag prevCharCR to signal if previous character was CR
* and, if it happens to be at the end of the buffer, delay
* consuming it until we have a chance to look at the char that
* follows.
*/
//以上注释说明了如何处理
//UNIX: '\n' (LF)
//Mac: '\r' (CR)
//Windows: '\r\n' (CR)(LF)
str.clear();
int txtLength = 0; //tracks str.getLength(), as an optimization
int newlineLength = 0; //length of terminating newline
boolean prevCharCR = false; //true of prev char was CR
long bytesConsumed = 0;
do {
int startPosn = bufferPosn; //starting from where we left off the last time
if (bufferPosn >= bufferLength) {
startPosn = bufferPosn = 0;
if (prevCharCR) {
++bytesConsumed; //account for CR from previous read
}
bufferLength = fillBuffer(in, buffer, prevCharCR);
if (bufferLength <= 0) {
break; // EOF
}
}
for (; bufferPosn < bufferLength; ++bufferPosn) { //search for newline
if (buffer[bufferPosn] == LF) {
newlineLength = (prevCharCR) ? 2 : 1;
++bufferPosn; // at next invocation proceed from following byte
break;
}
if (prevCharCR) { //CR + notLF, we are at notLF
newlineLength = 1;
break;
}
prevCharCR = (buffer[bufferPosn] == CR);
}
int readLength = bufferPosn - startPosn;
if (prevCharCR && newlineLength == 0) {
--readLength; //CR at the end of the buffer
}
bytesConsumed += readLength;
int appendLength = readLength - newlineLength;
if (appendLength > maxLineLength - txtLength) {
appendLength = maxLineLength - txtLength;
}
if (appendLength > 0) {
str.append(buffer, startPosn, appendLength);
txtLength += appendLength;
}
} while (newlineLength == 0 && bytesConsumed < maxBytesToConsume);
if (bytesConsumed > (long)Integer.MAX_VALUE) {
throw new IOException("Too many bytes before newline: " + bytesConsumed);
}
return (int)bytesConsumed;
}其中
while (newlineLength == 0 && bytesConsumed < maxBytesToConsume);
这个newlineLength == 0，说明如果没有读到行尾，所以会继续读取，所以不存在读取一个断行，即行的两部分分别存在于两个分片中。根据这个行为如何避免漏读和重复读分片文件的开头一行呢？答案是读取的时候第一行不读，读到分片结尾的时候多读一行就可以避免这个问题。具体实现在前面的源代码里已经展现了。可见虽然文件被spilt一个个分片，但是读取逻辑并不完全遵循这个分片。会根据 实际情况调整分片。
以上便是TextFile文件的读取核心代码，接下去我们看一下SequenceFile的行为： SequenceFileInputFormat源码如下：
public class SequenceFileInputFormat<K, V> extends FileInputFormat<K, V> {
public SequenceFileInputFormat() {
setMinSplitSize(SequenceFile.SYNC_INTERVAL);
}
@Override
protected FileStatus[] listStatus(JobConf job) throws IOException {
FileStatus[] files = super.listStatus(job);
for (int i = 0; i < files.length; i++) {
FileStatus file = files[i];
if (file.isDirectory()) { // it's a MapFile
Path dataFile = new Path(file.getPath(), MapFile.DATA_FILE_NAME);
FileSystem fs = file.getPath().getFileSystem(job);
// use the data file
files[i] = fs.getFileStatus(dataFile);
}
}
return files;
}
//创建出SequenceFileRecordReader
public RecordReader<K, V> getRecordReader(InputSplit split,
JobConf job, Reporter reporter)
throws IOException {
reporter.setStatus(split.toString());
return new SequenceFileRecordReader<K, V>(job, (FileSplit) split);
}
}其中 protected boolean isSplitable(FileSystem fs, Path file) 直接继承父类的实现，return true 说明SequeceFile总是可以被切分，其上可见用来读取SequeceFile的内容，让我们看看SequenceFileRecordReader里的借个主要方法的源码实现：
private SequenceFile.Reader in;
public SequenceFileRecordReader(Configuration conf, FileSplit split)
throws IOException {
Path path = split.getPath();
FileSystem fs = path.getFileSystem(conf);
this.in = new SequenceFile.Reader(fs, path, conf);
this.end = split.getStart() + split.getLength();
this.conf = conf;
if (split.getStart() > in.getPosition())
in.sync(split.getStart());
// start位置定位到同步点，sync的说明见之前的Sequence File的介绍博文
this.start = in.getPosition();
more = start < end;
}
public synchronized boolean next(K key, V value) throws IOException {
if (!more) return false;
long pos = in.getPosition();
boolean remaining = (in.next(key) != null);
if (remaining) {
getCurrentValue(value);
}
if (pos >= end && in.syncSeen()) {
more = false;
} else {
more = remaining;
}
return more;
}
protected synchronized boolean next(K key)
throws IOException {
if (!more) return false;
long pos = in.getPosition();
boolean remaining = (in.next(key) != null);
if (pos >= end && in.syncSeen()) {
more = false;
} else {
more = remaining;
}
return more;
}
protected synchronized void getCurrentValue(V value)
throws IOException {
in.getCurrentValue(value);
}主要调用了SequenceFile.Reader的next方法和getCurrentValue方法，我们来具体看看SequenceFile.Reader中这些方法的实现：
首先是读取文件的一写SEQ特有的信息，解析SEQ头部信息，获取压缩类，key，value的类等等，进行初始化
private void init(boolean tempReader) throws IOException {
byte[] versionBlock = new byte[VERSION.length];
in.readFully(versionBlock);
if ((versionBlock[0] != VERSION[0]) ||
(versionBlock[1] != VERSION[1]) ||
(versionBlock[2] != VERSION[2]))
throw new IOException(this + " not a SequenceFile");//判断是否是SEQ文件
// Set 'version'
version = versionBlock[3];
if (version > VERSION[3])//版本是否正确
throw new VersionMismatchException(VERSION[3], version);
if (version < BLOCK_COMPRESS_VERSION) {
UTF8 className = new UTF8();
className.readFields(in);
keyClassName = className.toStringChecked(); // key class name
className.readFields(in);
valClassName = className.toStringChecked(); // val class name
} else {
keyClassName = Text.readString(in);
valClassName = Text.readString(in);
}
if (version > 2) { // if version > 2
this.decompress = in.readBoolean(); // is compressed?
} else {
decompress = false;
}
if (version >= BLOCK_COMPRESS_VERSION) { // if version >= 4
this.blockCompressed = in.readBoolean(); // is block-compressed?
} else {
blockCompressed = false;
}
// if version >= 5
// setup the compression codec
if (decompress) {
if (version >= CUSTOM_COMPRESS_VERSION) {
String codecClassname = Text.readString(in);
try {
Class<? extends CompressionCodec> codecClass
= conf.getClassByName(codecClassname).asSubclass(CompressionCodec.class);
this.codec = ReflectionUtils.newInstance(codecClass, conf);
} catch (ClassNotFoundException cnfe) {
throw new IllegalArgumentException("Unknown codec: " +
codecClassname, cnfe);
}
} else {
codec = new DefaultCodec();
((Configurable)codec).setConf(conf);
}
}
this.metadata = new Metadata();
if (version >= VERSION_WITH_METADATA) { // if version >= 6
this.metadata.readFields(in);
}
if (version > 1) { // if version > 1
in.readFully(sync); // read sync bytes
headerEnd = in.getPos(); // record end of header
}
// Initialize... *not* if this we are constructing a temporary Reader
if (!tempReader) {
valBuffer = new DataInputBuffer();
if (decompress) {
valDecompressor = CodecPool.getDecompressor(codec);
valInFilter = codec.createInputStream(valBuffer, valDecompressor);
valIn = new DataInputStream(valInFilter);
} else {
valIn = valBuffer;
}
if (blockCompressed) {
keyLenBuffer = new DataInputBuffer();
keyBuffer = new DataInputBuffer();
valLenBuffer = new DataInputBuffer();
keyLenDecompressor = CodecPool.getDecompressor(codec);
keyLenInFilter = codec.createInputStream(keyLenBuffer,
keyLenDecompressor);
keyLenIn = new DataInputStream(keyLenInFilter);
keyDecompressor = CodecPool.getDecompressor(codec);
keyInFilter = codec.createInputStream(keyBuffer, keyDecompressor);
keyIn = new DataInputStream(keyInFilter);
valLenDecompressor = CodecPool.getDecompressor(codec);
valLenInFilter = codec.createInputStream(valLenBuffer,
valLenDecompressor);
valLenIn = new DataInputStream(valLenInFilter);
}
SerializationFactory serializationFactory =
new SerializationFactory(conf);
this.keyDeserializer =
getDeserializer(serializationFactory, getKeyClass());
if (this.keyDeserializer == null) {
throw new IOException(
"Could not find a deserializer for the Key class: '"
+ getKeyClass().getCanonicalName() + "'. "
+ "Please ensure that the configuration '" +
CommonConfigurationKeys.IO_SERIALIZATIONS_KEY + "' is "
+ "properly configured, if you're using "
+ "custom serialization.");
}
if (!blockCompressed) {
this.keyDeserializer.open(valBuffer);
} else {
this.keyDeserializer.open(keyIn);
}
this.valDeserializer =
getDeserializer(serializationFactory, getValueClass());
if (this.valDeserializer == null) {
throw new IOException(
"Could not find a deserializer for the Value class: '"
+ getValueClass().getCanonicalName() + "'. "
+ "Please ensure that the configuration '" +
CommonConfigurationKeys.IO_SERIALIZATIONS_KEY + "' is "
+ "properly configured, if you're using "
+ "custom serialization.");
}
this.valDeserializer.open(valIn);
}
} /** Read the next key/value pair in the file into <code>key</code> and
* <code>val</code>. Returns true if such a pair exists and false when at
* end of file */
public synchronized boolean next(Writable key, Writable val)
throws IOException {
if (val.getClass() != getValueClass())
throw new IOException("wrong value class: "+val+" is not "+valClass);
boolean more = next(key);//读取下一个key
if (more) {
getCurrentValue(val);//获取可以对应的val
}
return more;
} /** Read the next key in the file into <code>key</code>, skipping its
* value. True if another entry exists, and false at end of file. */
public synchronized boolean next(Writable key) throws IOException {
if (key.getClass() != getKeyClass())
throw new IOException("wrong key class: "+key.getClass().getName()
+" is not "+keyClass);
if (!blockCompressed) {//不是块压缩
outBuf.reset();
keyLength = next(outBuf);//获取key的长度
if (keyLength < 0)
return false;
valBuffer.reset(outBuf.getData(), outBuf.getLength());
key.readFields(valBuffer);//读取key的内容
valBuffer.mark(0);
if (valBuffer.getPosition() != keyLength)
throw new IOException(key + " read " + valBuffer.getPosition()
+ " bytes, should read " + keyLength);
} else {
//Reset syncSeen
syncSeen = false;
if (noBufferedKeys == 0) {
try {
readBlock();
} catch (EOFException eof) {
return false;
}
}
int keyLength = WritableUtils.readVInt(keyLenIn);
// Sanity check
if (keyLength < 0) {
return false;
}
//Read another compressed 'key'
key.readFields(keyIn);
--noBufferedKeys;
}
return true;
}/**
* Get the 'value' corresponding to the last read 'key'.
* @param val : The 'value' to be read.
* @throws IOException
*/
public synchronized void getCurrentValue(Writable val)
throws IOException {
if (val instanceof Configurable) {
((Configurable) val).setConf(this.conf);
}
// Position stream to 'current' value
seekToCurrentValue();
if (!blockCompressed) {
val.readFields(valIn);
if (valIn.read() > 0) {
LOG.info("available bytes: " + valIn.available());
throw new IOException(val+" read "+(valBuffer.getPosition()-keyLength)
+ " bytes, should read " +
(valBuffer.getLength()-keyLength));
}
} else {
// Get the value
int valLength = WritableUtils.readVInt(valLenIn);//获取val的长度
val.readFields(valIn);//读取val值
// Read another compressed 'value'
--noBufferedValues;
// Sanity check
if ((valLength < 0) && LOG.isDebugEnabled()) {
LOG.debug(val + " is a zero-length value");
}
}
}以上便是SeqFile文件的读取核心代码。我们从源代码角度预测下两者的区别：
| 存储大小 | 查询效率 | |
| SeqFile | 大（要存key长度，value长度，sync等信息） | 好(应为有key长度，value长度等信息所以可以快速定位key或者value并读取) |
| TextFile | 小 | 差（需要反复读直到遇到分隔符） |
下面我们实践一下看看是不是这样的：
首先通过wget http://files.grouplens.org/datasets/movielens/ml-100k.zip
然后使用hive
CREATE TABLE u_data
( userid INT,
movieid INT,
rating INT,
unixtime STRING)
ROW FORMAT DELIMITED
FIELDS TERMINATED BY '\t' STORED AS TEXTFILE;
LOAD DATA LOCAL INPATH '/usr/test/hivesourcedata/ml-100k/u.data' OVERWRITE INTO TABLE u_data; CREATE TABLE u_data_seq
( userid INT,
movieid INT,
rating INT,
unixtime STRING)
ROW FORMAT DELIMITED
FIELDS TERMINATED BY '\t' STORED AS SEQUENCEFILE;
INSERT OVERWIRTE TABLE u_data_seq SELECT * FROM u.data;首先比较下大小：
3.1M ./u_data_seq
1.9M ./u_data
果然u_data_seq 比u_data大

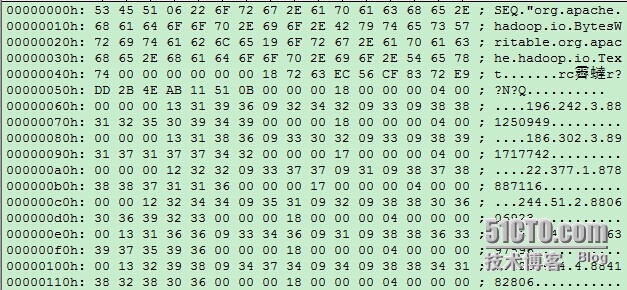

我们看看u_data_seq的存储内容：
很标准的SEQ文件，但是大家有没有发现没有key，因为hiveSeqFile是空key，见HiveSequenceFileOutputFormat的源码
public class HiveSequenceFileOutputFormat<K,V> extends SequenceFileOutputFormat<K,V>
implements HiveOutputFormat<K, V> {
BytesWritable EMPTY_KEY = new BytesWritable();
/**
* create the final out file, and output an empty key as the key.
*
* @param jc
* the job configuration file
* @param finalOutPath
* the final output file to be created
* @param valueClass
* the value class used for create
* @param isCompressed
* whether the content is compressed or not
* @param tableProperties
* the tableInfo of this file's corresponding table
* @param progress
* progress used for status report
* @return the RecordWriter for the output file
*/
@Override
public RecordWriter getHiveRecordWriter(JobConf jc, Path finalOutPath,
Class<? extends Writable> valueClass, boolean isCompressed,
Properties tableProperties, Progressable progress) throws IOException {
FileSystem fs = finalOutPath.getFileSystem(jc);
final SequenceFile.Writer outStream = Utilities.createSequenceWriter(jc,
fs, finalOutPath, BytesWritable.class, valueClass, isCompressed);
return new RecordWriter() {
@Override
public void write(Writable r) throws IOException {
outStream.append(EMPTY_KEY, r);//key是EMPTY_KEY
}
@Override
public void close(boolean abort) throws IOException {
outStream.close();
}
};
}

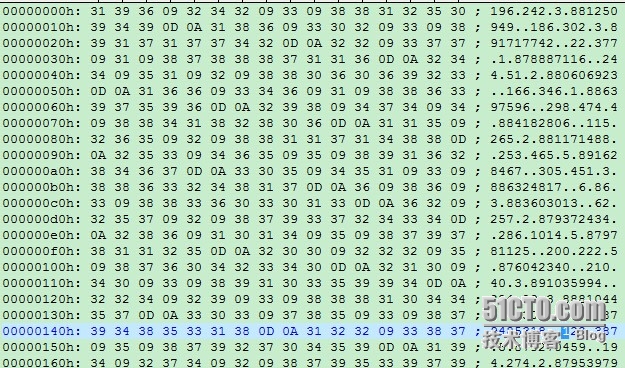

}接下去看看u_data的存储内容：
可见也是没key，hive对于TextFile的实现是org.apache.hadoop.hive.ql.io.HiveIgnoreKeyTextOutputFormat
接下去我们执行个简单查询，看看谁的查询速度快
hive> select * from u_data_seq where userid >1000;
Time taken: 15.379 seconds
hive> select * from u_data where userid>1000;
Time taken: 17.683 seconds
第一个SQL块了2秒多。
转载于:https://blog.51cto.com/tangjj/1535555
扫一扫
3765
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
