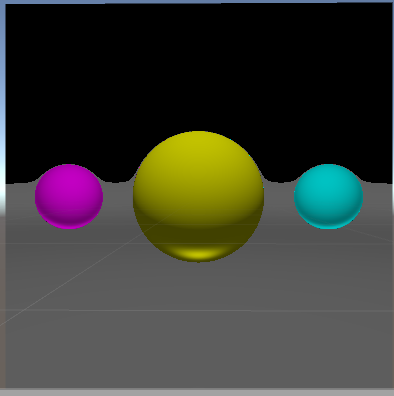

效果图：
使用phong着色模型，将环境光、物体的漫反射光、镜面光三种光效加合而得到上图的效果
raymarch 的shader代码：
// Upgrade NOTE: replaced '_Object2World' with 'unity_ObjectToWorld'

Shader "RayMarch/Primitives1_phong"
{
    Properties
    {
        _MainTex("Texture", 2D) = "white" {}
    }
        SubShader
    {
        Tags{ "RenderType" = "Opaque" }
        LOD 100

        Pass
    {
        CGPROGRAM
#pragma vertex vert
#pragma fragment frag

#include "UnityCG.cginc"
#include "Lighting.cginc"

#define PointLightPos fixed3(0, 3, 0)
#define LightColor float3(1,1,1)
#define GlobalAmibent float3(0.1,0.1,0.1)

        struct appdata
    {
        float4 vertex : POSITION;
        float2 uv : TEXCOORD0;
    };

    struct v2f
    {
        float2 uv : TEXCOORD0;
        float4 vertex : SV_POSITION;
    };

    sampler2D _MainTex;
    float4 _MainTex_ST;

    //###################################################################################
    //sdf:define primitives
    float sdPlane(float3 p,float planeYPos)
    {
        return p.y - planeYPos;
    }

    float sdSphere(float3 p, float3 spherePos, float radius)
    {
        return length(p - spherePos) - radius;
    }
    //###################################################################################

    //###################################################################################
    //primitives boolean operation
    //求并集
    float2 opU(float2 d1, float2 d2)
    {
        return (d1.x<d2.x) ? d1 : d2;
    }
    //###################################################################################

    // define the scene
    float2 map(in float3 pos)
    {
        //plane
        //float2(x,y)的第二个参数定义了该物体的材质id，在render环节，可以根据id做不同处理
        float2 plane = float2(sdPlane(pos, -0.5), 0);
        float2 ball_1 = float2(sdSphere(pos, float3(0, 0, 2), 0.5), 1);
        float2 ball_2 = float2(sdSphere(pos, float3(2, 0, 5), 0.5), 2);
        float2 ball_3 = float2(sdSphere(pos, float3(-2, 0, 5), 0.5), 3);
        //求物体的并集
        float2 res = opU(opU(opU(ball_1, ball_2), ball_3),plane);
        return res;
    }

    float2 castRay(in float3 ro, in float3 rd)
    {
        float tmin = 1.0;
        //射线最大允许经过的距离
        float tmax = 100.0;
        //当前已经过的距离
        float t = tmin;
        //材质id
        float m = -1.0;
        //最大迭代次数定位64
        for (int i = 0; i<64; i++)
        {
            //距离精度随距离的增加而减小
            float precis = 0.0005*t;
            //获得场景中物体距离该点的距离，及距离最近物体的材质id
            float2 res = map(ro + rd*t);
            //如果与场景物体发生碰撞，或者射线行进距离超出最大范围，则跳出迭代
            if (res.x<precis || t>tmax) break;
            t += res.x;
            m = res.y;
        }
        if (t>tmax) m = -1.0;
        return float2(t, m);
    }

    //计算碰撞点处物体表面的法线
    float3 calcNormal(in float3 pos)
    {
        float3 eps = float3(0.0005, 0.0, 0.0);
        float3 nor = float3(
            map(pos + eps.xyy).x - map(pos - eps.xyy).x,
            map(pos + eps.yxy).x - map(pos - eps.yxy).x,
            map(pos + eps.yyx).x - map(pos - eps.yyx).x);
        return normalize(nor);
    }

    float3 BasicPhong(fixed3 lightDir, fixed3 normalDir, fixed3 viewDir, int matIndex) {
        float Ka = 1, Kd = 1, Ks = 1, Shininess = 7;
        float3 matColor = float3(0.5, 0.5, 0);
        switch (matIndex) {
        case -1:
            //极远处
            matColor = float3(0, 0, 0);
            break;
        case 0:
            matColor = float3(0.1, 0.1, 0.1);
            break;
        case 1:
            matColor = float3(0.5, 0.5, 0); Shininess = 30;
            break;
        case 2:
            matColor = float3(0, 0.5, 0.5);
            break;
        case 3:
            matColor = float3(0.5, 0, 0.5);
            break;
        default:
            break;
        }
        float3 amibent = Ka * GlobalAmibent * matColor;
        float3 diffuse = Kd * LightColor * clamp(dot(normalDir, lightDir), 0, 1) * matColor;
        fixed3 reflectDir = reflect(-lightDir, normalDir);
        float3 specular = Ks * LightColor * pow(clamp(dot(viewDir, reflectDir), 0, 1), Shininess) * matColor;
        float3 color = amibent + diffuse + specular;
        return color;
    }

    float3 render(in float3 ro, in float3 rd)
    {
        //投掷射线，获得与所场景物体的碰撞信息
        float2 res = castRay(ro, rd);
        float t = res.x;
        float m = res.y;
        float3 pos = ro + t*rd;
        float3 nor = calcNormal(pos);
        fixed3 lightPos = PointLightPos;
        fixed3 lightDir = normalize(lightPos - pos);

        float3 col = BasicPhong(lightDir, nor, rd, m);
        return col;

    }

    v2f vert(appdata v)
    {
        v2f o;
        o.vertex = UnityObjectToClipPos(v.vertex);
        o.uv = TRANSFORM_TEX(v.uv, _MainTex);
        return o;
    }

    fixed4 frag(v2f i) : SV_Target
    {
        //虚拟摄像机坐标
        float3 ro = float3(0,0,-1);
        //投影面某点坐标
        float3 p = float3(i.uv - float2(0.5, 0.5),0);
        //投掷射线
        float3 rd = normalize(p - ro);
        fixed4 col = fixed4(render(ro, rd).rgb, 1);
        // gamma校正
        col.rgb = pow(col.rgb, float3(0.4545, 0.4545, 0.4545));
        return col;
    }
        ENDCG
    }
    }
}
