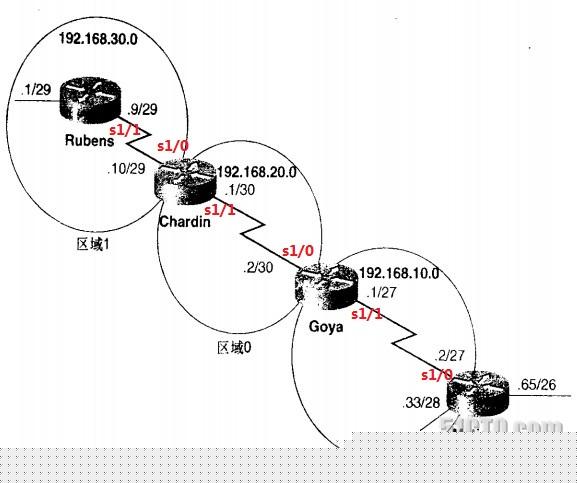

7.2配置OSPF
<?xml:namespace prefix = o ns = "urn:schemas-microsoft-com:office:office" />

配置和net文件在附件中
Rubens(config-if)#router ospf 1

Rubens(config-router)#net 0.0.0.0 255.255.255.255 a 1



Chardin(config-if)#router ospf 1

Chardin(config-router)#net 192.168.20.0 0.0.0.255 a 0

Chardin(config-router)#net 192.168.30.0 0.0.0.255 a 1



Goya(config-if)#router ospf 1

Goya(config-router)#net 192.168.20.0 0.0.0.3 a 0.0.0.0

Goya(config-router)#net 192.168.10.0 0.0.0.31 a 192.168.10.0



Matisse(config-if)#router ospf 1

Matisse(config-router)#net 0.0.0.0 255.255.255.255 a 192.168.10.0





使用loopback接口设置路由器的ID

注意：如果找不到一个有效的IP地址作为他的路由器ID，OSPF将不会启动。

这个在这种情况下会发生，刷OSPF配置，如果接口没有起 ospf命令刷不上去了。这个地方要注意在刷配置的时候。

这边就会发现loopback的接口始终是up的

控制路由器ID使单个OSPF路由器更加容易识别。

配置的时候：只要主机掩码保持一种整齐的格式

还有一种方法就是手动指定OSPF的路由器ID

Router-id





Rubens(config)#int lo0

Rubens(config-if)#ip add 192.168.50.1 255.255.255.255

Rubens(config-if)#router ospf 1

Rubens(config-router)#net 192.168.30.0 0.0.0.255 a 1





Chardin(config)#int lo0

Chardin(config-if)#ip add 192.168.50.2 255.255.255.255

Chardin(config-if)#router ospf 20

Chardin(config-router)#net 192.168.30.0 0.0.0.255 a 1

Chardin(config-router)#net 192.168.20.0 0.0.0.255 a 0





Goya(config)#int lo0

Goya(config-if)#ip add 192.168.50.3 255.255.255.255

Goya(config-if)#router ospf 1

Goya(config-router)#net 192.168.20.0 0.0.0.3 a 0.0.0.0

Goya(config-router)#net 192.168.10.0 0.0.0.31 a 192.168.10.0





Matisse(config)#int lo1

Matisse(config-if)#ip add 192.168.50.4 255.255.255.255

Matisse(config-if)#router ospf 1

Matisse(config-router)#net 192.168.10.2 0.0.0.0 a 192.168.10.0



Rubens#sh ip ospf

 Routing Process "ospf 1" with ID 192.168.50.1

 Supports only single TOS(TOS0) routes

 Supports opaque LSA

 Supports Link-local Signaling (LLS)

 Initial SPF schedule delay 5000 msecs

 Minimum hold time between two consecutive SPFs 10000 msecs

 Maximum wait time between two consecutive SPFs 10000 msecs

 Minimum LSA interval 5 secs. Minimum LSA arrival 1 secs

 LSA group pacing timer 240 secs

 Interface flood pacing timer 33 msecs

 Retransmission pacing timer 66 msecs

 Number of external LSA 0. Checksum Sum 0x000000

 Number of opaque AS LSA 0. Checksum Sum 0x000000

 Number of DCbitless external and opaque AS LSA 0

 Number of DoNotAge external and opaque AS LSA 0

 Number of areas in this router is 1. 1 normal 0 stub 0 nssa

 External flood list length 0

    Area 1

        Number of interfaces in this area is 1

        Area has no authentication

        SPF algorithm last executed 00:12:26.888 ago

        SPF algorithm executed 3 times

        Area ranges are

        Number of LSA 4. Checksum Sum 0x021200

        Number of opaque link LSA 0. Checksum Sum 0x000000

        Number of DCbitless LSA 0

        Number of indication LSA 0

        Number of DoNotAge LSA 0

        Flood list length 0
