二叉树先序遍历;(1)先序访问根节点 (2)先序访问左子树 (3)先序访问右子树
二叉树中序遍历;(1)中序访问根节点 (2)中序访问左子树 (3)中序访问右子树
二叉树后序遍历;(1)后序访问根节点 (2)后序访问左子树 (3)后序访问右子树

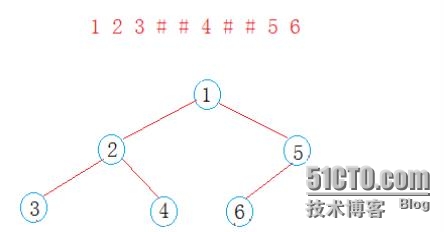

测试用例:int a[10]={'1','2','3','#','#','4','#','#','5','6'}
代码:
#include<iostream>
using namespace std;
#include<queue>
#include<stack>
template<class T>
struct BinaryTreeNode
{
BinaryTreeNode<T>* _left;
BinaryTreeNode<T>* _right;
T _data;
BinaryTreeNode(const T& d)
:_left(NULL)
,_right(NULL)
,_data(d)
{}
};
template<class T>
class BinaryTree
{
public:
BinaryTree()
:_root(NULL)
{}
BinaryTree(const T* a,size_t size,const T& invalid)
{
size_t index = 0;
_root = _Create(a,size,index,invalid);
}
//BinaryTree(const BinaryTree<T>& d)
//{
// BinaryTreeNode<T> root = NULL;
//}
BinaryTree<T>& operator = (const BinaryTree<T>& d)
{
swap(root,d._root );
}
void PrevOrder()
{
_PrevOrder(_root);
}
void InOrder()
{
_InOrder(_root);
}
size_t Size()
{
_Size(_root);
}
size_t Depth()
{
return _Depth(_root);
}
size_t LeafSize()
{
return _LeafSize( _root);
}
void LevelOrder()
{
_LeavelOrder();
}
void PrevOrder_NonR()
{
_PrevOrder_NonR();
}
void InOrder_NonR()
{
_InOrer_NonR();
}
void PostOrder_NonR()
{
_PostOrder_NonR();
}
public:
protected:
BinaryTreeNode<T>* _Create(const T*a,size_t size,size_t& index,const T& invalid)
{
BinaryTreeNode<T> *root = NULL;
while(index<size && a[index] != invalid)
{
root = new BinaryTreeNode<T> (a[index]);
root->_left = _Create(a,size,++index,invalid);
root->_right = _Create(a,size,++index,invalid);
}
return root;
}
void _PrevOrder(BinaryTreeNode<T>* root)
{
if(root == NULL)
{
return;
}
cout<<root->_data<<" " ;
_PrevOrder(root->_left );
_PrevOrder(root->_right);
}
void _InOrder(BinaryTreeNode<T>* root)
{
if(root == NULL)
{
return;
}
_InOrder (root->_left );
cout<<root->_data<<" " ;
_InOrder (root->_right );
}
size_t _size(BinaryTreeNode<T>* root)
{
if(root == NULL)
{
return 0;
}
return _Size(root->_left )+_Size(root->_right )+1;
}
size_t _Depth(BinaryTreeNode<T>* root)
{
if(root == NULL)
{
return 0;
}
int left = _Depth(root->_left )+1;
int right = _Depth (root->_right )+1;
return (left>right?left:right);
}
size_t _LeafSize(BinaryTreeNode<T>* root)
{
if(root == NULL)
{
return 0;
}
if(root->_left == NULL && (root->_right == NULL))
{
return 1;
}
return _LeafSize(root->_left)+_LeafSize (root->_right);
}
void _LeavelOrder()
{
queue<BinaryTreeNode<T>*>q;
if(_root)
{
q.push(_root);
}
while(!q.empty())
{
BinaryTreeNode<T>* front = q.front();
cout<<front._data<<" ";
if(_root->_left)
{
q.push(_root->_left);
}
if(_root->_right)
{
q.push(_root->_right);
}
q.pop();
}
cout<<endl;
}
void _PrevOrder_NonR()
{
stack<BinaryTreeNode<T>*>s;
BinaryTreeNode<T>* cur = _root;
while(cur||!s.empty())
{
while(cur )
{
cout<<cur->_data <<" ";
s.push(cur);
cur = cur->_left ;
}
if(!s.empty())
{
BinaryTreeNode<T>* top = s.top();
cur = top->_right ;
s.pop();
}
}
}
void _InOrer_NonR()
{
stack<BinaryTreeNode<T>*> s;
BinaryTreeNode<T>* cur = _root;
while(cur||!s.empty())
{
while(cur)
{
s.push(cur);
cur = cur->_left ;
}
BinaryTreeNode<T>* Top = s.top();
cout<<Top->_data<<" ";
cur = Top->_right ;
s.pop();
}
cout<<endl;
}
void _PostOrder_NonR()
{
BinaryTreeNode<T>* cur = _root;
stack<BinaryTreeNode<T>*>s;
BinaryTreeNode<T>* prev = NULL;
while(cur||!s.empty())
{
while(cur)
{
s.push(cur);
cur = cur->_left ;
}
BinaryTreeNode<T>* top = s.top();
if(top->_right == NULL||top->_right == prev)
{
cout<<top->_data <<" ";
s.pop();
prev = top;
}
else
cur = top->_right ;
//cout<<endl;
}
}
protected:
BinaryTreeNode<T>* _root;
};
int main()
{
int a1[10] = {1,2,3,'#','#',4,'#','#',5,6};
BinaryTree<int> b1(a1,10,'#');
//b1.InOrder();
//b1.InOrder_NonR ();
//b1.Depth();
//b1.PrevOrder_NonR();
b1.PostOrder_NonR();
system("pause");
return 0;
}
