完全末梢<?xml:namespace prefix = o ns = "urn:schemas-microsoft-com:office:office" />

R1(config)#

R1(config)#router ospf 1

R1(config-router)#area 1 stub no-summary

R1(config-router)#

*May 24 15:15:46.723: %OSPF-5-ADJCHG: Process 1, Nbr 2.2.2.2 on Serial1/1 from FULL to DOWN, Neighbor Down: Adjacency forced to reset

R1(config-router)#

*May 24 15:16:08.171: %OSPF-5-ADJCHG: Process 1, Nbr 2.2.2.2 on Serial1/1 from LOADING to FULL, Loading Done



R2(config)#router ospf 1

R2(config-router)#area 1 stub no-summary

*May 24 15:16:04.799: %OSPF-5-ADJCHG: Process 1, Nbr 1.1.1.1 on Serial1/0 from FULL to DOWN, Neighbor Down: Adjacency forced to reset

R2(config-router)#

*May 24 15:16:08.087: %OSPF-5-ADJCHG: Process 1, Nbr 1.1.1.1 on Serial1/0 from LOADING to FULL, Loading Done

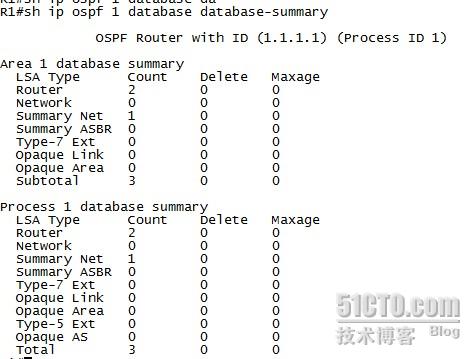

只有一个类型3的LSA

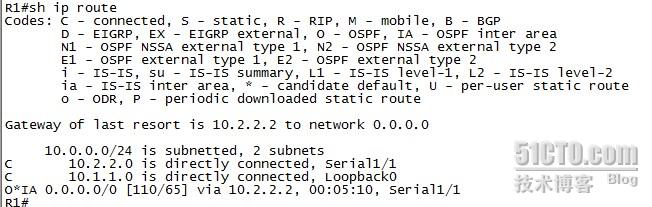

看路由表

区域间和外部的路由都化成了一条默认路由（区域间的）
这个要结合上一节的去看
