EIGRP认证

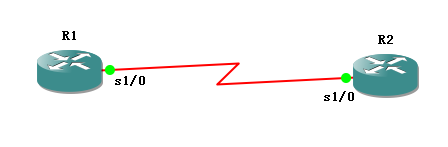

实验拓扑图：



实验过程

1.R1的预配置

Router>en Router#config t Enter configuration commands, one per line.  End with CNTL/Z. Router(config)#no ip domain-lookup Router(config)#line console 0 Router(config-line)#no exec-timeout Router(config-line)#loggin syn Router(config-line)#exit Router(config)#host R1 R1(config)#interface s1/0 R1(config-if)#no shut R1(config-if)#ip add 172.16.1.9 255.255.255.252 R1(config-if)#interface lo0 R1(config-if)#ip add 10.1.1.1 255.255.255.0 R1(config-if)#exit

2.R2的预配置

Router>en Router#config t Enter configuration commands, one per line.  End with CNTL/Z. Router(config)#no ip domain-lookup Router(config)#line console 0 Router(config-line)#no exec-timeout Router(config-line)#loggin syn Router(config-line)#exit Router(config)#host R2 R2(config)#interface s1/0 R2(config-if)#no shut R2(config-if)#ip add 172.16.1.10 255.255.255.252 R2(config-if)#interface lo0 R2(config-if)#ip add 192.168.1.1 255.255.255.0 R2(config-if)#exit

3.R1配置EIGRP

R1(config)#router eigrp 50 R1(config-router)#network 172.16.1.0 R1(config-router)#network 10.1.1.0 R1(config-router)#no auto R1(config-router)#end

4.R2配置EIGRP

R2(config)#router eigrp 50 R2(config-router)#network 172.16.1.0 *Jan  5 22:58:05.047: %DUAL-5-NBRCHANGE: IP-EIGRP(0) 50: Neighbor 172.16.1.9 (Serial1/0) is up: new adjacency R2(config-router)#network 192.168.1.0 R2(config-router)#no auto R2(config-router)#end

5.查看R1和R2的路由表

R1#show ip rout eigrp D    192.168.1.0/24 [90/2297856] via 172.16.1.10, 00:03:19, Serial1/0

R2#show ip route eigrp      10.0.0.0/24 is subnetted, 1 subnets D       10.1.1.0 [90/2297856] via 172.16.1.9, 00:04:21, Serial1/0

6.在R1上配置认证

R1#config t Enter configuration commands, one per line.  End with CNTL/Z. R1(config)#key chain ccnp R1(config-keychain)#key 1 R1(config-keychain-key)#key-string cisco R1(config-keychain-key)#exit R1(config-keychain)#exit R1(config)#interface s1/0 R1(config-if)#ip authentication key-chain eigrp 50 ccnp R1(config-if)#ip authentication mode eigrp 50 md5 R1(config-if)#end

7.查看R2输出信息

*Jan  5 23:07:15.283: %DUAL-5-NBRCHANGE: IP-EIGRP(0) 50: Neighbor 172.16.1.9 (Serial1/0) is down: Auth failure  //因为R2没有配置认证，所以认证失败

R2#show ip eigrp nei IP-EIGRP neighbors for process 50   //不能建立邻居关系

8.配置R2的认证

R2#config t Enter configuration commands, one per line.  End with CNTL/Z. R2(config)#key chain ccnp R2(config-keychain)#key 1 R2(config-keychain-key)#key-string cisco R2(config-keychain-key)#exit R2(config-keychain)#exit R2(config)#interface s1/0 R2(config-if)#ip authentication key-chain eigrp 50 ccnp R2(config-if)#ip authentication mode eigrp 50 md5 *Jan  5 23:14:50.715: %DUAL-5-NBRCHANGE: IP-EIGRP(0) 50: Neighbor 172.16.1.9 (Serial1/0) is up: new adjacency R2(config-if)#end

9.查看R2邻居表和路由表

R2#show ip eigrp nei IP-EIGRP neighbors for process 50 H   Address                 Interface       Hold Uptime   SRTT   RTO  Q  Seq                                             (sec)         (ms)       Cnt Num 0   172.16.1.9              Se1/0             14 00:04:14  114   684  0  11 R2#show ip route eigrp      10.0.0.0/24 is subnetted, 1 subnets D       10.1.1.0 [90/2297856] via 172.16.1.9, 00:04:21, Serial1/0
