jchdl - GSL实例 - ComplementTwo（二的补码）

https://mp.weixin.qq.com/s/Gh2xJJvfg1SlyuayK4LRyQ



二的补码指对二进制数的所有位数整体求补。二进制运算下0,1互为补数，n位二进制数a的补数为2^n - a

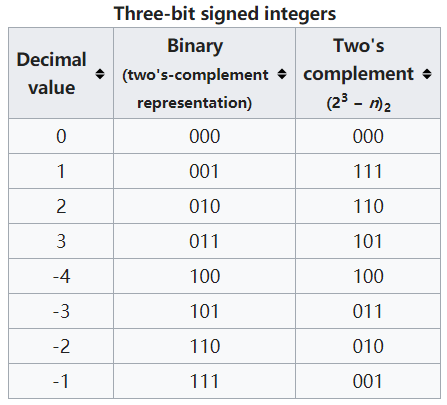

The two's complement of an N-bit number is defined as its complement with respect to 2N. For instance, for the three-bit number 010, the two's complement is 110, because 010 + 110 = 1000.

Conveniently, another way of finding the two's complement of a number is to take its ones' complement and add one: the sum of a number and its ones' complement is all '1' bits, or 2N − 1; and by definition, the sum of a number and its two's complement is 2N.



​​

引自：https://en.wikipedia.org/wiki/Two%27s_complement



参考链接

https://github.com/wjcdx/jchdl/blob/master/src/org/jchdl/model/gsl/operator/arithmetic/code/ComplementOne.java





1.创建Sub.java, 并生成构造方法和logic()方法

略

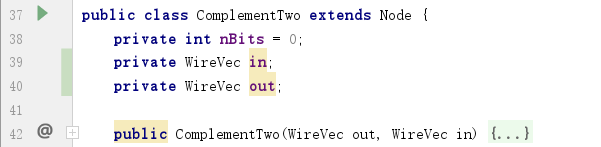

2. 根据逻辑原理图，添加输入输出线

​​

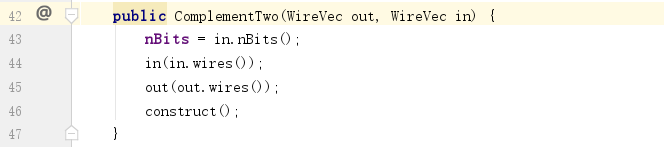

3. 在构造方法中搜集输入输出线并调用construct()方法

​​

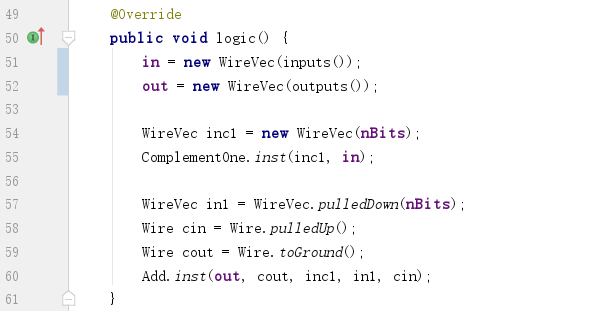

4. 在logic()方法中创建子节点并连线

​​

计算方法：2的补码 = 1的补码 + 1.



5. 创建inst静态方法方便后续使用

略

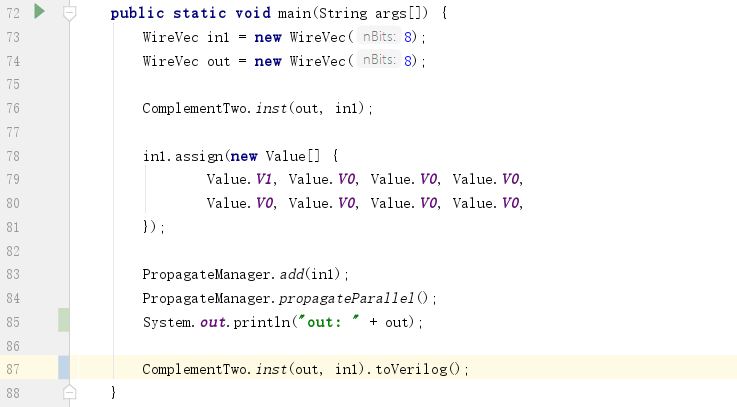

6. 创建main方法执行验证

​​



运行结果为：

​​

即-1的补码表示。





7. 生成Verilog

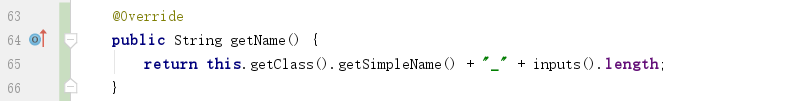

生成定制化模块名：

​​

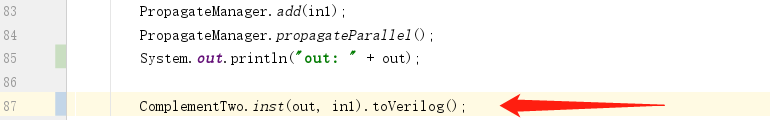

调用toVerilog()方法生成Verilog实现。

​​

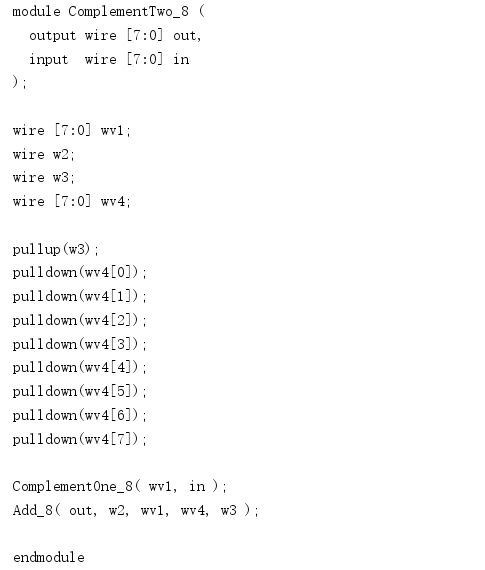

执行结果如下：

​​

其余子模块的生成代码略去。





转载于:https://www.cnblogs.com/wjcdx/p/9705239.html
