一、装饰者模式:运行时动态地将责任附加到对象上。
1、装饰者与被装饰对象有相同的超类型
2、一个或多个装饰者包装一个对象
3、装饰者在所委托被装饰者的行为之前与/或之后加上自己的行为
4、可在运行时动态地不限量地装饰
二、装饰者缺点:大量小类、增加实例化难度

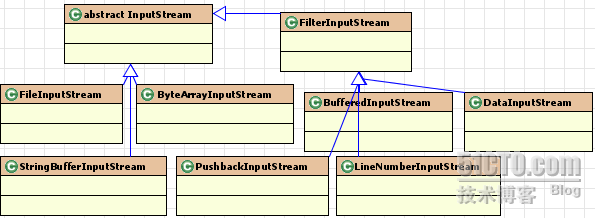

三、java.io中装饰者应用

四、示例:

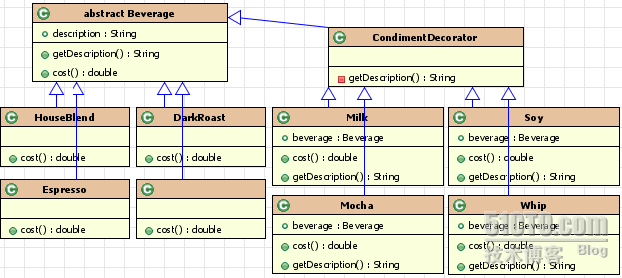

1、设计UML图

2、Coding
1>.抽象组件类
//Component:abstract class
public abstract class Beverage{
String description = "Unknown Beverage";
public String getDescription(){
return description;
}
public abstract double cost();
}
public abstract class Beverage{
String description = "Unknown Beverage";
public String getDescription(){
return description;
}
public abstract double cost();
}
2>.具体组件类
//具体组件类:Espresso
public class Espresso extends Beverage{
public Espresso(){
description = "Espresso";
}
public double cost(){
return 1.99;
}
}
public class Espresso extends Beverage{
public Espresso(){
description = "Espresso";
}
public double cost(){
return 1.99;
}
}
//具体组件类:HouseBlend
public class HouseBlend extends Beverage{
public HouseBlend(){
description = "HouseBlend";
}
public double cost(){
return .89;
}
}
public class HouseBlend extends Beverage{
public HouseBlend(){
description = "HouseBlend";
}
public double cost(){
return .89;
}
}
//具体组件类:DarkRoast
public class DarkRoast extends Beverage{
public DarkRoast(){
description = "DarkRoast";
}
public double cost(){
return 2.59;
}
}
public class DarkRoast extends Beverage{
public DarkRoast(){
description = "DarkRoast";
}
public double cost(){
return 2.59;
}
}
//具体组件类:Decaf
public class Decaf extends Beverage{
public Decaf(){
description = "Decaf";
}
public double cost(){
return 4.00;
}
}
public class Decaf extends Beverage{
public Decaf(){
description = "Decaf";
}
public double cost(){
return 4.00;
}
}
3>.装饰者
//装饰者:抽象类CondimentDecorator
public abstract class CondimentDecorator extends Beverage{
public abstract String getDescription();
}
public abstract class CondimentDecorator extends Beverage{
public abstract String getDescription();
}
//装饰者:Milk
public class Milk extends CondimentDecorator{
Beverage beverage;
public Milk(Beverage beverage){
this.beverage = beverage;
}
public String getDescription(){
return beverage.getDescription() + ",Milk";
}
public double cost(){
return .55 + beverage.cost();
}
}
public class Milk extends CondimentDecorator{
Beverage beverage;
public Milk(Beverage beverage){
this.beverage = beverage;
}
public String getDescription(){
return beverage.getDescription() + ",Milk";
}
public double cost(){
return .55 + beverage.cost();
}
}
//装饰者:Mocha
public class Mocha extends CondimentDecorator{
Beverage beverage;
public Mocha(Beverage beverage){
this.beverage = beverage;
}
public String getDescription(){
return beverage.getDescription() + ",Mocha";
}
public double cost(){
return .20 + beverage.cost();
}
}
public class Mocha extends CondimentDecorator{
Beverage beverage;
public Mocha(Beverage beverage){
this.beverage = beverage;
}
public String getDescription(){
return beverage.getDescription() + ",Mocha";
}
public double cost(){
return .20 + beverage.cost();
}
}
//装饰者:Soy
public class Soy extends CondimentDecorator{
Beverage beverage;
public Soy(Beverage beverage){
this.beverage = beverage;
}
public String getDescription(){
return beverage.getDescription() + ",Soy";
}
public double cost(){
return 1.56 + beverage.cost();
}
}
public class Soy extends CondimentDecorator{
Beverage beverage;
public Soy(Beverage beverage){
this.beverage = beverage;
}
public String getDescription(){
return beverage.getDescription() + ",Soy";
}
public double cost(){
return 1.56 + beverage.cost();
}
}
//装饰者:Whip
public class Whip extends CondimentDecorator{
Beverage beverage;
public Whip(Beverage beverage){
this.beverage = beverage;
}
public String getDescription(){
return beverage.getDescription() + ",Whip";
}
public double cost(){
return .99 + beverage.cost();
}
}
public class Whip extends CondimentDecorator{
Beverage beverage;
public Whip(Beverage beverage){
this.beverage = beverage;
}
public String getDescription(){
return beverage.getDescription() + ",Whip";
}
public double cost(){
return .99 + beverage.cost();
}
}
4>.测试
//Test class
public class TestD{
public static void main(String[] args){
Beverage beverage = new Espresso();
System.out.println(beverage.getDescription() + "$" + beverage.cost());
Beverage beverage2 = new DarkRoast();
beverage2 = new Mocha(beverage2);
beverage2 = new Mocha(beverage2);
beverage2 = new Whip(beverage2);
System.out.println(beverage2.getDescription() + "$" + beverage2.cost());
Beverage beverage3 = new HouseBlend();
beverage3 = new Soy(beverage3);
beverage3 = new Mocha(beverage3);
beverage3 = new Whip(beverage3);
System.out.println(beverage3.getDescription() + "$" + beverage3.cost());
}
}
public class TestD{
public static void main(String[] args){
Beverage beverage = new Espresso();
System.out.println(beverage.getDescription() + "$" + beverage.cost());
Beverage beverage2 = new DarkRoast();
beverage2 = new Mocha(beverage2);
beverage2 = new Mocha(beverage2);
beverage2 = new Whip(beverage2);
System.out.println(beverage2.getDescription() + "$" + beverage2.cost());
Beverage beverage3 = new HouseBlend();
beverage3 = new Soy(beverage3);
beverage3 = new Mocha(beverage3);
beverage3 = new Whip(beverage3);
System.out.println(beverage3.getDescription() + "$" + beverage3.cost());
}
}
5>.测试结果

五、java.io装饰者:大写转小写
1、java.io.FilterInputStream装饰者
//java.io Decorator:change UpperCase to LowerCase
import java.io.FilterInputStream;
import java.io.InputStream;
import java.io.IOException;
import java.lang.Character;
public class LowerCaseInputStream extends FilterInputStream{
public LowerCaseInputStream(InputStream is){
super(is);
}
public int read() throws IOException{
int c = super.read();
return (c == -1?c:Character.toLowerCase((char)c));
}
public int read(byte[] b, int offset, int len) throws IOException{
int c = super.read(b,offset,len);
for(int i = offset; i < offset + c; i++){
b[i] = (byte)Character.toLowerCase((char)b[i]);
}
return c;
}
}
import java.io.FilterInputStream;
import java.io.InputStream;
import java.io.IOException;
import java.lang.Character;
public class LowerCaseInputStream extends FilterInputStream{
public LowerCaseInputStream(InputStream is){
super(is);
}
public int read() throws IOException{
int c = super.read();
return (c == -1?c:Character.toLowerCase((char)c));
}
public int read(byte[] b, int offset, int len) throws IOException{
int c = super.read(b,offset,len);
for(int i = offset; i < offset + c; i++){
b[i] = (byte)Character.toLowerCase((char)b[i]);
}
return c;
}
}

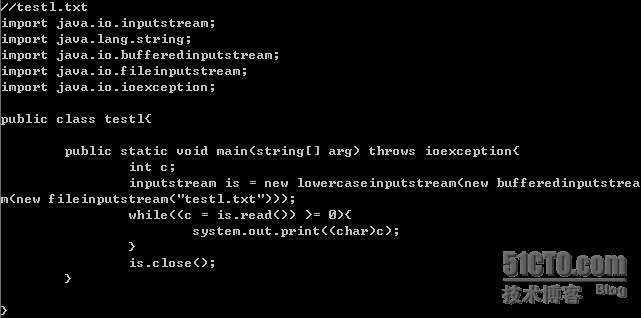

2、资源testl.txt
//testl.txt
import java.io.InputStream;
import java.lang.String;
import java.io.BufferedInputStream;
import java.io.FileInputStream;
import java.io.IOException;
public class TestL{
public static void main(String[] arg) throws IOException{
int c;
InputStream is = new LowerCaseInputStream(new BufferedInputStream(new FileInputStream("testl.txt")));
while((c = is.read()) >= 0){
System.out.print((char)c);
}
is.close();
}
}
import java.io.InputStream;
import java.lang.String;
import java.io.BufferedInputStream;
import java.io.FileInputStream;
import java.io.IOException;
public class TestL{
public static void main(String[] arg) throws IOException{
int c;
InputStream is = new LowerCaseInputStream(new BufferedInputStream(new FileInputStream("testl.txt")));
while((c = is.read()) >= 0){
System.out.print((char)c);
}
is.close();
}
}
3、测试类
//Test class
import java.io.InputStream;
import java.lang.String;
import java.io.BufferedInputStream;
import java.io.FileInputStream;
import java.io.IOException;
public class TestL{
public static void main(String[] arg) throws IOException{
int c;
InputStream is = new LowerCaseInputStream(new BufferedInputStream(new FileInputStream("testl.txt")));
while((c = is.read()) >= 0){
System.out.print((char)c);
}
is.close();
}
}
import java.io.InputStream;
import java.lang.String;
import java.io.BufferedInputStream;
import java.io.FileInputStream;
import java.io.IOException;
public class TestL{
public static void main(String[] arg) throws IOException{
int c;
InputStream is = new LowerCaseInputStream(new BufferedInputStream(new FileInputStream("testl.txt")));
while((c = is.read()) >= 0){
System.out.print((char)c);
}
is.close();
}
}
4、测试结果
