Nginx的基本配置案例
作者：尹正杰
版权声明：原创作品，谢绝转载！否则将追究法律责任。
一.Nginx配置虚拟主机
1 1.操作系统环境 2 [root@yinzhengjie ~]# cat /etc/redhat-release 3 CentOS release 6.6 (Final) 4 [root@yinzhengjie ~]# 5 [root@yinzhengjie ~]# uname -r 6 2.6.32-504.el6.x86_64 7 [root@yinzhengjie ~]# 8 [root@yinzhengjie ~]# uname -m 9 x86_64 10 [root@yinzhengjie ~]# 11 12 2.hosts配置文件 13 [root@yinzhengjie ~]# more /etc/hosts | grep yinzhengjie 14 127.0.0.1 www.yinzhengjie.org.cn 15 127.0.0.1 www.yinzhengjie.com 16 [root@yinzhengjie ~]# 17 18 3.Nginx配置 19 [root@yinzhengjie conf]# pwd 20 /yinzhengjie/application/Nginx/conf 21 [root@yinzhengjie conf]# more nginx.conf 22 #user nobody; 23 worker_processes 1; 24 25 error_log /yinzhengjie/application/Nginx/log/error.log; 26 #error_log /yinzhengjie/application/Nginx/log/error.log notice; 27 #error_log /yinzhengjie/application/Nginx/log/error.log info; 28 29 pid /yinzhengjie/application/Nginx/nginx.pid; 30 31 events { 32 worker_connections 1024; 33 } 34 35 36 http { 37 include mime.types; 38 default_type application/octet-stream; 39 40 sendfile on; 41 keepalive_timeout 5; 42 43 44 server { 45 listen 80; 46 server_name www.yinzhengjie.org.cn; 47 location / { 48 root /yinzhengjie/application/Nginx/html; 49 index index.html index.htm; 50 } 51 } 52 53 server { 54 listen 80 default_server; 55 server_name www.yinzhengjie.com; 56 root /yinzhengjie/application/Nginx/html/htdocs; 57 } 58 } 59 [root@yinzhengjie conf]# 60 61 4.目录文件检查 62 [root@yinzhengjie html]# pwd 63 /yinzhengjie/application/Nginx/html 64 [root@yinzhengjie html]# more index.html 65 <h1>This root Directory!</h1> 66 [root@yinzhengjie html]# 67 [root@yinzhengjie html]# more htdocs/index.html 68 <h1>This is htdocs directory</h1> 69 [root@yinzhengjie html]# 70 71 5.重启服务并验证 72 [root@yinzhengjie ~]# nginx -t 73 nginx: the configuration file /yinzhengjie/application/Nginx/conf/nginx.conf syntax is ok 74 nginx: configuration file /yinzhengjie/application/Nginx/conf/nginx.conf test is successful 75 [root@yinzhengjie ~]# 76 [root@yinzhengjie ~]# curl www.yinzhengjie.org.cn 77 <h1>This root Directory!</h1> 78 [root@yinzhengjie ~]# 79 [root@yinzhengjie ~]# curl www.yinzhengjie.com 80 <h1>This is htdocs directory</h1> 81 [root@yinzhengjie ~]#
二.Nginx基于IP配置访问控制（需要用到access模块哟）
1 1.检查本机IP 2 [root@yinzhengjie conf]# ip a | grep inet | grep brd | awk '{print $2}' | awk -F "/" '{print $1}' 3 172.16.96.211 4 [root@yinzhengjie conf]# 5 2.检查hosts配置文件 6 [root@yinzhengjie conf]# more /etc/hosts | grep yinzhengjie 7 127.0.0.1 www.yinzhengjie.org.cn 8 127.0.0.1 www.yinzhengjie.com 9 [root@yinzhengjie conf]# 10 3.编辑配置文件 11 [root@yinzhengjie conf]# more nginx.conf 12 #user nobody; 13 worker_processes 1; 14 15 error_log /yinzhengjie/application/Nginx/log/error.log; 16 #error_log /yinzhengjie/application/Nginx/log/error.log notice; 17 #error_log /yinzhengjie/application/Nginx/log/error.log info; 18 19 pid /yinzhengjie/application/Nginx/nginx.pid; 20 21 events { 22 worker_connections 1024; 23 } 24 25 26 http { 27 include mime.types; 28 default_type application/octet-stream; 29 30 sendfile on; 31 keepalive_timeout 5; 32 33 34 server { 35 listen 80; 36 server_name www.yinzhengjie.org.cn; 37 location / { 38 root /yinzhengjie/application/Nginx/html; 39 index index.html index.htm; 40 deny 172.16.96.211; #至上而下依次认证，默认为通过 41 allow 172.16.0.0/16; 42 deny all; 43 } 44 } 45 46 server { 47 listen 80 default_server; 48 server_name www.yinzhengjie.com; 49 root /yinzhengjie/application/Nginx/html/htdocs; 50 } 51 } 52 [root@yinzhengjie conf]# 53 4.重启服务并验证 54 [root@yinzhengjie ~]# nginx -t 55 nginx: the configuration file /yinzhengjie/application/Nginx/conf/nginx.conf syntax is ok 56 nginx: configuration file /yinzhengjie/application/Nginx/conf/nginx.conf test is successful 57 [root@yinzhengjie ~]# 58 [root@yinzhengjie ~]# service nginx restart 59 Stop Nginx... [OK] 60 Starting Nginx... [OK] 61 [root@yinzhengjie ~]# 62 [root@yinzhengjie ~]# curl -I www.yinzhengjie.org.cn 63 HTTP/1.1 403 Forbidden 64 Server: nginx/1.12.2 65 Date: Sun, 05 Nov 2017 10:22:56 GMT 66 Content-Type: text/html 67 Content-Length: 169 68 Connection: keep-alive 69 70 [root@yinzhengjie ~]# curl -I www.yinzhengjie.com 71 HTTP/1.1 200 OK 72 Server: nginx/1.12.2 73 Date: Sun, 05 Nov 2017 10:23:02 GMT 74 Content-Type: text/html 75 Content-Length: 34 76 Last-Modified: Sun, 05 Nov 2017 10:02:23 GMT 77 Connection: keep-alive 78 ETag: "59fee1af-22" 79 Accept-Ranges: bytes 80 81 [root@yinzhengjie ~]#
三.基于用户配置访问控制（需要用到Auth_Basic模块）
1 1.编辑配置文件 2 [root@yinzhengjie conf]# more nginx.conf 3 #user nobody; 4 worker_processes 1; 5 error_log /yinzhengjie/application/Nginx/log/error.log; 6 pid /yinzhengjie/application/Nginx/nginx.pid; 7 events { 8 worker_connections 1024; 9 } 10 http { 11 sendfile on; 12 keepalive_timeout 5; 13 server { 14 listen 80; 15 server_name www.yinzhengjie.org.cn; 16 17 location /admin { 18 root /yinzhengjie/application/Nginx/html; 19 index index.html index.htm; 20 auth_basic "admin Area"; 21 auth_basic_user_file /yinzhengjie/application/Nginx/etc/.nginxpasswd; 22 } 23 } 24 } 25 [root@yinzhengjie conf]# 26 2.创建需要配置的目录 27 [root@yinzhengjie ~]# mkdir -p /yinzhengjie/application/Nginx/html/admin && cd /yinzhengjie/application/Nginx/html/admin 28 [root@yinzhengjie admin]# ll 29 total 4 30 -rw-r--r--. 1 root root 29 Nov 5 05:13 index.html 31 [root@yinzhengjie admin]# more index.html 32 <h1>This is Admin page!</h1> 33 [root@yinzhengjie admin]# 34 3.创建需要访问控制的用户名和密码 35 [root@yinzhengjie etc]# htpasswd -c -m /yinzhengjie/application/Nginx/etc/.nginxpasswd yinzhengjie 36 New password: ---->第一次创建的时候需要加“-c”选项。 37 Re-type new password: 38 Adding password for user yinzhengjie 39 [root@yinzhengjie etc]# 40 [root@yinzhengjie etc]# htpasswd -m /yinzhengjie/application/Nginx/etc/.nginxpasswd yzj 41 New password: ------>第二次创建的时候就不需要加“-c”选项啦。 42 Re-type new password: 43 Adding password for user yzj 44 [root@yinzhengjie etc]# 45 [root@yinzhengjie etc]# pwd 46 /yinzhengjie/application/Nginx/etc 47 [root@yinzhengjie etc]# ls -a 48 . .. .nginxpasswd 49 [root@yinzhengjie etc]# more .nginxpasswd 50 yinzhengjie:$apr1$CdTqAMYg$vat/BD3jDy7e/JA8XL/hr1 51 yzj:$apr1$rVOtthqk$dqwjZi4edb22nnZeSDFDw0 52 [root@yinzhengjie etc]# 53 4.重启Nginx服务 54 [root@yinzhengjie etc]# nginx -t 55 nginx: the configuration file /yinzhengjie/application/Nginx/conf/nginx.conf syntax is ok 56 nginx: configuration file /yinzhengjie/application/Nginx/conf/nginx.conf test is successful 57 [root@yinzhengjie etc]# 58 [root@yinzhengjie etc]# service nginx restart 59 Stop Nginx... [OK] 60 Starting Nginx... [OK] 61 [root@yinzhengjie etc]# 62 [root@yinzhengjie etc]# ps -ef | grep nginx 63 root 12670 1 0 05:23 ? 00:00:00 nginx: master process /yinzhengjie/application/Nginx/sbin/nginx 64 nginx 12671 12670 0 05:23 ? 00:00:00 nginx: worker process 65 root 12673 12556 0 05:23 pts/3 00:00:00 grep nginx 66 [root@yinzhengjie etc]# 67 [root@yinzhengjie etc]# lsof -i :80 68 COMMAND PID USER FD TYPE DEVICE SIZE/OFF NODE NAME 69 clock-app 2772 root 22w IPv4 59382 0t0 TCP node3.yinzhengjie.com:46584->203-69-138-49.HINET-IP.hinet.net:http (ESTABLISHED) 70 nginx 12670 root 6u IPv4 62450 0t0 TCP *:http (LISTEN) 71 nginx 12671 nginx 6u IPv4 62450 0t0 TCP *:http (LISTEN) 72 [root@yinzhengjie etc]# 73 5.检查服务器的IP 74 [root@yinzhengjie ~]# ip a | grep inet | grep brd | awk '{print $2}' | awk -F "/" '{print $1}' 75 192.168.1.115 76 [root@yinzhengjie ~]#
6.客户端验证服务
a>.有两种方式访问服务端

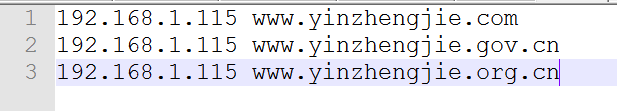

第一种，修改“C:\Windows\System32\drivers\etc\HOSTS”配置文件
第二种，就是啥也不修改，直接在浏览器输入ip即可：
http://192.168.1.115/admin/

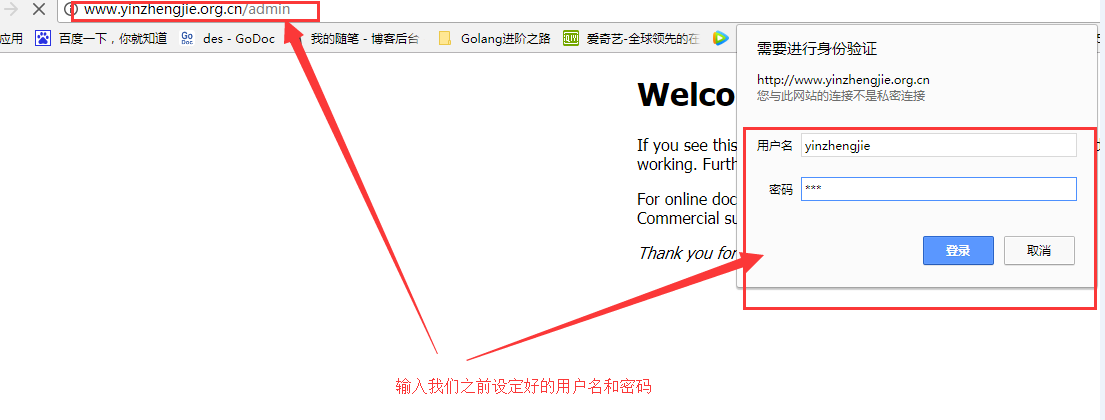

b>.浏览器输入用户名和密码

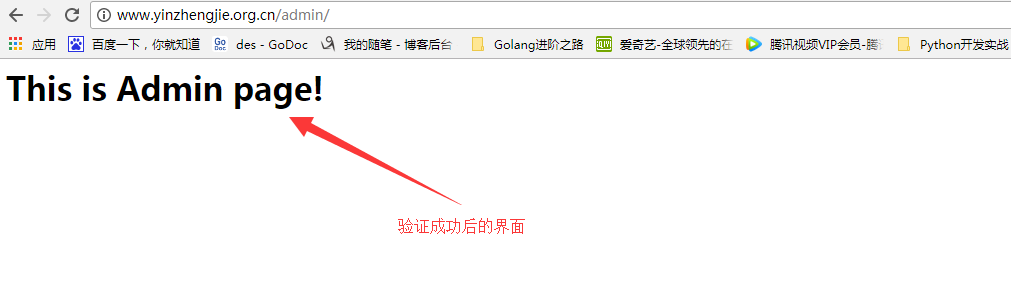

c>.访问成功界面
四.建立下载站点autoindex下载列表
1 1.检查服务环境 2 [root@yinzhengjie ~]# cat /etc/redhat-release 3 CentOS release 6.6 (Final) 4 [root@yinzhengjie ~]# uname -r 5 2.6.32-504.el6.x86_64 6 [root@yinzhengjie ~]# uname -m 7 x86_64 8 [root@yinzhengjie ~]# ip a | grep inet | grep brd | awk '{print $2}' | awk -F "/" '{print $1}' 9 192.168.1.115 10 [root@yinzhengjie ~]# 11 2.编辑配置文件 12 [root@yinzhengjie conf]# more nginx.conf 13 #user nobody; 14 worker_processes 1; 15 error_log /yinzhengjie/application/Nginx/log/error.log; 16 pid /yinzhengjie/application/Nginx/nginx.pid; 17 events { 18 worker_connections 1024; 19 } 20 http { 21 sendfile on; 22 keepalive_timeout 5; 23 charset utf-8; #注意，这个是设置web的编码格式，建议用utf-8，用其他编码可能存在乱码哟。 24 server { 25 listen 80; 26 server_name www.yinzhengjie.org.cn; 27 location /admin { 28 root /yinzhengjie/application/Nginx/html; 29 index index.html index.htm; 30 auth_basic "admin Area"; 31 auth_basic_user_file /yinzhengjie/application/Nginx/etc/.nginxpasswd; 32 } 33 34 location /download/ { 35 root /yinzhengjie/application/Nginx/html; 36 autoindex on; 37 } 38 } 39 } 40 [root@yinzhengjie conf]# 41 3.创建下载文件 42 [root@yinzhengjie conf]# mkdir /yinzhengjie/application/Nginx/html/download 43 [root@yinzhengjie conf]# touch /yinzhengjie/application/Nginx/html/download/{1..5}.txt 44 4.重启服务 45 [root@yinzhengjie conf]# nginx -t 46 nginx: the configuration file /yinzhengjie/application/Nginx/conf/nginx.conf syntax is ok 47 nginx: configuration file /yinzhengjie/application/Nginx/conf/nginx.conf test is successful 48 [root@yinzhengjie conf]# 49 [root@yinzhengjie conf]# service nginx restart 50 Stop Nginx... [OK] 51 Starting Nginx... [OK] 52 [root@yinzhengjie conf]#

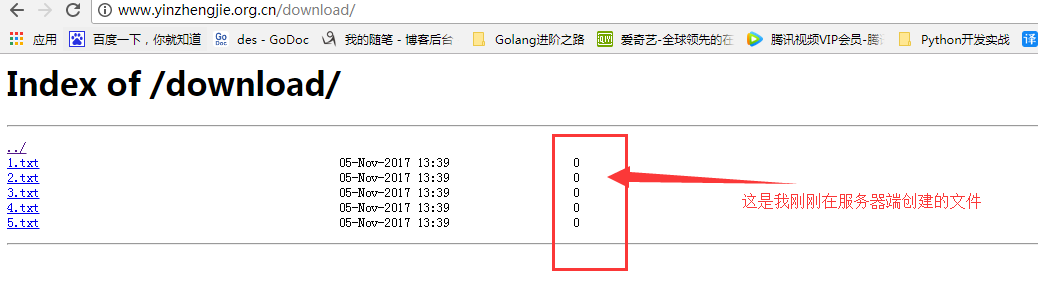

5.客户端验证
五.防盗链案例展示
你是否遇到过这样的场景：你的web服务器压根就没有被人访问，但是你的web上的某张图片一直被人频繁的访问。而且它访问的时候并没有打开你的主页，这TM的就很尴尬了，这就是传说中的盗链，如何防止呢？一般而言，为了实现防盗链通常要实现两个步骤
第一：定义合规定额引用
valid_referers none |blocked |server_names|string ...
none ：通过浏览器直接访问我们就允许访问。
blocked ：“Referer”首部被清楚，可能通过反向代理或防火墙等设备将request header的“Referer”给清除掉的，通常他们不是以“http：//”或"https://"开头的。这种方式我们是允许访问的。
server_names：表示允许访问本网站的主机名，后面可以跟多个主机名。
string ：这个就是可以根据通配符来指定可以访问的主机名，例如："*.yinzhengjie.org.cn"，“~\.google\.”;
第二：判断不合规的引用
if ($invaild_referer) {
rewrite ^/.*$ http://wwwyinzhengjie.org.cn/403.html
}
1 案例展示： 2 [root@yinzhengjie conf]# more nginx.conf 3 #user nobody; 4 worker_processes 1; 5 error_log /yinzhengjie/application/Nginx/log/error.log; 6 pid /yinzhengjie/application/Nginx/nginx.pid; 7 events { 8 worker_connections 1024; 9 } 10 http { 11 sendfile on; 12 keepalive_timeout 5; 13 server { 14 listen 80; 15 server_name www.yinzhengjie.org.cn; 16 location /admin { 17 root /yinzhengjie/application/Nginx/html; 18 index index.html index.htm; 19 auth_basic "admin Area"; 20 auth_basic_user_file /yinzhengjie/application/Nginx/etc/.nginxpasswd; 21 } 22 23 location /download/ { 24 root /yinzhengjie/application/Nginx/html; 25 autoindex on; 26 } 27 28 location ~* \.(jpg|png|gif|jpeg)$ { #定义如果访问以图片格式结尾的就会匹配这个location。 29 root /yinzhengjie/application/Nginx/html/images; 30 valid_referers none blocked www.yinzhengjie.gov.cn *.yinzhengjie.com; #指定可以连接本台服务器的主机 31 if ($invalid_referer){ #指定不可用访问到的主机需要执行操作。 32 rewrite ^/ http://www.yinzhengjie.org.cn/403.html; #不管访问哪些资源，都会进行一个重定向操作。 33 } 34 } 35 } 36 } 37 [root@yinzhengjie conf]#
扩展知识：
在location中使用if语句可以实现条件判断，其通常有一个return语句，且一般与有着last或break标记的rewrite规则一同使用。但其也可以按照需要使用在多种场景下，需要注意的是，不当的使用可能会导致不可预料的后果。
location / {
if ($request_methon == "PUT") {
proxy_pass https://www.yinzhengjie.org.cn:8080;
}
if ($request_uri ~ "\.(jpg|gif|jpeg|png)$"){
proxy_pass https://imageservers;
break;
}
}
if语句中的判断条件分为正则表达式匹配和文件目录匹配判断：
正则表达式匹配：
==：等值比较；
~：与指定正则表达式模式匹配时返回”真“，判断匹配与否时区分字符大小写；
~*：与指定正则表达式模式匹配时返回“真”，判断匹配与否时不区分字符大小写；
!~：与指定正则表达式模式不匹配时返回“真”，判断匹配与否时区分字符大小写；
!~*：与指定正则表达式模式不匹配是返回“真”，判断匹配与否时不区分字符大小写；
文件及目录匹配判断：
-f, ! -f：判断指定路径是否存在且为文件；
-d, ! -d：判断指定路径是否存在且为目录；
-e, ! -e：判断指定的路径是否存在，文件或目录均可；
-x, ! -x：判断指定路径的文件是否存在且可执行；
六.URL rewrite(地址重定向)
1>.用法格式：
rewrite regex replacement [flag];
案例展示：
location / {
root /yinzhengjie/application/Nginx/html
rewrite ^/imgages/(.*)$ /imgs/$1 #表示访问“^/imgages”目录下的文件都会被重写去访问“/imgs/(.*)$”。
}
2>.flag:标志位（用来控制被重写的URL是否重新发起请求进行下一轮的rewrite检查。）
last:一旦被当前规则匹配并重写后立即停止检查后续的其他rewrite的规则，而后通过重写后的规则重新发起请求
break：一旦被当前规则匹配并重写后立即停止检查后续的其他rewrite的规则，而后继续由nginx进行后续的操作
redirect：返回302临时重定向代码
permanent：返回301永久重定向
注意：一般将rewrite写在location中时都使用break标志，或者将rewrite写在if上下文中，这种方式就为了避免死循环的方式。nginx最多循环10次，超出之后返回500错误。
3.具体配置案例展示：
1 a>.编辑配置文件 2 [root@yinzhengjie conf]# pwd 3 /yinzhengjie/application/Nginx/conf 4 [root@yinzhengjie conf]# more nginx.conf 5 #user nobody; 6 worker_processes 1; 7 error_log /yinzhengjie/application/Nginx/log/error.log; 8 pid /yinzhengjie/application/Nginx/nginx.pid; 9 events { 10 worker_connections 1024; 11 } 12 http { 13 sendfile on; 14 keepalive_timeout 5; 15 server { 16 listen 80; 17 server_name www.yinzhengjie.org.cn; 18 location /admin { 19 root /yinzhengjie/application/Nginx/html; 20 index index.html index.htm; 21 auth_basic "admin Area"; 22 auth_basic_user_file /yinzhengjie/application/Nginx/etc/.nginxpasswd; 23 } 24 25 location /download/ { 26 root /yinzhengjie/application/Nginx/html; 27 autoindex on; 28 rewrite ^/download/(.*\.(jpg|gif|jpeg|png))$ /images/$1 last; 29 } 30 } 31 } 32 [root@yinzhengjie conf]# 33 b>.创建自定义文件 34 [root@yinzhengjie ~]# mkdir /yinzhengjie/application/Nginx/html/images -p 35 [root@yinzhengjie conf]# ll /yinzhengjie/application/Nginx/html/download/ 36 total 0 37 -rw-r--r--. 1 root root 0 Nov 5 05:39 1.txt 38 -rw-r--r--. 1 root root 0 Nov 5 05:39 2.txt 39 -rw-r--r--. 1 root root 0 Nov 5 05:39 3.txt 40 -rw-r--r--. 1 root root 0 Nov 5 05:39 4.txt 41 -rw-r--r--. 1 root root 0 Nov 5 05:39 5.txt 42 [root@yinzhengjie conf]# 43 [root@yinzhengjie conf]# ll /yinzhengjie/application/Nginx/html/images/ 44 total 160 45 -rw-r--r--. 1 root root 161659 Nov 5 06:48 dzq.jpg ----->自己再往上随便下载一个图片测试即可。 46 [root@yinzhengjie conf]# 47 c>.重启服务 48 [root@yinzhengjie conf]# pwd 49 /yinzhengjie/application/Nginx/conf 50 [root@yinzhengjie conf]# more nginx.conf 51 #user nobody; 52 worker_processes 1; 53 error_log /yinzhengjie/application/Nginx/log/error.log; 54 pid /yinzhengjie/application/Nginx/nginx.pid; 55 events { 56 worker_connections 1024; 57 } 58 http { 59 sendfile on; 60 keepalive_timeout 5; 61 server { 62 listen 80; 63 server_name www.yinzhengjie.org.cn; 64 location /admin { 65 root /yinzhengjie/application/Nginx/html; 66 index index.html index.htm; 67 auth_basic "admin Area"; 68 auth_basic_user_file /yinzhengjie/application/Nginx/etc/.nginxpasswd; 69 } 70 71 location /download/ { 72 root /yinzhengjie/application/Nginx/html; 73 autoindex on; 74 rewrite ^/download/(.*\.(jpg|gif|jpeg|png))$ /images/$1 last; 75 } 76 } 77 } 78 [root@yinzhengjie conf]# nginx -t 79 nginx: the configuration file /yinzhengjie/application/Nginx/conf/nginx.conf syntax is ok 80 nginx: configuration file /yinzhengjie/application/Nginx/conf/nginx.conf test is successful 81 You have new mail in /var/spool/mail/root 82 [root@yinzhengjie conf]# 83 [root@yinzhengjie conf]# service nginx restart 84 Stop Nginx... [OK] 85 Starting Nginx... [OK] 86 [root@yinzhengjie conf]#

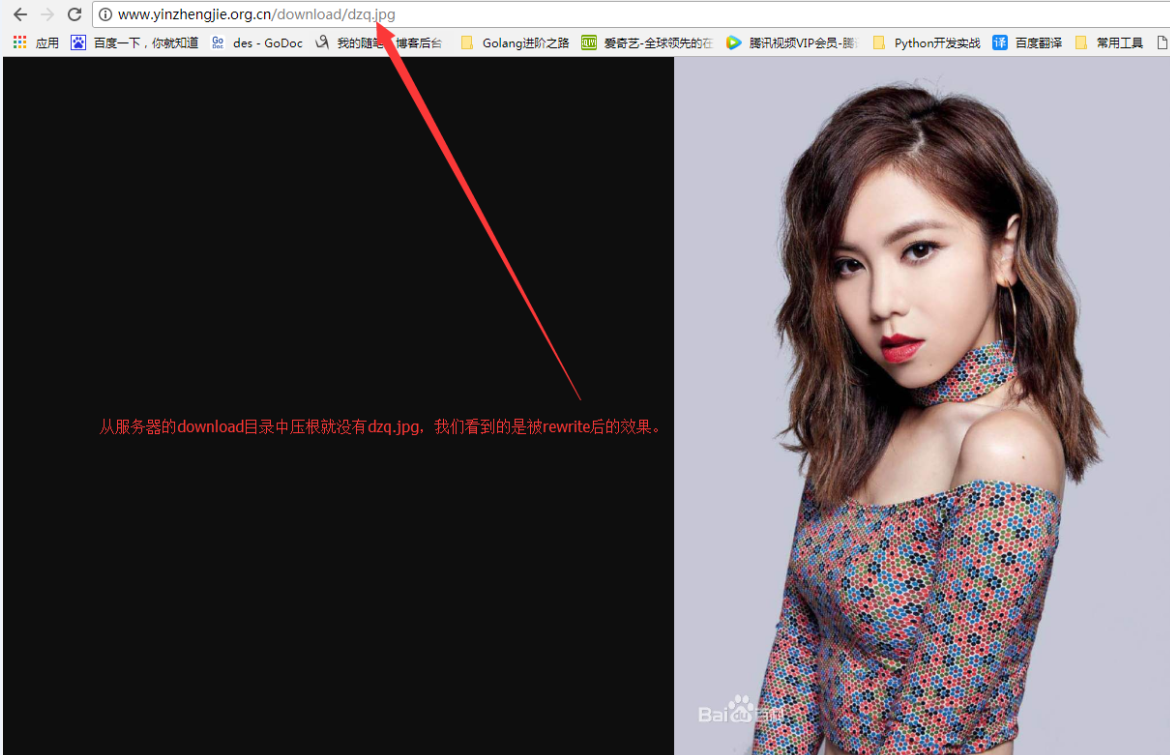

d>.客户端验证

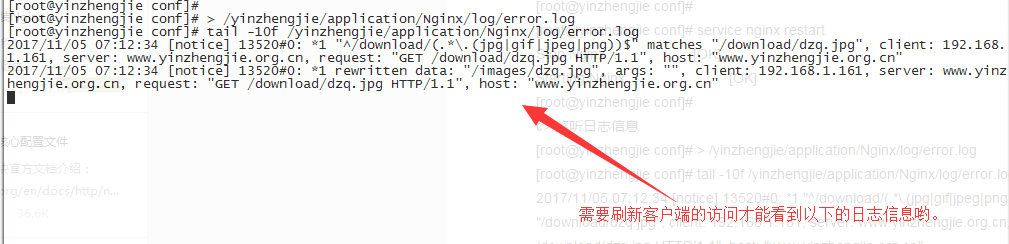

4.rewrite_log on|off
是否将重写过程记录在错误日志中，默认为notice级别；默认为off，如果在一台比较繁忙的服务器上不建议开启，一般用于调试使用，调试完毕记得将其关闭即可，配置展示如下：
1 a>.编辑配置文件 2 [root@yinzhengjie conf]# more nginx.conf 3 #user nobody; 4 worker_processes 1; 5 error_log /yinzhengjie/application/Nginx/log/error.log notice; #将日志级别设置为notice。 6 pid /yinzhengjie/application/Nginx/nginx.pid; 7 events { 8 worker_connections 1024; 9 } 10 http { 11 sendfile on; 12 keepalive_timeout 5; 13 server { 14 listen 80; 15 server_name www.yinzhengjie.org.cn; 16 location /admin { 17 root /yinzhengjie/application/Nginx/html; 18 index index.html index.htm; 19 auth_basic "admin Area"; 20 auth_basic_user_file /yinzhengjie/application/Nginx/etc/.nginxpasswd; 21 } 22 23 location /download/ { 24 root /yinzhengjie/application/Nginx/html; 25 autoindex on; 26 rewrite ^/download/(.*\.(jpg|gif|jpeg|png))$ /images/$1 last; 27 rewrite_log on; 28 } 29 } 30 } 31 [root@yinzhengjie conf]# 32 b>.重启服务 33 [root@yinzhengjie conf]# nginx -t 34 nginx: the configuration file /yinzhengjie/application/Nginx/conf/nginx.conf syntax is ok 35 nginx: configuration file /yinzhengjie/application/Nginx/conf/nginx.conf test is successful 36 [root@yinzhengjie conf]# 37 [root@yinzhengjie conf]# 38 [root@yinzhengjie conf]# service nginx restart 39 Stop Nginx... [OK] 40 Starting Nginx... [OK] 41 [root@yinzhengjie conf]# 42 c>.监听日志信息 43 [root@yinzhengjie conf]# > /yinzhengjie/application/Nginx/log/error.log ---->情况日志
5.return code：
用于结束rewrite规则，并且为客户返回状态码：可以使用的状态码有204，400，402-406，500-504等。
七.配置nginx的https
其实在nginx的配置文件以及有案例了，我们直接拿默认的配置文件进行说明
1 # HTTPS server 2 # 3 #server { 4 # listen 443 ssl; #设置监听的端口 5 # server_name localhost; #定义主机名 6 7 # ssl on #启用ssl功能 8 # ssl_certificate cert.pem; #当前服务器的证书文件 9 # ssl_certificate_key cert.key; #证书中匹配的私钥文件 10 11 # ssl_protocols SSLv2 SSLv3 TLSv1 #支持的SSL协议版本 12 # ssl_session_cache shared:SSL:1m; 13 # ssl_session_timeout 5m; #ssl会话的超时时间默认为5分钟 14 15 # ssl_ciphers HIGH:!aNULL:!MD5; #加密方法 16 # ssl_prefer_server_ciphers on; #让服务器端确定加密算法 17 18 # location / { 19 # root html; 20 # index index.html index.htm; 21 # } 22 #
八.压缩：
gzip
gzip on|off
gzip_buffer 使用的缓存大小
gzip_comp_level 压缩的级别
gzip_disable 不压缩的类型或浏览器
gzip_min_length 最少压缩的大小
gzip_http_version 压缩完成以后发送http的版本
gzip_types：只压缩的格式
