2017.11.10 MPLAB IPE + ICD-3+ PIC32MM

A trouble with ICD-3  programmer。

   MCU:  PIC32MM

    sw:  MPLAB IPE

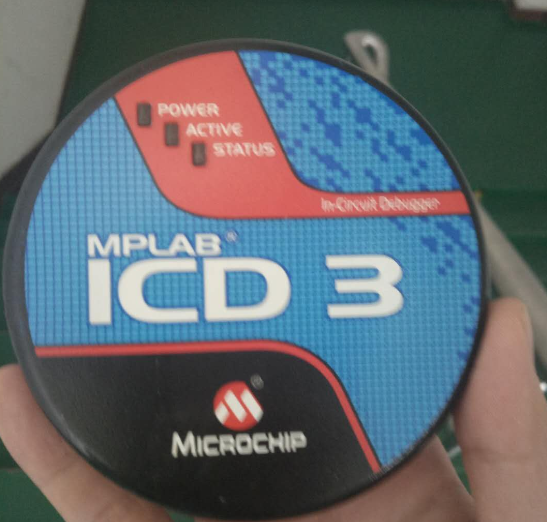

   tool:  ICD-3

1 product introduction

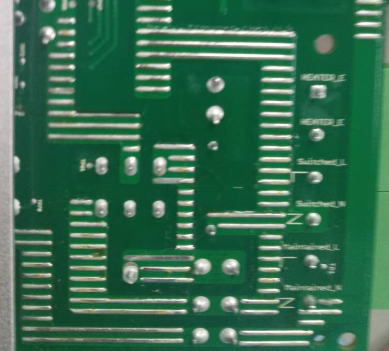

   as show in the photo，In engineer designer。 To prevent the heat from the large current，we use a large area copper。 but is not fit for SMT line。

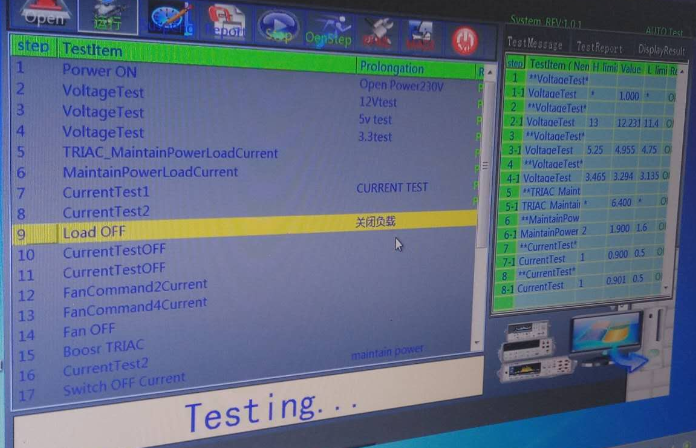

2 The test program based on  labview

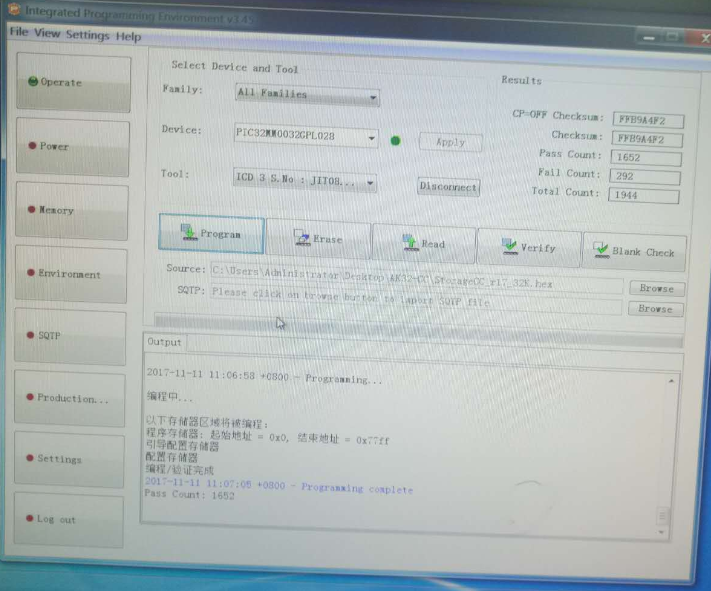

3  MPLAB IPE programming tool



4 help ！！



5 slove the problem for  program failure。

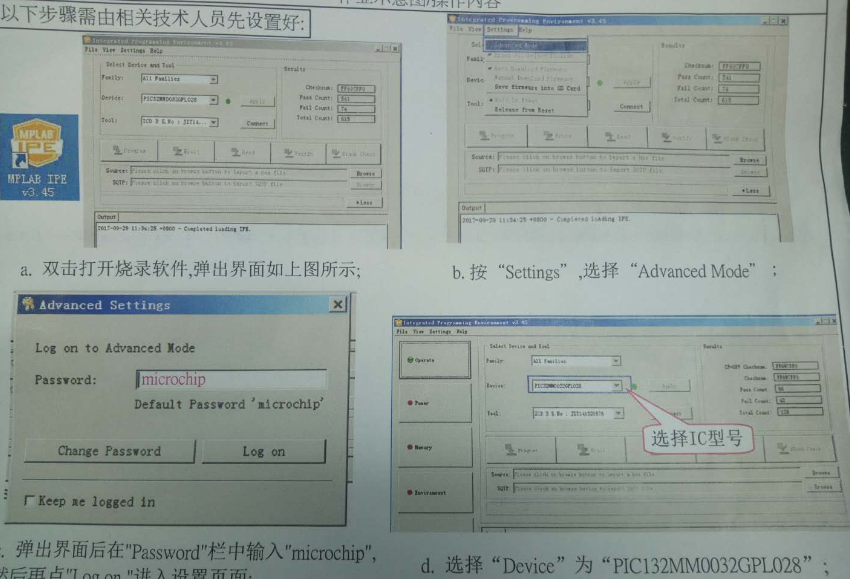

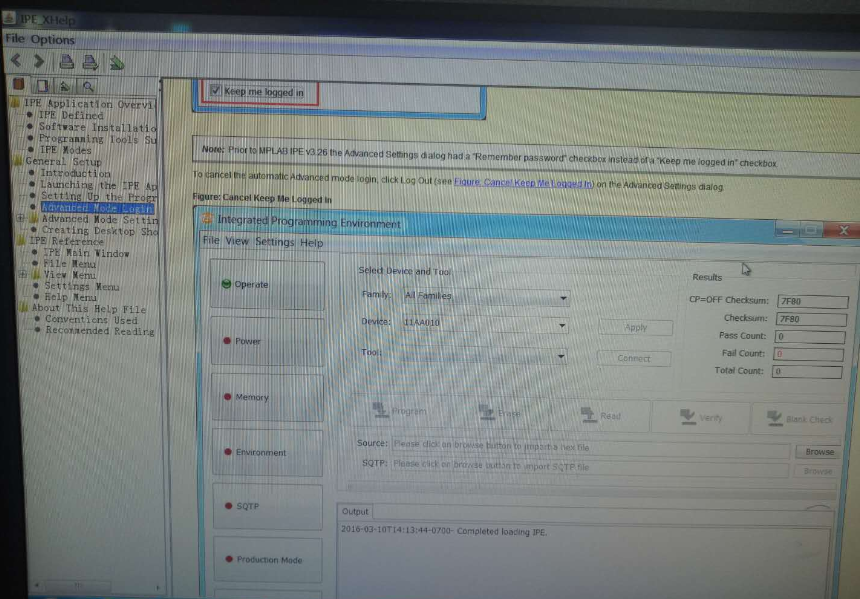

    a Open operation setting permissions

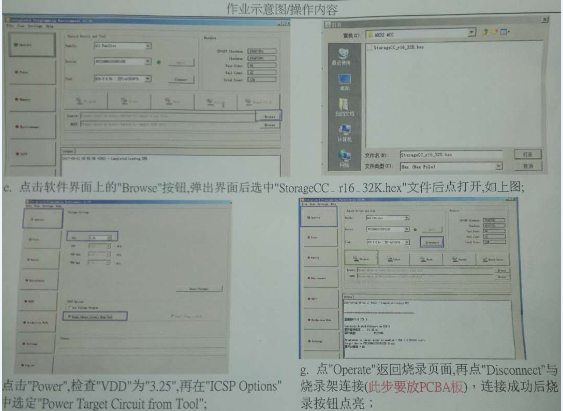

       b  Follow operation instruction

6 analysis the problem on ICD-3

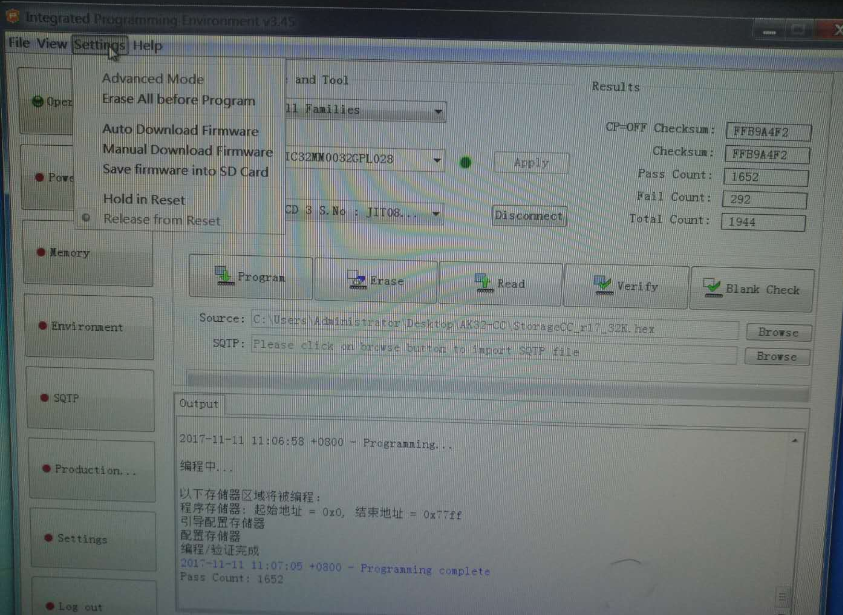

 set--  Erase before program。and Black Check before program again。
