RIP路由实验<?xml:namespace prefix = o ns = "urn:schemas-microsoft-com:office:office" />

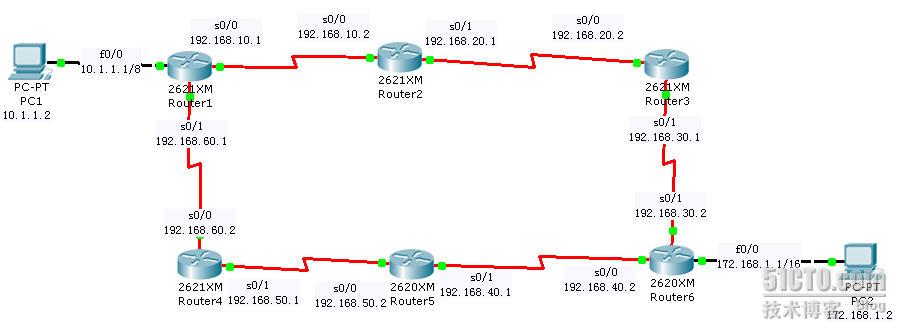

拓扑图：
<?xml:namespace prefix = v ns = "urn:schemas-microsoft-com:vml" />
基本配置

配置RIP路由：

r1(config)#router rip
r1(config-router)# version 2
r1(config-router)# network <?xml:namespace prefix = st1 ns = "urn:schemas-microsoft-com:office:smarttags" />10.0.0.0
r1(config-router)# network 192.168.10.0
r1(config-router)# network 192.168.60.0



r2(config)#router rip
r2(config-router)# version 2
r2(config-router)# network 192.168.10.0
r3(config-router)# network 192.168.20.0



r3(config)#router rip
r3(config-router)# version 2
r3(config-router)#network 192.168.20.0
r3(config-router)#network 192.168.30.0

r4(config)#router rip
r4(config-router)# version 2
r4(config-router)#network 192.168.60.0
r4(config-router)#network 192.168.50.0

r5(config)#router rip
r5(config-router)# version 2
r5(config-router)#network 192.168.40.0
r5(config-router)#network 192.168.50.0





r6(config)#router rip
r6(config-router)# version 2
r6(config-router)#network 172.168.0.0
r6(config-router)#network 192.168.30.0
r6(config-router)#network 192.168.40.0





验证RIP路由

r1#show ip route

C    10.0.0.0/8 is directly connected, FastEthernet0/0
R    172.168.0.0/16 [120/3] via 192.168.10.2, 00:00:10, Serial0/0
C    192.168.10.0/24 is directly connected, Serial0/0
R    192.168.20.0/24 [120/1] via 192.168.10.2, 00:00:10, Serial0/0
R    192.168.30.0/24 [120/2] via 192.168.10.2, 00:00:10, Serial0/0
R    192.168.40.0/24 [120/3] via 192.168.10.2, 00:00:10, Serial0/0
R    192.168.50.0/24 [120/1] via 192.168.60.2, 00:00:06, Serial0/1
C    192.168.60.0/24 is directly connected, Serial0/1



R2#show ip route

R    10.0.0.0/8 [120/1] via 192.168.10.1, 00:00:09, Serial0/0
R    172.168.0.0/16 [120/2] via 192.168.20.2, 00:00:21, Serial0/1
C    192.168.10.0/24 is directly connected, Serial0/0
C    192.168.20.0/24 is directly connected, Serial0/1
R    192.168.30.0/24 [120/1] via 192.168.20.2, 00:00:21, Serial0/1
R    192.168.40.0/24 [120/2] via 192.168.20.2, 00:00:21, Serial0/1
R    192.168.50.0/24 [120/2] via 192.168.10.1, 00:00:09, Serial0/0
R    192.168.60.0/24 [120/1] via 192.168.10.1, 00:00:09, Serial0/0



r3#show ip route

R    10.0.0.0/8 [120/2] via 192.168.20.1, 00:00:05, Serial0/0
R    172.168.0.0/16 [120/1] via 192.168.30.2, 00:00:27, Serial0/1
R    192.168.10.0/24 [120/1] via 192.168.20.1, 00:00:05, Serial0/0
C    192.168.20.0/24 is directly connected, Serial0/0
C    192.168.30.0/24 is directly connected, Serial0/1
R    192.168.40.0/24 [120/1] via 192.168.30.2, 00:00:27, Serial0/1
R    192.168.50.0/24 [120/2] via 192.168.30.2, 00:00:27, Serial0/1
R    192.168.60.0/24 [120/2] via 192.168.20.1, 00:00:05, Serial0/0



r4#show ip route

R    10.0.0.0/8 [120/1] via 192.168.60.1, 00:00:07, Serial0/0
R    172.168.0.0/16 [120/4] via 192.168.60.1, 00:00:07, Serial0/0
R    192.168.10.0/24 [120/1] via 192.168.60.1, 00:00:07, Serial0/0
R    192.168.20.0/24 [120/2] via 192.168.60.1, 00:00:07, Serial0/0
R    192.168.30.0/24 [120/3] via 192.168.60.1, 00:00:07, Serial0/0
R    192.168.40.0/24 [120/4] via 192.168.60.1, 00:00:07, Serial0/0
C    192.168.50.0/24 is directly connected, Serial0/1
C    192.168.60.0/24 is directly connected, Serial0/0



r5#show ip route

R    10.0.0.0/8 [120/4] via 192.168.40.2, 00:00:24, Serial0/1
R    172.168.0.0/16 [120/1] via 192.168.40.2, 00:00:24, Serial0/1
R    192.168.10.0/24 [120/3] via 192.168.40.2, 00:00:24, Serial0/1
R    192.168.20.0/24 [120/2] via 192.168.40.2, 00:00:24, Serial0/1
R    192.168.30.0/24 [120/1] via 192.168.40.2, 00:00:24, Serial0/1
C    192.168.40.0/24 is directly connected, Serial0/1
C    192.168.50.0/24 is directly connected, Serial0/0
R    192.168.60.0/24 [120/4] via 192.168.40.2, 00:00:24, Serial0/1



r6#show ip route

R    10.0.0.0/8 [120/3] via 192.168.30.1, 00:00:21, Serial0/1
C    172.168.0.0/16 is directly connected, FastEthernet0/0
R    192.168.10.0/24 [120/2] via 192.168.30.1, 00:00:21, Serial0/1
R    192.168.20.0/24 [120/1] via 192.168.30.1, 00:00:21, Serial0/1
C    192.168.30.0/24 is directly connected, Serial0/1
C    192.168.40.0/24 is directly connected, Serial0/0
R    192.168.50.0/24 [120/1] via 192.168.40.1, 00:00:00, Serial0/0
R    192.168.60.0/24 [120/3] via 192.168.30.1, 00:00:21, Serial0/1
