本文介绍了一款用于Visual Studio的XSD转Entity Add-Ins插件，通过简单的几步配置，即可实现XSD文件到实体类的转换。该插件通过自定义菜单项的方式集成到Visual Studio中，方便快捷。

最近闲得无事，不过也是为了以后设计的一个环节，做了一个Add-Ins

主要是XSD To Entity的操作。

Step 1:先配置一下

把相关的AddIn、DLL Copy To 当前用户\文档\Visual Studio 200X\Addins

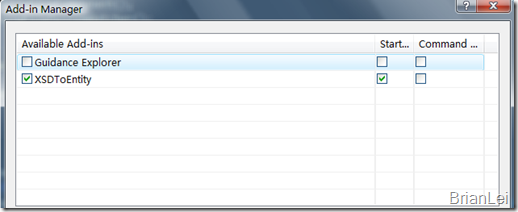

Step 2:Tools\Add-In Manager勾选即可

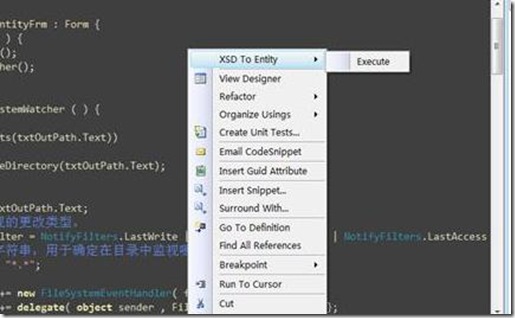

Step 3:现在随便打开一个project,然后在Code Windows中右击,就可以看到XSD To Entity

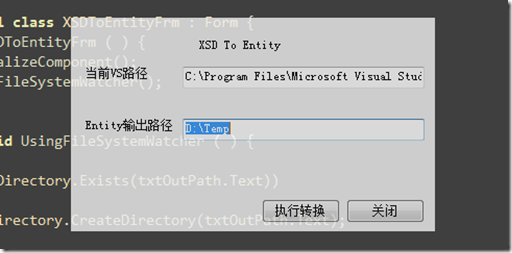

界面

选择一个XSD File

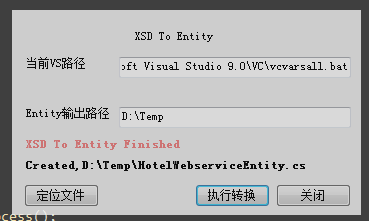

转换完成

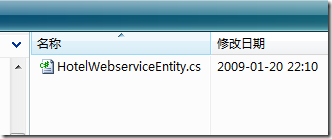

转换文件

代码方面：

Connect.cs:

1 public void OnConnection( object application, ext_ConnectMode connectMode, object addInInst, ref Array custom)
2 {
3           _applicationObject = (DTE2)application;
4           _addInInstance = (AddIn)addInInst;
5
6            // Get the CommandBar for the window in which you want to add the menuitem.
7            // I am going to add it to the code window.
8           CommandBar oCommandBar = ((CommandBars)_applicationObject.CommandBars)[ " Code Window " ];
9
10            // I am going to add a MenuItem and a submenuitem to that.
11            // So I go ahead and create a PopUp Item.
12           CommandBarPopup oPopup = (CommandBarPopup)oCommandBar.Controls.Add(MsoControlType.msoControlPopup,
13                                                                              System.Reflection.Missing.Value,
14                                                                              System.Reflection.Missing.Value, 1 , true );
15            // Set the caption of the menuitem
16           oPopup.Caption = " XSD To Entity " ;
17
18            // Now I go ahead and add a Submenu item to the added Menuitem.
19           CommandBarControl oControl = oPopup.Controls.Add(MsoControlType.msoControlButton,
20                                                            System.Reflection.Missing.Value,
21                                                            System.Reflection.Missing.Value, 1 , true );
22            // Set the caption of the submenuitem
23           oControl.Caption = " Execute " ;
24
25            // Now that we have added the menu items,
26            // we will associate the click events for these items.
27            // I will associate a click event only for the SubMenuitem at present.
28           oSubMenuItemHandler = (CommandBarEvents)_applicationObject.Events.get_CommandBarEvents(oControl);
29           oSubMenuItemHandler.Click += new _dispCommandBarControlEvents_ClickEventHandler(oSubMenuItemHandler_Click);
30 }
31
32 /// <summary>
33 /// Invoked on click of sub menu item.
34 /// </summary>
35 protected void oSubMenuItemHandler_Click( object CommandaBarControl, ref bool handled, ref bool cancelDefault)
36 {
37           XSDToEntityFrm frm = new XSDToEntityFrm();
38           frm.ShowDialog();
39 }

XSDToEntityFrm.cs

System.Diagnostics.Process p = new System.Diagnostics.Process();
{
      p.StartInfo.FileName = "cmd.exe";
      p.StartInfo.UseShellExecute = false;
      p.StartInfo.RedirectStandardInput = true;
      p.StartInfo.RedirectStandardOutput = true;
      p.StartInfo.RedirectStandardError = true;
      p.StartInfo.CreateNoWindow = true;
      p.Start();
      p.StandardInput.WriteLine( String.Concat( @"%comspec% /k """"" , txtVsPath.Text , @""""" x86" ) );
      p.StandardInput.WriteLine( String.Concat( @"xsd /c /language:CS " , selectFile , @" /out:" , txtOutPath.Text ) );
      p.StandardInput.WriteLine( "Exit" );
      p.Close();
}
