Error Message

When compiling or executing a Java application that uses the ArcObjects Java API, the following error is returned:

java.lang.UnsatisfiedLinkError: no ntvinv in java.library.path

Cause

The PATH variable does not include a directory which contains the native libraries required for ArcObjects Java classes to function.

Solution or Workaround

Add the directory that contains the native libraries needed by ArcObjects Java to the PATH variable.

On both Windows and Unix platforms, add either of the following directories to the PATH variable:

A. $AGSDESKTOPJAVA\java\jre\bin
B. $AGSDESKTOPJAVA\bin
```
Note:
$ARCENGINEHOME may need to be replaced with the location of the ArcGIS SDK installation.
```
Unix also provides the option of running the ArcEngine helper scripts in $ARCENGINEHOME: init_engine.csh or init_engine.sh.
See ArcGIS SDK for Java Environment Settings in the Related Information section below for additional information.

On Windows, you must modify your PATH system variable to include either:

%AGSDESKTOPJAVA%\java\jre\bin %AGSDESKTOPJAVA%\bin

 1 package com.ys.test;
 2
 3 //Example 1: Hello ArcObjects!
 4 import java.io.IOException;
 5 import com.esri.arcgis.system.AoInitialize;
 6 import com.esri.arcgis.system.EngineInitializer;
 7 import com.esri.arcgis.system.esriLicenseProductCode;
 8 import com.esri.arcgis.system.esriLicenseStatus;
 9 import com.esri.arcgis.carto.MapServer;
10 public class EngineHelloWorld{
11     public static void main(String[] args){
12         try{
13             //Step 1: Initialize the Java Componet Object Model (COM) Interop.
14             EngineInitializer.initializeEngine();
15
16             //Step 2: Initialize an ArcGIS license.
17             AoInitialize aoInit = new AoInitialize();
18             initializeArcGISLicenses(aoInit);
19
20             //Step 3: Invoke ArcObjects.
21             MapServer mapServer = new MapServer();
22
23             String DevKitInstallDir = System.getenv("AGSDESKTOPJAVA");
24
25             mapServer.connect(DevKitInstallDir +
26                 "/MapTemplates/Traditional Layouts/World/Europe.mxd");
27
28             String name = mapServer.getDefaultMapName();
29

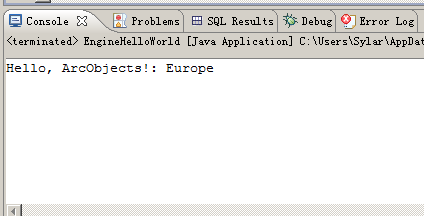

30             System.out.println("Hello, ArcObjects!: " + name);
31
32             //Step 4: Release the license.
33             aoInit.shutdown();
34         }
35         catch (IOException ex){
36             System.out.println(ex.getMessage());
37             System.out.println("App failed.");
38         }
39     } //End of method main.
40
41     //License initialization
42     static void initializeArcGISLicenses(AoInitialize aoInit){
43         try{
44             if (aoInit.isProductCodeAvailable
45                 (esriLicenseProductCode.esriLicenseProductCodeEngine) ==
46                 esriLicenseStatus.esriLicenseAvailable){
47                 aoInit.initialize
48                     (esriLicenseProductCode.esriLicenseProductCodeEngine);
49             }
50             else if (aoInit.isProductCodeAvailable
51                 (esriLicenseProductCode.esriLicenseProductCodeBasic) ==
52                 esriLicenseStatus.esriLicenseAvailable){
53                 aoInit.initialize(esriLicenseProductCode.esriLicenseProductCodeBasic)
54                     ;
55             }
56             else{
57                 System.err.println(
58                     "Engine Runtime or Desktop Basic license not initialized.");
59                 System.err.println("Exiting application.");
60                 System.exit( - 1);
61             }
62         }
63         catch (Exception e){
64             e.printStackTrace();
65         }
66     } //End of method initializeArcGISLicenses
67 } //End of class:EngineHelloWorld.
