(原創) 如何做functional simulation? (SOC) (Quartus II) (ModelSim)

Abstract
在simulation時，Quartus II和ModelSim-Altera預設都會加上delay做timing simulation，或許你會想先確定functional simulation是否合乎你的需求，然後再考慮timing simulation，該怎麼在Quartus II與ModelSim-Altera做functional simulation呢?

Introduction
使用環境：Quartus II 7.2 SP3 + ModelSim-Altera 6.1g

1.Quartus II

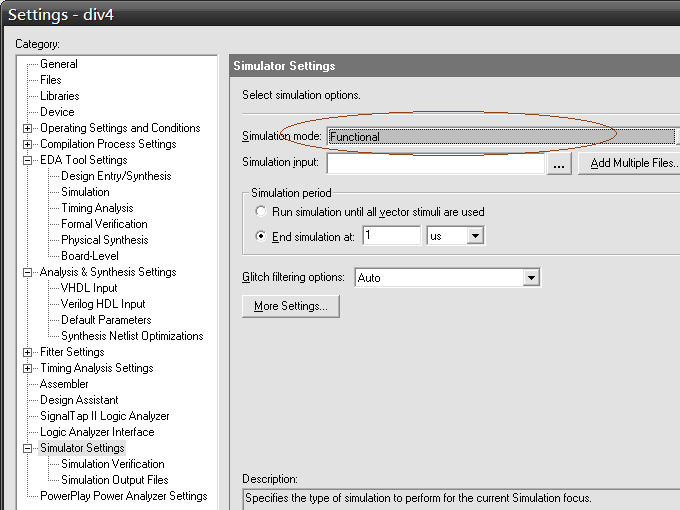

Assignments -> Settings：Category -> Simulation Settings
Simulation mode：Functional

2.ModelSim-Altera

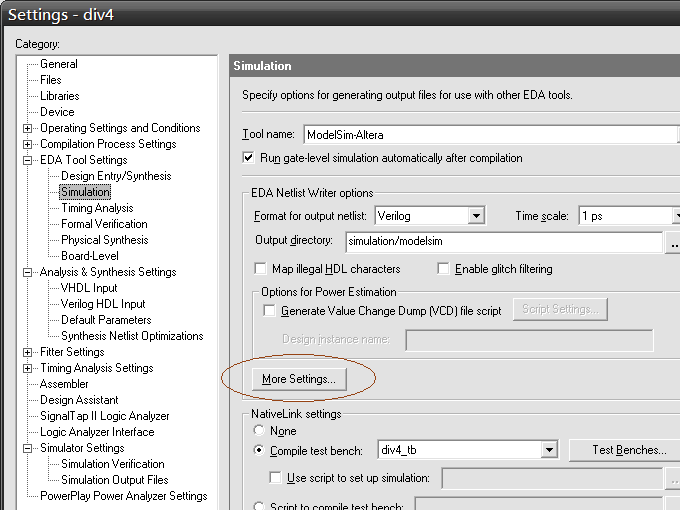

Assignments -> Settings：Category -> EDA Tool Settings -> Simulation

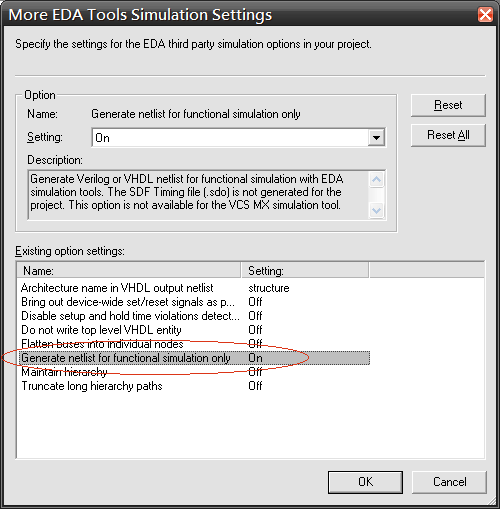

More Settings
Generate netlist for functional simulation only：On
