角色权限数据库设计

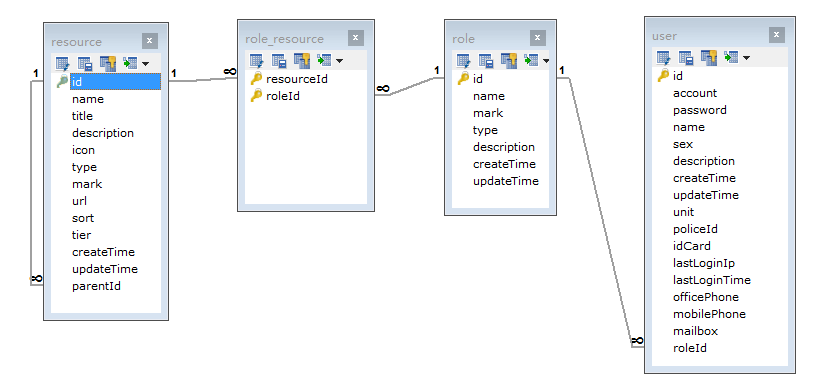

基于角色架构设计：

MySQL中表创建语句：

/*角色表*/
CREATE TABLE IF NOT EXISTS `role` (
    `id` INT NOT NULL AUTO_INCREMENT PRIMARY KEY,
    `name` VARCHAR (150),
    `mark` VARCHAR (150),
    `type` VARCHAR (150),
    `description` VARCHAR (750),
    `createTime` DATETIME ,
    `updateTime` DATETIME
);

/*用户表*/
CREATE TABLE IF NOT EXISTS `user` (
    `id` INT NOT NULL AUTO_INCREMENT PRIMARY KEY,
    `account` VARCHAR (120),
    `password` VARCHAR (96),
    `name` VARCHAR (120),
    `sex` VARCHAR (3),
    `description` VARCHAR (750),
    `createTime` DATETIME ,
    `updateTime` DATETIME ,
    `unit` VARCHAR (765),
    `policeId` VARCHAR (765),
    `idCard` VARCHAR (765),
    `lastLoginIp` VARCHAR (45),
    `lastLoginTime` DATETIME ,
    `officePhone` VARCHAR (45),
    `mobilePhone` VARCHAR (45),
    `mailbox` VARCHAR (300),
    `roleId` INT ,
    CONSTRAINT FK_user_role FOREIGN KEY(roleId) REFERENCES role(id)

);

/*菜单表*/
CREATE TABLE IF NOT EXISTS `resource` (
    `id` INT  NOT NULL AUTO_INCREMENT PRIMARY KEY,
    `name` VARCHAR (150),
    `title` VARCHAR (300),
    `description` VARCHAR (765),
    `icon` VARCHAR (765),
    `type` VARCHAR (150),
    `mark` VARCHAR (150),
    `url` VARCHAR (765),
    `sort` DOUBLE ,
    `tier` DOUBLE ,
    `createTime` DATETIME ,
    `updateTime` DATETIME ,
    `parentId` INT,
    CONSTRAINT FK_parentId FOREIGN KEY(parentId) REFERENCES resource(id)
);

/*权限菜单表*/
CREATE TABLE IF NOT EXISTS `role_resource` (
    `resourceId` INT,
    `roleId` INT,
    PRIMARY KEY(resourceId,roleId),
    CONSTRAINT FK_resource_role FOREIGN KEY(resourceId) REFERENCES resource(id),
    CONSTRAINT FK_role_resource FOREIGN KEY(roleId) REFERENCES role(id)
);

 mysql中查看某个表的创建语句：

SHOW CREATE TABLE vrv_paw_resource;
