Spring Boot使用Druid和监控配置-优快云博客

本文介绍如何在Spring Boot项目中整合Druid数据库连接池并实现SQL监控功能。包括pom.xml依赖配置、自定义过滤器及Servlet设置，并解决Spring Boot 1.4+版本下监控数据为空的问题。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

2019独角兽企业重金招聘Python工程师标准>>>

pom.xml

<dependency>
   <groupId>com.alibaba</groupId>
   <artifactId>druid</artifactId>
   <version>1.0.27</version>
</dependency>

配置filter

@WebFilter(filterName = "druidWebStatFilter", urlPatterns = "/*",
        initParams = {@WebInitParam(name = "exclusions", value = "*.js,*.gif,*.jpg,*.bmp,*.png,*.css,*.ico,/druid/*")// 忽略资源
        })
public class DruidFilter extends WebStatFilter {
}

自定义的servlet

@WebServlet(urlPatterns = "/druid/*",
        initParams = {@WebInitParam(name = "allow", value = "127.0.0.1"),//访问白名单
                @WebInitParam(name = "deny", value = "192.168.0.121"),//访问黑名单
                @WebInitParam(name = "loginUsername", value = "admin"),//登录名
                @WebInitParam(name = "loginPassword", value = "123456"),//登录密码
                @WebInitParam(name = "resetEnable", value = "false")})//禁止页面reset all

public class DruidServlet extends StatViewServlet{
}

然后访问 http://localhost:8080/druid/index.html

但是会发现sql监控一直是空的，发现是springboot的版本问题，回退到1.3+是没有问题的。1.4+就是空的，所以要手动配置下DataSource，手动引入配置文件的的属性

@Configuration
public class DruidDBConfig {
    private Logger logger = LoggerFactory.getLogger(DruidDBConfig.class);

    @Value("${spring.datasource.url}")
    private String dbUrl;

    @Value("${spring.datasource.username}")
    private String username;

    @Value("${spring.datasource.password}")
    private String password;

    @Value("${spring.datasource.driverClassName}")
    private String driverClassName;

    @Value("${spring.datasource.initialSize}")
    private int initialSize;

    @Value("${spring.datasource.minIdle}")
    private int minIdle;

    @Value("${spring.datasource.maxActive}")
    private int maxActive;

    @Value("${spring.datasource.maxWait}")
    private int maxWait;

    @Value("${spring.datasource.timeBetweenEvictionRunsMillis}")
    private int timeBetweenEvictionRunsMillis;

    @Value("${spring.datasource.minEvictableIdleTimeMillis}")
    private int minEvictableIdleTimeMillis;

    @Value("${spring.datasource.validationQuery}")
    private String validationQuery;

    @Value("${spring.datasource.testWhileIdle}")
    private boolean testWhileIdle;

    @Value("${spring.datasource.testOnBorrow}")
    private boolean testOnBorrow;

    @Value("${spring.datasource.testOnReturn}")
    private boolean testOnReturn;

    @Value("${spring.datasource.poolPreparedStatements}")
    private boolean poolPreparedStatements;

    @Value("${spring.datasource.maxPoolPreparedStatementPerConnectionSize}")
    private int maxPoolPreparedStatementPerConnectionSize;

    @Value("${spring.datasource.filters}")
    private String filters;

    @Value("{spring.datasource.connectionProperties}")
    private String connectionProperties;

    @Bean     //声明其为Bean实例
    @Primary  //在同样的DataSource中，首先使用被标注的DataSource
    public DataSource dataSource() {
        DruidDataSource datasource = new DruidDataSource();

        datasource.setUrl(this.dbUrl);
        datasource.setUsername(username);
        datasource.setPassword(password);
        datasource.setDriverClassName(driverClassName);

        //configuration
        datasource.setInitialSize(initialSize);
        datasource.setMinIdle(minIdle);
        datasource.setMaxActive(maxActive);
        datasource.setMaxWait(maxWait);
        datasource.setTimeBetweenEvictionRunsMillis(timeBetweenEvictionRunsMillis);
        datasource.setMinEvictableIdleTimeMillis(minEvictableIdleTimeMillis);
        datasource.setValidationQuery(validationQuery);
        datasource.setTestWhileIdle(testWhileIdle);
        datasource.setTestOnBorrow(testOnBorrow);
        datasource.setTestOnReturn(testOnReturn);
        datasource.setPoolPreparedStatements(poolPreparedStatements);
        datasource.setMaxPoolPreparedStatementPerConnectionSize(maxPoolPreparedStatementPerConnectionSize);
        try {
            datasource.setFilters(filters);
        } catch (SQLException e) {
            logger.error("druid configuration initialization filter", e);
        }
        datasource.setConnectionProperties(connectionProperties);

        return datasource;
    }
}

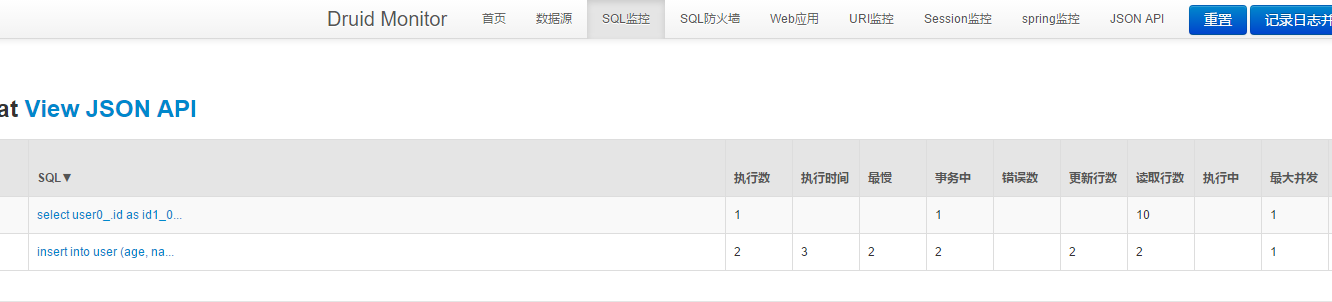

再次就会发现sql监控就有统计数据了
