JMS 集成Spring 实现ActiveMQ

简介:当使用Spring管理JMS开发时,我们会给出两种案例,其中一种是先接受消息在运行发送(案例1),另外一种反之(案例2)。。。

1、环境搭建

将apache-activemq-5.3.0下的apache-activemq-5.3.0\lib\optional包全部考入项目中,项目中新增slf4j-api-1.5.0.jar、commons-logging-1.1.1.jar以及activemq-all-5.9.1.jar这三个包,具体的所有包请前往http://download.youkuaiyun.com/detail/u014201191/8721907下载。

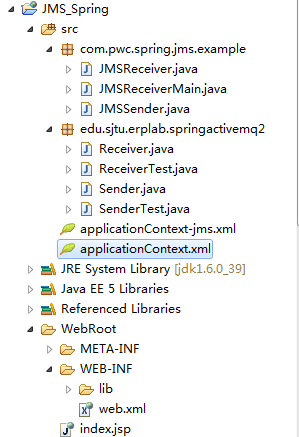

2、项目清单展示

3、案例一

信息发送者：JMSSender.java

package com.pwc.spring.jms.example;

import javax.jms.Destination;
import javax.jms.JMSException;
import javax.jms.Message;
import javax.jms.Session;

import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;
import org.springframework.jms.core.JmsTemplate;
import org.springframework.jms.core.MessageCreator;

public class JMSSender {

	/**
	 * @param args
	 */
	public static void main(String[] args) {
		// TODO Auto-generated method stub
		ApplicationContext applicationContext=new ClassPathXmlApplicationContext("applicationContext-jms.xml");
		JmsTemplate template=(JmsTemplate)applicationContext.getBean("jmsTemplate");
		Destination destination=(Destination)applicationContext.getBean("destination");
		template.send(destination, new MessageCreator(){

			@Override
			public Message createMessage(Session session) throws JMSException {
				// TODO Auto-generated method stub
				return session.createTextMessage("Send Message:Hello ActiveMQ Text Message!");
			}
		});
		System.out.println("Send the JMS Message Successfully!");
	}

}

信息消费者：JMSReceiverMain.java

package com.pwc.spring.jms.example;

import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;

public class JMSReceiverMain {

	/**
	 * @param args
	 */
	public static void main(String[] args) {
		// TODO Auto-generated method stub
		ApplicationContext applicationContext=new ClassPathXmlApplicationContext("applicationContext-jms.xml");
		JMSReceiver proxyJMSConsumer=(JMSReceiver)applicationContext.getBean("messageReceiver");
		proxyJMSConsumer.receive();

		System.out.println("Initial Consumer End! ");
	}

}<pre class="html" name="code">package com.pwc.spring.jms.example;

import javax.jms.Destination;
import javax.jms.JMSException;
import javax.jms.TextMessage;

import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;
import org.springframework.jms.JmsException;
import org.springframework.jms.core.JmsTemplate;

public class JMSReceiver {

	public JMSReceiver(){

	}
	private JmsTemplate jmsTemplate;
	public JmsTemplate getJmsTemplate() {
		return jmsTemplate;
	}
	public void setJmsTemplate(JmsTemplate jmsTemplate) {
		this.jmsTemplate = jmsTemplate;
	}

	public void receive(){
		ApplicationContext applicationContext=new ClassPathXmlApplicationContext("applicationContext-jms.xml");
		Destination destination=(Destination)applicationContext.getBean("destination");
		while(true){
			try {
				TextMessage txtmsg=(TextMessage)jmsTemplate.receive(destination);
				if(null!=txtmsg){
					System.out.println("DB Proxy: "+txtmsg);
					System.out.println("DB Proxy Message: "+txtmsg.getText());
				}else{
                                   break;
                                }
			} catch (JmsException e) {
				e.printStackTrace();
			} catch (JMSException e) {
				e.printStackTrace();
			}
		}
	}
}

配置文件：applicationContext-jms.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:context="http://www.springframework.org/schema/context"
    xsi:schemaLocation="http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans-2.5.xsd
        http://www.springframework.org/schema/context
        http://www.springframework.org/schema/context/spring-context-2.5.xsd"
    default-autowire="byName">

    <!-- 配置connectionFactory -->
    <bean id="jmsFactory" class="org.apache.activemq.pool.PooledConnectionFactory"
        destroy-method="stop">
        <property name="connectionFactory">
            <bean class="org.apache.activemq.ActiveMQConnectionFactory">
                <property name="brokerURL">
                    <value>tcp://127.0.0.1:61616</value>
                </property>
            </bean>
        </property>
        <property name="maxConnections" value="100"></property>
    </bean>

    <!-- Spring JMS Template -->
    <bean id="jmsTemplate" class="org.springframework.jms.core.JmsTemplate">
        <property name="connectionFactory">
            <ref local="jmsFactory" />
        </property>
        <property name="defaultDestinationName" value="subject" />
        <!-- 区别它采用的模式 false是p2p true是订阅 -->
        <property name="pubSubDomain" value="true" />
    </bean>

    <!-- 发送消息的目的地（一个Topic） -->
    <bean id="destination" class="org.apache.activemq.command.ActiveMQTopic">
        <!-- 设置消息队列的名字 -->
        <constructor-arg index="0" value="subject" />
    </bean>
    <bean id="messageReceiver" class="com.pwc.spring.jms.example.JMSReceiver">
        <property name="jmsTemplate" ref="jmsTemplate"></property>
    </bean>

</beans>

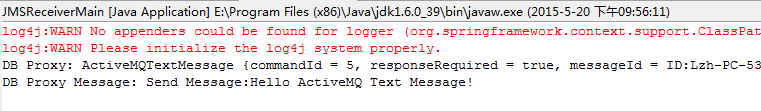

注意：此案例要先运行消费者,再运行生产者------结果如下

4、案例二

信息发送者：SenderTest.java

package edu.sjtu.erplab.springactivemq2;

import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;

public class SenderTest {
    public static void main(String[] args) {
        // TODO 自动生成方法存根
        ApplicationContext context = new ClassPathXmlApplicationContext("applicationContext.xml");
        Sender sender = (Sender) context.getBean("sender");
        sender.sendInfo();
    }
}

package edu.sjtu.erplab.springactivemq2;

import javax.jms.JMSException;
import javax.jms.MapMessage;
import javax.jms.Message;
import javax.jms.Session;
import org.springframework.jms.core.JmsTemplate;
import org.springframework.jms.core.MessageCreator;

public class Sender {
    private JmsTemplate jmsTemplate;
    //getter and setter
    public JmsTemplate getJmsTemplate() {
        return jmsTemplate;
    }
    public void setJmsTemplate(JmsTemplate jmsTemplate) {
        this.jmsTemplate = jmsTemplate;
    }

    public void sendInfo() {
        jmsTemplate.send(new MessageCreator() {
            public Message createMessage(Session session) throws JMSException {
                MapMessage message = session.createMapMessage();
                message.setString("lastName", "ppp");
                return message;
            }
        });
    }
}

信息消费者：ReceiverTest.java

package edu.sjtu.erplab.springactivemq2;

import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;

public class ReceiverTest {
    public static void main(String[] args) {
        // TODO 自动生成方法存根
        ApplicationContext context = new ClassPathXmlApplicationContext("applicationContext.xml");
        Receiver receiver = (Receiver) context.getBean("receiver");
        System.out.print(receiver.receiveMessage());
    }
}

package edu.sjtu.erplab.springactivemq2;

import javax.jms.JMSException;
import javax.jms.MapMessage;
import org.springframework.jms.core.JmsTemplate;
import org.springframework.jms.support.JmsUtils;

public class Receiver {
    private JmsTemplate jmsTemplate;
    //getter and setter
    public JmsTemplate getJmsTemplate() {
        return jmsTemplate;
    }
    public void setJmsTemplate(JmsTemplate jmsTemplate) {
        this.jmsTemplate = jmsTemplate;
    }

    /**
     * 构造函数
     */
    public Receiver() {
    }

    public String receiveMessage() {
        String my = "";
        MapMessage message = (MapMessage) jmsTemplate.receive();
        try {
            my = message.getString("lastName");
        } catch (JMSException e) {
            throw JmsUtils.convertJmsAccessException(e);
        }
        return my;
    }


}

配置文件：applicationContext.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans
    xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.springframework.org/schema/beans

    http://www.springframework.org/schema/beans/spring-beans-2.0.xsd">
    <!--创建连接工厂-->
    <bean id="connectionFactory"
        class="org.apache.activemq.ActiveMQConnectionFactory">
        <property name="brokerURL" value="tcp://localhost:61616"></property>
    </bean>
    <!-- 声明ActiveMQ消息目标,目标可以是一个队列，也可以是一个主题ActiveMQTopic-->
    <bean id="destination" class="org.apache.activemq.command.ActiveMQQueue">
        <constructor-arg index="0" value="edu.sjtu.erplab.springactivemq2"></constructor-arg>
    </bean>
    <!---->
    <bean id="jmsTemplate" class="org.springframework.jms.core.JmsTemplate">
        <property name="connectionFactory" ref="connectionFactory"></property>
        <property name="defaultDestination" ref="destination"></property>
        <property name="receiveTimeout" value="600"></property>

    </bean>
    <bean id="sender" class="edu.sjtu.erplab.springactivemq2.Sender">
        <property name="jmsTemplate" ref="jmsTemplate"></property>

    </bean>
    <bean id="receiver" class="edu.sjtu.erplab.springactivemq2.Receiver">
        <property name="jmsTemplate" ref="jmsTemplate"></property>
    </bean>
</beans>
