【IBM-WALA】Step by Step : use WALA to generate System Dependency Graph PDF and Dot File (Mac)

Preparations:

1. IDE : eclipse (my version is luna)

2. maven (my version is 3.5.0)

3. git

4. JAVA 1.7



Main Steps:

a. git clone WALA from GitHub :

b. collect dependency (.class)

c. run the example



Follows are the steps to generate System Dependency Graph by WALA :

a. git clone WALA from GitHub :

1. create a folder named “WALA_Test”, for me, its path is /Users/xubowen/Downloads/WALA_Test

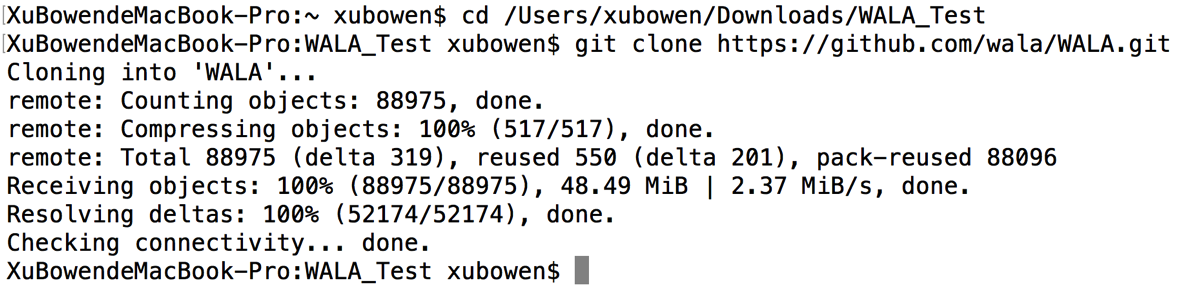

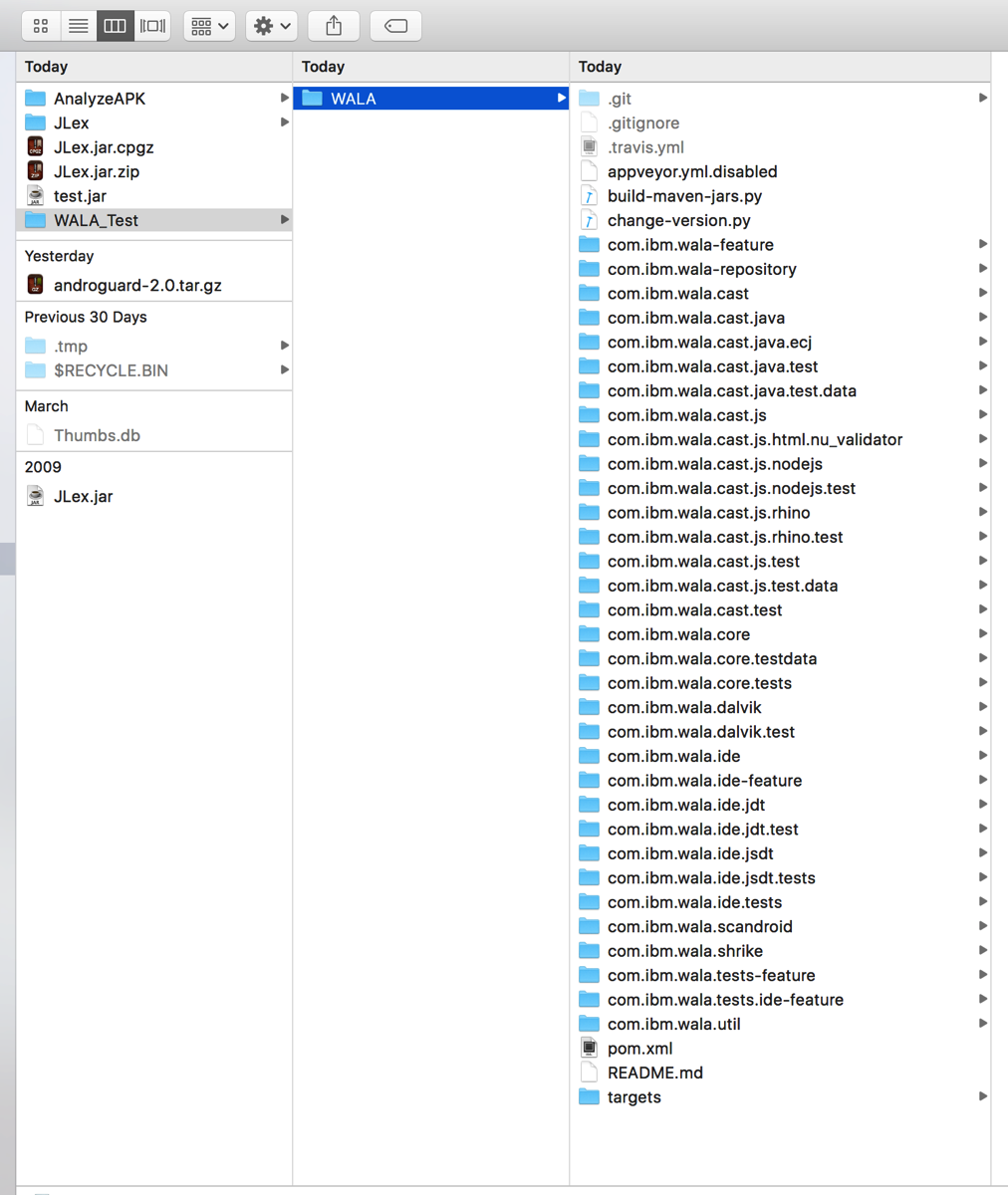

2. open terminal, cd to the direction and execute git clone https://github.com/wala/WALA.git

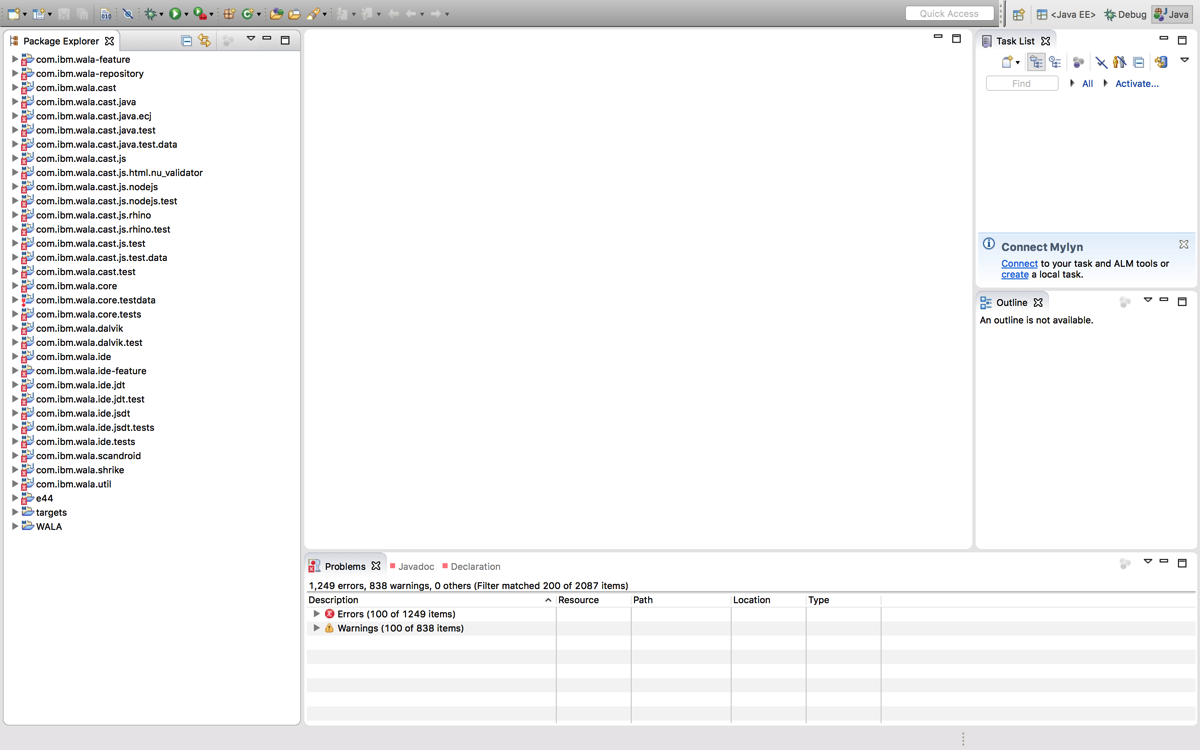

3.import project to eclipse, you will see some errors. It’s ok, just skip it. We will fix it later.

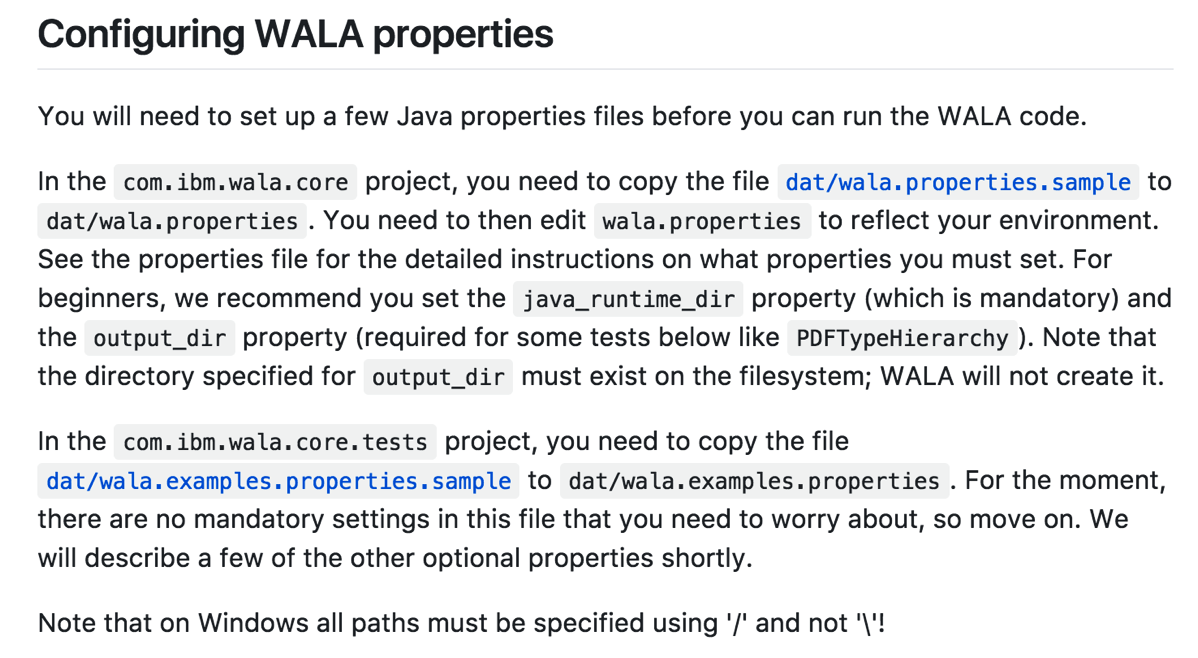

Then, based on the https://github.com/wala/WALA/wiki/Getting-Started, we need to do some configurations for WALA:

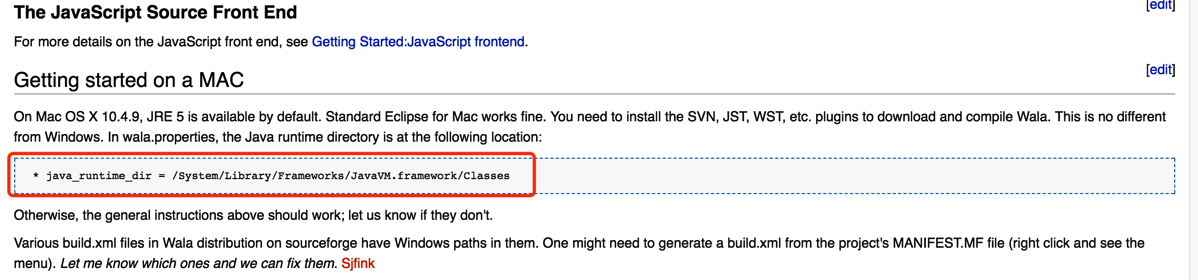

From http://wala.sourceforge.net/wiki/index.php/UserGuide:Getting_Started, we can know how to configure the path of Wala.properties:

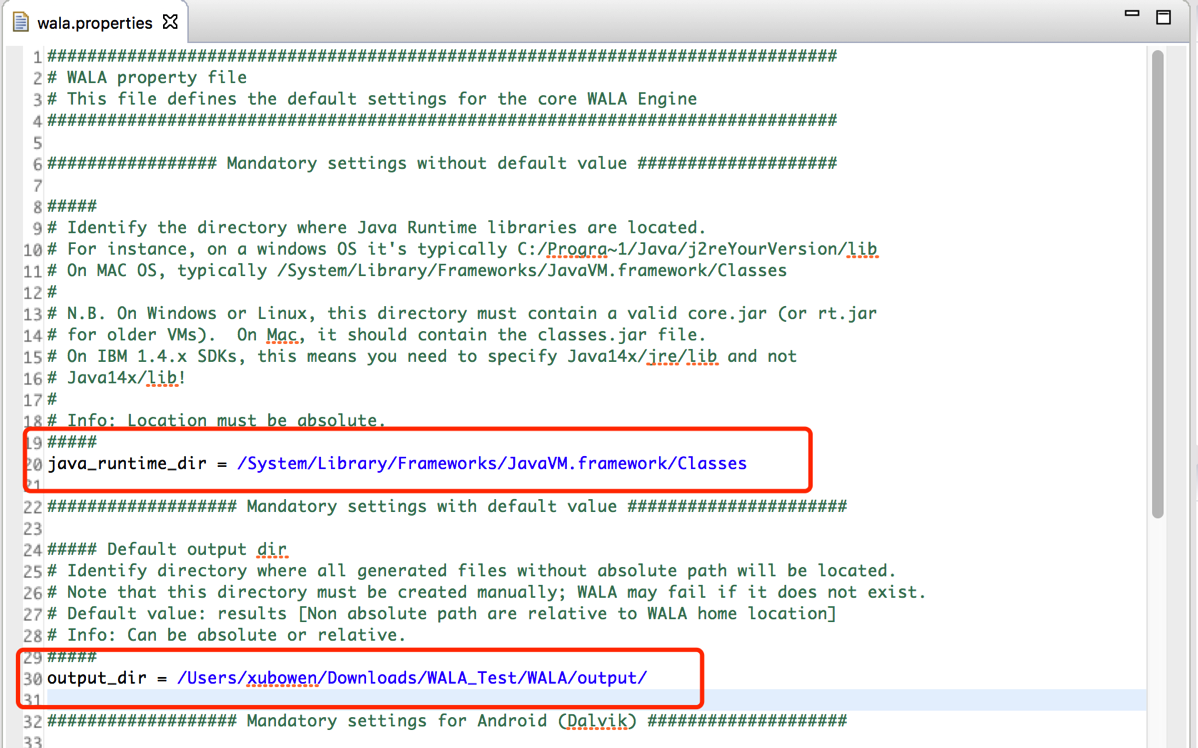

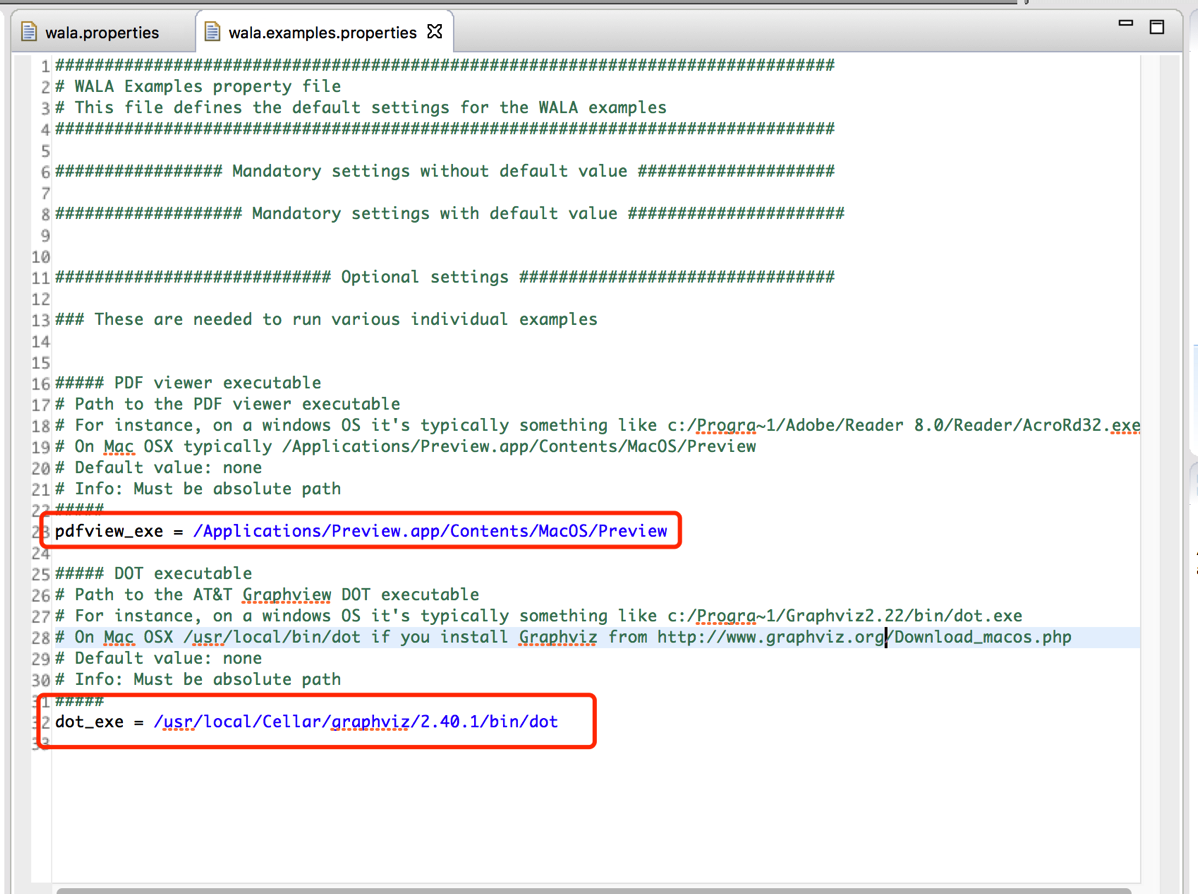

And configure the proper path of pdfview_exe and dot_ext, since sometimes the default settings are not correct.



b. collect dependency

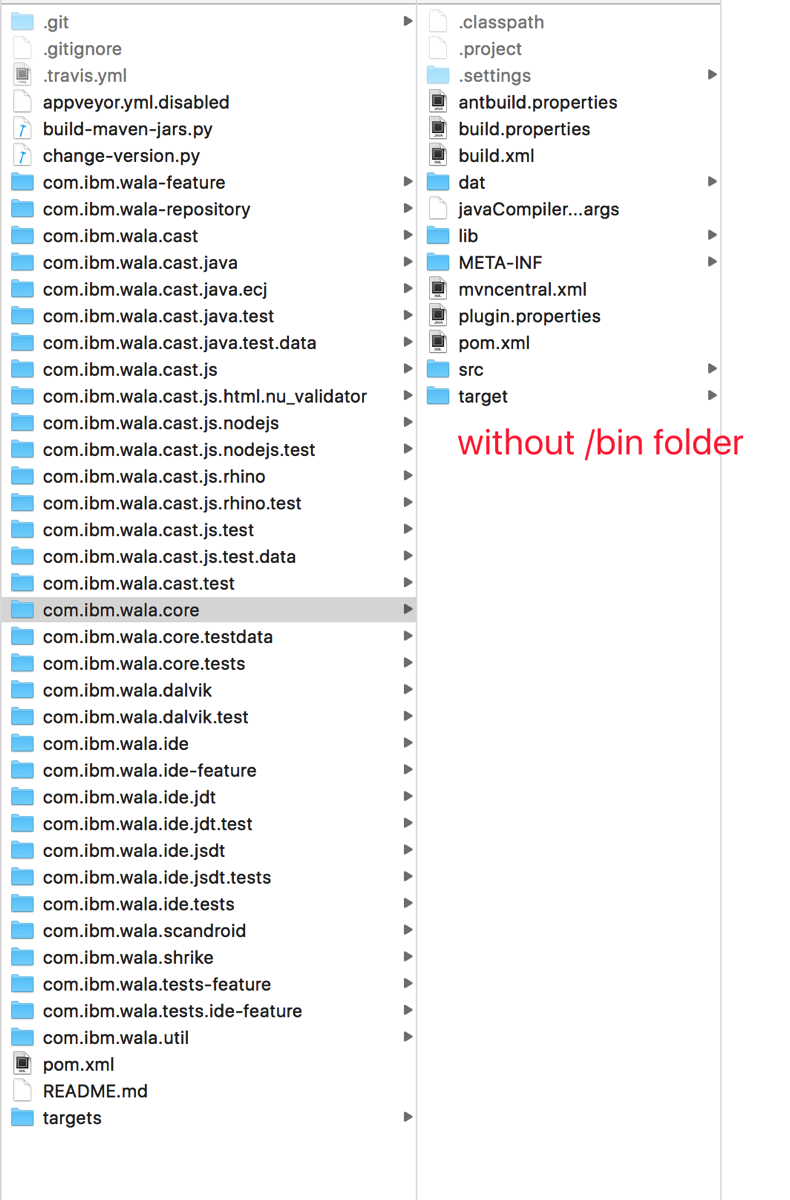

You will notice that the project without bin folder, such as com.ibm.wala.core

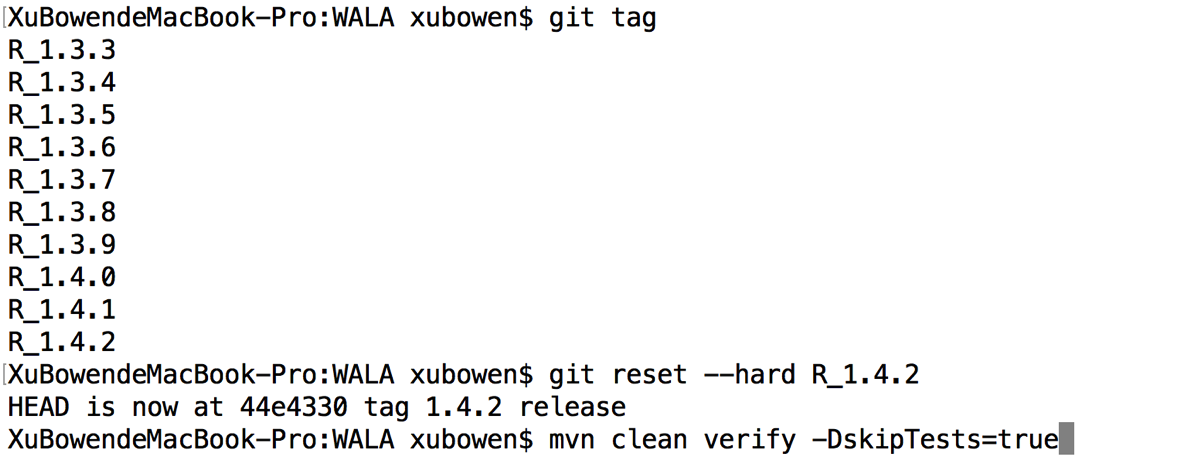

1.check the stable version of WALA :

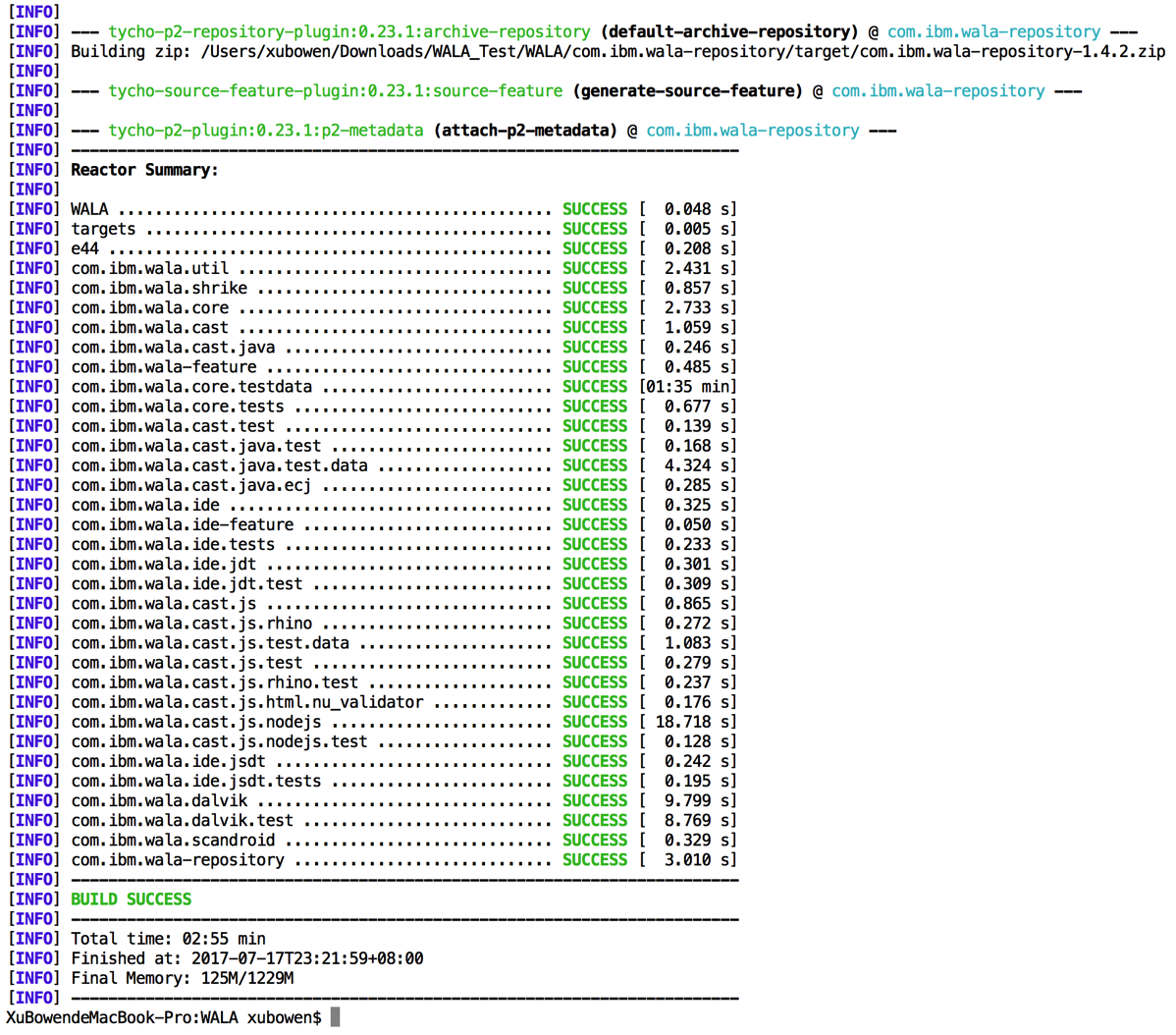

final, you will see :

After it, you will see a bin folder in the project :



c. run the example

1.check launcher : PDFSDG.launch





check out the output sdg.pdf:

check it out : http://files.cnblogs.com/files/XBWer/sdg.pdf

check out the output dot file:



That’s all.

You can also run some other launchers to generate what you want.
