Java Collections Framework知识结构目录

本文详细介绍了Java集合框架的两个主要接口树:Collection和Map。Collection包括Set、List和Queue等子接口,提供基本的集合操作;Map则用于键值对映射。文章还探讨了这些接口的具体功能和应用场景。

摘要生成于 C知道 ,由 DeepSeek-R1 满血版支持, 前往体验 >

 The core collection interfaces are the foundation of the Java Collections Framework.

The Java Collections Framework hierarchy consists of two distinct interface trees:

  • The first tree starts with the Collection interface, which provides for the basic functionality used by all collections, such as add and remove methods. Its subinterfaces — SetList, and Queue — provide for more specialized collections.
  • The Set interface does not allow duplicate elements. This can be useful for storing collections such as a deck of cards or student records. The Set interface has a subinterface, SortedSet, that provides for ordering of elements in the set.

  • The List interface provides for an ordered collection, for situations in which you need precise control over where each element is inserted. You can retrieve elements from a List by their exact position.

  • The Queue interface enables additional insertion, extraction, and inspection operations. Elements in a Queue are typically ordered in on a FIFO basis.

  • The Deque interface enables insertion, deletion, and inspection operations at both the ends. Elements in a Deque can be used in both LIFO and FIFO.

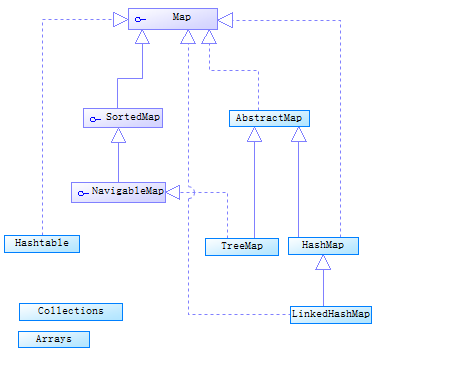

  • The second tree starts with the Map interface, which maps keys and values similar to a Hashtable.

  • Map's subinterface, SortedMap, maintains its key-value pairs in ascending order or in an order specified by a Comparator.

These interfaces allow collections to be manipulated independently of the details of their representation.

Java集合框架结构图

由于从网上看到的那些Java集合框架结构图,

不能正确的体现出JDK中Java Collection Framework的继承结构,

反复抄袭,没有验证其正确性,故自己参考JDK1.8源码,将层次继承结构画出

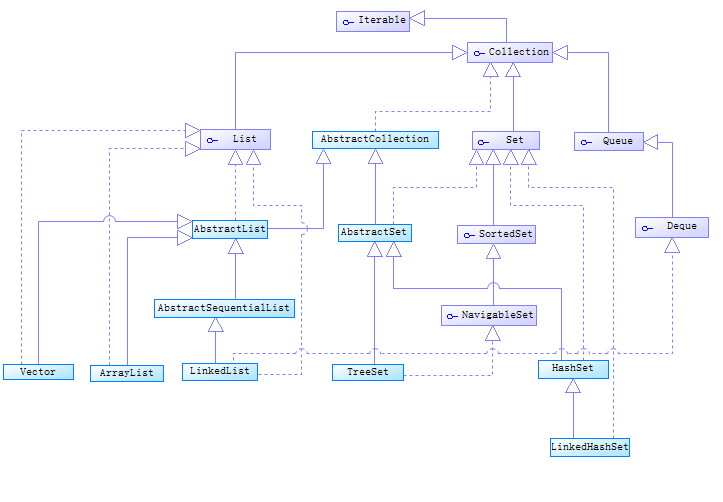

Java集合框架结构图如下:



1、Iterable接口定义的方法

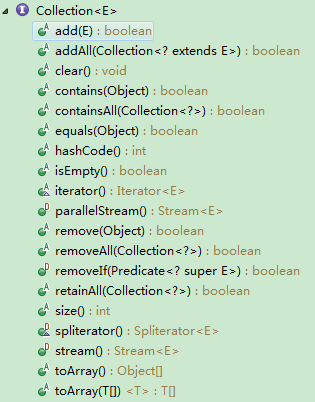

2、Collection接口定义的方法

3、……





**************************************************************************************************************************************************

【版权所有,转载请注明原文链接。】 文中有不妥或者错误的地方还望指出。如果你有更好的建议,可以给我留言讨论,共同进步! 感谢您耐心的读完本篇文章。

 **************************************************************************************************************************************************

转载于:https://www.cnblogs.com/vimx86/p/6689394.html
