1、检查系统环境和关闭防火墙

内存>=1.5GB

grep MemTotal /proc/meminfo
grep "model name" /proc/cpuinfo
grep SwapTotal /proc/meminfo

free

df -k /dev/shm/

uname -m

df -h /tmp

df -h

uname -r

service iptables stop

chkconfig iptables off

2、安装软件包

[root@rac1 ~]#

vi /etc/yum.repos.d/yum.repo

[server]
name=server
baseurl=file:///mnt/Server
gpgcheck=0
enable=1

[root@rac1 ~]#

mount /dev/cdrom /mnt

[root@rac1 ~]#

yum install -y binutils-* compat-libstdc++-33-* elfutils-libelf-* elfutils-libelf-devel-* gcc-* gcc-c++-*glibc-* glibc-common-* glibc-devel-* glibc-headers-* ksh-* libaio-* libgcc-* libstdc++-* make-* sysstat-*unixODBC-* unixODBC-devel-* ld-linux.so.2 libXp.so.6 libXt.so.6 libXtst.so.6 glibc.i686 libgcc.i686 glibcdevel.i686

3、修改系统参数

vim /etc/sysctl.conf

fs.aio-max-nr = 1048576
fs.file-max = 6815744
kernel.shmall = 2097152
kernel.shmmax = 68719476736
kernel.shmmni = 4096
kernel.sem = 250 32000 100 128
net.ipv4.ip_local_port_range = 9000 65500
net.core.rmem_default = 262144
net.core.rmem_max = 4194304
net.core.wmem_default = 262144
net.core.wmem_max = 1048586

sysctl -p

vi /etc/security/limits.conf

grid           soft    nproc   2047
grid           hard    nproc   16384
grid           soft    nofile  1024
grid           hard    nofile  65536
oracle           soft    nproc   2047
oracle           hard    nproc   16384
oracle           soft    nofile  1024
oracle           hard    nofile  65536

vi /etc/pam.d/login

session    required     pam_limits.so

vi /etc/profile
if [ $USER = "oracle" ]; then
        if [ $SHELL = "/bin/ksh" ]; then
              ulimit -p 16384
              ulimit -n 65536
        else
              ulimit -u 16384 -n 65536
        fi
fi

rac1&rac2

vi /etc/hosts

127.0.0.1 localhost.localdomain localhost

::1 localhost6.localdomain6 localhost6

168.56.70  rac1
168.56.71  rac2
0.0.70     rac1priv
0.0.71    rac2priv
168.56.123  rac1vip
168.56.124  rac2vip
168.56.125  racscanip

4、增加组、用户、目录

groupadd -g 1000 oinstall
groupadd -g 1100 asmadmin
groupadd -g 1200 dba
groupadd -g 1300 asmdba
groupadd -g 1301 asmoper

useradd -u 1100 -g oinstall -G asmadmin,asmdba,asmoper -d /home/grid grid
useradd -u 1101 -g oinstall -G dba,asmdba -d /home/oracle oracle

echo grid | passwd --stdin grid
echo oracle | passwd --stdin oracle

mkdir -p /oracle/app/oraInventory

chown -R grid:oinstall /oracle/app/oraInventory
chmod -R 775 /oracle/app/oraInventory

mkdir -p /oracle/11.2.0/grid

mkdir -p /oracle/app/grid

chown -R grid:oinstall /oracle/app/grid
chown -R grid:oinstall /oracle/11.2.0/grid
chmod -R 775 /oracle/11.2.0/grid

mkdir -p /oracle/app/oracle
mkdir /oracle/app/oracle/cfgtoollogs

chown -R oracle:oinstall /oracle/app/oracle
chmod -R 775 /oracle/app/oracle

mkdir -p /oracle/app/oracle/product/11.2.0/db_1

chown -R oracle:oinstall /oracle/app/oracle/product/11.2.0/db_1
chmod -R 775 /oracle/app/oracle/product/11.2.0/db_1

5、配置环境变量、互信

rac1

su - grid

vi .bash_profile

export ORACLE_SID=+ASM1
export ORACLE_BASE=/oracle/app/grid
export ORACLE_HOME=/oracle/11.2.0/grid
export PATH=$ORACLE_HOME/bin:$PATH

rac2

su - grid

vi .bash_profile

export ORACLE_SID=+ASM2
export ORACLE_BASE=/oracle/app/grid
export ORACLE_HOME=/oracle/11.2.0/grid
export PATH=$ORACLE_HOME/bin:$PATH

oracle 用户环境变量

vim .bash_profile

export ORACLE_BASE=/oracle/app/oracle/
export ORACLE_HOME=/oracle/app/oracle/product/11.2.0/db_1
export ORACLE_SID=racdb2
export PATH=$ORACLE_HOME/bin:$PATH

rac1

root用户执行

/software/grid/sshsetup/sshUserSetup.sh -user grid -hosts "rac1 rac2 " -advanced -noPromptPassphrase
/software/grid/sshsetup/sshUserSetup.sh -user oracle -hosts "rac1 rac2 " -advanced -noPromptPassphrase

rac1&rac2

su - grid

ssh rac1 date
ssh rac2 date
ssh rac1priv date
ssh rac2priv date

su - oracle

ssh rac1 date
ssh rac2 date
ssh rac1priv date
ssh rac2priv date

6、格式化硬盘

fdisk /dev/sdb

Device contains neither a valid DOS partition table, nor Sun, SGI or OSF disklabel

Building a new DOS disklabel. Changes will remain in memory only,

until you decide to write them. After that, of course, the previous

content won't be recoverable.

Warning: invalid flag 0x0000 of partition table 4 will be corrected by w(rite)

Command (m for help): n
Command action
   e   extended
   p   primary partition (1-4)
p
Partition number (1-4): 1
First cylinder (1-783, default 1):
Using default value 1
Last cylinder or +size or +sizeM or +sizeK (1-783, default 783): +1G

Command (m for help): n
Command action
   e   extended
   p   primary partition (1-4)
p
Partition number (1-4): 2
First cylinder (124-783, default 124):
Using default value 124
Last cylinder or +size or +sizeM or +sizeK (124-783, default 783):
Using default value 783

Command (m for help): w
The partition table has been altered!

Calling ioctl() to re-read partition table.

7、配置裸设备

vi /etc/udev/rules.d/60-raw.rules

ACTION=="add", KERNEL=="sdb1",RUN+="/bin/raw /dev/raw/raw1 %N"
ACTION=="add", KERNEL=="sdb2",RUN+="/bin/raw /dev/raw/raw2 %N"
ACTION=="add",KERNEL=="raw*", OWNER="grid", GROUP="asmadmin", MODE="660"

start_udev

partprobe
ls -l /dev/raw
chown grid:oinstall /dev/sdb*
chmod 660 /dev/sdb*

/software/grid/runcluvfy.sh  stage -pre crsinst -n rac1,rac2 -verbose

8、开始安装

cd /soft/grid/
./runInstaller

step 5 of 16

SCAN NAME:racscanip

step 6 of 16

rac1 rac1vip
rac2 rac2vip

step 7 of 16

eth0 172.168.56.0 public
eth1 10.10.10.0   private

step 8 of 16

Oracle ASM

step 9 of 16

Disk Group Name:griddg

Redundancy:External

Disk Path:/dev/raw/raw3

step 13 of 16

Oracle Base:/oracle/app/grid

Software Location：/oracle/11.2.0/grid

9.执行脚本

/oracle/app/oraInventory/orainstRoot.sh
/oracle/11.2.0/grid/root.sh

10 用Oracle用户登录安装database软件

执行

su -oracle

[oracle@rac1 src]$

cd database/

[oracle@rac1 database]$

./runInstaller

添加新的节点（新节点配置需要和之前的一样，磁盘也是共享）

[grid@rac1 ~]$

cluvfy comp nodecon -n rac1,rac2,rac3

提示：

Node connectivity check passed

Verification of node connectivity was successful.

备份：

[root@rac1 grid]#

cd /tmp/

[root@rac1 tmp]#

ocrconfig -manualbackup

rac1 2018/08/11 05:21:20 /oracle/11.2.0/grid/cdata/rac-cluster/backup_20180811_052120.ocr

[root@rac1 tmp]#

ocrconfig -showbackup manual

rac1 2018/08/11 05:21:20 /oracle/11.2.0/grid/cdata/rac-cluster/backup_20180811_052120.ocr

执行一致性检测

[grid@rac1 ~]$

cluvfy stage -post hwos -n rac3

报错

PRVF-5636 : The DNS response time for an unreachable node exceeded "15000" ms on following nodes: rac1,rac3

File "/etc/resolv.conf" is not consistent across nodes

Pre-check for node addition was unsuccessful on all the nodes.

主要是因为DNS和NTP服务

执行

su - grid

[grid@rac1 ~]$

cd $ORACLE_HOME/oui/bin

[grid@rac1 bin]$

export IGNORE_PREADDNODE_CHECKS=Y

./addNode.sh "CLUSTER_NEW_NODES={rac3}" "CLUSTER_NEW_VIRTUAL_HOSTNAMES={rac3vip}" "CLUSTER_NEW_PRIVATE_NODE_NAMES={rac3priv}" > /home/grid/add_node.log 2>&1

rac3 执行：

/oracle/app/oraInventory/orainstRoot.sh
/oracle/11.2.0/grid/root.sh

提示：

Operation successful.

Configure Oracle Grid Infrastructure for a Cluster ... succeeded

su - oracle

[oracle@rac1 ~]$

cd $ORACLE_HOME/oui/bin

[oracle@rac1 bin]$

export IGNORE_PREADDNODE_CHECKS=Y

[oracle@rac1 bin]$

./addNode.sh "CLUSTER_NEW_NODES={rac3}" > tail -f /home/oracle/add_node.log 2>&1

RAC3执行

/oracle/app/oracle/product/11.2.0/db_1/root.sh
/oracle/11.2.0/grid/root.sh

使用

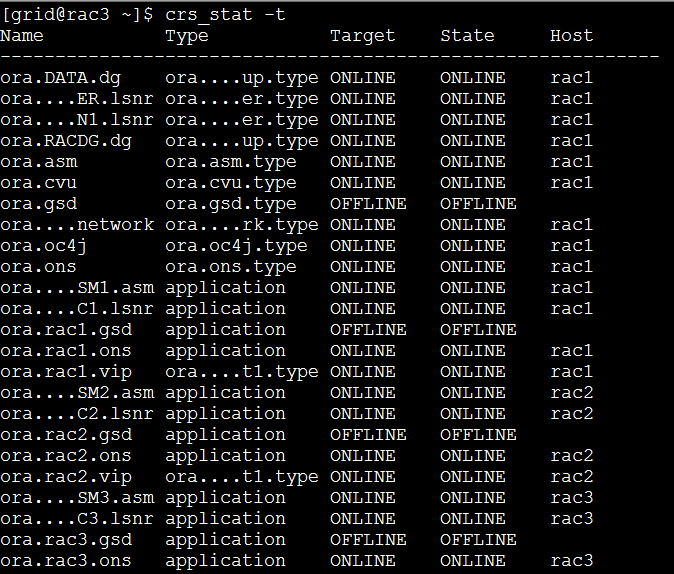

crs_stat -t查看

Name Type Target State Host

------------------------------------------------------------

ora.DATA.dg ora....up.type ONLINE ONLINE rac1

ora....ER.lsnr ora....er.type ONLINE ONLINE rac1

ora....N1.lsnr ora....er.type ONLINE ONLINE rac1

ora.RACDG.dg ora....up.type ONLINE ONLINE rac1

ora.asm ora.asm.type ONLINE ONLINE rac1

ora.cvu ora.cvu.type ONLINE ONLINE rac1

ora.gsd ora.gsd.type OFFLINE OFFLINE

ora....network ora....rk.type ONLINE ONLINE rac1

ora.oc4j ora.oc4j.type ONLINE ONLINE rac1

ora.ons ora.ons.type ONLINE ONLINE rac1

ora....SM1.asm application ONLINE ONLINE rac1

ora....C1.lsnr application ONLINE ONLINE rac1

ora.rac1.gsd application OFFLINE OFFLINE

ora.rac1.ons application ONLINE ONLINE rac1

ora.rac1.vip ora....t1.type ONLINE ONLINE rac1

ora....SM2.asm application ONLINE ONLINE rac2

ora....C2.lsnr application ONLINE ONLINE rac2

ora.rac2.gsd application OFFLINE OFFLINE

ora.rac2.ons application ONLINE ONLINE rac2

ora.rac2.vip ora....t1.type ONLINE ONLINE rac2

ora....SM3.asm application ONLINE ONLINE rac3

ora....C3.lsnr application ONLINE ONLINE rac3

ora.rac3.gsd application OFFLINE OFFLINE

ora.rac3.ons application ONLINE ONLINE rac3

ora.rac3.vip ora....t1.type ONLINE ONLINE rac3

ora.racdb.db ora....se.type ONLINE ONLINE rac1

ora....ry.acfs ora....fs.type ONLINE ONLINE rac1

ora.scan1.vip ora....ip.type ONLINE ONLINE rac1

节点添加完成

执行

[oracle@rac1 database]$

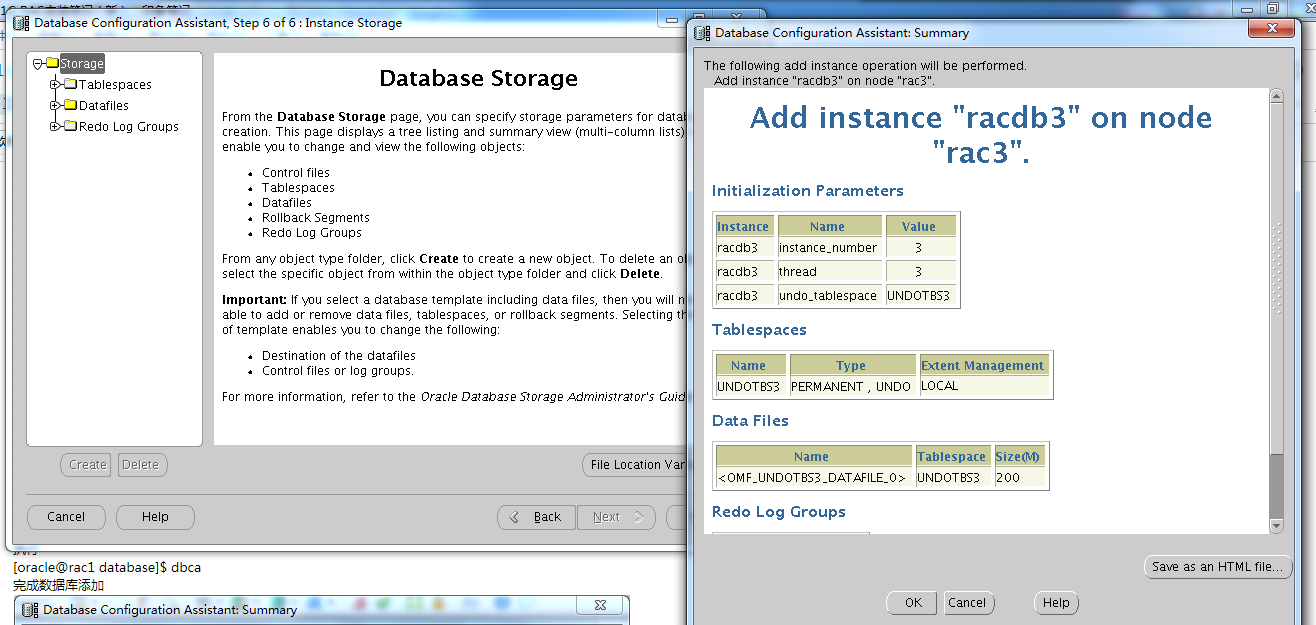

dbca

完成数据库添加

查看

验证

[grid@rac3 ~]$

olsnodes -n

[grid@rac3 ~]$

olsnodes -n

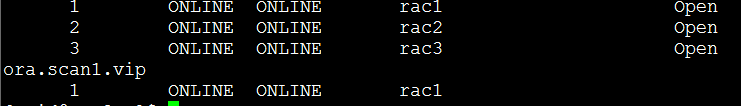

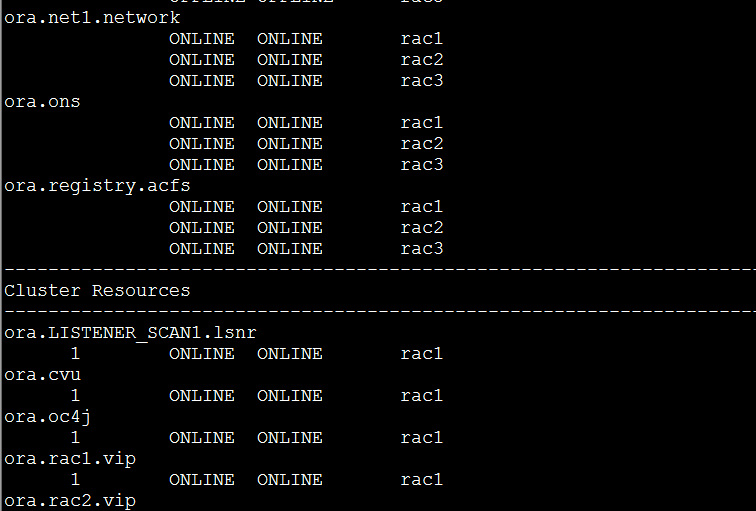

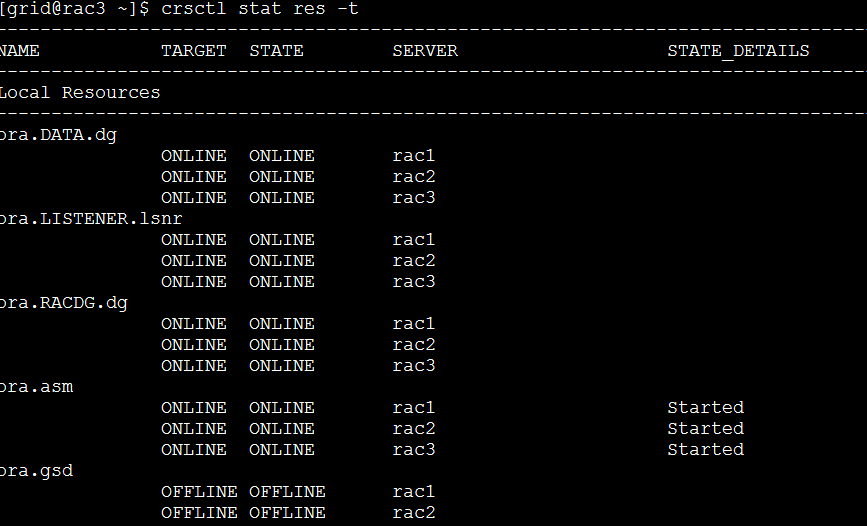

[grid@rac3 ~]$ crsctl stat res -t

成功添加完成
