silverlight游戏设计（四）角色/精灵篇之 -- 精灵的设计

精灵的呈现基础

silverlight的那套api并不是一个为游戏设计的，你找不到现成的”精灵”相关的类。

最简单的精灵用一个Image就可以充当，但游戏中总是存在各式各样的精灵，不同精灵又有不同的逻辑，为了方便设计我们有必要定义一些接口。

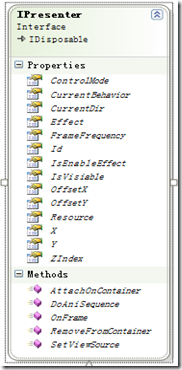

呈现器接口—IPresenter

IPresenter

namespace  Sopaco.Silverlight.GameFramewrok.Sprite
{
     ///   <summary>
     ///  呈现器
     ///   </summary>
     public   interface  IPresenter : IDisposable
    {
         ///   <summary>
         ///  用于标识咯咯呈现器
         ///   </summary>
         string  Id {  get ;  set ; }
         ///   <summary>
         ///
         ///   </summary>
        EmRoleBehavior CurrentBehavior {  get ;  set ; }
         ///   <summary>
         ///
         ///   </summary>
        EmRoleDir CurrentDir  {  get ;  set ; }
         ///   <summary>
         ///  附加到容器中以显示
         ///   </summary>
         void  AttachOnContainer(Panel container);
         ///   <summary>
         ///  从容器中脱离
         ///   </summary>
         void  RemoveFromContainer();
         ///   <summary>
         ///  是否可见
         ///   </summary>
         bool  IsVisiable {  get ;  set ; }
         ///   <summary>
         ///  是否启用特效
         ///   </summary>
         bool  IsEnableEffect {  get ;  set ; }
         ///   <summary>
         ///  特效
         ///   </summary>
        Effect Effect {  get ;  set ; }
         ///   <summary>
         ///  相对父容器的X轴偏移
         ///   </summary>
         double  X {  get ;  set ; }
         ///   <summary>
         ///  相对父容器的Y轴偏移
         ///   </summary>
         double  Y {  get ;  set ; }
         ///   <summary>
         ///  相对父容器的Z轴值
         ///   </summary>
         int  ZIndex {  get ;  set ; }
         ///   <summary>
         ///  X偏移
         ///   </summary>
         double  OffsetX {  get ;  set ; }
         ///   <summary>
         ///  Y偏移
         ///   </summary>
         double  OffsetY {  get ;  set ; }
         ///   <summary>
         ///  运动控制模式
         ///   </summary>
        EmSpriteControlMode ControlMode {  get ;  set ; }
         ///   <summary>
         ///
         ///   </summary>
        PresenterResource Resource {  get ;  set ; }
         ///   <summary>
         ///  显示的帧速
         ///   </summary>
        TimeSpan FrameFrequency {  get ;  set ; }
         ///   <summary>
         ///
         ///   </summary>
         void  SetViewSource(ImageSource source);

         ///   <summary>
         ///  ControlMode为RefreshOnPerFrame时调用此方法执行逻辑
         ///   </summary>
         void  OnFrame();
         ///   <summary>
         ///  播放一套完整的动画序列，直到将ControlMode设置为非AniSequenceMode值
         ///   </summary>
         ///   <param name="behavior"></param>
         ///   <param name="dir"></param>
         ///   <param name="?"></param>
         void  DoAniSequence(EmRoleBehavior behavior, EmRoleBehavior dir, AniTimes time, Action onAniCompleted);
    }
}





Id：精灵的标识值

CurrentBehavior：精灵动作

CurrentDir：精灵方向

IsVisiable：是否可见

IsEnableEffect：是否开启特Effect效

Effect：对呈现器进行渲染的BitmapEffect

X：相对呈现器父容器的X轴偏移

Y：相对呈现器父容器的Y轴偏移

ZIndex：Z轴权重值

OffsetX：在整个精灵容器内部X偏移

OffsetY：在整个精灵容器内部Y偏移

CenterX：X轴中心点偏移量

CenterY：Y轴中心点偏移量

ControlMode：运动模式。OnFrame/Story/混合

Resource：这里是精灵序列帧的图片资源，我从其精灵本身给分离出来了。

FrameFrequency：帧速设定

可添加部件的精灵

稍微玩过一些rpg游戏的人都知道，游戏中有个概念叫“装备”，顽疾通常会在通过打怪、任务、升级奖励等来得到新的装备，不同装备下角色的外观是不同的，同样的也会需求出现在”纸娃娃”、装备预览等需求上。我们在设计之处就应该考虑到这种复合的精灵角色，所以要进一步加入一个接口：IPartable。、

IPartable

namespace  Sopaco.Silverlight.GameFramewrok.Sprite
{
     ///   <summary>
     ///  支持部件添加的呈现器
     ///   </summary>
     public   interface  IPartable : IPresenter
    {
         void  AddPart(IPresenter part);
         void  AddPart( string  partKey, IPresenter part);
         void  RemovePart( string  partKey);
    }
}









进一步，具体的实现

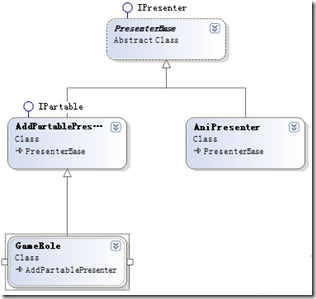

上面把接口定义好，接下来只需实现即可。对于silverlight，任何一个UIElement的子类都可以作为呈现器，而如果要添加部件的话很容易想到的是Canvas，因为Canvas一方面本身就是个容器，其次是一种绝对布局，我们可以通过设定UIElement对应的Canvas.LeftProperty调整其位置。有了这样的思路，具体实现如下：

PresenterBase

namespace  Sopaco.Silverlight.GameFramewrok.Sprite
{
     public   abstract   class  PresenterBase : IPresenter
    {
         #region  Fields
         private  Panel _preContainer;
         private   bool  _isEnableEffect;
         private   long  _preRefreshTimeTicks;
         #endregion
         #region  ctors
         public  PresenterBase()
        {
            CurrentBehavior  =  EmRoleBehavior.站立;
            CurrentDir  =  EmRoleDir.默认;
        }
         #endregion
         protected   abstract  UIElement InnerUIElement {  get ; }

         #region  IPresenter Members
         public   virtual  EmRoleBehavior CurrentBehavior {  get ;  set ; }
         public   virtual  EmRoleDir CurrentDir {  get ;  set ; }
         public   string  Id
        {
             get ;
             set ;
        }
         public   double  X
        {
             get
            {
                 return  Canvas.GetLeft(InnerUIElement)  -  OffsetX;
            }
             set
            {
                Canvas.SetLeft(InnerUIElement, value  +  OffsetX);
            }
        }

         public   double  Y
        {
             get
            {
                 return  Canvas.GetTop(InnerUIElement)  -  OffsetY;
            }
             set
            {
                Canvas.SetTop(InnerUIElement, value  +  OffsetY);
            }
        }

         public   double  OffsetX
        {
             get ;
             set ;
        }

         public   double  OffsetY
        {
             get ;
             set ;
        }

         public   int  ZIndex
        {
             get
            {
                 return  Canvas.GetZIndex(InnerUIElement);
            }
             set
            {
                Canvas.SetZIndex(InnerUIElement, value);
            }
        }

         public   void  AttachOnContainer(Panel container)
        {
            RemoveFromContainer();
            container.Children.Add(container);
            _preContainer  =  container;
        }

         public   void  RemoveFromContainer()
        {
             if  (_preContainer  !=   null )
                _preContainer.Children.Remove(InnerUIElement);
        }
         public   bool  IsEnableEffect
        {
             get
            {
                 return  _isEnableEffect;
            }
             set
            {
                 if  (_isEnableEffect  ==  value)
                     return ;
                _isEnableEffect  =  value;
                InnerUIElement.Effect  =  Effect;
            }
        }

         public  System.Windows.Media.Effects.Effect Effect
        {
             get ;
             set ;
        }
         public   bool  IsVisiable
        {
             get
            {
                 return  InnerUIElement.Visibility.ToBoolean();
            }
             set
            {
                InnerUIElement.Visibility  =  value.ToVisibility();
            }
        }
         public   abstract   void  SetViewSource(ImageSource source);
         ///   <summary>
         ///  呈现器的图片资源
         ///   </summary>
         public  PresenterResource Resource
        {
             get ;  set ;
        }
         public  TimeSpan FrameFrequency
        {
             get ;  set ;
        }
         public   virtual   void  OnFrame()
        {
            var span  =  TimeSpan.FromTicks(DateTime.Now.Ticks  -  _preRefreshTimeTicks);
             if  (span  >=  FrameFrequency)
            {
                RefreshOnFrameImmediately();
            }
        }
         public   virtual   void  Dispose()
        {
            RemoveFromContainer();
            _preContainer  =   null ;
        }

         public   abstract  EmSpriteControlMode ControlMode
        {
             get ;  set ;
        }
         public   abstract   void  DoAniSequence(EmRoleBehavior behavior, EmRoleBehavior dir, AniTimes time, Action onAniCompleted);
         ///   <summary>
         ///  立即刷新
         ///   </summary>
         protected   abstract   void  RefreshOnFrameImmediately();
         #endregion
    }
}







AddPartablePresenter

namespace  Sopaco.Silverlight.GameFramewrok.Sprite
{
     ///   <summary>
     ///  可添加部件的呈现器
     ///   </summary>
     public   class  AddPartablePresenter : PresenterBase, IPartable
    {
         #region  Fields
         protected  Dictionary < string , IPresenter >  _parts  =   new  Dictionary < string , IPresenter > ();
         public   static   readonly   string  DEFAULT_PARTKEY  =   " unipart " ;
         private   static   int  autoId  =   0 ;
         protected  EmSpriteControlMode _controlMode;
         protected  Canvas _container  =   new  Canvas();
         #endregion

         #region  IPresenter  Members
         public   override  EmSpriteControlMode ControlMode
        {
             get
            {
                 return  _controlMode;
            }
             set
            {
                _controlMode  =  value;
            }
        }
         public   override   void  SetViewSource(ImageSource source)
        {
            _container.Background  =   new  ImageBrush()
            {
                ImageSource  =  source
            };
        }
         #endregion

         #region  IPartable Members
         public   void  AddPart(IPresenter part)
        {
            AddPart(CURRENT_DEFAULT_PARTKEY, part);
        }
         public   void  AddPart( string  partKey, IPresenter part)
        {
            attachSelf(partKey, part);
        }
         public   void  RemovePart( string  partKey)
        {
            deteachSelf(partKey);
        }
         #endregion

         #region  IDisposable Members

         public   override   void  Dispose()
        {

             base .Dispose();
        }

         #endregion

         protected   override  UIElement InnerUIElement
        {
             get  {  return  _container; }
        }

         #region  Private Helper Methods
         private   void  attachSelf( string  partKey, IPresenter part)
        {
            part.AttachOnContainer(_container);
            _parts.Add(partKey, part);
        }
         private   void  deteachSelf( string  partKey)
        {
             if (_parts.ContainsKey(partKey))
            {
                _parts[partKey].RemoveFromContainer();
            }
            _parts.Remove(partKey);
        }
         private   string  CURRENT_DEFAULT_PARTKEY
        {
             get
            {
                 return   string .Format( " {0}-{1} " , DEFAULT_PARTKEY,  ++ autoId);
            }
        }
         #endregion

         public   override   void  DoAniSequence(EmRoleBehavior behavior, EmRoleBehavior dir, AniTimes time, Action onAniCompleted)
        {
             throw   new  NotImplementedException();
        }

         protected   override   void  RefreshOnFrameImmediately()
        {
             foreach  (var part  in  _parts.Values)
            {
                part.OnFrame();
            }
        }
    }
}





GameRole

namespace  Sopaco.Silverlight.GameFramewrok.Sprite
{
     public   class  GameRole : AddPartablePresenter
    {
         public   string  RoleId
        {
             get ;
             set ;
        }
         public   override   void  OnFrame()
        {
             if ( base .ControlMode  ==  EmSpriteControlMode.RefreshPerFrame)
            {
                 foreach  (var part  in   base ._parts.Values)
                {
                    part.OnFrame();
                }
            }
        }
         public   override  EmRoleBehavior CurrentBehavior
        {
             get
            {
                 return   base .CurrentBehavior;
            }
             set
            {
                 base .CurrentBehavior  =  value;
                 // 更新所有部件的行为
                 foreach  (var part  in   base ._parts.Values)
                {
                    part.CurrentBehavior  =  CurrentBehavior;
                }
            }
        }
         public   override  EmRoleDir CurrentDir
        {
             get
            {
                 return   base .CurrentDir;
            }
             set
            {
                 base .CurrentDir  =  value;
                 // 更新所有部件的方向
                 foreach  (var part  in   base ._parts.Values)
                {
                    part.CurrentDir  =  CurrentDir;
                }
            }
        }
         #region  Private Helper Methods
         #endregion
    }
}





转载于:https://www.cnblogs.com/wJiang/archive/2010/12/26/1917310.html
