iOS设计模式 - 生成器

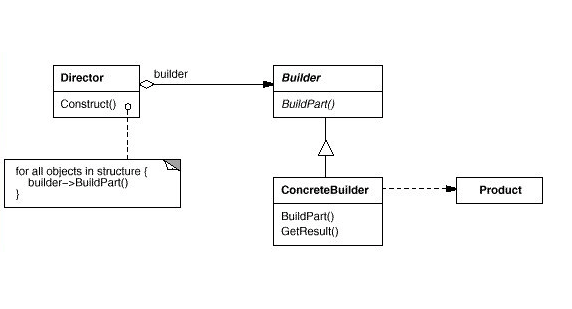

原理图

说明

生成器模式可以理解为零部件组装工厂,与工厂方法是非常相似的!

源码

https://github.com/YouXianMing/iOS-Design-Patterns

//
//  VehicleBuilder.h
//  BuilderPattern
//
//  Created by YouXianMing on 15/8/18.
//  Copyright (c) 2015年 YouXianMing. All rights reserved.
//

#import <Foundation/Foundation.h>
#import "VehicleBuilderProtocol.h"

@interface VehicleBuilder : NSObject <VehicleBuilderProtocol>

/**
 *  车辆信息
 */
@property (nonatomic, strong) NSMutableDictionary *vehicleInfo;

@end

//
//  VehicleBuilder.m
//  BuilderPattern
//
//  Created by YouXianMing on 15/8/18.
//  Copyright (c) 2015年 YouXianMing. All rights reserved.
//

#import "VehicleBuilder.h"

@implementation VehicleBuilder

- (instancetype)init {

    self = [super init];
    if (self) {

        self.vehicleInfo = [NSMutableDictionary dictionary];
    }

    return self;
}

- (void)buildVehicleChassis {

    [NSException raise:NSInternalInconsistencyException
                format:@"对不起,您不能直接调用 '%@ %d' 中的方法 '%@',您需要通过继承其子类,在子类中重载该方法",
     [NSString stringWithUTF8String:__FILE__].lastPathComponent, __LINE__, NSStringFromSelector(_cmd)];
}

- (void)buildVehicleEngine {

    [NSException raise:NSInternalInconsistencyException
                format:@"对不起,您不能直接调用 '%@ %d' 中的方法 '%@',您需要通过继承其子类,在子类中重载该方法",
     [NSString stringWithUTF8String:__FILE__].lastPathComponent, __LINE__, NSStringFromSelector(_cmd)];
}

- (void)buildVehicleWheels {

    [NSException raise:NSInternalInconsistencyException
                format:@"对不起,您不能直接调用 '%@ %d' 中的方法 '%@',您需要通过继承其子类,在子类中重载该方法",
     [NSString stringWithUTF8String:__FILE__].lastPathComponent, __LINE__, NSStringFromSelector(_cmd)];
}

- (void)buildVehicleDoors {

    [NSException raise:NSInternalInconsistencyException
                format:@"对不起,您不能直接调用 '%@ %d' 中的方法 '%@',您需要通过继承其子类,在子类中重载该方法",
     [NSString stringWithUTF8String:__FILE__].lastPathComponent, __LINE__, NSStringFromSelector(_cmd)];
}

@end

//
//  VehicleBuilderProtocol.h
//  BuilderPattern
//
//  Created by YouXianMing on 15/8/18.
//  Copyright (c) 2015年 YouXianMing. All rights reserved.
//

#import <Foundation/Foundation.h>

@protocol VehicleBuilderProtocol <NSObject>

@required
/**
 *  制造汽车底盘
 */
- (void)buildVehicleChassis;

/**
 *  制造汽车引擎
 */
- (void)buildVehicleEngine;

/**
 *  制造汽车轮子
 */
- (void)buildVehicleWheels;

/**
 *  制造汽车车门
 */
- (void)buildVehicleDoors;

@end

//
//  VehicleAssemblyPlant.h
//  BuilderPattern
//
//  Created by YouXianMing on 15/8/18.
//  Copyright (c) 2015年 YouXianMing. All rights reserved.
//

#import <Foundation/Foundation.h>
#import "VehicleBuilder.h"

/**
 *  车辆装配工厂
 */
@interface VehicleAssemblyPlant : NSObject

/**
 *  组装车辆
 *
 *  @param vehicleBuilder 组装方案
 *
 *  @return 组装好的车辆
 */
+ (VehicleBuilder *)vehicleAssembly:(VehicleBuilder *)vehicleBuilder;

@end

//
//  VehicleAssemblyPlant.m
//  BuilderPattern
//
//  Created by YouXianMing on 15/8/18.
//  Copyright (c) 2015年 YouXianMing. All rights reserved.
//

#import "VehicleAssemblyPlant.h"

@implementation VehicleAssemblyPlant

+ (VehicleBuilder *)vehicleAssembly:(VehicleBuilder *)vehicleBuilder {

    [vehicleBuilder buildVehicleChassis];
    [vehicleBuilder buildVehicleDoors];
    [vehicleBuilder buildVehicleEngine];
    [vehicleBuilder buildVehicleWheels];

    return vehicleBuilder;
}

@end
