《DSP using MATLAB》Problem 5.28

        昨晚手机在看X信的时候突然黑屏，开机重启都没反应，今天维修师傅说使用时间太长了，还是买个新的吧，心疼银子啊！

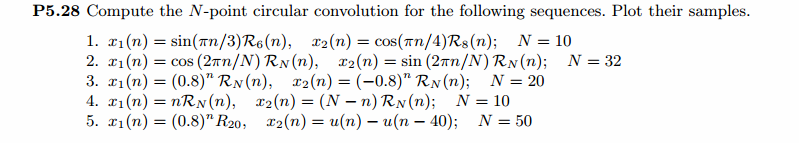

        这里只放前两个小题的图。

        代码：

        1、

%% +++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
%%            Output Info about this m-file
fprintf('\n***********************************************************\n');
fprintf('        <DSP using MATLAB> Problem 5.28 \n\n');

banner();
%% +++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++

% -------------------------------------------------------------------
%       Computer N-point Circular Convolution
% -------------------------------------------------------------------
n1 = [0:5];
x1 = sin(pi*n1/3);
N1 = length(x1);

n2 = [0:7];
x2 = cos(pi*n2/4);
N2 = length(x2);


% --------------------------------------------
%        1st way TIME domain
% --------------------------------------------
N = 10;
n = [0:N-1];

y1 = circonvt(x1, x2, N);


% --------------------------------------------
%   2nd way ----  circular conv(FREQ domain)
% --------------------------------------------
y2 = circonvf(x1, x2, N);


% --------------------------------------------
%   3rd way --- Cir Conv (Circulant Matrix)
% --------------------------------------------
y3 = circonvt_v3(x1, x2, N);

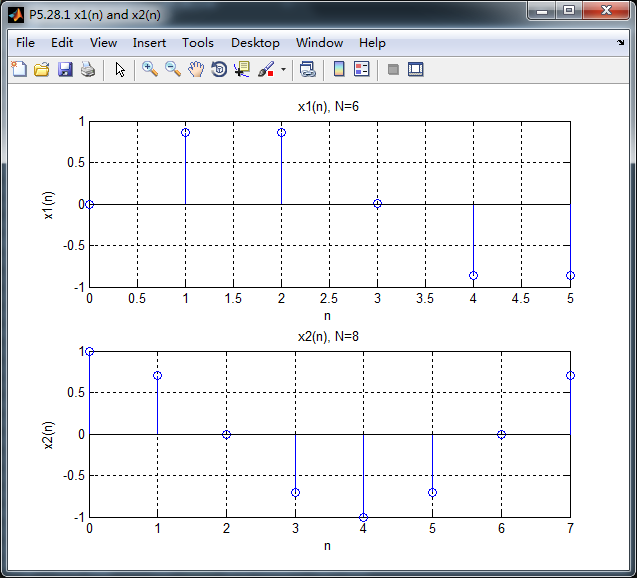

figure('NumberTitle', 'off', 'Name', 'P5.28.1 x1(n) and x2(n)')
set(gcf,'Color','white');
subplot(2,1,1); stem(n1, x1);
xlabel('n'); ylabel('x1(n)');
title('x1(n), N=6');  grid on;
subplot(2,1,2); stem(n2, x2);
%axis([-N/2, N/2, -0.5, 50.5]);
xlabel('n'); ylabel('x2(n)');
title('x2(n), N=8');  grid on;



figure('NumberTitle', 'off', 'Name', 'P5.28.1 Cir-Conv, N=10')
set(gcf,'Color','white');
subplot(3,1,1); stem(n, y1);
xlabel('n'); ylabel('y1(n)');
title('Time Domain, y1(n)');  grid on;
subplot(3,1,2); stem(n, y2);
%axis([-N/2, N/2, -0.5, 50.5]);
xlabel('n'); ylabel('y2(n)');
title('FREQ domain, y2(n)');  grid on;
subplot(3,1,3); stem(n, y3);
%axis([-N/2, N/2, -0.5, 50.5]);
xlabel('n'); ylabel('y3(n)');
title('Circulant Matrix, y3(n)');  grid on;

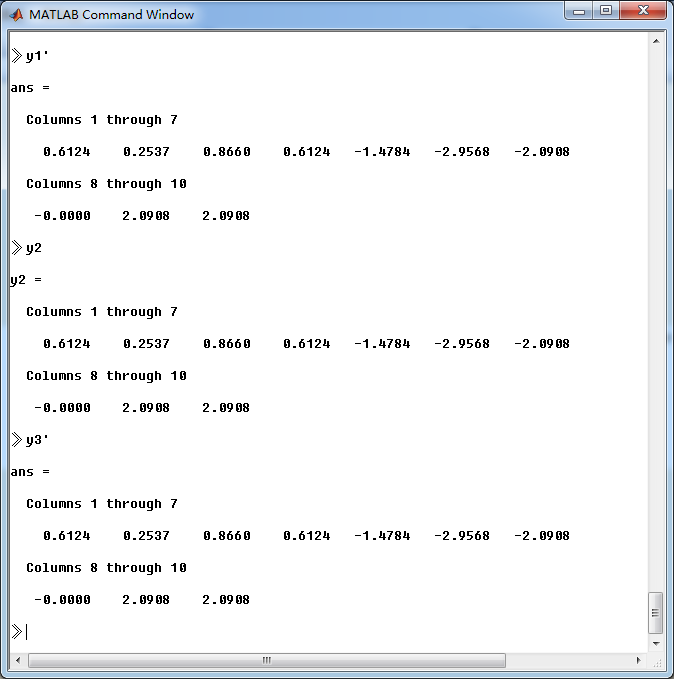

　　运行结果：

        计算圆周卷积的两序列

        三种方法计算圆周卷积

        2、

        代码：

%% +++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
%%            Output Info about this m-file
fprintf('\n***********************************************************\n');
fprintf('        <DSP using MATLAB> Problem 5.28 \n\n');

banner();
%% +++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++

% -------------------------------------------------------------------
%       Computer N-point Circular Convolution
% -------------------------------------------------------------------
N = 32;
n1 = [0:N-1];
x1 = cos(2*pi*n1/N);
N1 = length(x1);

n2 = [0:N-1];
x2 = sin(2*pi*n2/N);
N2 = length(x2);


% --------------------------------------------
%        1st way TIME domain
% --------------------------------------------
%N = 10;
n = [0:N-1];

y1 = circonvt(x1, x2, N);


% --------------------------------------------
%   2nd way ----  circular conv(FREQ domain)
% --------------------------------------------
y2 = circonvf(x1, x2, N);


% --------------------------------------------
%   3rd way --- Cir Conv (Circulant Matrix)
% --------------------------------------------
y3 = circonvt_v3(x1, x2, N);

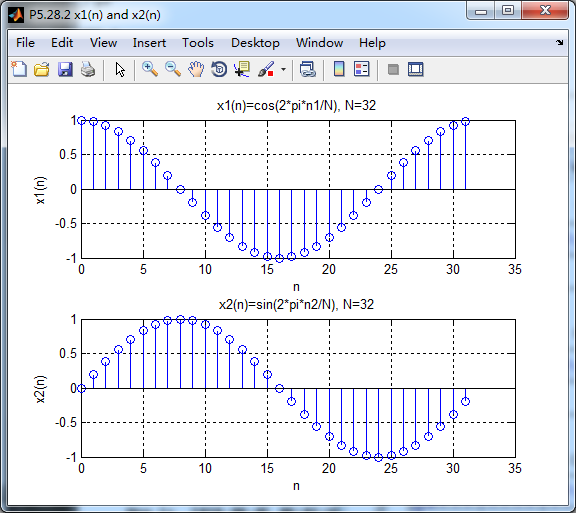

figure('NumberTitle', 'off', 'Name', 'P5.28.2 x1(n) and x2(n)')
set(gcf,'Color','white');
subplot(2,1,1); stem(n1, x1);
xlabel('n'); ylabel('x1(n)');
title('x1(n)=cos(2*pi*n1/N), N=32');  grid on;
subplot(2,1,2); stem(n2, x2);
%axis([-N/2, N/2, -0.5, 50.5]);
xlabel('n'); ylabel('x2(n)');
title('x2(n)=sin(2*pi*n2/N), N=32');  grid on;

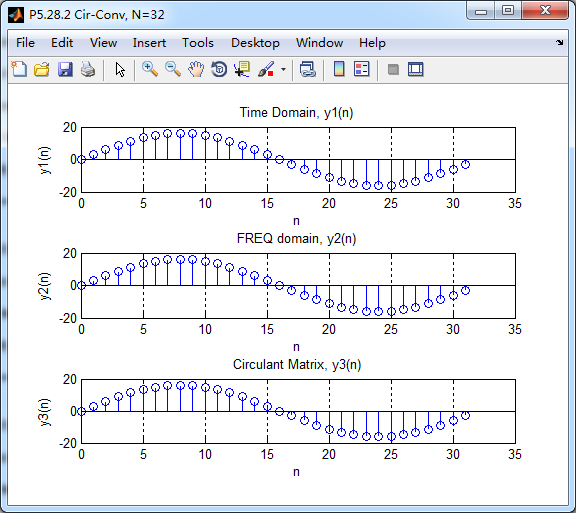

figure('NumberTitle', 'off', 'Name', 'P5.28.2 Cir-Conv, N=32')
set(gcf,'Color','white');
subplot(3,1,1); stem(n, y1);
xlabel('n'); ylabel('y1(n)');
title('Time Domain, y1(n)');  grid on;
subplot(3,1,2); stem(n, y2);
%axis([-N/2, N/2, -0.5, 50.5]);
xlabel('n'); ylabel('y2(n)');
title('FREQ domain, y2(n)');  grid on;
subplot(3,1,3); stem(n, y3);
%axis([-N/2, N/2, -0.5, 50.5]);
xlabel('n'); ylabel('y3(n)');
title('Circulant Matrix, y3(n)');  grid on;

　　运行结果：

        代码结构都一样



        圆周卷积结果
