Lonsdor K518ISE programs 2005 Ford Focus key in two minutes

A quick demonstration of Lonsdor K518ISE programming key for 2005 Ford Focus in two minutes. And for more auto key programming,check hereautomotive key programming cases.

This is the Ford with this key the HP 100 101, sorry not the Tibbe key.

It’s very simple to use Lonsdor K518ISE.

You see there is a range of other things but we’re just doing this key today.

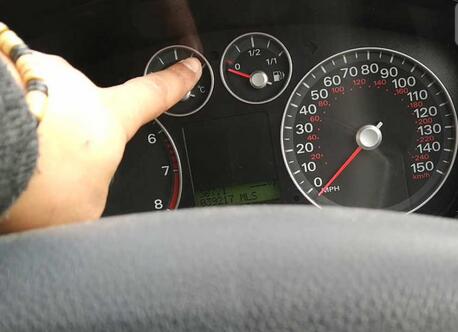

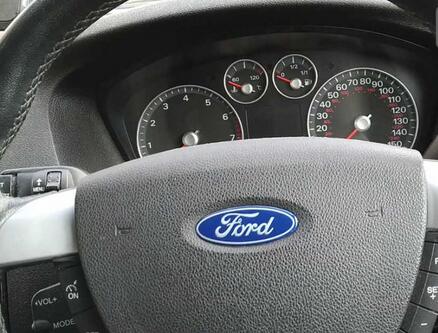

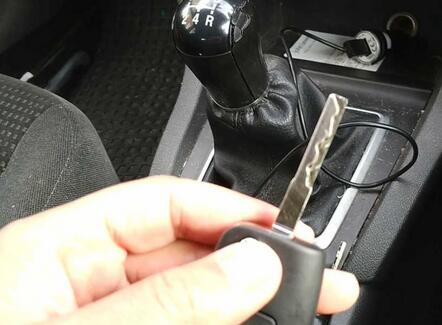

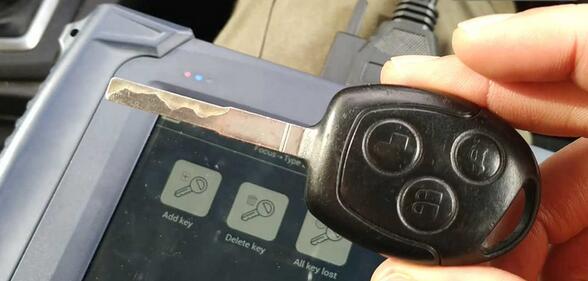

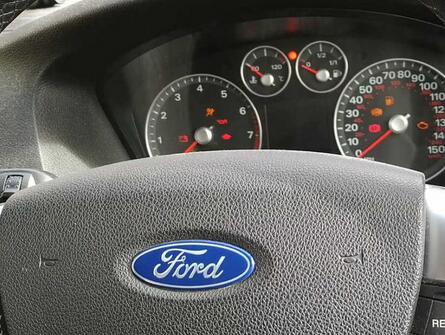

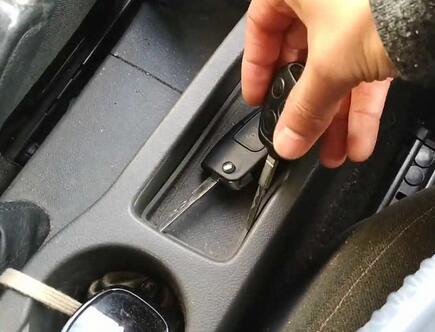

So just show you the original key is this one and when you put that in the ignition, turn the ignition on and this light here that’s currently, flashing will go solid and then go out that shows that the system’s working.

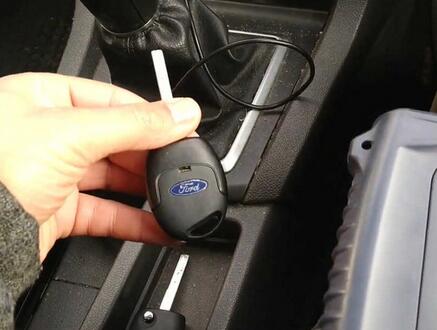

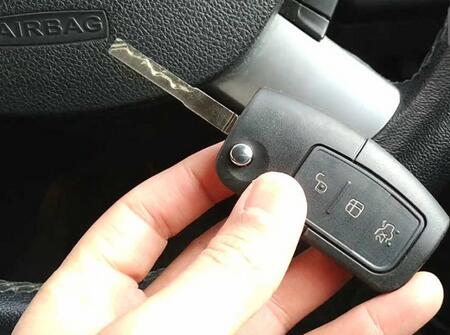

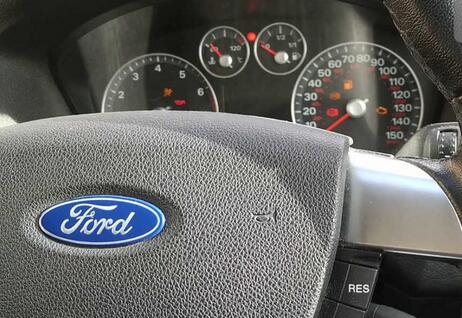

The new key is this one, it’s been cut ready, switch the ignition on and you see that light goes just flash basically, so it’s not programmed yet.

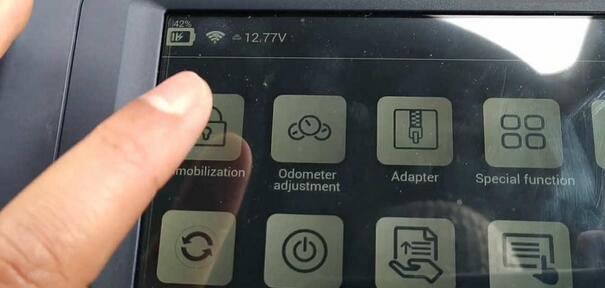

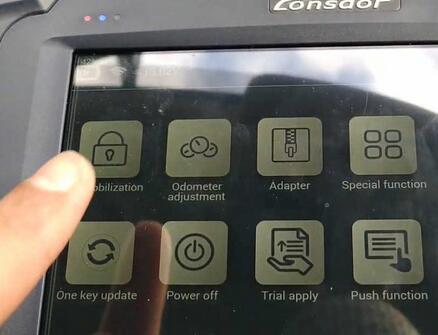

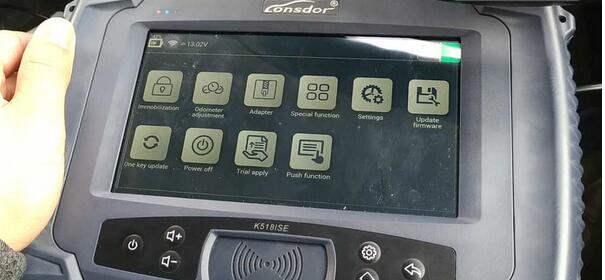

So, go to “Immobilizer“.

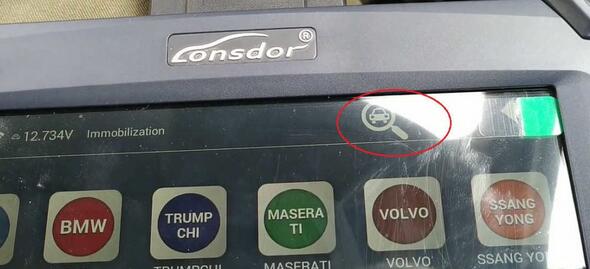

There is a nice search function at the right corner of the machine.

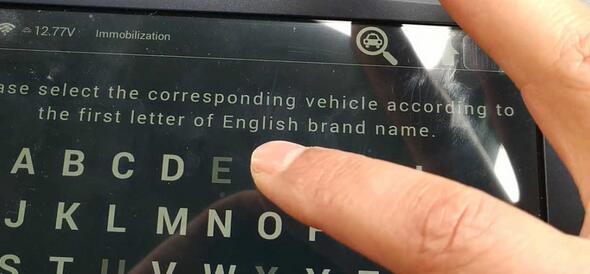

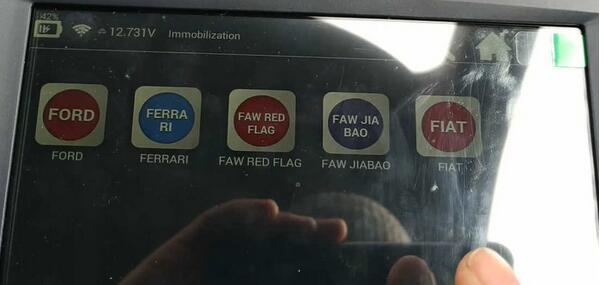

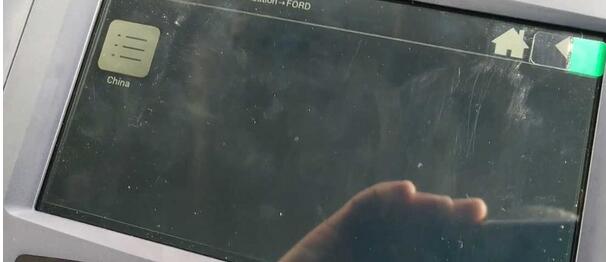

Type F and choose “Ford”, then “China”.

Yes, it does say China, but I’ve tested it quite a few times there’s name of Europe, South America, and anything else, it’s just China here, but it does work under that, so we are gonna go for China.

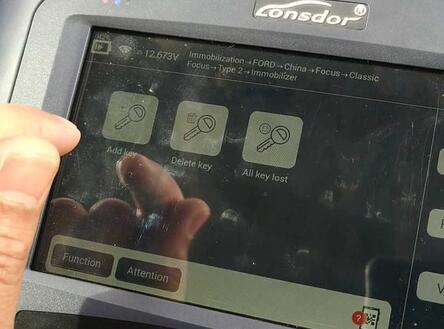

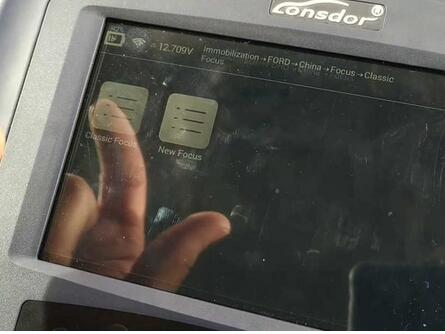

We will see that years the classic focus’s, tap “Type 2”, then “Immobilizer”.

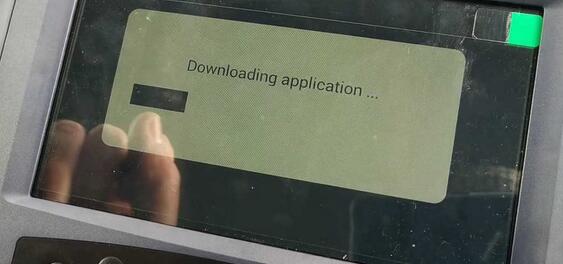

Tap “Add key”, then get message “Downloading application”.

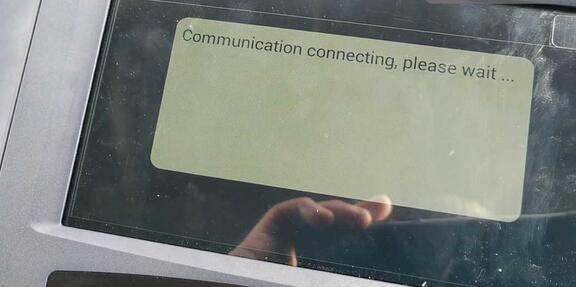

Read message ” Connect device (Lonsdor K518) OBD test cable with the vehicle OBD port, switch ignition one.”, tap “OK”.

Please insert the new key to be programmed. Note: It needs two right keys to start vehicle.

So we are in a certain new key to be programmed which is this new one here, so press “OK”.

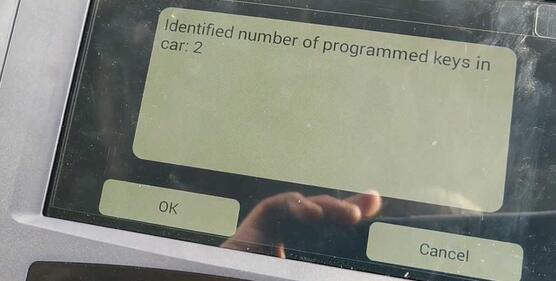

Identified number of programmed keys in car:2, select “OK”.

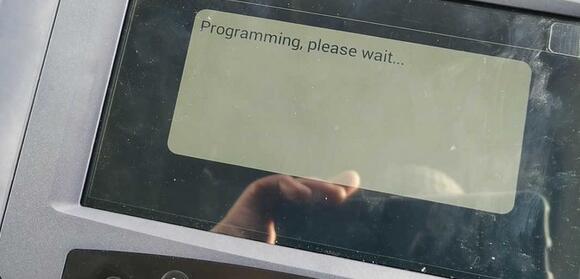

Programming, please wait…

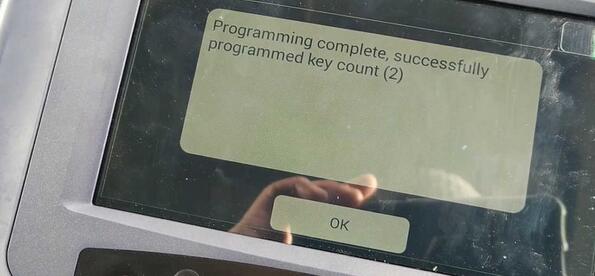

Programming complete, successfully programmed key count (2).

So I’m going to test out because that should have jumped up to free rarely.

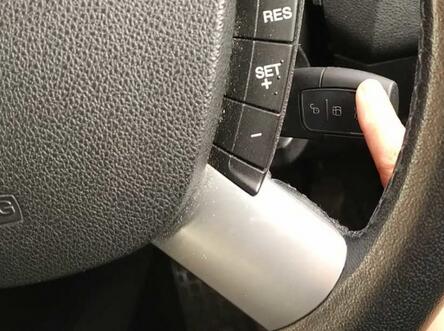

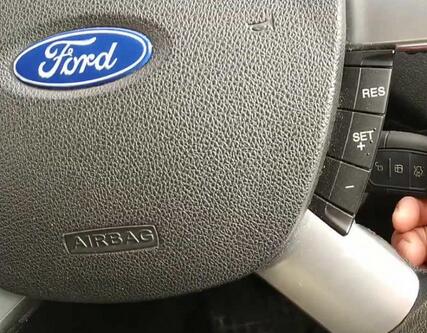

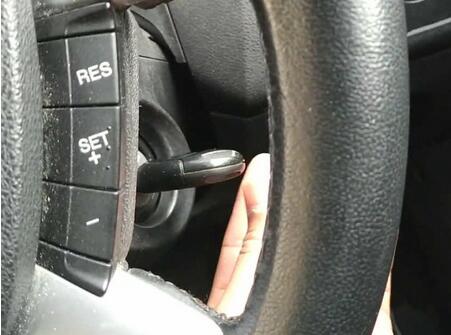

Just ignition on, insert back to see if the light goes solid and goes out.

So that’s goes solid and goes out, the key is programmed.

And going to check another one, insert into the ignition and to see if the light goes solid and goes out, then the key is programmed successfully.

So they both work. So when it says keys programmed to it must have meant the new key count will be too, so there must have just been just this one key programmed at the time and the other key is gonna be this one the new one. To me that should say free, but it works, the both start the car. So we’re gonna do is pop the key in just test it turn the ignition on, might go solid and goes out, means it’s gonna work it’s a neutral, start the car.

So Lonsdor K518 programmer takes literally less than two minutes to program the key.
