Hibernate-Redis集成

介绍

在Spring Boot 中，以JPA为ORM框架的微服务，默认是二级缓存是关闭的。因为在分布式集群架构下，本地的二级缓存必然会带来多个微服务实例缓存不一致问题。将二级缓存移交给第三方中间件可以很好的解决缓存不一致问题。并且Redis一款高性能的K-V存储中间件，在保证缓存一致性的同时，还能提供高性能，高可用的特性。本篇文章就是基于开源框架hibernate-redisGitHub地址，将redis集成到微服务中作为JPA中作为二级缓存存储中间件。

###集成

在hibernate-redisConfiguration官方给很多种集成方式，针对于不同redis模式(redis单体模式，主从模式，哨兵模式,集群模式)给出了不同配置说明，本文为以最简单redis单体模式，将redis集成到服务中。

0. redis安装启动

将redis安装并启动，本文redis的地址为：127.0.0.1:6379

1. 引入pom

com.github.debop

hibernate-redis

2.4.0

org.redisson

redisson

2.5.1

de.ruedigermoeller

fst

2.48

org.xerial.snappy

snappy-java

1.1.7.3

2 . 配置

A . 在 src/main/resources/application.yml 配置数据源和开启二级缓存

spring:

application:

name: jps-redis-demo

datasource:

username: root

password: *****

url: jdbc:mysql://localhost:3306/tenant-center?&useUnicode=true&characterEncoding=UTF-8&useSSL=false

driver-class-name: com.mysql.cj.jdbc.Driver

type: com.alibaba.druid.pool.DruidDataSource

jpa:

hibernate:

naming:

physical-strategy: org.springframework.boot.orm.jpa.hibernate.SpringPhysicalNamingStrategy

ddl-auto: update

database-platform: org.hibernate.dialect.MySQL5InnoDBDialect

properties:

## 缓存策略，总是缓存

javax:

persistence:

sharedCache:

mode: ALL

##二级缓存配置

hibernate:

cache:

## 开启二级缓存

use_second_level_cache: true

## 查询缓存

use_query_cache: true

## RedisRegionFactory

region:

factory_class: org.hibernate.cache.redis.hibernate52.SingletonRedisRegionFactory

## 缓存标示前缀

region_prefix: hibernate

## 结构化缓存实体

use_structured_entries: true

## 配置文件路径

provider_configuration_file_resource_path: classpath:conf/hibernate-redis.properties

redisson-config: classpath:conf/redisson.yaml

redis:

expiryInSeconds:

default: 120

hibernate:

common: 0

account: 1200

show-sql: true

缓存模式 javax.persistence.shared.Cache.mode

官方解释：SharedCacheMode

文本以ALL 表示：所有实体都缓存

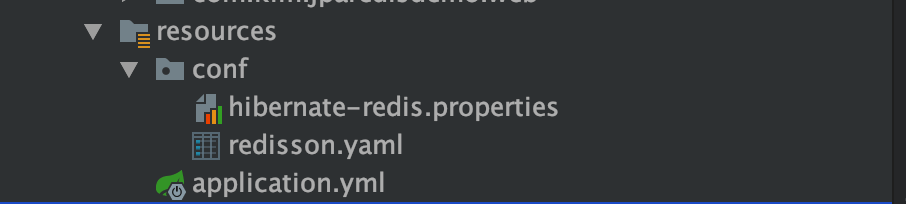

B . 在 src/main/resources/创建 conf目录存放hibernate-redis的配置文件，并创建hibernate-redis.properties 和 redisson.yaml 配置文件

hibernate-redis.properties 配置文件：

redisson-config=classpath:conf/redisson.yaml

#

# Cache Expiry settings

# 'hibernate' is second cache prefix

# 'common', 'account' is actual region name

#

# default = 120 seconds (2 minutes) (see RedisCacheUtil.DEFAULT_EXPIRY_IN_SECONDS)

#

redis.expiryInSeconds.default=360

redis.expiryInSeconds.hibernate.common=0

redis.expiryInSeconds.hibernate.account=1200

redisson.yaml 配置文件：

singleServerConfig:

## If pooled connection not used for a timeout time and current connections amount bigger than minimum idle connections pool size, then it will closed and removed from pool. Value in milliseconds.

idleConnectionTimeout: 10000

## Timeout during connecting to any Redis server.

connectTimeout: 10000

## Redis server response timeout. Starts to countdown when Redis command was succesfully sent. Value in milliseconds.

timeout: 3000

## Error will be thrown if Redis command can't be sended to Redis server after retryAttempts. But if it sent succesfully then timeout will be started.

retryAttempts: 3

## Time interval after which another one attempt to send Redis command will be executed. Value in milliseconds

retryInterval: 1500

## Password for Redis server authentication

password: null

## Subscriptions per subscribe connection limit. Used by RTopic, RPatternTopic, RLock, RSemaphore, RCountDownLatch, RClusteredLocalCachedMap, RClusteredLocalCachedMapCache, RLocalCachedMap, RLocalCachedMapCache objects and Hibernate READ_WRITE cache strategy.

subscriptionsPerConnection: 5

## Name of client connection

clientName: null

## Redis server address in host:port format. Use rediss:// protocol for SSL connection.

address:

- "redis://127.0.0.1:6379"

## Minimum idle Redis subscription connection amount.

subscriptionConnectionMinimumIdleSize: 1

## Redis subscription connection maximum pool size.

subscriptionConnectionPoolSize: 50

## Minimum idle Redis connection amount.

connectionMinimumIdleSize: 24

## Redis connection maximum pool size.

connectionPoolSize: 64

## Database index used for Redis connection

database: 0

## DNS change monitoring interval. Applications must ensure the JVM DNS cache TTL is low enough to support this. Set -1 to disable. Multiple IP bindings for single hostname supported in Proxy mode.

dnsMonitoringInterval: 5000

threads: 16

## Threads amount shared between all redis clients used by Redisson. Netty threads used in Redis response decoding and command sending.

nettyThreads: 32

## Redis data codec. Used during read and write Redis data. Several implementations are available:

codec: ! {}

## Available values: default TransportMode.NIO

#TransportMode.NIO,

#TransportMode.EPOLL - requires netty-transport-native-epoll lib in classpath

#TransportMode.KQUEUE - requires netty-transport-native-kqueue lib in classpath

## transportMode: "NIO"

配置文件中都有关于配置的官方说明，其中transportMode:"NIO" 为默认配置，可以不配置，配置会导致文件格式解析问题。

3 . 注解启动

在启动类上加入缓存启动注解

@SpringBootApplication

@EnableCaching

public class JpaRedisDemoApplication {

public static void main(String[] args) { SpringApplication.run(JpaRedisDemoApplication.class, args);}

}

3 . 创建实体测试

创建相应的实体测试二级缓存是否生效。

就这样简单四个步骤就可以将hibernate-redis集成到JPA中

版本说明

hibernate-redis 官方发布的版本为2.3.2 ，可以支持hibernate (4.x, 5.1.x, 5.2.x) ，但是本文在集成该hibernate-core-5.2.11.Final版本，

出现问题：

官方的问题列表中也存在这个问题，并且说明在hibernate-redis-2.4.0版本中解决，但2.4.0 版本还未发布，需要手动下载jar，并安装到本地仓库中去

下载地址：hibernate-redis-2.4.0

安装命令：

mvn install:install-file -Dfile=hibernate-redis-2.4.0.jar -DgroupId=com.github.debop -DartifactId=hibernate-redis -Dversion=2.4.0 -Dpackaging=jar

源代码实例
