PlatformCableUSB是一款高性能的编程与配置工具，适用于Xilinx FPGA/CPLD及ISP Configuration PROM等设备。该工具支持多种编程模式如JTAG、Slave Serial和SPI，并能自动适应不同的目标I/O电压。它兼容Windows和Linux系统，通过USB接口供电，无需额外电源。此外，还支持Xilinx iMPACT等软件进行设备编程。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

Key Features

High-performance FPGA configuration and PROM/CPLD programming
- Includes innovative FPGA-based acceleration firmware encapsulated in a small
  form factor pod attached to the cable

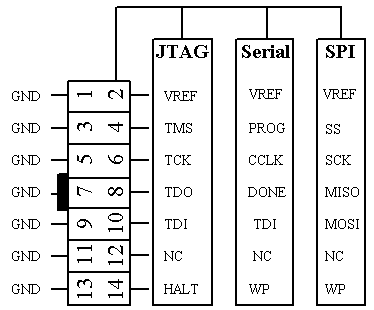

- Supports JTAG and Slave-Serial programming topologies
- Firmware downloadable over cable
Easy to use
- Fully integrated and optimized for use with Xilinx iMPACT software
- Intuitive multiple cable management from a single application
- Compatible with Windows and Linux operating systems
- Automatically senses and adapts to target I/O voltage
- Interfaces to devices operating at 5V (TTL), 3.3V (LVCMOS), 2.5V, 1.8V and 1.5V
- Bus-powered USB device (no power supply required)
- Flyleads compatible
- Target power status LED
- Firmware updates are transparent to the user
Reliable
- Backwards compatibility with Platform Cable USB, including Pb-Free (RoHS-compliant)
- USB Integrators Forum (USB-IF) certified
- CE and FCC compliant
- Leverages industry standards, including JTAG Boundary-Scan IEEE 1149.1, SPI and USB 2.0
- Compatible with Full-Speed and Hi-Speed USB ports
- Programs and configures all Xilinx devices**
Third-party PROM device programming support
- Directly programs selected Serial Peripheral Interface (SPI) flash memory devices
- Indirectly programs selected SPI or parallel flash memory devices via FPGA JTAG port
- Highly optimized for use with Xilinx design tools - ISE® Foundation™ Software, Embedded Development Kit, ChipScope Pro Analyzer and System Generator for DSP.
Pb-Free (RoHS-compliant)
Recommended for prototyping use only
