1、消息队列

1.1、定义

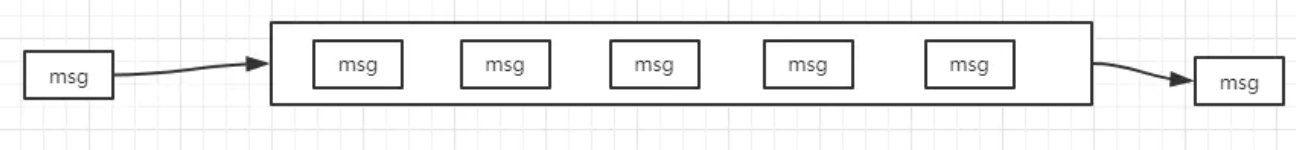

消息队列就是基础数据结构中的“先进先出”的一种数据机构，生活中买东西，需要排队，先排的人先买消费，就是典型的“先进先出”
在这里插入图片描述

1.2、MQ解决什么问题

MQ是一直存在,不过随着微服务架构的流行,成了解决微服务之间问题的常用工具

1.2.1、应用解耦

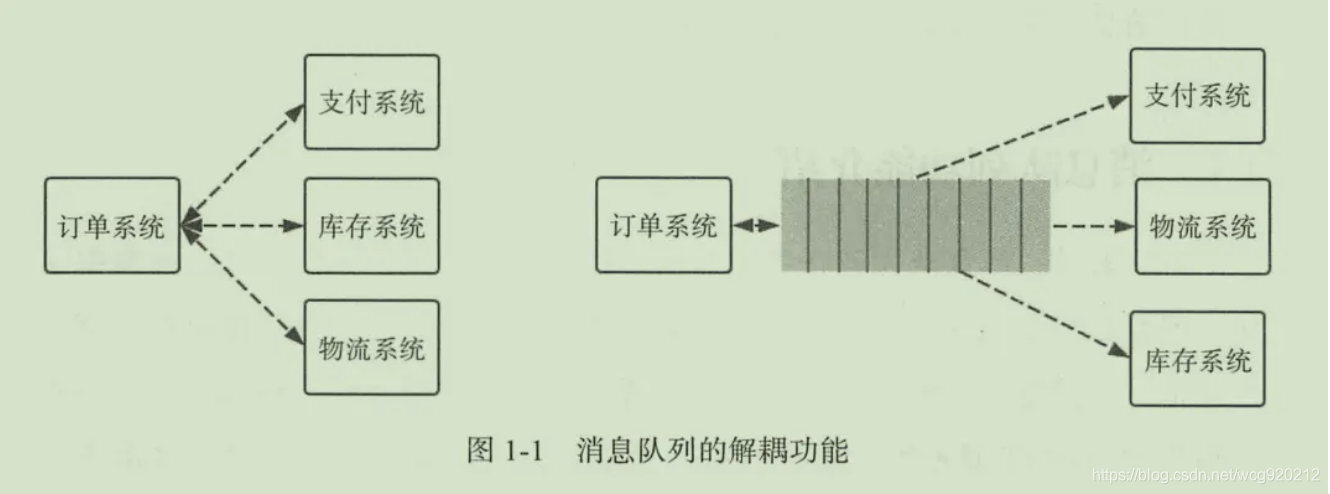

以电商应用为例,应用中有订单系统、库存系统、物流系统、支付系统,用户创建订单后,如果耦合调用库存系统、物流系统、支付系统,任何一个子系统出了故障,都会造成下单操作异常

当转变成基于消息队列的方式后,系统间调用的问题会减少很多,比如物流系统因为发生故障,需要几分钟来修复,在这几分钟的时间里,物流系统要处理的内存被缓存在消息队列中,用户的下单操作可以正常完成,当物流系统恢复后,继续处理订单信息即可,中单用户感受不到物流系统的故障,提升系统的可用性

在这里插入图片描述

1.2.2、流量消峰

如果订单系统最多能处理一万次订单,这个处理能力应付正常时段的下单时绰绰有余,正常时段我们下单一秒后就能返回结果,但是在高峰期,如果有两万次下单操作系统是处理不了的,只能限制订单超过一万后不允许用户下单

使用消息队列做缓冲,我们可以取消这个限制,把一秒内下的订单分散成一段时间来处理,这事有些用户可能在下单十几秒后才能收到下单成功的操作,但是比不能下单的体验要好

1.2.3、消息分发

多个服务队数据感兴趣，只需要监听同一类消息即可处理

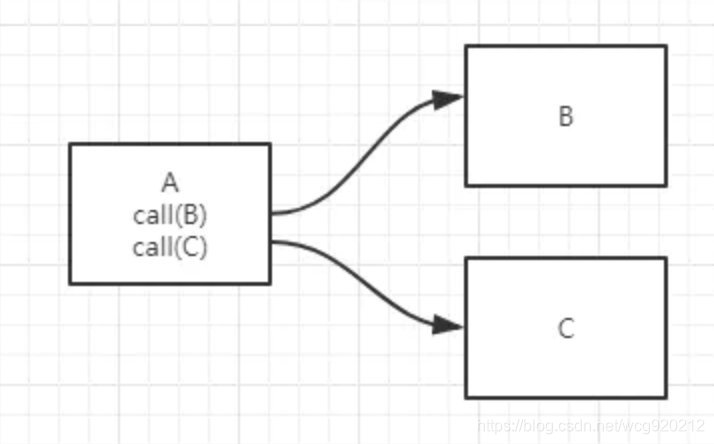

例如A产生数据，B对数据感兴趣。如果没有消息的队列A每次处理完需要调用一下B服务，过了一段时间C对数据也感性，A就需要改代码，调用B服务，调用C服务，只要有服务需要，A服务都要改动代码，很不方便
在这里插入图片描述

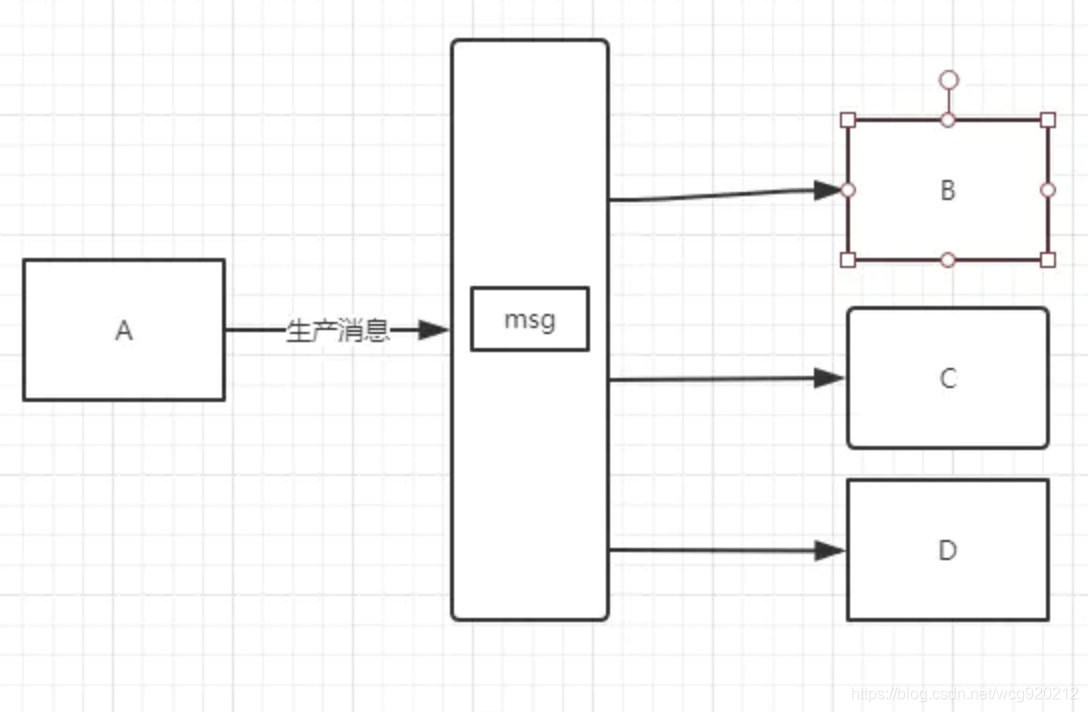

有了消息队列后，A只管发送一次消息，B对消息感兴趣，只需要监听消息，C感兴趣，C也去监听消息，A服务作为基础服务完全不需要有改动

1.2.4、异步消息

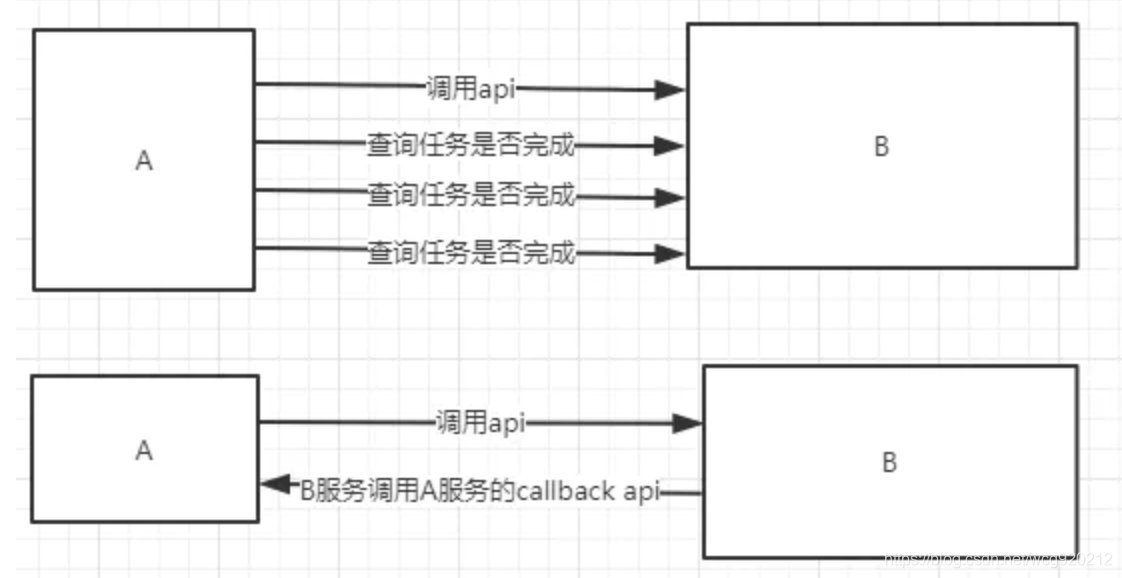

有些服务间调用是异步的，例如A调用B，B需要花费很长时间执行，但是A需要知道B什么时候可以执行完，以前一般有两种方式，A过一段时间去调用B的查询api查询，或者A提供一个callback api，B执行完之后调用api通知A服务，这两种方式都不是很优雅
在这里插入图片描述

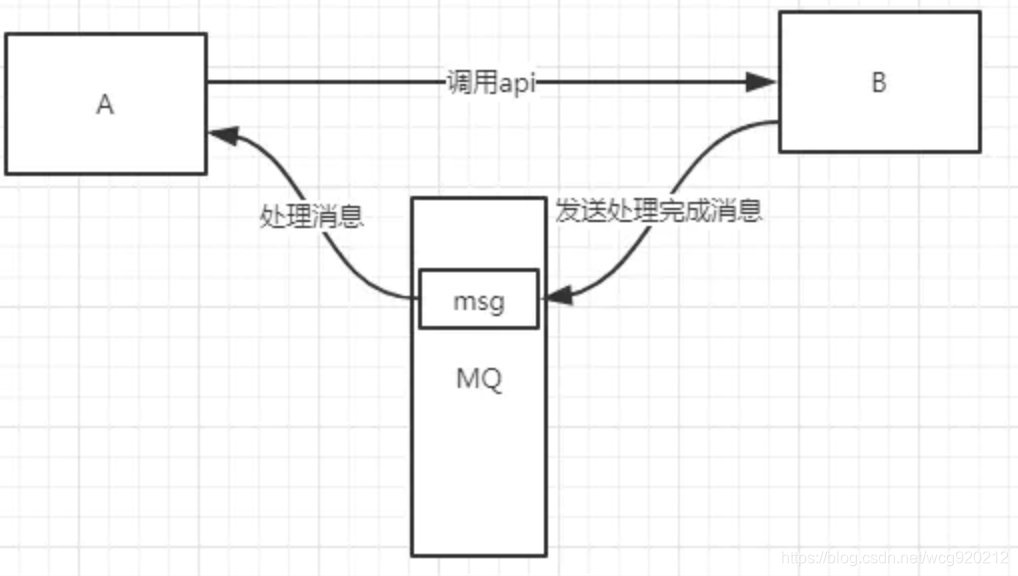

使用消息总线，可以很方便解决这个问题，A调用B服务后，只需要监听B处理完成的消息，当B处理完成后，会发送一条消息给MQ，MQ会将此消息转发给A服务

这样A服务既不用循环调用B的查询api，也不用提供callback api，同样B服务也不用做这些操作，A服务还能及时的得到异步处理成功的消息
在这里插入图片描述

2、Rabbitmq安装

官网：https://www.rabbitmq.com/getstarted.html

2.1、服务端原生安装

# 安装配置epel源
# 安装erlang
yum -y install erlang
# 安装RabbitMQ
yum -y install rabbitmq-server

2.2、服务端Docker安装

docker pull rabbitmq:management
docker run -di --name Myrabbitmq -e RABBITMQ_DEFAULT_USER=admin -e RABBITMQ_DEFAULT_PASS=admin -p 15672:15672 -p 5672:5672 rabbitmq:management

2.3、客户端安装

pip3 install pika

2.4、设置用户和密码

rabbitmqctl add_user allen 123
# 设置用户为administrator角色
rabbitmqctl set_user_tags allen administrator
# 设置权限
rabbitmqctl set_permissions -p "/" root ".*" ".*" ".*"

# 然后重启rabbiMQ服务
systemctl reatart rabbitmq-server

# 然后可以使用刚才的用户远程连接rabbitmq server了

3、基于Queue实现生产者消费者模型

import Queue
import threading

message = Queue.Queue(10)

def producer(i):
    while True:
        message.put(i)

def consumer(i):
    while True:
        msg = message.get()

for i in range(12):
    t = threading.Thread(target=producer, args=(i,))
    t.start()

for i in range(10):
    t = threading.Thread(target=consumer, args=(i,))
    t.start()

4、基本使用(生产者消费者模型)

对于RabbitMQ来说，生产和消费不再针对内存里的一个Queue对象，而是某台服务器上的RabbitMQ Server实现的消息队列

生产者

import pika

# 无密码
# connection = pika.BlockingConnection(pika.ConnectionParameters('192.168.12.80'))

# 有密码
credentials = pika.PlainCredentials("admin", "admin")
# 拿到连接对象
connection = pika.BlockingConnection(pika.ConnectionParameters('192.168.12.80', credentials=credentials))
# 拿到channel对象
channel = connection.channel()
# 声明一个队列
channel.queue_declare(queue='hello')  # 指定队列名称
# 生产者向队列中放一条消息
channel.basic_publish(exchange='',
                      routing_key='hello',  # 消息队列名称
                      body='Hello Python!')
print("Sent 'Hello Python!'")
# 关闭连接
connection.close()

消费者

import pika

# 无密码
# connection = pika.BlockingConnection(pika.ConnectionParameters('192.168.12.80'))

# 有密码
credentials = pika.PlainCredentials("admin", "admin")
connection = pika.BlockingConnection(pika.ConnectionParameters('192.168.12.80', credentials=credentials))


def main():
    channel = connection.channel()

    channel.queue_declare(queue='hello')

    def callback(ch, method, properties, body):
        print(" [x] Received %r" % body)

    channel.basic_consume(queue='hello', on_message_callback=callback, auto_ack=True)

    channel.start_consuming()


if __name__ == '__main__':
    main()

5、消息确认机制

重要配置参数

# 通知服务端,消息取走了,如果auto_ack=False,不加下面的配置,消息会一直存在
ch.basic_ack(delivery_tag=method.delivery_tag)

生产者

import pika

# 无密码
# connection = pika.BlockingConnection(pika.ConnectionParameters('192.168.12.80'))

# 有密码
credentials = pika.PlainCredentials("admin", "admin")
connection = pika.BlockingConnection(pika.ConnectionParameters('192.168.12.80', credentials=credentials))

channel = connection.channel()
# 声明一个队列(创建一个队列)
channel.queue_declare(queue='hello2')

channel.basic_publish(exchange='',
                      routing_key='hello2',
                      body='Hello Python!')
print("Sent 'Hello Python!'")

connection.close()

消费者

import pika, sys, os

# 无密码
# connection = pika.BlockingConnection(pika.ConnectionParameters('192.168.12.80'))

# 有密码
credentials = pika.PlainCredentials("admin", "admin")
connection = pika.BlockingConnection(pika.ConnectionParameters('192.168.12.80', credentials=credentials))


def main():
    channel = connection.channel()
	# 声明一个队列(创建一个队列)
    channel.queue_declare(queue='hello2')

    def callback(ch, method, properties, body):
        print(" [x] Received %r" % body)
        # 真正的消息处理完了,再发确认
        # 通知服务端,消息取走了,如果auto_ack=False,不加下面的配置,消息会一直存在
        ch.basic_ack(delivery_tag=method.delivery_tag)

    channel.basic_consume(queue='hello2', on_message_callback=callback,auto_ack=False)

    channel.start_consuming()


if __name__ == '__main__':
    main()

6、消息安全之durable持久化

重要配置参数

# 在声明队列时,指定持久化
channel.queue_declare(queue='hello3', durable=True)
# 在发布消息的时候,指定消息持久化
properties=pika.BasicProperties(
   delivery_mode=2,  # make message persistent
)

生产者

import pika

# 无密码
# connection = pika.BlockingConnection(pika.ConnectionParameters('192.168.12.80'))

# 有密码
credentials = pika.PlainCredentials("admin", "admin")
connection = pika.BlockingConnection(pika.ConnectionParameters('192.168.12.80', credentials=credentials))

channel = connection.channel()
# 声明一个队列(创建一个队列),durable=True支持持久化,队列必须是新的才可以
channel.queue_declare(queue='hello3', durable=True)

channel.basic_publish(exchange='',
                      routing_key='hello3',
                      body='Hello Python!',
                      properties=pika.BasicProperties(
                          delivery_mode=2,  # make message persistent 消息也持久化
                      ))

print("Sent 'Hello Python!'")

connection.close()

消费者

import pika, sys, os

# 无密码
# connection = pika.BlockingConnection(pika.ConnectionParameters('192.168.12.80'))

# 有密码
credentials = pika.PlainCredentials("admin", "admin")
connection = pika.BlockingConnection(pika.ConnectionParameters('192.168.12.80', credentials=credentials))


def main():
    channel = connection.channel()
    # 声明一个队列(创建一个队列),durable=True支持持久化,队列必须是新的才可以
    channel.queue_declare(queue='hello3', durable=True)

    def callback(ch, method, properties, body):
        print(" [x] Received %r" % body)
        # 真正的消息处理完了，再发确认
        ch.basic_ack(delivery_tag=method.delivery_tag)

    channel.basic_consume(queue='hello3', on_message_callback=callback)

    channel.start_consuming()


if __name__ == '__main__':
    main()

7、闲置消费

说明

正常情况如果有多个消费者,是按照顺序第一个消息给第一个消费者,第二个消息给第二个消费者
但是可能第一个消息的消费者处理消息很耗时,一直没结束,就可以让第二个消费者优先获得闲置的消息

重要配置参数

# 谁闲置谁获取,没必要按照顺序一个一个来
channel.basic_qos(prefetch_count=1)

生产者

import pika

# 无密码
# connection = pika.BlockingConnection(pika.ConnectionParameters('192.168.12.80'))

# 有密码
credentials = pika.PlainCredentials("admin", "admin")
connection = pika.BlockingConnection(pika.ConnectionParameters('192.168.12.80', credentials=credentials))

channel = connection.channel()
# 声明一个队列(创建一个队列),durable=True支持持久化,队列必须是新的才可以
channel.queue_declare(queue='hello4', durable=True)

channel.basic_publish(exchange='',
                      routing_key='hello4',
                      body='Hello Python!',
                      properties=pika.BasicProperties(
                          delivery_mode=2,  # make message persistent 消息也持久化
                      ))

print("Sent 'Hello Python!'")

connection.close()

消费者1

import pika, sys, os

# 无密码
# connection = pika.BlockingConnection(pika.ConnectionParameters('192.168.12.80'))

# 有密码
credentials = pika.PlainCredentials("admin", "admin")
connection = pika.BlockingConnection(pika.ConnectionParameters('192.168.12.80', credentials=credentials))


def main():
    channel = connection.channel()
    # 声明一个队列(创建一个队列),durable=True支持持久化,队列必须是新的才可以
    channel.queue_declare(queue='hello4', durable=True)

    def callback(ch, method, properties, body):
        import time
        time.sleep(50)  # 模拟大量延迟,消费者1处于阻塞状态,这种情况下闲置的消费者会获取消息
        print(" [x] Received %r" % body)
        # 真正的消息处理完了，再发确认
        ch.basic_ack(delivery_tag=method.delivery_tag)

    # 谁闲置谁获取,没必要按照顺序一个一个来
    channel.basic_qos(prefetch_count=1)
    channel.basic_consume(queue='hello4', on_message_callback=callback)

    channel.start_consuming()


if __name__ == '__main__':
    main()

消费者2

import pika, sys, os

# 无密码
# connection = pika.BlockingConnection(pika.ConnectionParameters('192.168.12.80'))

# 有密码
credentials = pika.PlainCredentials("admin", "admin")
connection = pika.BlockingConnection(pika.ConnectionParameters('192.168.12.80', credentials=credentials))


def main():
    channel = connection.channel()
    # 声明一个队列(创建一个队列),durable=True支持持久化,队列必须是新的才可以
    channel.queue_declare(queue='hello4', durable=True)

    def callback(ch, method, properties, body):
        print(" [x] Received %r" % body)
        # 真正的消息处理完了，再发确认
        ch.basic_ack(delivery_tag=method.delivery_tag)

    # 谁闲置谁获取,没必要按照顺序一个一个来
    channel.basic_qos(prefetch_count=1)
    channel.basic_consume(queue='hello4', on_message_callback=callback)

    channel.start_consuming()


if __name__ == '__main__':
    main()

8、发布订阅

发布者

import pika

# 有密码
credentials = pika.PlainCredentials("admin", "admin")
connection = pika.BlockingConnection(pika.ConnectionParameters('192.168.12.80', credentials=credentials))
channel = connection.channel()
# 声明队列没有指定名字,指定了exchange
channel.exchange_declare(exchange='logs', exchange_type='fanout')

message = "info: Hello World!"
channel.basic_publish(exchange='logs', routing_key='', body=message)
print(" [x] Sent %r" % message)
connection.close()

订阅者(启动几次订阅者会生成几个队列)

import pika

# 有密码
credentials = pika.PlainCredentials("admin", "admin")
connection = pika.BlockingConnection(pika.ConnectionParameters('192.168.12.80', credentials=credentials))
channel = connection.channel()

channel.exchange_declare(exchange='logs', exchange_type='fanout')
# queue不能指定名字,随机生成,当前文件执行n遍就会生成n个不同的名字
result = channel.queue_declare(queue='', exclusive=True)
queue_name = result.method.queue
print(queue_name)
channel.queue_bind(exchange='logs', queue=queue_name)

print(' [*] Waiting for logs. To exit press CTRL+C')


def callback(ch, method, properties, body):
    print(" [x] %r" % body)


channel.basic_consume(
    queue=queue_name, on_message_callback=callback, auto_ack=True)

channel.start_consuming()

9、发布订阅高级之Routing(按关键字匹配)

发布者

import pika

# 有密码
credentials = pika.PlainCredentials("admin", "admin")
connection = pika.BlockingConnection(pika.ConnectionParameters('192.168.12.80', credentials=credentials))
channel = connection.channel()
# 声明队列没有指定名字,指定了exchange,exchange必须是新的,不要用已经存在的
channel.exchange_declare(exchange='logs1', exchange_type='direct')

message = "sports: Hello World!"
channel.basic_publish(exchange='logs1',
                      routing_key='sports',  # 多个关键字,指定routing_key,订阅者只要设置了当前routing_key,都会收到发布者发送的消息
                      body=message)
print(" [x] Sent %r" % message)
connection.close()

订阅者1

import pika

# 有密码
credentials = pika.PlainCredentials("admin", "admin")
connection = pika.BlockingConnection(pika.ConnectionParameters('192.168.12.80', credentials=credentials))
channel = connection.channel()
# exchange='logs1',exchange(秘书)的名称
# exchange_type='direct',秘书工作方式将消息发送给不同的关键字
channel.exchange_declare(exchange='logs1', exchange_type='direct')
# queue不能指定名字,随机生成,当前文件执行n遍就会生成n个不同的名字
# 随机生成一个队列
result = channel.queue_declare(queue='', exclusive=True)
queue_name = result.method.queue
print(queue_name)
# 订阅了sports和star
# 让exchange和queque进行绑定
channel.queue_bind(exchange='logs1', queue=queue_name, routing_key='sports')
channel.queue_bind(exchange='logs1', queue=queue_name, routing_key='star')

print(' [*] Waiting for logs. To exit press CTRL+C')


def callback(ch, method, properties, body):
    print(" [x] %r" % body)


channel.basic_consume(
    queue=queue_name, on_message_callback=callback, auto_ack=True)

channel.start_consuming()

订阅者2

import pika

# 有密码
credentials = pika.PlainCredentials("admin", "admin")
connection = pika.BlockingConnection(pika.ConnectionParameters('192.168.12.80', credentials=credentials))
channel = connection.channel()
# exchange='logs1',exchange(秘书)的名称
# exchange_type='direct',秘书工作方式将消息发送给不同的关键字
channel.exchange_declare(exchange='logs1', exchange_type='direct')
# queue不能指定名字,随机生成,当前文件执行n遍就会生成n个不同的名字
# 随机生成一个队列
result = channel.queue_declare(queue='', exclusive=True)
queue_name = result.method.queue
print(queue_name)
# 订阅了star
# 让exchange和queque进行绑定
channel.queue_bind(exchange='logs1', queue=queue_name, routing_key='star')

print(' [*] Waiting for logs. To exit press CTRL+C')


def callback(ch, method, properties, body):
    print(" [x] %r" % body)


channel.basic_consume(
    queue=queue_name, on_message_callback=callback, auto_ack=True)

channel.start_consuming()

10、发布订阅高级之Topic(按关键字模糊匹配)

重要参数

*只能加一个单词
#可以加任意单词字符

发布者

import pika

# 有密码
credentials = pika.PlainCredentials("admin", "admin")
connection = pika.BlockingConnection(pika.ConnectionParameters('192.168.12.80', credentials=credentials))
channel = connection.channel()
# 声明队列没有指定名字,指定了exchange
channel.exchange_declare(exchange='logs2', exchange_type='topic')

message = "hello.java.php.go!"
channel.basic_publish(exchange='logs2',
                      # routing_key='hello.java',  这种方式都能收到
                      routing_key='hello.java.php.go',  # 只有hello.#能收到
                      body=message)
print(" [x] Sent %r" % message)
connection.close()

订阅者1

import pika

# 有密码
credentials = pika.PlainCredentials("admin", "admin")
connection = pika.BlockingConnection(pika.ConnectionParameters('192.168.12.80', credentials=credentials))
channel = connection.channel()
# exchange='logs2',exchange(秘书)的名称
# exchange_type='topic',模糊匹配
channel.exchange_declare(exchange='logs2', exchange_type='topic')
# queue不能指定名字,随机生成,当前文件执行n遍就会生成n个不同的名字
result = channel.queue_declare(queue='', exclusive=True)
queue_name = result.method.queue
print(queue_name)
channel.queue_bind(exchange='logs2', queue=queue_name, routing_key='hello.#')

print(' [*] Waiting for logs. To exit press CTRL+C')


def callback(ch, method, properties, body):
    print(" [x] %r" % body)


channel.basic_consume(
    queue=queue_name, on_message_callback=callback, auto_ack=True)

channel.start_consuming()

订阅者2

import pika

# 有密码
credentials = pika.PlainCredentials("admin", "admin")
connection = pika.BlockingConnection(pika.ConnectionParameters('192.168.12.80', credentials=credentials))
channel = connection.channel()
# exchange='logs2',exchange(秘书)的名称
# exchange_type='topic',模糊匹配
channel.exchange_declare(exchange='logs2', exchange_type='topic')
# queue不能指定名字,随机生成,当前文件执行n遍就会生成n个不同的名字
result = channel.queue_declare(queue='', exclusive=True)
queue_name = result.method.queue
print(queue_name)
channel.queue_bind(exchange='logs2', queue=queue_name, routing_key='hello.*')

print(' [*] Waiting for logs. To exit press CTRL+C')


def callback(ch, method, properties, body):
    print(" [x] %r" % body)


channel.basic_consume(
    queue=queue_name, on_message_callback=callback, auto_ack=True)

channel.start_consuming()

11、基于rabbitmq实现rpc

服务端

import pika

credentials = pika.PlainCredentials("admin", "admin")
connection = pika.BlockingConnection(pika.ConnectionParameters('192.168.12.80', credentials=credentials))
channel = connection.channel()
# 监听任务队列
channel.queue_declare(queue='rpc_queue')


def fib(n):
    if n == 0:
        return 0
    elif n == 1:
        return 1
    else:
        return fib(n - 1) + fib(n - 2)


def on_request(ch, method, props, body):
    n = int(body)

    print(" [.] fib(%s)" % n)
    response = fib(n)
    # props.reply_to  要放结果的队列
    # props.correlation_id  任务
    ch.basic_publish(exchange='',
                     routing_key=props.reply_to,
                     properties=pika.BasicProperties(correlation_id=props.correlation_id),
                     body=str(response))
    ch.basic_ack(delivery_tag=method.delivery_tag)


channel.basic_qos(prefetch_count=1)
channel.basic_consume(queue='rpc_queue', on_message_callback=on_request)

print(" [x] Awaiting RPC requests")
channel.start_consuming()

客户端

import pika
import uuid


class FibonacciRpcClient(object):

    def __init__(self):
        self.credentials = pika.PlainCredentials("admin", "admin")
        self.connection = pika.BlockingConnection(
            pika.ConnectionParameters('192.168.12.80', credentials=self.credentials))

        self.channel = self.connection.channel()
        # 随机生成一个消息队列(用于接收结果)
        result = self.channel.queue_declare(queue='', exclusive=True)
        self.callback_queue = result.method.queue
        # 监听消息队列中是否有值返回,如果有值则执行 on_response 函数(一旦有结果,则执行on_response)
        self.channel.basic_consume(
            queue=self.callback_queue,
            on_message_callback=self.on_response,
            auto_ack=True)

    def on_response(self, ch, method, props, body):
        if self.corr_id == props.correlation_id:
            self.response = body

    def call(self, n):
        self.response = None
        self.corr_id = str(uuid.uuid4())
        # 客户端 给 服务端 发送一个任务: 任务id = corr_id / 任务内容 = '30' / 用于接收结果的队列名称
        self.channel.basic_publish(
            exchange='',
            routing_key='rpc_queue',  # 服务端接收任务的队列名称
            properties=pika.BasicProperties(
                reply_to=self.callback_queue,  # 用于接收结果的队列
                correlation_id=self.corr_id,   # 任务ID
            ),
            body=str(n))
        while self.response is None:
            self.connection.process_data_events()
        return int(self.response)


fibonacci_rpc = FibonacciRpcClient()

print(" [x] Requesting fib(30)")
response = fibonacci_rpc.call(30)
print(" [.] Got %r" % response)

12、python中的rpc框架

自带的: SimpleXMLRPCServer(数据包大,速度慢)
第三方: ZeroRPC(底层使用ZeroMQ和MessagePack,速度快,响应时间短,并发高),grpc(谷歌推出支持夸语言)

12.1、SimpleXMLRPCServer使用

服务端

from xmlrpc.server import SimpleXMLRPCServer


class RPCServer(object):

    def __init__(self):
        super(RPCServer, self).__init__()
        print(self)
        self.send_data = 'hello world'
        self.recv_data = None

    def getObj(self):
        print('get data')
        return self.send_data

    def sendObj(self, data):
        print('send data')
        self.recv_data = data
        print(self.recv_data)


# SimpleXMLRPCServer
server = SimpleXMLRPCServer(('localhost', 4242), allow_none=True)
server.register_introspection_functions()
server.register_instance(RPCServer())
server.serve_forever()

客户端

import time
from xmlrpc.client import ServerProxy


# SimpleXMLRPCServer
def xmlrpc_client():
    print('xmlrpc client')
    c = ServerProxy('http://localhost:4242')
    data = {'client:' + str(i): i for i in range(100)}
    start = time.perf_counter()
    for i in range(50):
        a = c.getObj()
        print(a)
    for i in range(50):
        c.sendObj(data)
    print('xmlrpc total time %s' % (time.perf_counter() - start))


if __name__ == '__main__':
    xmlrpc_client()

12.2、ZeroRPC使用

服务端

import zerorpc


class RPCServer(object):

    def __init__(self):
        super(RPCServer, self).__init__()
        print(self)
        self.send_data = 'hello world'
        self.recv_data = None

    def getObj(self):
        print('get data')
        return self.send_data

    def sendObj(self, data):
        print('send data')
        self.recv_data = data
        print(self.recv_data)


# zerorpc
s = zerorpc.Server(RPCServer())
s.bind('tcp://0.0.0.0:4243')
s.run()

客户端

import zerorpc
import time


# zerorpc
def zerorpc_client():
    print('zerorpc client')
    c = zerorpc.Client()
    c.connect('tcp://127.0.0.1:4243')
    data = 'hello world'
    start = time.perf_counter()
    for i in range(500):
        a = c.getObj()
        print(a)
    for i in range(500):
        c.sendObj(data)

    print('total time %s' % (time.perf_counter() - start))


if __name__ == '__main__':
    zerorpc_client()
