ABAP 成本中心发料报表

一、业务情况

成本中心发料，涉及的移动类型为MATDOC-BWART = 201 and 202，因此，在取数时，需要限制移动类型的数据

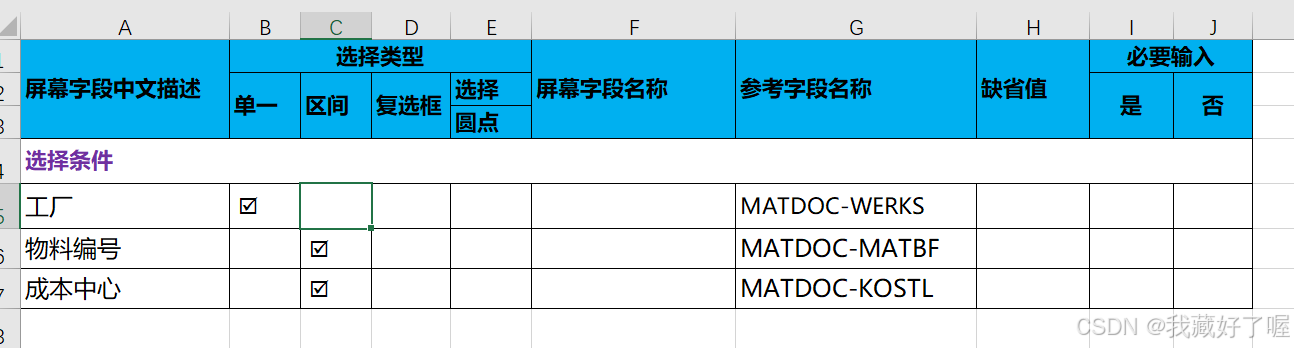

输入的屏幕

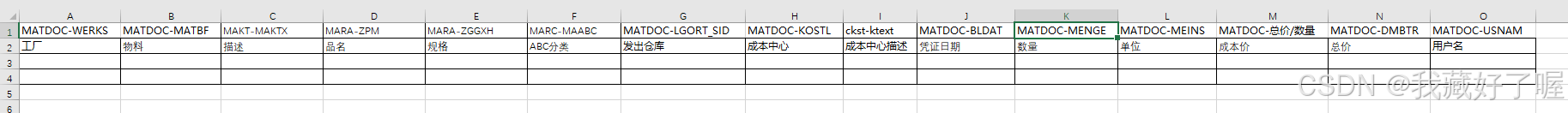

涉及的字段

二、程序

1、声明部分

TABLES:matdoc,makt,mara,marc,csks,cskt.
TYPE-POOLS:slis.

TYPES:BEGIN OF ty_output,
        werks     TYPE matdoc-werks,     "工厂
        matbf     TYPE matdoc-matbf,     "物料
        maktx     TYPE makt-maktx,       "物料描述
        zpm       TYPE mara-zpm,         "品名
        zggxh     TYPE mara-zggxh,       "规格
        maabc     TYPE marc-maabc,       "ABC分类
        lgort_sid TYPE matdoc-lgort_sid, "发出仓库
        kostl     TYPE matdoc-kostl,     "成本中心
        Ktext     TYPE cskt-Ktext,       "成本中心描述
        bldat     TYPE matdoc-bldat,     "凭证日期
        menge     TYPE matdoc-menge,     "数量
        meins     TYPE matdoc-meins,     "单位
        cprice    TYPE dmbtr_cs,         "成本价
        dmbtr     TYPE matdoc-dmbtr,     "总价
        usnam     TYPE matdoc-usnam,     "用户名
        box       TYPE c LENGTH 1,
      END OF ty_output.

DATA gt_output TYPE TABLE OF ty_output.
DATA gs_output TYPE ty_output.

DATA gt_result TYPE TABLE OF  ty_output.
DATA gs_result TYPE ty_output.

DATA gt_fieldcat TYPE slis_t_fieldcat_alv."列属性
DATA gs_fieldcat TYPE slis_fieldcat_alv.

DATA gs_layout TYPE slis_layout_alv. "全局参数

DATA gt_events TYPE slis_t_event.  "CALLBACK事件
DATA gs_events TYPE slis_alv_event.

*定义宏
DEFINE %%append_fieldcat.
  CLEAR gs_fieldcat.
  gs_fieldcat-col_pos = &1.
  gs_fieldcat-fieldname = &2."字段名是什么
  gs_fieldcat-seltext_m = &3."描述文本
  gs_fieldcat-outputlen = &4."输出长度
  APPEND gs_fieldcat TO gt_fieldcat.
END-OF-DEFINITION.

2、选择界面部分

*选择屏幕
SELECTION-SCREEN BEGIN OF BLOCK bk01 WITH FRAME TITLE TEXT-001.
  PARAMETERS p_werks TYPE matdoc-werks OBLIGATORY."工厂

  SELECT-OPTIONS s_matbf FOR matdoc-matbf.        "物料
  SELECT-OPTIONS s_kostl FOR matdoc-kostl.         "成本中心
SELECTION-SCREEN END OF BLOCK bk01.

3、取数部分

取数部分注意：

1）不同的数据库表中的限制条件，比如MARC表中的同一个物料可能存在不同的工厂，使用LEFT JOIN会导致有两条数据存在，因此就要限制工厂的字段

2）成本中心描述也可能存在两个，因为一个成本中心的编号可能具有两个有效期，为了区分这两个有效期，就会有两个描述，在这里取出了有效期限最长的那个

FORM get_data .

  SELECT
    matdoc~werks,
    matdoc~matbf,
    makt~maktx,
    mara~zpm,
    mara~zggxh,
    marc~maabc,
    matdoc~lgort_sid,
    matdoc~kostl,
    cskt~ktext,
    matdoc~bldat,
    matdoc~menge,
    matdoc~meins,
    matdoc~dmbtr,
    matdoc~usnam
    FROM matdoc
    INNER JOIN makt ON matdoc~matbf = makt~matnr
    LEFT JOIN mara ON matdoc~matbf = mara~matnr
    LEFT JOIN marc ON matdoc~matbf = marc~matnr AND matdoc~werks = marc~werks "同一个物料可能存在多个工厂中
    INNER JOIN cskt ON matdoc~kostl = cskt~kostl AND cskt~datbi =  '99991231'"部门可能拥有两个有效期的成本中心，取最新数据
    WHERE  matdoc~bwart BETWEEN '201' AND  '202'
      AND matdoc~werks = @p_werks
      AND matdoc~matbf IN @s_matbf
      AND matdoc~kostl IN @s_kostl
    INTO CORRESPONDING FIELDS OF TABLE @gt_result.

**计算物料的单价
  CLEAR gs_output.
  LOOP AT gt_result INTO gs_output.
    SHIFT gs_output-kostl LEFT DELETING LEADING '0'.
    IF gs_output-menge <> 0."确保除数不为零
      gs_output-cprice = gs_output-dmbtr / gs_output-menge.
      APPEND gs_output TO gt_output.
    ELSE.
      gs_output-cprice = '0'.
      APPEND  gs_output TO gt_output.
    ENDIF.
  ENDLOOP.
ENDFORM.

4、布局部分

FORM display_data .
  PERFORM build_fieldcat.
  PERFORM build_layout.
  PERFORM build_events.
  PERFORM build_alv.
ENDFORM.

*&---------------------------------------------------------------------*
*& Form build_alv
*&---------------------------------------------------------------------*
*& text
*&---------------------------------------------------------------------*
*& -->  p1        text
*& <--  p2        text
*&---------------------------------------------------------------------*
FORM build_alv .
  CALL FUNCTION 'REUSE_ALV_GRID_DISPLAY'
    EXPORTING
      i_callback_program       = sy-cprog
      i_callback_pf_status_set = 'SET_STATUS'
*     I_CALLBACK_USER_COMMAND  = ' '
      is_layout                = gs_layout
      it_fieldcat              = gt_fieldcat
      it_events                = gt_events
    TABLES
      t_outtab                 = gt_output
    EXCEPTIONS
      program_error            = 1
      OTHERS                   = 2.
  IF sy-subrc <> 0.
  ENDIF.
ENDFORM.

*&---------------------------------------------------------------------*
*& Form build_fieldcat
*&---------------------------------------------------------------------*
*& text
*&---------------------------------------------------------------------*
*& -->  p1        text
*& <--  p2        text
*&---------------------------------------------------------------------*
FORM build_fieldcat .
  %%append_fieldcat: '1' 'WERKS' '工厂' '4',
                     '2' 'MATBF' '物料' '40',
                     '3' 'MAKTX' '描述' '40',
                     '4' 'ZPM'   '品名' '40',
                     '5' 'ZGGXH' '规格' '128',
                     '6' 'MAABC' 'ABC分类' '1',
                     '7' 'LGORT_SID' '发出仓库' '4',
                     '8' 'KOSTL' '成本中心' '10',
                     '9' 'KTEXT'   '成本中心描述' '20',
                     '10' 'BLDAT' '凭证日期' '8',
                     '11' 'MENGE' '数量' '13',
                     '12' 'MEINS' '单位'  '3',
                     '13' 'CPRICE' '成本价' '13',
                     '14' 'DMBTR' '总价' '13',
                     '15' 'USNAM' '用户名' '12'.
ENDFORM.
*&---------------------------------------------------------------------*
*& Form build_layout
*&---------------------------------------------------------------------*
*& text
*&---------------------------------------------------------------------*
*& -->  p1        text
*& <--  p2        text
*&---------------------------------------------------------------------*
FORM build_layout .
  gs_layout-colwidth_optimize = 'X'."优化列宽
  gs_layout-zebra = 'X'. "斑马纹输出
  gs_layout-box_fieldname = 'BOX'.
  gs_layout-window_titlebar = '成本中心发料清单' .
ENDFORM.
*&---------------------------------------------------------------------*
*& Form build_events
*&---------------------------------------------------------------------*
*& text
*&---------------------------------------------------------------------*
*& -->  p1        text
*& <--  p2        text
*&---------------------------------------------------------------------*
FORM build_events .
  CLEAR gs_events.
  gs_events-name = 'PF_STATUS_SET'.
  gs_events-form = 'SET_STATUS'."子程序
  APPEND gs_events TO gt_events.
ENDFORM.

FORM set_status USING rt_extab TYPE slis_t_extab.
  SET PF-STATUS 'STANDARD'."参照标准按钮
ENDFORM.

5、权限设置

  AUTHORITY-CHECK OBJECT 'M_MATE_WRK'
   ID 'ACTVT'  FIELD '03'
   ID 'WERKS' FIELD p_werks.
  IF sy-subrc <> 0.
*不报E类型的message，因为如果是E类型，程序终止，用户没有办法修改
    MESSAGE s001 WITH  '无工厂权限！' DISPLAY LIKE 'E'.
    else.
       PERFORM get_data.
  ENDIF.
