一、预处理
1.1 导包
import torch
import torch.nn as nn
import torch.nn.functional as F
import torch.optim as optim
import torchvision
import torchvision.transforms as transforms
from torch.utils.tensorboard import SummaryWriter
from itertools import product
from collections import OrderedDict, namedtuple
from easydl import clear_output
from IPython.display import display
import time
import matplotlib.pyplot as plt
torch.set_printoptions(linewidth=120)
print(torch.__version__)
print(torchvision.__version__)
输出: 1.6.0+cu101
0.7.0+cu101
1.2 加载训练集，分别构建不归一化与均值方差归一化的训练集
train_set = torchvision.datasets.FashionMNIST(
root='./data/FashionMNIST',
train=True,
download=True,
transform = transforms.Compose([
transforms.ToTensor()
])
)
print(len(train_set))
train_loader = torch.utils.data.DataLoader(train_set, batch_size=len(train_set), num_workers=1)
train_data = next(iter(train_loader))
train_mean, train_std = train_data[0].mean(), train_data[0].std()
print(train_mean, train_std)
train_set_normal = torchvision.datasets.FashionMNIST(
root='./data/FashionMNIST',
train=True,
download=True,
transform = transforms.Compose([
transforms.ToTensor(),
transforms.Normalize(train_mean, train_std) # RGB图片则为transforms.Normalize([mean1, mean2, mean3], [std1, std2, std3])
])
)
print(len(train_set_normal))
train_loader = torch.utils.data.DataLoader(train_set_normal, batch_size=len(train_set), num_workers=1)
train_data_normal = next(iter(train_loader))
train_mean_normal, train_std_normal = train_data_normal[0].mean(), train_data_normal[0].std()
print(train_mean_normal, train_std_normal)

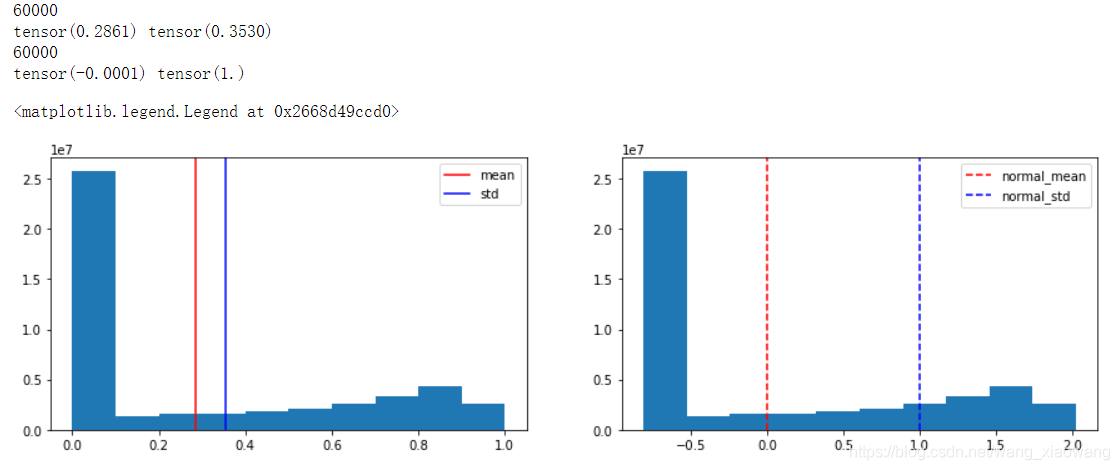

plt.figure(figsize=(15, 4))
plt.subplot(121)
plt.hist(train_data[0].flatten())
plt.axvline(train_data[0].mean(), c='r')
plt.axvline(train_data[0].std(), c='b')
plt.legend(['mean', 'std'])
plt.subplot(122)
plt.hist(train_data_normal[0].flatten())
plt.axvline(train_data_normal[0].mean(), c='r', ls='--')
plt.axvline(train_data_normal[0].std(), c='b', ls='--')
plt.legend(['normal_mean', 'normal_std'])
1.3 加载测试集，分别构建不归一化与均值方差归一化的测试集
test_set = torchvision.datasets.FashionMNIST(
root='./data/FashionMNIST',
train=False,
download=True,
transform = transforms.Compose([
transforms.ToTensor()
])
)
print(len(test_set))
test_loader = torch.utils.data.DataLoader(test_set, batch_size=len(test_set), num_workers=1)
test_data = next(iter(test_loader))
test_mean, test_std = test_data[0].mean(), test_data[0].std()
print(test_mean, test_std)
test_set_normal = torchvision.datasets.FashionMNIST(
root='./data/FashionMNIST',
train=False,
download=True,
transform = transforms.Compose([
transforms.ToTensor(),
transforms.Normalize(test_mean, test_std) # RGB图片则为transforms.Normalize([mean1, mean2, mean3], [std1, std2, std3])
])
)
print(len(test_set_normal))
test_loader = torch.utils.data.DataLoader(test_set_normal, batch_size=len(test_set_normal), num_workers=1)
test_data_normal = next(iter(test_loader))
test_mean_normal, test_std_normal = test_data_normal[0].mean(), test_data_normal[0].std()
print(test_mean_normal, test_std_normal)

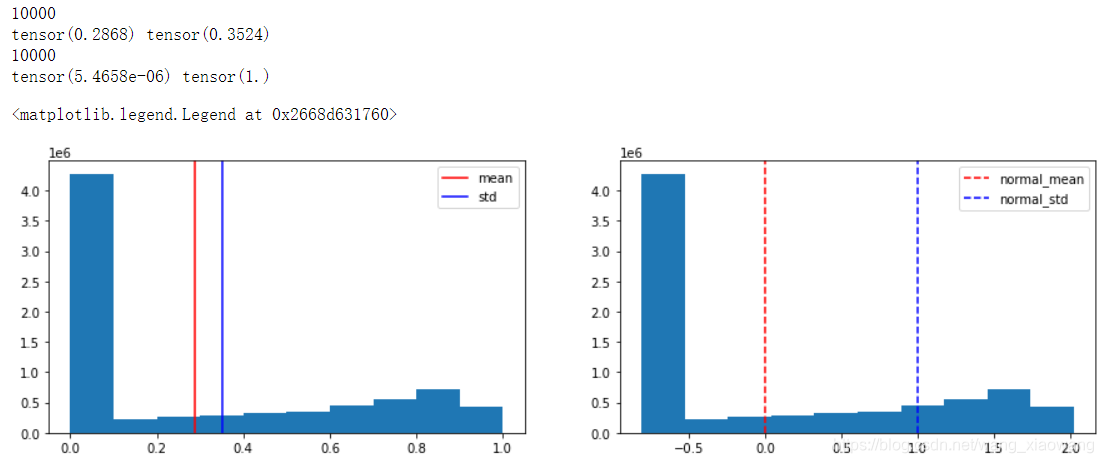

plt.figure(figsize=(15, 4))
plt.subplot(121)
plt.hist(test_data[0].flatten())
plt.axvline(test_data[0].mean(), c='r')
plt.axvline(test_data[0].std(), c='b')
plt.legend(['mean', 'std'])
plt.subplot(122)
plt.hist(test_data_normal[0].flatten())
plt.axvline(test_data_normal[0].mean(), c='r', ls='--')
plt.axvline(test_data_normal[0].std(), c='b', ls='--')
plt.legend(['normal_mean', 'normal_std'])
二、构建CNN模型
class Network(nn.Module):
def __init__(self):
super(Network, self).__init__()
# 灰度图像的channels=1即in_channels=1 输出为10个类别即out_features=10
# parameter(形参)=argument(实参) 卷积核即卷积滤波器 out_channels=6即6个卷积核 输出6个feature-maps(特征映射)
# 权重shape 6*1*5*5
self.conv1 = nn.Conv2d(in_channels=1, out_channels=6, kernel_size=5)
self.bn1 = nn.BatchNorm2d(6) # 二维批归一化 输入size=6
# 权重shape 12*1*5*5
self.conv2 = nn.Conv2d(in_channels=6, out_channels=12, kernel_size=5)
# 全连接层：fc or dense or linear out_features即特征(一阶张量)
# 权重shape 120*192
self.fc1 = nn.Linear(in_features=12*4*4, out_features=120)
self.bn2 = nn.BatchNorm1d(120) # 一维批归一化 输入size=120
# 权重shape 60*120
self.fc2 = nn.Linear(in_features=120, out_features=60)
# 权重shape 10*60
self.out = nn.Linear(in_features=60, out_features=10)
def forward(self, t):
# (1) input layer
t = t
# (2) hidden conv layer
t = F.relu(self.conv1(t)) # (28-5+0)/1+1=24 输入为b(batch_size)*1*28*28 输出为b*6*24*24 relu后shape不变
t = F.max_pool2d(t, kernel_size=2, stride=2) # (24-2+0)/2+1=12 输出为b*6*12*12
t = self.bn1(t)
# (3) hidden conv layer
t = F.relu(self.conv2(t)) # (12-5+0)/1+1=8 输出为b*12*8*8 relu后shape不变
t = F.max_pool2d(t, kernel_size=2, stride=2) # (8-2+0)/2+1=4 输出为b*12*4*4
# (4) hidden linear layer
t = F.relu(self.fc1(t.reshape(-1, 12*4*4))) # t.reshape后为b*192 全连接层后输出为b*120 relu后shape不变
t = self.bn2(t)
# (5) hidden linear layer
t = F.relu(self.fc2(t)) # 全连接层后输出为b*60 relu后shape不变
# (6) output layer
t = self.out(t) # 全连接层后输出为b*10 relu后shape不变
return t
三、辅助函数
3.1 参数实例化，方便调参
class RunBuilder:
@staticmethod
def get_run(params): # 静态方法，不需要实例化
Run = namedtuple('Run', params.keys())
runs = []
for v in product(*params.values()):
runs.append(Run(*v))
return runs
3.2 保存运行数据和模型
import pandas as pd
import numpy as np
import os
import json
import datetime
def save_result(model, run_data):
"""
运行结果保存
默认文件路径 ./run_data
默认模型路径 ./model
:param model: 模型
:param run_data: 运行数据
"""
result_dir = './run_data'
model_dir = './model'
name = 'result'
if not os.path.exists(result_dir):
os.mkdir(result_dir)
if not os.path.exists(model_dir):
os.mkdir(model_dir)
time_index = datetime.datetime.now().strftime('%Y%m%d_%H%M%S')
# 保存运行文件
run_data_path = os.path.join(result_dir, name)
pd.DataFrame(run_data).to_csv(f'{run_data_path}_{time_index}.csv', index=False)
with open(f'{run_data_path}_{time_index}.json', 'w', encoding='utf-8') as f:
json.dump(run_data, f, ensure_ascii=False, indent=4)
# 保存运行模型
model_path = os.path.join(model_dir, name)
torch.save(model.state_dict(), f'{model_path}_{time_index}.pt')
四、运行模型
4.1 训练集、测试集参数
train_set_dict = {
'normal': train_set_normal,
'no_normal': train_set
}
train_params = OrderedDict(
lr = [.01, .001],
batch_size = [1000, 2000],
shuffle = [True, False],
device = ['cuda'],
num_workers = [1], # 有多少子进程被用来加载数据 默认为0即在主进程中加载数据 可以利用多核CPU的特点指定num_workers个数 提前将数据加载到内存中
normalize = list(train_set_dict.keys())
)
test_params = OrderedDict(
lr = [np.nan],
batch_size = [1000],
shuffle = [True],
device = ['cuda'],
num_workers = [1], # 有多少子进程被用来加载数据 默认为0即在主进程中加载数据 可以利用多核CPU的特点指定num_workers个数 提前将数据加载到内存中
normalize = ['normal']
)
4.2 运行
run_count = 0
run_data = []
model = None
hightest_accuracy = 0
test_run = next(iter(RunBuilder.get_run(test_params)))
for run in RunBuilder.get_run(train_params):
device = torch.device(run.device)
network = Network().to(device)
train_loader = torch.utils.data.DataLoader(train_set_dict[run.normalize], batch_size=run.batch_size, num_workers=run.num_workers, shuffle=run.shuffle)
test_loader = torch.utils.data.DataLoader(test_set_normal, batch_size=test_run.batch_size, num_workers=test_run.num_workers, shuffle=test_run.shuffle)
optimizer = optim.Adam(network.parameters(), lr=run.lr)
run_start_time = time.time()
run_count += 1
epoch_count = 0
test_epoch_count = 0
tb = SummaryWriter(comment=f'-{run}')
images, labels = next(iter(train_loader))
grid = torchvision.utils.make_grid(images)
tb.add_image('images', grid)
tb.add_graph(network, images.to(getattr(run, 'device', 'run'))) # run中的device属性存在则使用,不存在则使用默认属性cpu
for epoch in range(20):
epoch_start_time = time.time()
epoch_count += 1
epoch_loss = 0
epoch_correct_num = 0
for batch in train_loader:
images = batch[0].to(device)
labels = batch[1].to(device)
preds = network(images) # 前向传播 根据权重参数进行预测
loss = F.cross_entropy(preds, labels) # 计算损失 构建计算图
optimizer.zero_grad() # pytorch会积累梯度 在优化每个batch的权重的梯度之前将之前权重的梯度置为0
loss.backward() # 在最后一个张量上调用反向传播方法 在计算图中计算权重梯度
optimizer.step() # 使用预先设置的learning_rate的梯度来更新权重参数
epoch_loss += loss.item() * train_loader.batch_size
epoch_correct_num += preds.argmax(dim=1).eq(labels).sum().item()
epoch_duration = time.time() - epoch_start_time
run_duration = time.time() - run_start_time
loss = epoch_loss / len(train_loader.dataset) # len(loader.dataset) = 60000
accuracy = epoch_correct_num / len(train_loader.dataset)
tb.add_scalar('Train Loss', loss, epoch_count)
tb.add_scalar('Train Accuracy', accuracy, epoch_count)
for name, param in network.named_parameters():
tb.add_histogram(name, param, epoch_count)
tb.add_histogram(f'{name}.grad', param.grad, epoch_count)
results = OrderedDict()
results['current'] = 'Train'
results['run'] = run_count
results['epoch'] = epoch_count
results['loss'] = loss
results['accuracy'] = accuracy
results['epoch duration'] = epoch_duration
results['run duration'] = run_duration
for k, v in run._asdict().items():
results[k] = v
run_data.append(results)
clear_output()
display(pd.DataFrame(run_data))
# 对测试集进行预测
if epoch_count % 5 == 0:
test_epoch_start_time = time.time()
test_epoch_count += 1
test_epoch_loss = 0
test_epoch_correct_num = 0
for batch in test_loader:
images = batch[0].to(device)
labels = batch[1].to(device)
preds = network(images) # 前向传播 根据权重参数进行预测
test_loss = F.cross_entropy(preds, labels) # 计算损失 构建计算图
test_epoch_loss += test_loss.item() * test_loader.batch_size
test_epoch_correct_num += preds.argmax(dim=1).eq(labels).sum().item()
test_epoch_duration = time.time() - test_epoch_start_time
test_run_duration = time.time() - run_start_time
test_loss = test_epoch_loss / len(test_loader.dataset) # len(loader.dataset) = 10000
test_accuracy = test_epoch_correct_num / len(test_loader.dataset)
tb.add_scalar('Test Loss', test_loss, test_epoch_count)
tb.add_scalar('Test Accuracy', test_accuracy, test_epoch_count)
results = OrderedDict()
results['current'] = 'Test'
results['run'] = run_count
results['epoch'] = test_epoch_count
results['loss'] = test_loss
results['accuracy'] = test_accuracy
results['epoch duration'] = test_epoch_duration
results['run duration'] = test_run_duration
for k, v in test_run._asdict().items():
results[k] = v
run_data.append(results)
clear_output()
display(pd.DataFrame(run_data))
if test_accuracy > hightest_accuracy:
hightest_accuracy = test_accuracy
model = network
tb.close()

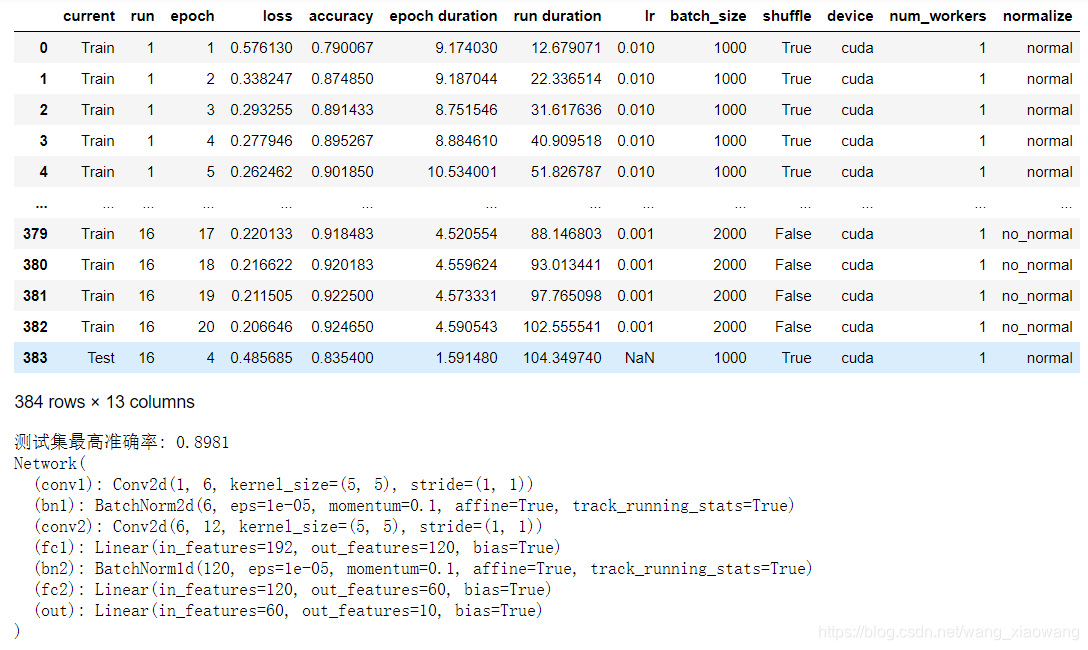

save_result(model, run_data)
print('测试集最高准确率: %s'% hightest_accuracy)
print(model)
五、Tensorboard分析

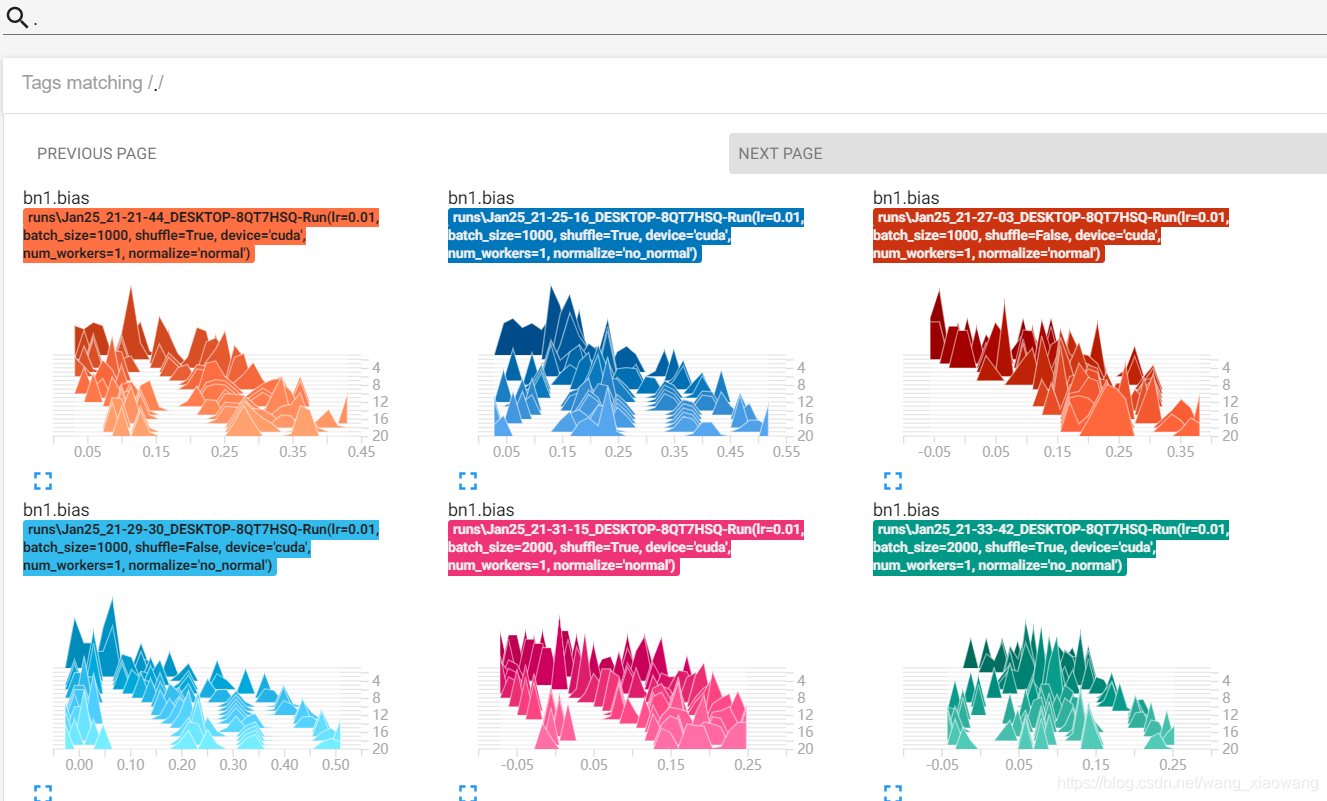

5.1 参数分布直方图

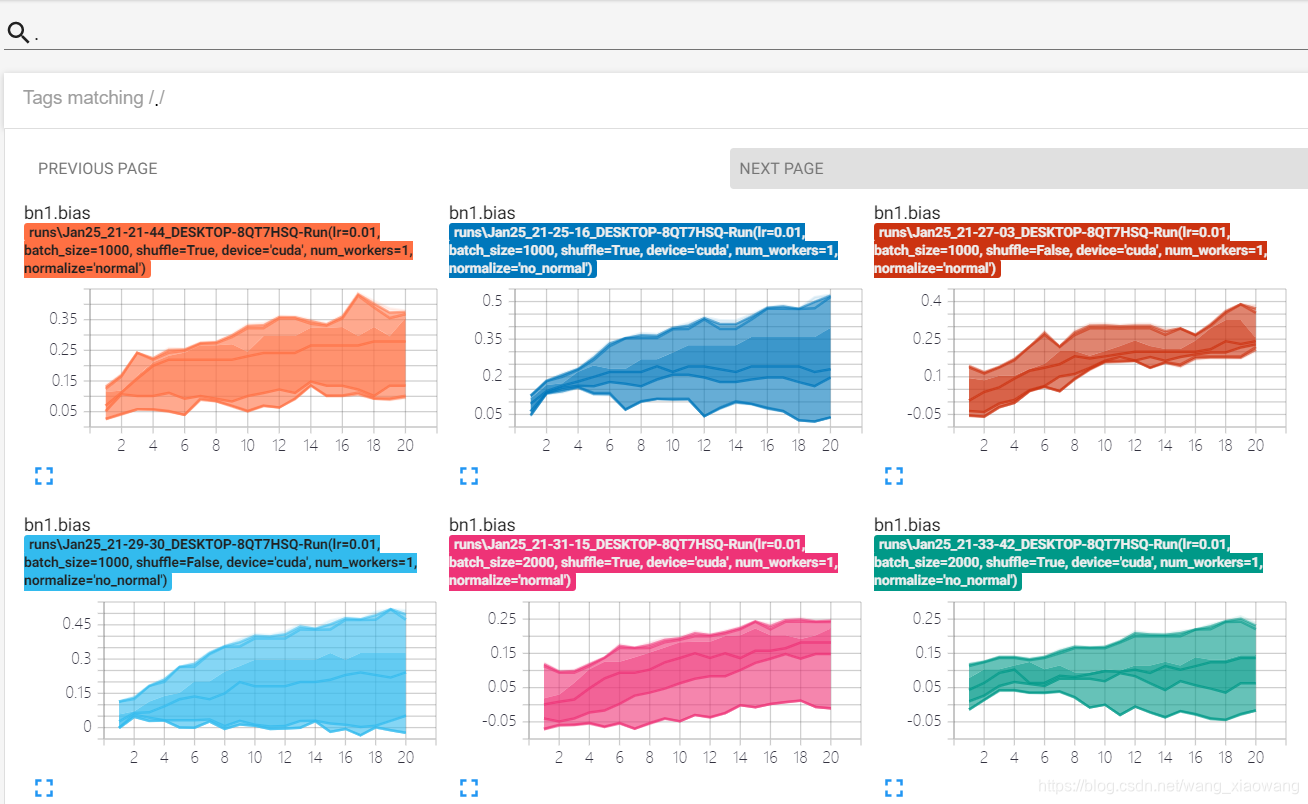

5.2 参数分布

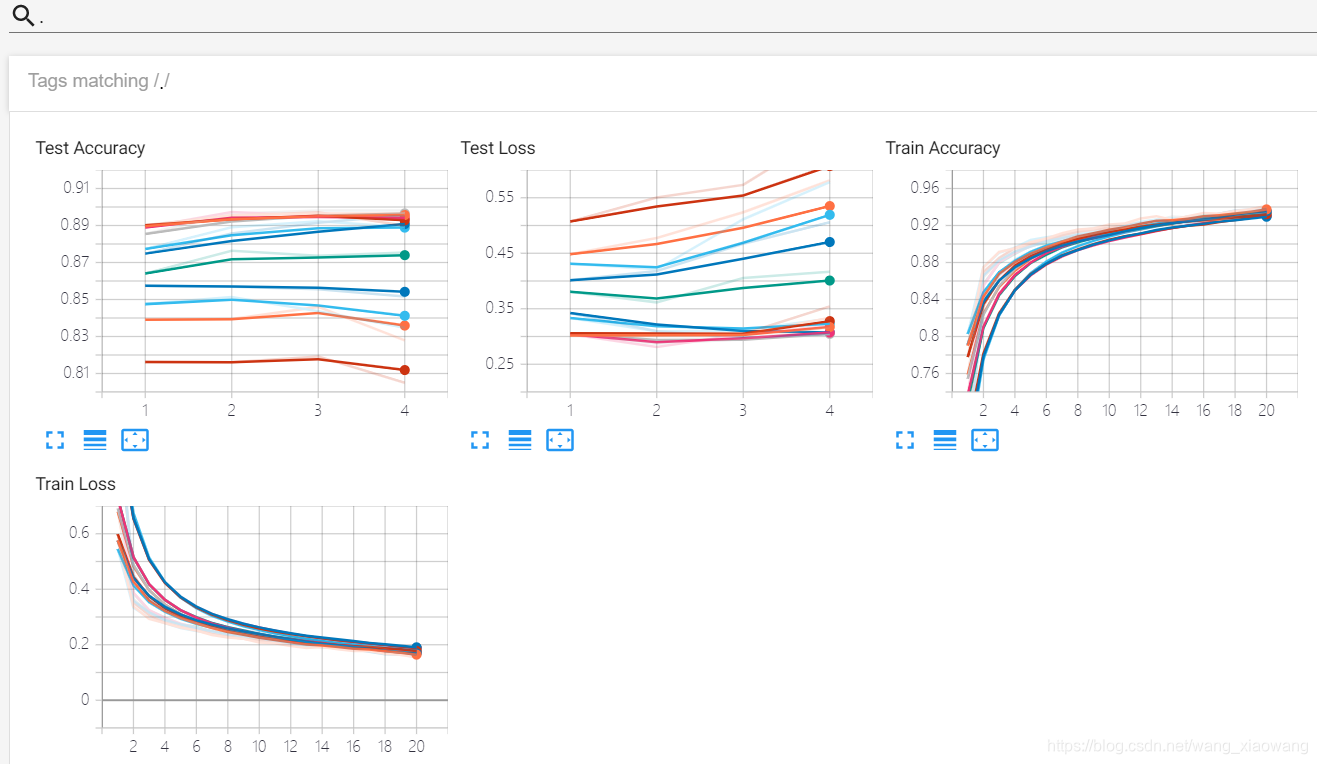

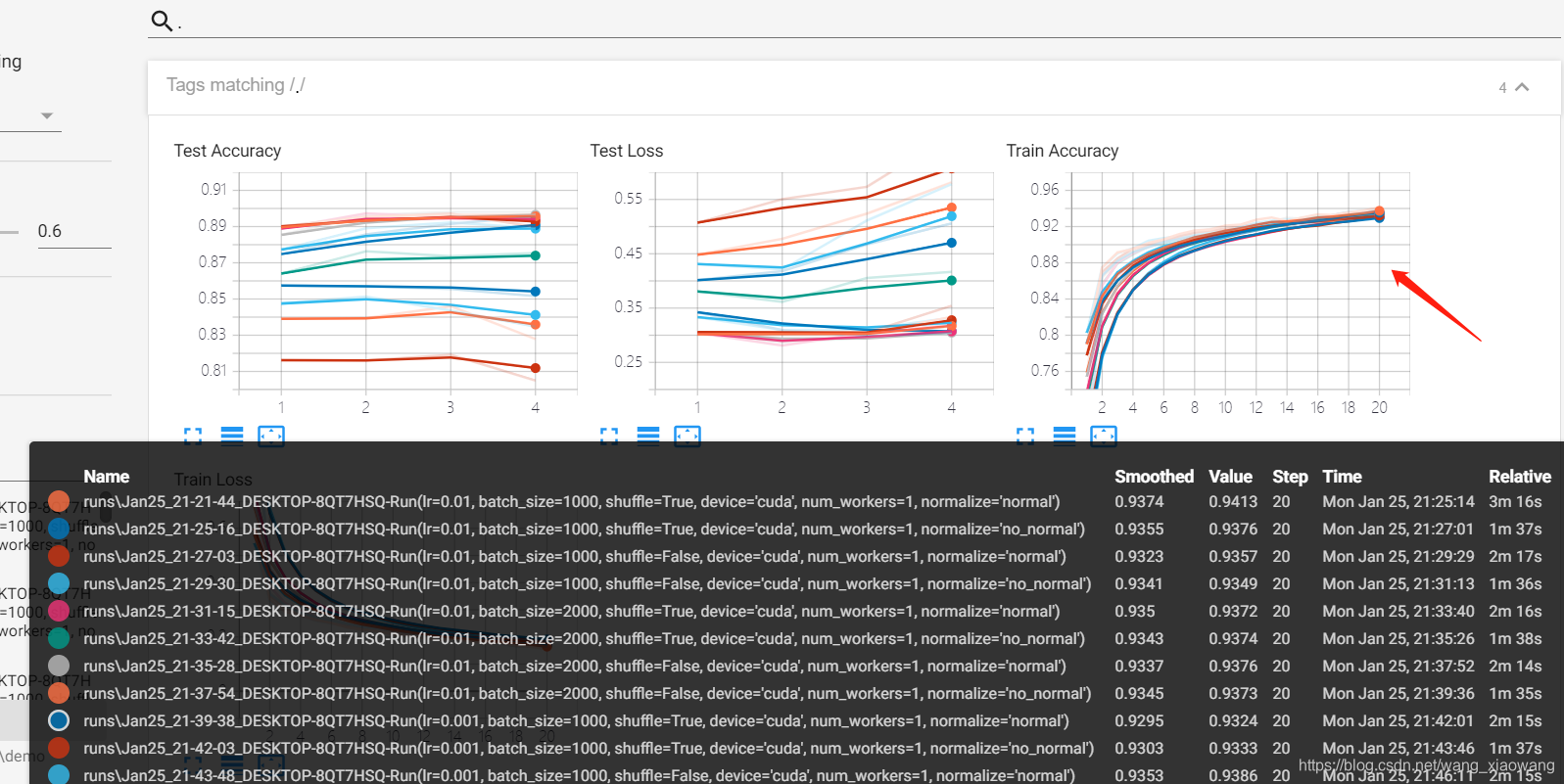

5.3 训练集、测试集的accuracy与loss
