SpringBoot集成IotDB

1、引入依赖

<dependency>
            <groupId>org.apache.iotdb</groupId>
            <artifactId>iotdb-session</artifactId>
            <version>0.14.0-preview1</version>
        </dependency>

        <dependency>
            <groupId>cn.hutool</groupId>
            <artifactId>hutool-all</artifactId>
            <version>5.6.3</version>
        </dependency>

        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>1.2.83</version>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
            <exclusions>
                <exclusion>
                    <groupId>org.junit.vintage</groupId>
                    <artifactId>junit-vintage-engine</artifactId>
                </exclusion>
            </exclusions>
        </dependency>

2、iotdb 配置工具类

@Log4j2
@Component
@Configuration
public class IotDBSessionConfig {

    private static Session session;
    private static final String LOCAL_HOST = "127.0.0.1"; //改为自己服务器ip

    @Bean
    public Session getSession() throws IoTDBConnectionException, StatementExecutionException {
        if (session == null) {
            log.info("正在连接iotdb.......");
            session = new Session.Builder().host(LOCAL_HOST).port(6667).username("root").password("root").version(Version.V_0_13).build();
            session.open(false);
            session.setFetchSize(100);
            log.info("iotdb连接成功~");
            // 设置时区
            session.setTimeZone("+08:00");
        }
        return session;
    }
}

3、入参

@Data
public class IotDbParam {
    /***
     * 产品PK
     */
    private  String  pk;
    /***
     * 设备号
     */
    private  String  sn;
    /***
     * 时间
     */
    private Long time;
    /***
     * 实时呼吸
     */
    private String breath;
    /***
     * 实时心率
     */
    private String heart;
    /***
     * 查询开始时间
     */
    private String startTime;
    /***
     * 查询结束时间
     */
    private String endTime;

}

4、响应

@Data
public class IotDbResult {
    /***
     * 时间
     */
    private String time;
    /***
     * 产品PK
     */
    private  String  pk;
    /***
     * 设备号
     */
    private  String  sn;
    /***
     * 实时呼吸
     */
    private String breath;
    /***
     * 实时心率
     */
    private String heart;

}

5、控制层

@Log4j2
@RestController
public class IotDbController {

    @Resource
    private IotDbServer iotDbServer;
    @Resource
    private IotDBSessionConfig iotDBSessionConfig;

    /**
     * 插入数据
     * @param iotDbParam
     */
    @PostMapping("/api/device/insert")
    public ResponseData insert(@RequestBody IotDbParam iotDbParam) throws StatementExecutionException, ServerException, IoTDBConnectionException {
        iotDbServer.insertData(iotDbParam);
        return ResponseData.success();
    }

    /**
     * 查询数据
     * @param iotDbParam
     */
    @PostMapping("/api/device/queryData")
    public ResponseData queryDataFromIotDb(@RequestBody IotDbParam iotDbParam) throws Exception {
        return ResponseData.success(iotDbServer.queryDataFromIotDb(iotDbParam));
    }

    /**
     * 删除分组
     * @return
     */
    @PostMapping("/api/device/deleteGroup")
    public ResponseData deleteGroup() throws StatementExecutionException, IoTDBConnectionException {
        iotDBSessionConfig.deleteStorageGroup("root.a1eaKSRpRty");
        iotDBSessionConfig.deleteStorageGroup("root.smartretirement");
        return ResponseData.success();
    }

}

6、接口

public interface IotDbServer {
    /**
     * 添加数据
     */
    void insertData(IotDbParam iotDbParam) throws StatementExecutionException, ServerException, IoTDBConnectionException;

    /**
     * 查询数据
     */
    Object queryDataFromIotDb(IotDbParam iotDbParam) throws Exception;
}

7、实现层

@Log4j2
@Service
public class IotDbServerImpl implements IotDbServer {

    @Resource
    private IotDBSessionConfig iotDBSessionConfig;

    @Override
    public void insertData(IotDbParam iotDbParam) throws StatementExecutionException, ServerException, IoTDBConnectionException {
        // iotDbParam: 模拟设备上报消息
        // bizkey: 业务唯一key  PK :产品唯一编码   SN:设备唯一编码
        String deviceId = "root.bizkey."+ iotDbParam.getPk() + "." + iotDbParam.getSn();
        // 将设备上报的数据存入数据库(时序数据库)
        List<String> measurementsList = new ArrayList<>();
        measurementsList.add("heart");
        measurementsList.add("breath");
        List<String> valuesList = new ArrayList<>();
        valuesList.add(String.valueOf(iotDbParam.getHeart()));
        valuesList.add(String.valueOf(iotDbParam.getBreath()));
        iotDBSessionConfig.insertRecord(deviceId, iotDbParam.getTime(), measurementsList, valuesList);
    }

    @Override
    public List<IotDbResult> queryDataFromIotDb(IotDbParam iotDbParam) throws Exception {
        List<IotDbResult> iotDbResultList = new ArrayList<>();

        if (null != iotDbParam.getPk() && null != iotDbParam.getSn()) {
            String sql = "select * from root.bizkey."+ iotDbParam.getPk() +"." + iotDbParam.getSn() + " where time >= "
                    + iotDbParam.getStartTime() + " and time < " + iotDbParam.getEndTime();
            SessionDataSet sessionDataSet = iotDBSessionConfig.query(sql);
            List<String> columnNames = sessionDataSet.getColumnNames();
            List<String> titleList = new ArrayList<>();
            // 排除Time字段 -- 方便后面后面拼装数据
            for (int i = 1; i < columnNames.size(); i++) {
                String[] temp = columnNames.get(i).split("\\.");
                titleList.add(temp[temp.length - 1]);
            }
            // 封装处理数据
            packagingData(iotDbParam, iotDbResultList, sessionDataSet, titleList);
        } else {
            log.info("PK或者SN不能为空！！");
        }
        return iotDbResultList;
    }
    /**
     * 封装处理数据
     * @param iotDbParam
     * @param iotDbResultList
     * @param sessionDataSet
     * @param titleList
     * @throws StatementExecutionException
     * @throws IoTDBConnectionException
     */
    private void packagingData(IotDbParam iotDbParam, List<IotDbResult> iotDbResultList, SessionDataSet sessionDataSet, List<String> titleList)
            throws StatementExecutionException, IoTDBConnectionException {
        int fetchSize = sessionDataSet.getFetchSize();
        if (fetchSize > 0) {
            while (sessionDataSet.hasNext()) {
                IotDbResult iotDbResult = new IotDbResult();
                RowRecord next = sessionDataSet.next();
                List<Field> fields = next.getFields();
                String timeString = new java.text.SimpleDateFormat("yyyy-MM-dd HH:mm:ss").format(next.getTimestamp());
                iotDbResult.setTime(timeString);
                Map<String, String> map = new HashMap<>();

                for (int i = 0; i < fields.size(); i++) {
                    Field field = fields.get(i);
                    // 这里的需要按照类型获取
                    map.put(titleList.get(i), field.getObjectValue(field.getDataType()).toString());
                }
                iotDbResult.setTime(timeString);
                iotDbResult.setPk(iotDbParam.getPk());
                iotDbResult.setSn(iotDbParam.getSn());
                iotDbResult.setHeart(map.get("heart"));
                iotDbResult.setBreath(map.get("breath"));
                iotDbResultList.add(iotDbResult);
            }
        }
    }
}

8、测试api

1.添加一条记录

接口：localhost:8080/api/device/insert

入参：

{
    "time":1660573444672,
    "pk":"a1TTQK9TbKT",
    "sn":"SN202208120945QGJLD",
    "breath":"17",
    "heart":"68"
}

 2.根据SQL查询时间区间记录

接口：localhost:8080/api/device/queryData

入参：

{
    "pk":"a1TTQK9TbKT",
    "sn":"SN202208120945QGJLD",
    "startTime":"2022-08-14 00:00:00",
    "endTime":"2022-08-16 00:00:00"
}

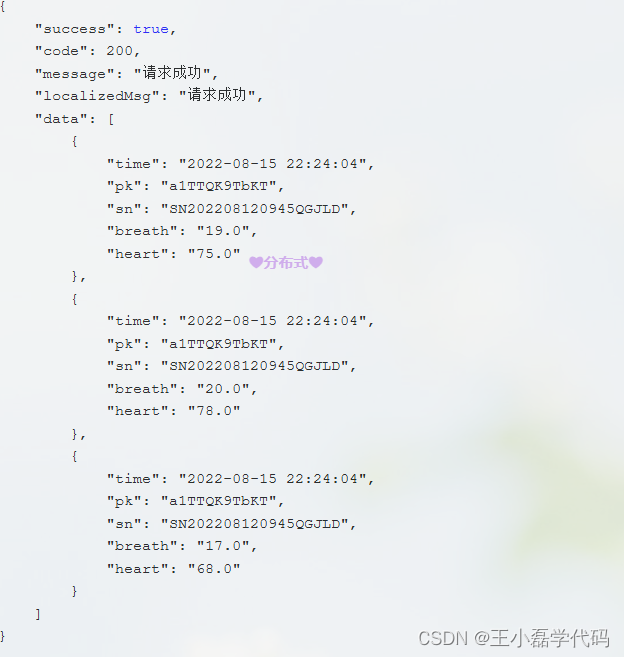

结果
