利用python从apk的操作码序列中生成2-gram邻接矩阵

利用python从apk的操作码序列中生成2-gram邻接矩阵

说明

input：对APK文件进行处理获得16进制数表示操作码序列

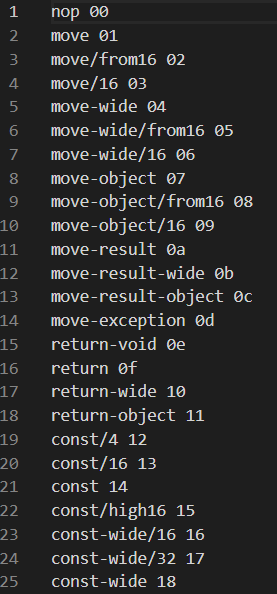

该16进制是是利用DalvikOpcodes.txt中的操作码隐射字典进行表示的。这些操作码包含了Dalvik虚拟机中定义的200多种操作码，如下：

对操作码序列生成2-gram共生矩阵（不了解该点的百度），完整代码如下：

import re
import os
import operator
import pandas as ps
import numpy as np
from collections import Counter

path = r"D:\test\opseq"
out_path = r"D:test\out"
files = []

for name in os.listdir(path):
        if os.path.isfile(os.path.join(path, name)):
            files.append(name)
print(files)

dalvik_opcodes = {}
with open("DalvikOpcodes.txt") as fop:
    for linee in fop:
        (key, val) = linee.split()
        dalvik_opcodes[key] = val

def main():
    for opseq_hash in files:
        file_name = os.path.splitext(opseq_hash)[0]
        op = re.compile(r'[0-9a-fA-F]{2}') #16进制
        input_opseq = []
        with open(path + "\\" + opseq_hash, 'r') as f:
                for line in f.readlines():
                        opcode = re.findall(op,line)
                        input_opseq.extend(opcode)

                list_comb_seq = []
                for i in range(len(input_opseq) - 1):
                        list_comb_seq.append(input_opseq[i] + input_opseq[i + 1]) #构造2-gram
                data_count = Counter(list_comb_seq)   #统计2-gram组合次数

                #将16进制数转化为原操作码形式，可以不转化直接用16进制表示
                keys = [x for x in range(218)]
                index_map =  dict(zip(keys,dalvik_opcodes.values()))
                matrix_len = len(index_map)
                matrix = np.zeros((matrix_len, matrix_len))

                #2-gram共生矩阵
                for i in range(matrix_len):
                        for j in range(matrix_len):
                                matrix[i][j] = data_count[index_map[i] + index_map[j]]

                #2-gram共生矩阵——按行做标准化处理
                norm_matrix = np.zeros((matrix_len, matrix_len))
                for i in range(matrix_len):
                        for j in range(matrix_len):
                                if np.sum(matrix[i]) == 0:
                                        norm_matrix[i][j] = 0
                                else:
                                        norm_matrix[i][j] = matrix[i][j] / np.sum(matrix[i])


                F_Name = os.path.join(out_path,  file_name + "_adjacency-matrix.csv")
                matrix = ps.DataFrame(matrix)
                matrix.fillna(0.0000,  inplace=True) #保留小数后四位

				#保存到csv
                matrix.to_csv(F_Name,float_format='%.4f',header=list(dalvik_opcodes.keys()),index=list(dalvik_opcodes.keys()))
                F1_Name = os.path.join(out_path, file_name + "_norm_adjacency-matrix.csv")
                norm_matrix = ps.DataFrame(norm_matrix)
                norm_matrix.fillna(0.0000,  inplace=True) #保留小数后四位
                norm_matrix.to_csv(F1_Name,float_format='%.4f',header=list(dalvik_opcodes.keys()),index=list(dalvik_opcodes.keys()))

        print("Done")

if __name__ == '__main__':
    main()
