如何利用百度短链接接口将一个长链接变成短链接

本文介绍如何使用百度短网址服务API将长网址转换为短网址,包括代码实现、依赖添加及示例运行步骤。

摘要生成于 C知道 ,由 DeepSeek-R1 满血版支持, 前往体验 >

短网址服务可以帮助你把一个长网址缩短,方便你在社交网络和第三方平台上分享链接,投放广告等等。 我们提供超简单的方式使用短网址服务:访问百度短网址首页https://dwz.cn,输入你要缩短的原网址,生成对应的短网址。你还可以调用百度短网址服务API服务,查看数据统计与分析……更多功能,等你来探索!

官方文档:https://dwz.cn/console/apidoc
首先添加依赖

<dependency>
 <groupId>com.google.code.gson</groupId>
  <artifactId>gson</artifactId>
  <version>2.8.5</version>
</dependency>

然后去百度官方文档https://dwz.cn/console/apidoc复制示例

package com.imooc.myo2o.util.baidu;

import java.io.IOException;
import java.io.OutputStreamWriter;
import java.net.HttpURLConnection;
import java.net.URL;
import java.io.BufferedReader;
import java.io.InputStreamReader;

import com.google.gson.Gson;
import com.google.gson.annotations.SerializedName;

public class BaiduDwz {
    final static String CREATE_API = "https://dwz.cn/admin/v2/create";
    final static String TOKEN = "你的token"; // TODO:设置Token

    class UrlResponse {
        @SerializedName("Code")
        private int code;

        @SerializedName("ErrMsg")
        private String errMsg;

        @SerializedName("LongUrl")
        private String longUrl;

        @SerializedName("ShortUrl")
        private String shortUrl;

        public int getCode() {
            return code;
        }

        public void setCode(int code) {
            this.code = code;
        }

        public String getErrMsg() {
            return errMsg;
        }

        public void setErrMsg(String errMsg) {
            this.errMsg = errMsg;
        }

        public String getLongUrl() {
            return longUrl;
        }

        public void setLongUrl(String longUrl) {
            this.longUrl = longUrl;
        }

        public String getShortUrl() {
            return shortUrl;
        }

        public void setShortUrl(String shortUrl) {
            this.shortUrl = shortUrl;
        }
    }

    /**
     * 创建短网址
     *
     * @param longUrl
     *            长网址:即原网址
     * @return  成功:短网址
     *          失败:返回空字符串
     */
    public static String createShortUrl(String longUrl) {
        String params = "{\"url\":\""+ longUrl + "\"}";

        BufferedReader reader = null;
        try {
            // 创建连接
            URL url = new URL(CREATE_API);
            HttpURLConnection connection = (HttpURLConnection) url.openConnection();
            connection.setDoOutput(true);
            connection.setDoInput(true);
            connection.setUseCaches(false);
            connection.setInstanceFollowRedirects(true);
            connection.setRequestMethod("POST"); // 设置请求方式
            connection.setRequestProperty("Content-Type", "application/json"); // 设置发送数据的格式
            connection.setRequestProperty("Token", TOKEN); // 设置发送数据的格式");

            // 发起请求
            connection.connect();
            OutputStreamWriter out = new OutputStreamWriter(connection.getOutputStream(), "UTF-8"); // utf-8编码
            out.append(params);
            out.flush();
            out.close();

            // 读取响应
            reader = new BufferedReader(new InputStreamReader(connection.getInputStream(), "UTF-8"));
            String line;
            String res = "";
            while ((line = reader.readLine()) != null) {
                res += line;
            }
            reader.close();

            // 抽取生成短网址
            UrlResponse urlResponse = new Gson().fromJson(res, UrlResponse.class);
            if (urlResponse.getCode() == 0) {
                return urlResponse.getShortUrl();
            } else {
                System.out.println(urlResponse.getErrMsg());
            }

            return ""; // TODO:自定义错误信息
        } catch (IOException e) {
            // TODO
            e.printStackTrace();
        }
        return ""; // TODO:自定义错误信息
    }

    public static void main(String[] args) {
        String res = createShortUrl("你的长网址");
        System.out.println(res);

    }
}

把代码中的token换成你的token

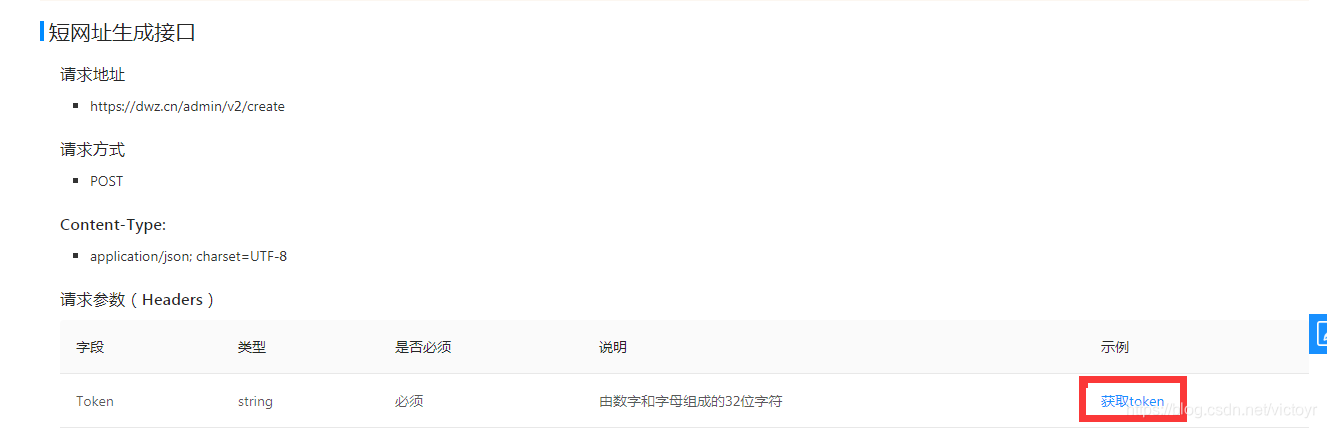

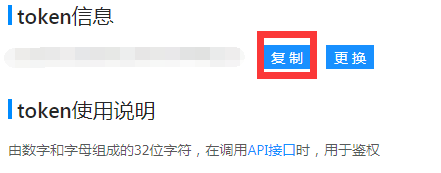

在官方文档https://dwz.cn/console/apidoc中获取token
在这里插入图片描述
在这里插入图片描述
到此就ok了,可以在main方法中试一下效果
