Harbor部署企业级Docker镜像仓库

Harbor简介

Harbor是一个企业级开源镜像仓库，也是首个加入 CNCF 且原创于中国的项目，时间于2018年8月。在2014年由VMware中国研发 中心内部立项和使用，并于2016年对社区开源。Harbor 项目扎根、成长和壮大于中国社区，在 CNCF 中是唯一原生支持中文的项目，深受中国用 户推崇和喜爱。

Harbor是一个用于存储和分发Docker镜像的企业级Registry服务器。Harbor用于容器镜像管理，主要提供基于角色的镜像访问控 制、镜像复制、镜像漏洞分析、镜像验真和操作审计等功能。迄今为止，Harbor 在 GitHub 上已获得超过 4700+ 颗星。

• 基于角色的访问控制

用户与Docker镜像仓库通过“项目”进行组织管理，一个用户可以对多个镜像仓库在同一命名空间（project）里有不同的权限。

• 镜像复制

镜像可以在多个Registry实例中复制（同步）。尤其适合于负载均衡，高可用，混合云和多云的场景。

• 图形化用户界面

用户可以通过浏览器来浏览，检索当前Docker镜像仓库，管理项目和命名空间。

• AD/LDAP 支持

Harbor可以集成企业内部已有的AD/LDAP，用于鉴权认证管理。

• 审计管理

所有针对镜像仓库的操作都可以被记录追溯，用于审计管理。

• 国际化

已拥有英文、中文、德文、日文和俄文的本地化版本。更多的语言将会添加进来。

• RESTful API

RESTful API 提供给管理员对于Harbor更多的操控, 使得与其它管理软件集成变得更容易。

• 部署简单

提供在线（online）和离线（offline）两种安装工具， 也可以安装到vSphere平台(OVA方式)虚拟设备

docker-compose

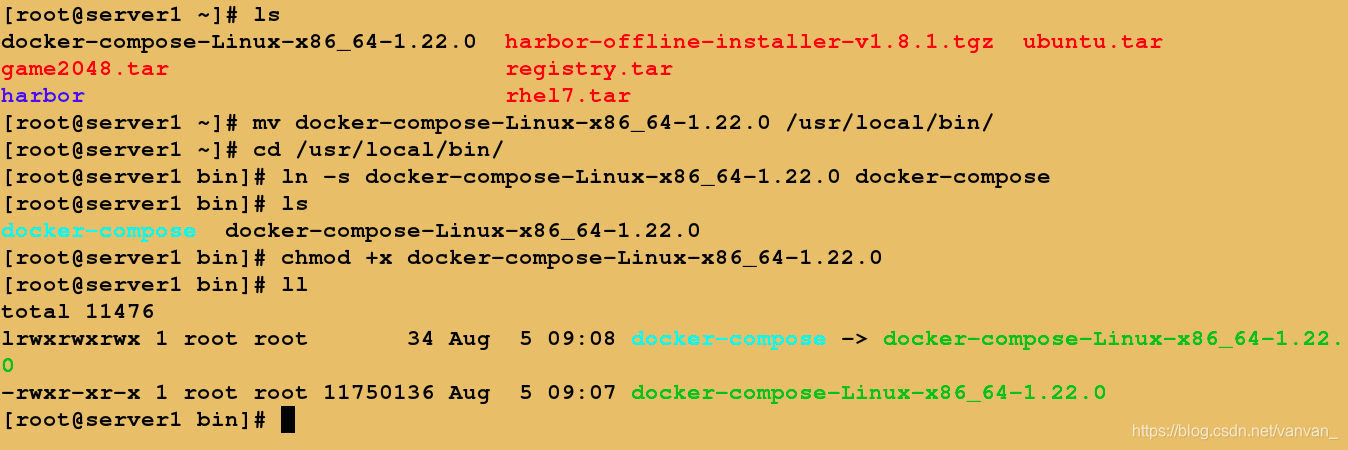

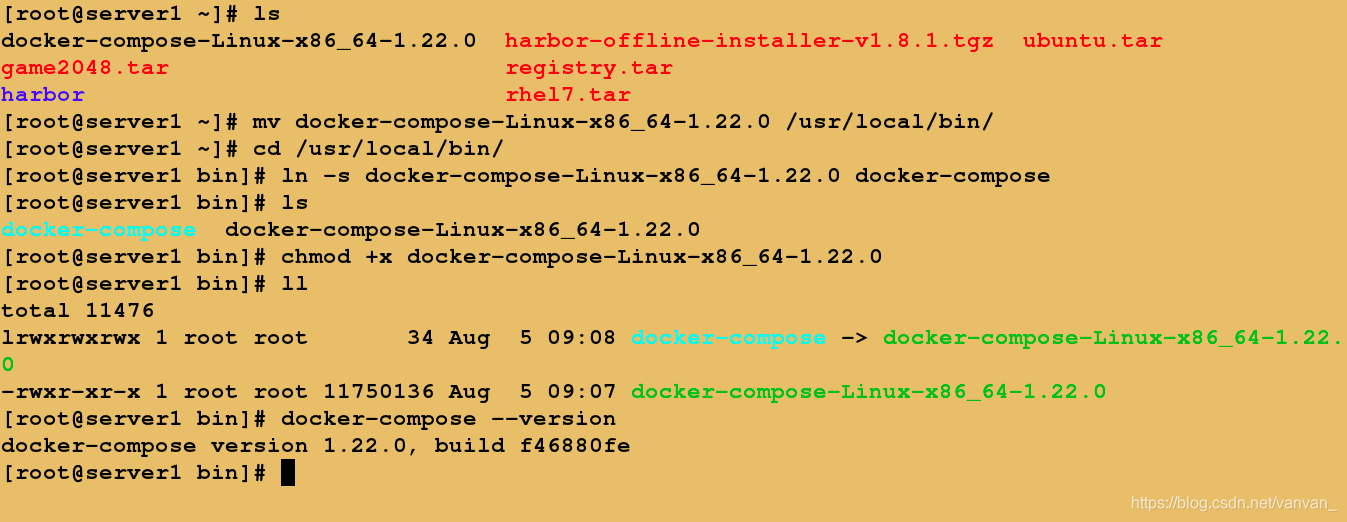

1.将下载好的docker-compose-Linux-x86_64-1.22.0 二进制文件移动到 /usr/local/bin/
mv docker-compose-Linux-x86_64-1.22.0 /usr/local/bin/

2.给docker-compose-Linux-x86_64-1.22.0做软链接
[root@server1 ~]# cd /usr/local/bin/
[root@server1 bin]# ln -s docker-compose-Linux-x86_64-1.22.0 docker-compose
[root@server1 bin]# ls
docker-compose  docker-compose-Linux-x86_64-1.22.0

3.添加执行权限
[root@server1 bin]# chmod +x docker-compose-Linux-x86_64-1.22.0
[root@server1 bin]# ll
total 11476
lrwxrwxrwx 1 root root       34 Aug  5 09:08 docker-compose -> docker-compose-Linux-x86_64-1.22.0
-rwxr-xr-x 1 root root 11750136 Aug  5 09:07 docker-compose-Linux-x86_64-1.22.0

4.查看docker-compose版本
[root@server1 bin]# docker-compose --version
docker-compose version 1.22.0, build f46880fe

Harbor的搭建

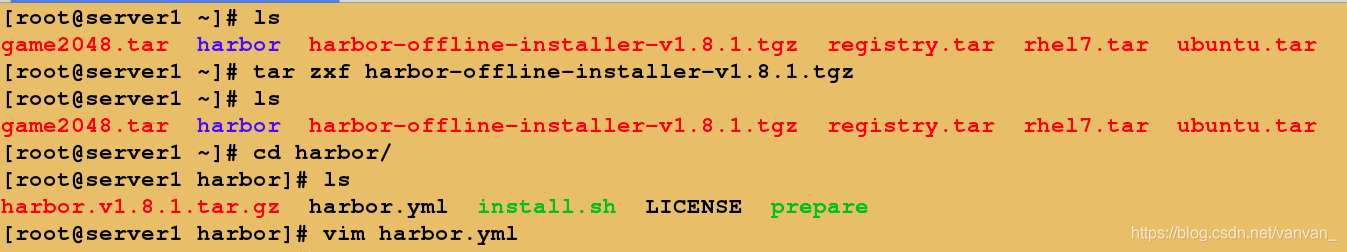

1.获取harbor-offline-installer-v1.8.1.tgz

2.解压
tar zxf harbor-offline-installer-v1.8.1.tgz
[root@server1 ~]# ls
game2048.tar  harbor  harbor-offline-installer-v1.8.1.tgz  registry.tar  rhel7.tar  ubuntu.tar
[root@server1 ~]# cd harbor/
[root@server1 harbor]# ls
harbor.v1.8.1.tar.gz  harbor.yml  install.sh  LICENSE  prepare

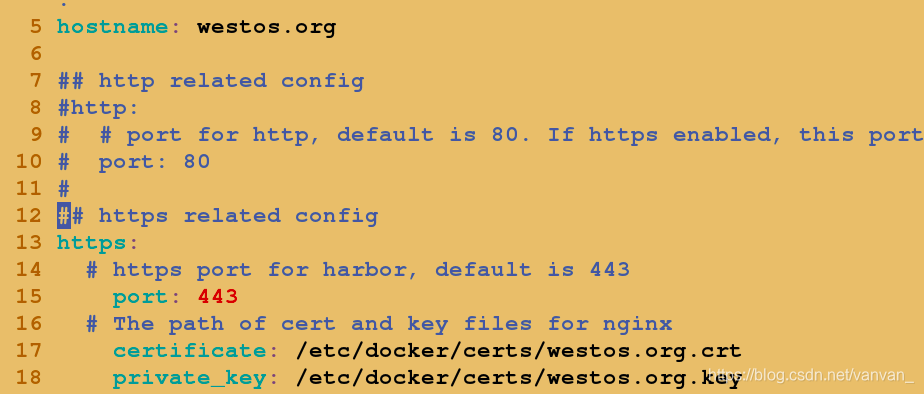

3.修改配置文件harbor.yml

##修改名称
  5 hostname: westos.org
##注释http
  7 ## http related config
  8 #http:
  9 #  # port for http, default is 80. If https enabled, this port will redirect to https port
 10 #  port: 80

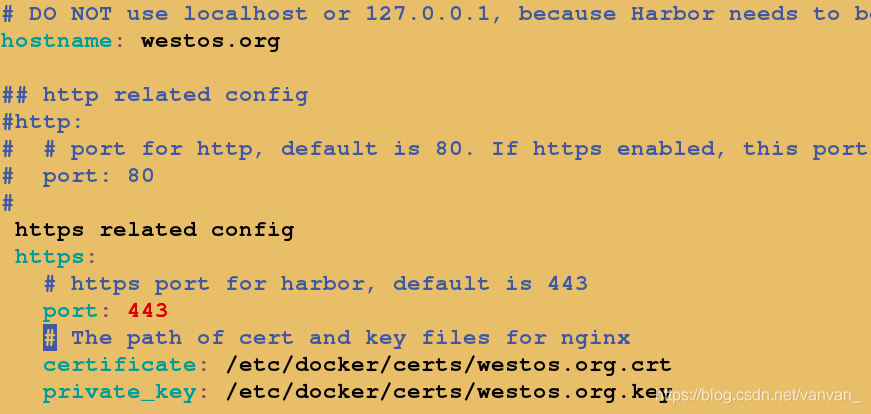

##打开https注释，并修改认证路径
!!!!一定要顶格
 12  https related config
 13  https:
 14    # https port for harbor, default is 443
 15    port: 443
 16    # The path of cert and key files for nginx
 17    certificate: /etc/docker/certs/westos.org.crt
 18    private_key: /etc/docker/certs/westos.org.key

注意https的配置文件一定要顶格写

执行./install.sh，开始安装并启动
[root@server1 harbor]# ./install.sh

[Step 0]: checking installation environment ...

Note: docker version: 18.09.7

Note: docker-compose version: 1.22.0

[Step 1]: loading Harbor images ...
Loaded image: goharbor/harbor-core:v1.8.1
Loaded image: goharbor/harbor-registryctl:v1.8.1
Loaded image: goharbor/redis-photon:v1.8.1
Loaded image: goharbor/notary-server-photon:v0.6.1-v1.8.1
Loaded image: goharbor/chartmuseum-photon:v0.8.1-v1.8.1
Loaded image: goharbor/harbor-db:v1.8.1
Loaded image: goharbor/harbor-jobservice:v1.8.1
Loaded image: goharbor/nginx-photon:v1.8.1
Loaded image: goharbor/registry-photon:v2.7.1-patch-2819-v1.8.1
Loaded image: goharbor/harbor-migrator:v1.8.1
Loaded image: goharbor/prepare:v1.8.1
Loaded image: goharbor/harbor-portal:v1.8.1
Loaded image: goharbor/harbor-log:v1.8.1
Loaded image: goharbor/notary-signer-photon:v0.6.1-v1.8.1
Loaded image: goharbor/clair-photon:v2.0.8-v1.8.1


[Step 2]: preparing environment ...
prepare base dir is set to /root/harbor
Clearing the configuration file: /config/log/logrotate.conf
Clearing the configuration file: /config/nginx/nginx.conf
Clearing the configuration file: /config/cert/server.key
Clearing the configuration file: /config/cert/server.crt
Clearing the configuration file: /config/core/env
Clearing the configuration file: /config/core/app.conf
Clearing the configuration file: /config/registry/config.yml
Clearing the configuration file: /config/registryctl/env
Clearing the configuration file: /config/registryctl/config.yml
Clearing the configuration file: /config/db/env
Clearing the configuration file: /config/jobservice/env
Clearing the configuration file: /config/jobservice/config.yml
Generated configuration file: /config/log/logrotate.conf
Generated configuration file: /config/nginx/nginx.conf
Generated configuration file: /config/core/env
Generated configuration file: /config/core/app.conf
Generated configuration file: /config/registry/config.yml
Generated configuration file: /config/registryctl/env
Generated configuration file: /config/db/env
Generated configuration file: /config/jobservice/env
Generated configuration file: /config/jobservice/config.yml
loaded secret from file: /secret/keys/secretkey
Generated configuration file: /compose_location/docker-compose.yml
Clean up the input dir

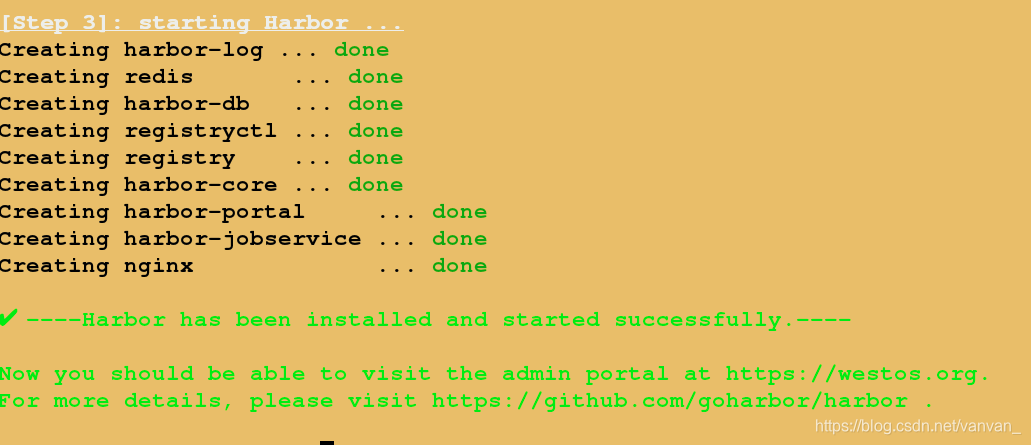

[Step 3]: starting Harbor ...
Creating harbor-log ... done
Creating redis       ... done
Creating harbor-db   ... done
Creating registryctl ... done
Creating registry    ... done
Creating harbor-core ... done
Creating harbor-portal     ... done
Creating harbor-jobservice ... done
Creating nginx             ... done

✔ ----Harbor has been installed and started successfully.----

Now you should be able to visit the admin portal at https://westos.org.
For more details, please visit https://github.com/goharbor/harbor .

查看容器状态
[root@server1 harbor]# docker-compose ps
      Name                     Command                 State                   Ports
------------------------------------------------------------------------------------------------
harbor-core         /harbor/start.sh                Up (healthy)
harbor-db           /entrypoint.sh postgres         Up (healthy)   5432/tcp
harbor-jobservice   /harbor/start.sh                Up
harbor-log          /bin/sh -c /usr/local/bin/      Up (healthy)   127.0.0.1:1514->10514/tcp
                    ...
harbor-portal       nginx -g daemon off;            Up (healthy)   80/tcp
nginx               nginx -g daemon off;            Up (healthy)   0.0.0.0:443->443/tcp,
                                                                   0.0.0.0:80->80/tcp
redis               docker-entrypoint.sh redis      Up             6379/tcp
                    ...
registry            /entrypoint.sh /etc/regist      Up (healthy)   5000/tcp
                    ...
registryctl         /harbor/start.sh                Up (healthy)

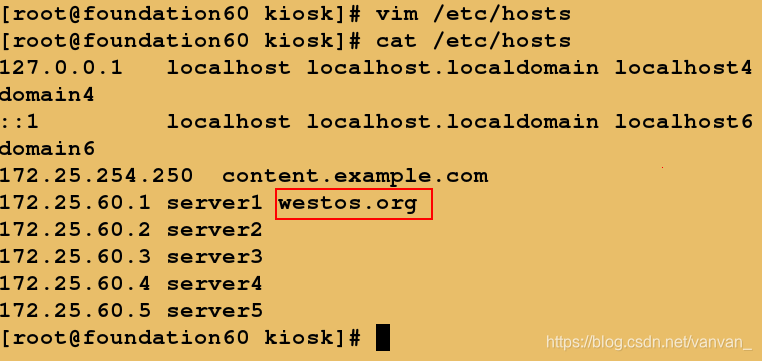

真机做解析

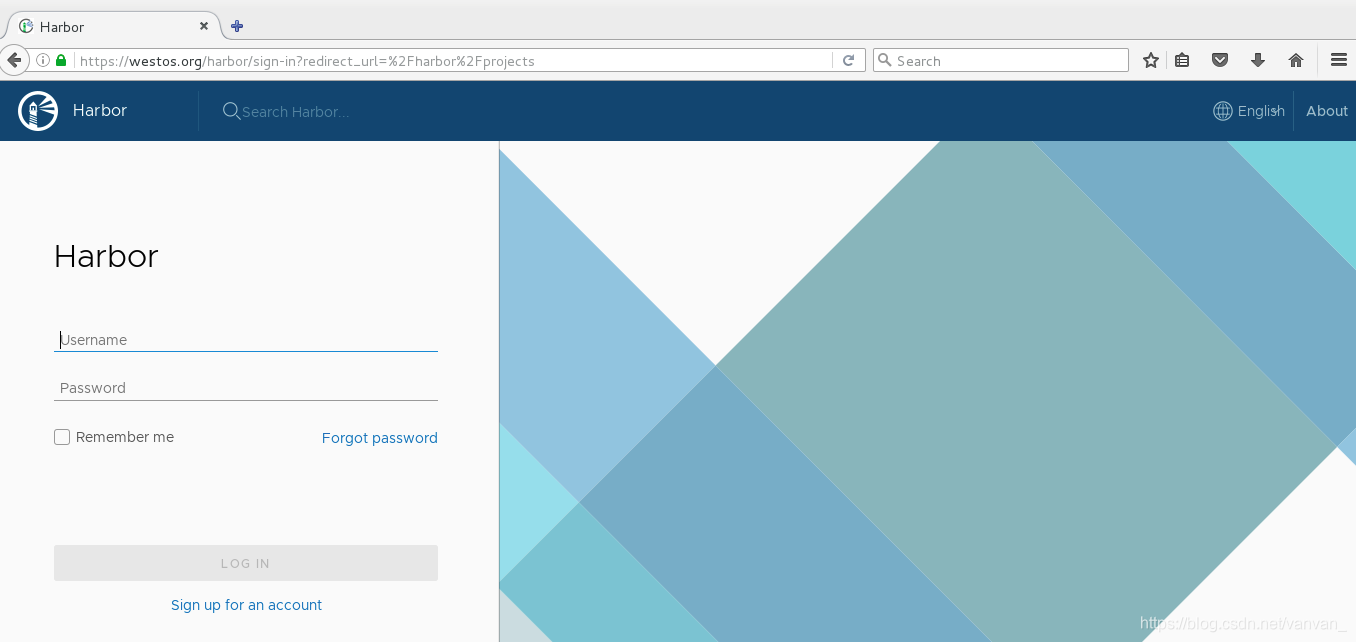

真机访问https://westos.org

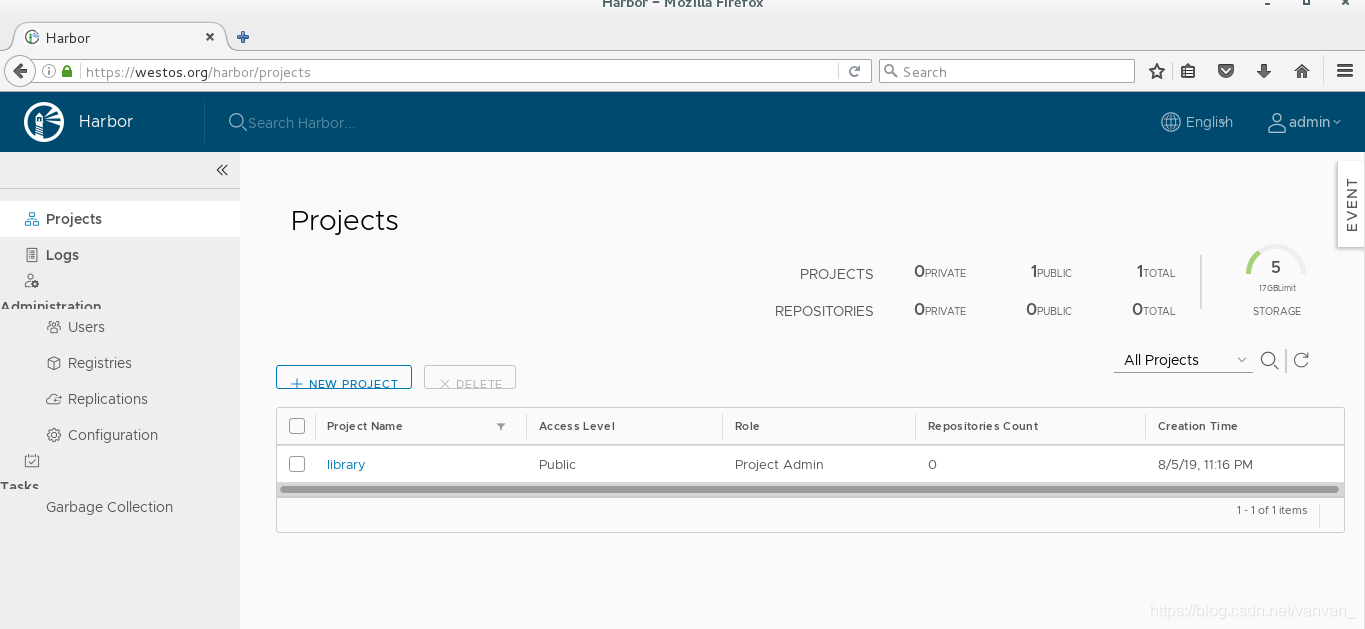

使用默认登录名admin 密码：Harbor12345
