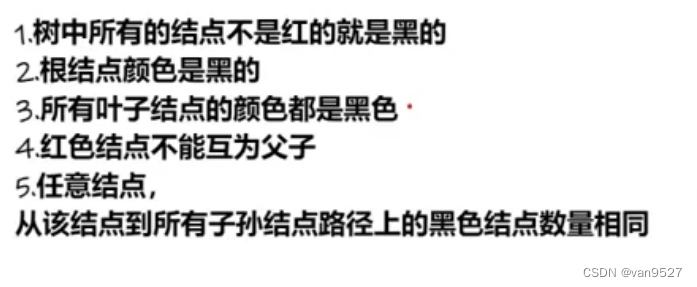

首先我们了解一下红黑树的性质:

在我们编写红黑树添加函数ADDRBT()之前   我们先编写几个工具函数

RBT* GetFather(RBT* pRoot, int id)       获得当前节点的父亲

RBT* GetFather(RBT* pRoot, int id)
{
	if (pRoot == NULL)
	{
		return nullptr;
	}
	while (pRoot != NULL)
	{
		if (pRoot->id > id)
		{
			if (pRoot->pLeft == NULL)
			{
				return pRoot;
			}
			pRoot = pRoot->pLeft;

		}
		else if (pRoot->id < id)
		{
			if (pRoot->pRight == NULL)
			{
				return pRoot;
			}
			pRoot = pRoot->pRight;

		}
		else
		{

			break;
		}
	}
	return nullptr;
}

RBT* GetUncle(RBT* pRoot)                   获得当前节点的叔叔

RBT* GetUncle(RBT* pRoot)
{
	if (pRoot == NULL || pRoot->pFather == NULL || pRoot->pFather->pFather == NULL)
	{
		return nullptr;
	}
	else
	{
		if (pRoot->pFather->pFather->pLeft == pRoot->pFather)
		{
			return pRoot->pFather->pFather->pRight;
		}
		else
		{
			return pRoot->pFather->pFather->pLeft;
		}
	}


}

void RightRotate(RBT* pRBT,RBT*& pBoot)     右旋当前节点

void RightRotate(RBT* pRBT, RBT*& pBoot)
{
	if (pRBT == nullptr || pRBT->pLeft == nullptr)
	{
		return;
	}
	//标记不平衡节点  A
	RBT* pMark = pRBT;
	//标记不平衡节点的左  B
	RBT* pTemp = pRBT->pLeft;
	//x  pMark->pFather   E   pTemp->pRight

	//三个孩子
	//不平衡节点的左->不平衡节点的 左的右   A->左=E
	pMark->pLeft = pTemp->pRight;
	//不平衡节点左的右->不平衡节点       B->右=A
	pTemp->pRight = pMark;
	//不平衡节点是不是根

	  //是  不平衡的节点变为根
	if (pMark->pFather == nullptr)
	{
		pBoot = pTemp;
	}
	//不是 判断不平衡节点是父亲的左还是右   (A是父亲的左还是右)
	else
	{
		//左:
		  //不平衡节点的父亲的左孩子->不平衡节点   X->左=B
		if (pMark->pFather->pLeft == pMark)
		{
			pMark->pFather->pLeft = pTemp;
		}
		//右:
		  //不平衡节点的父亲的右孩子->不平衡节点   X->右=B
		else
		{
			pMark->pFather->pRight = pTemp;
		}
	}

	if (pMark->pLeft != nullptr)
	{
		pMark->pLeft->pFather = pMark;
	}

	pTemp->pFather = pMark->pFather;

	pMark->pFather = pTemp;
}

void LeftRotate(RBT* pRBT, RBT*& pBoot)       左旋当前节点

void LeftRotate(RBT* pRBT, RBT*& pBoot)

{
	if (pRBT == nullptr || pRBT->pRight == nullptr)
	{
		return;
	}

	RBT* pMark = pRBT;

	RBT* pTemp = pRBT->pRight;


	pMark->pRight = pTemp->pLeft;

	pTemp->pLeft = pMark;



	if (pMark->pFather == nullptr)
	{
		pBoot = pTemp;
	}
	else
	{

		if (pMark->pFather->pLeft == pMark)
		{
			pMark->pFather->pLeft = pTemp;
		}

		else
		{
			pMark->pFather->pRight = pTemp;

		}

	}



	if (pMark->pRight != nullptr)
	{
		pMark->pRight->pFather = pMark;
	}

	pTemp->pFather = pMark->pFather;

	pMark->pFather = pTemp;





}

然后我们开始定义  void AddRBT(RBT*& rpBoot, int id)函数

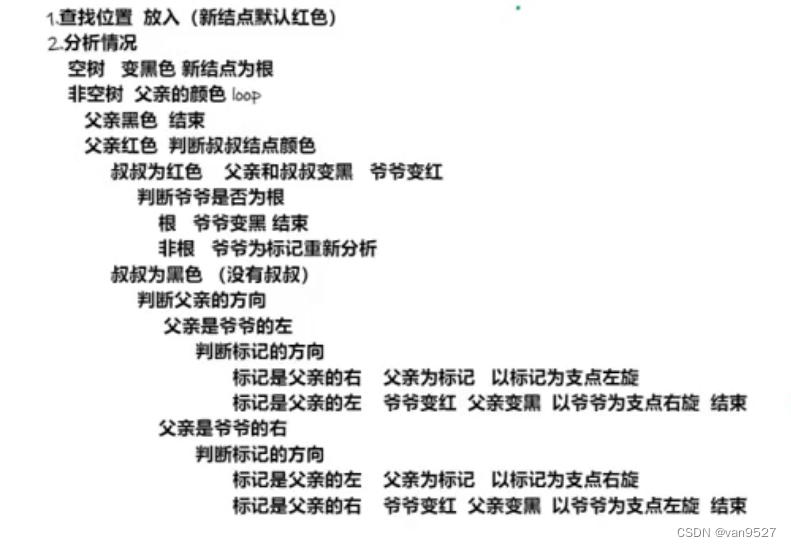

思想:

首先  我们把思路列出来 如下列代码注释

void AddRBT(RBT*& rpBoot, int id)
{
	RBT* pFather = GetFather(rpBoot, id);
	RBT* pMark = new RBT;
	pMark->color = RED;
	pMark->id = id;
	pMark->pFather = pFather;

	pMark->pLeft = NULL;
	pMark->pRight = NULL;


	//判断根是否为空
  //空  pMark赋给根
	if (rpBoot == NULL)
	{
		pMark->color = BLACK;
		rpBoot = pMark;
		return;
	}
	//非空  添加
	if (pFather->id > pMark->id)
	{
		pFather->pLeft = pMark;
	}
	else
	{
		pFather->pRight = pMark;
	}
	//分析
	while (1)
	{
		//先给pFather和pUncle重新赋值
		pFather = pMark->pFather;

		//判断父亲的颜色
		  //黑 直接加

		if (pFather->color == BLACK)
		{
			return;
		}
		RBT* pUncle = GetUncle(pMark);
		//父亲为红 判断叔叔的颜色


			//叔叔为红
			  //父亲和叔叔都变黑
				//爷爷变红
				   //判断爷爷是否为根
					 //为根 爷爷变黑
					 //不为根  爷爷赋给标记  结束当前循环  重新对爷爷进行分析


		if (pUncle != nullptr && pUncle->color == RED)
		{
			pFather->color = BLACK;
			pUncle->color = BLACK;

			pFather->pFather->color = RED;
			pMark = pFather->pFather;

			if (pMark->pFather == NULL)
			{
				pMark->color = BLACK;
				return;
			}
			continue;

		}
		//叔叔为黑 (包含空)
		if (pUncle == NULL||pUncle->color==BLACK)

		{

			  //判断父亲是爷爷的左还是右孩子
				//左 判断标记是父亲的左还是由节点
				  //左 爷爷变红 父亲变黑   对爷爷节点右旋  结束

				  //右 爷爷变红 父亲赋值给标记 对标记左旋

				//右 判断标记是父亲的左还是由节点
				  //右 爷爷变红 父亲变黑   对爷爷节点左旋  结束

				  //左 爷爷变红 父亲赋值给标记 对标记右旋

			if (pFather == pFather->pFather->pLeft)
			{
				if (pFather->pRight == pMark)
				{

					pMark = pFather;

					LeftRotate(pMark, rpBoot);

				}

				else

				{

					pMark->pFather->pFather->color = RED;

					pMark->pFather->color = BLACK;

					RightRotate(pMark->pFather->pFather, rpBoot);

					return;

				}

			}
			//右
			if (pFather == pFather->pFather->pRight)

			{


				if (pFather->pLeft == pMark)

				{

					pMark = pFather;

					RightRotate(pMark, rpBoot);

				}

				else

				{

					pMark->pFather->pFather->color = RED;
					pMark->pFather->color = BLACK;
					LeftRotate(pMark->pFather->pFather, rpBoot);

					return;


				}




			}



		}

	}

}

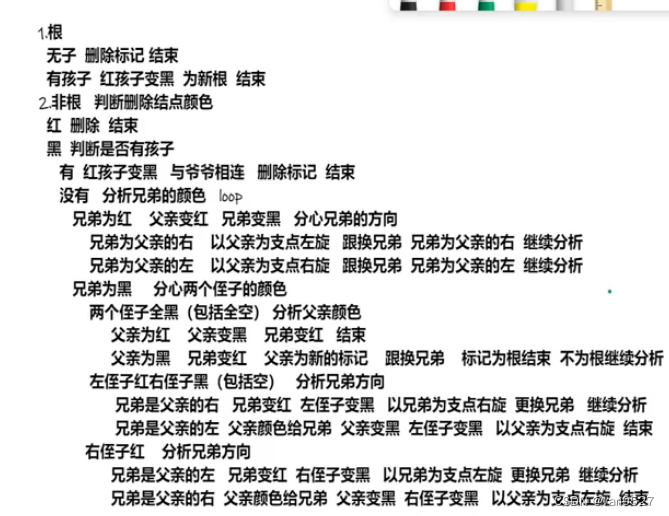

delete函数思想:

代码


RBT* GetDeleteNode(RBT* rpBoot, int id)
{
	while (rpBoot)
	{
		if (id > rpBoot->id)
		{

			rpBoot = rpBoot->pRight;
		}
		else if (id < rpBoot->id)
		{

			rpBoot = rpBoot->pLeft;
		}
		else if(id == rpBoot->id)
		{
			return rpBoot;
		}
	}
	return NULL;
}

void DeteleRBT(RBT*& rpBoot, int nId)
{


	RBT* pDel = GetDeleteNode(rpBoot, nId);

	if (pDel == NULL)
	{
		return;
	}

	if (pDel->pLeft != NULL && pDel->pRight != NULL)
	{
		RBT* pMark = pDel;

			pDel = pDel->pRight;
			while (pDel->pLeft!=NULL)
			{
				pDel = pDel->pLeft;
			}



		pMark->id = pDel->id;
	}



	if (pDel->pFather == NULL)
		//根
	{
		if (pDel->pLeft == NULL && pDel->pRight == NULL)
			//判断有没有一个孩子
		{
			rpBoot = NULL;
			//没有孩子

		}
		else

		{
			//有孩子
			rpBoot = pDel->pLeft != NULL ? pDel->pLeft : pDel->pRight;
			rpBoot->color = BLACK;
			rpBoot->pFather = NULL;

		}
		delete pDel;
		pDel = NULL;
		return;
	}

	RBT* pFather =pDel->pFather;
		//非根
		//分析节点颜色


		if (pDel->color == RED)
			//红  直接删
		{

			if (pDel == pFather->pLeft)
			{
				pFather->pLeft = NULL;
			}
			else
			{
				pFather->pRight = NULL;
			}
			delete pDel;
			pDel = NULL;
			return;
		}

			//黑  判断节点是否有孩子

			if (pDel->pLeft != NULL || pDel->pRight != NULL)
				//有孩子  一定是红孩子
			{


					//红孩子变黑  与爷爷相连
					RBT* pChild = pDel->pLeft != NULL ? pDel->pLeft : pDel->pRight;
					pChild->color = BLACK;
					pChild->pFather = pFather;
					if (pFather->pLeft==pDel)
					{
						pFather->pLeft = pChild;
					}
					else
					{
						pFather->pRight = pChild;
					}
					delete pDel;
					pDel = NULL;
					return;




			}



				//没孩子
				//先获得兄弟  删除节点
					RBT* pBrother = GetBrother(pDel);
					if (pFather->pLeft == pDel)
					{
						pFather->pLeft = NULL;
					}
					else
					{
						pFather->pRight = NULL;
					}



					//分析兄弟颜色 loop
					while (1)

					{


						if (pBrother->color == RED)
							//兄弟为红
						{
							//父亲变红  兄弟变黑  分析兄弟方向
							pFather->color = RED;
							pBrother->color = BLACK;
							if (pFather->pLeft == pBrother)//兄弟为父亲的左
							{
								//以父亲为支点  右旋
								RightRotate(pFather, rpBoot);
								pBrother = pFather->pLeft;

							}
							else //兄弟为父亲的右
							{
								//以父亲为支点  左旋
								LeftRotate(pFather, rpBoot);
								pBrother = pFather->pRight;

							}
							continue;
						}

						if (pBrother->color == BLACK)
							//兄弟为黑
							 // 分析两个侄子的颜色

						{
							if ((pBrother->pLeft == NULL && pBrother->pRight == NULL) ||
								((pBrother->pLeft != NULL && pBrother->pLeft->color == BLACK) &&
									(pBrother->pRight != NULL && pBrother->pRight->color == BLACK)))
							{
								//两个侄子全黑(包括全为空)  分析父亲颜色
								if (pFather->color == RED)
								{
									//父亲为红  :父亲变黑  兄弟变红 结束
									pFather->color = BLACK;
									pBrother->color = RED;
									return;
								}
								else
								{
									//父亲为黑  : 兄弟变红  父亲为新的标记 更换兄弟 标记为根的时候结束 不为根继续分析

									pBrother->color = RED;
									pDel = pFather;

									if (pDel->pFather == NULL)
									{
										return;
									}

									continue;

								}
							}
							//左侄子红右侄子黑(空)  分析兄弟方向
							if ((pBrother->pLeft != NULL && pBrother->pLeft->color == RED) &&
								(pBrother->pRight == NULL || pBrother->pRight->color == BLACK))
							{
								//兄弟是父亲的右  兄弟变红  左侄子变黑  一兄弟为支点右旋 继续分析
								if (pBrother == pFather->pRight)
								{
									pBrother->color = RED;
									pBrother->pLeft->color = BLACK;
									RightRotate(pBrother, rpBoot);
									pBrother = pFather->pRight;
									continue;
								}
								//兄弟是父亲的左 父亲的颜色给兄弟 父亲变黑 左侄子变黑 以父亲为支点右旋 结束
								if (pFather->pLeft == pBrother)
								{
									pBrother->color = pFather->color;
									pFather->color = BLACK;
									pBrother->pLeft->color = BLACK;
									RightRotate(pFather, rpBoot);
									return;
								}
							}

							//右侄子红  分析兄弟方向
							if (pBrother->pRight != NULL && pBrother->pRight->color == RED)
								//兄弟是父亲的左  兄弟变红  右侄子变黑 以兄弟为支点左旋  继续分析
								if (pBrother == pFather->pLeft)
								{
									pBrother->color = RED;
									pBrother->pRight->color = BLACK;
									LeftRotate(pBrother, rpBoot);
									pBrother = pFather->pLeft;
									continue;
								}
							//兄弟是父亲的右 父亲的颜色给兄弟 父亲变黑 右侄子变黑 以父亲为支点左旋 结束
							if (pFather->pRight == pBrother)
							{
								pBrother->color = pFather->color;
								pFather->color = BLACK;
								pBrother->pRight->color = BLACK;
								LeftRotate(pFather, rpBoot);
								return;
							}
						}

					}


}

主函数中我们进行测试:

RBT* Boot = NULL;

	int arr[] = { 11,2,14,1,7,15,5 ,8};
	for (int i = 0; i < sizeof(arr) / sizeof(arr[0]); i++)
	{
		AddRBT(Boot, arr[i]);
	}
	inorder(Boot);
	cout << "----------" << endl;
	AddRBT(Boot, 4);
	/*RBT* pBrother = GetBrother(Boot->pRight);
	cout << pBrother->id << endl;*/
	inorder(Boot);
	cout << "----------" << endl;

	//DeteleRBT(Boot, 1);
	DeteleRBT(Boot,8);
	inorder(Boot);
	return 0;

这里我们添加了节点4   删除了节点8

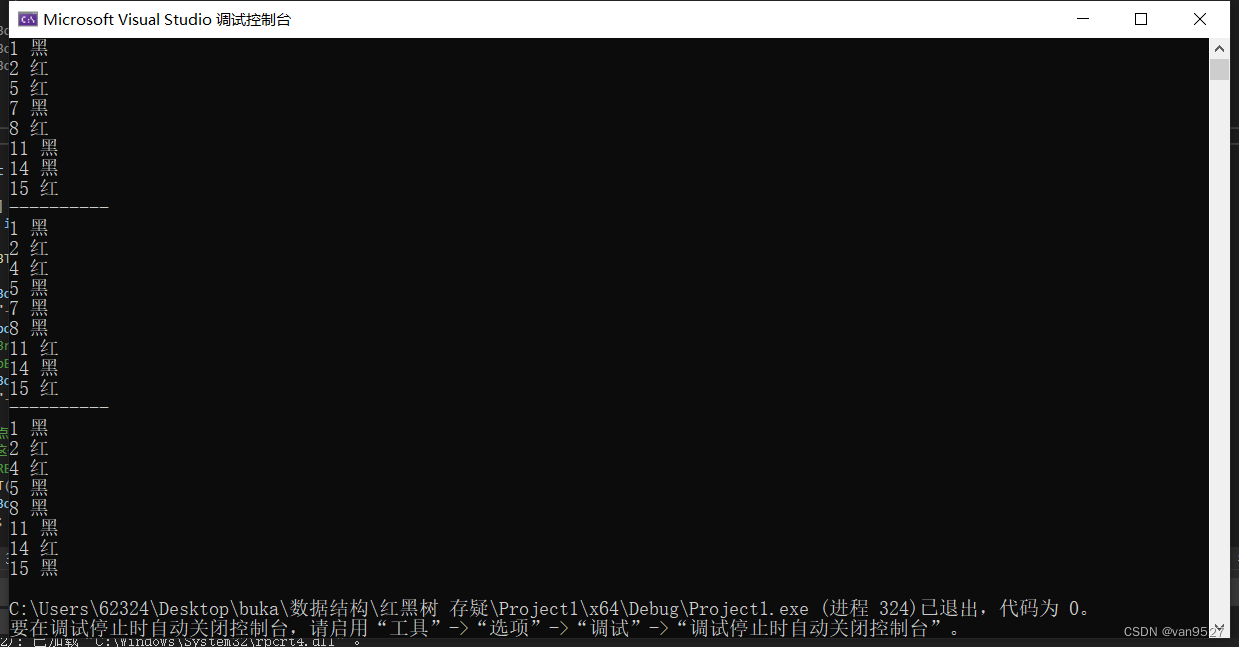

执行结果如下:

完整代码如下

#include<iostream>
#include<stack>
using namespace std;
//1.红黑树中所有的节点但不是红的就是黑的
//2.

enum COLOR { RED, BLACK };
struct RBT
{
	int id;
	RBT* pLeft;
	RBT* pRight;
	RBT* pFather;
	COLOR color;

};

RBT* GetFather(RBT* pRoot, int id)
{
	if (pRoot == NULL)
		{
			return nullptr;
		}
	while (pRoot != NULL)
	{

		if (pRoot->id > id)
		{

			if (pRoot->pLeft == NULL)
			{
				return pRoot;
			}
			pRoot = pRoot->pLeft;

		}
		else if (pRoot->id < id)
		{
			if (pRoot->pRight == NULL)
			{
				return pRoot;
			}
			pRoot = pRoot->pRight;

		}
		else
		{
			cout << "不允许添加值相同的节点,数据有误" << endl;
			break;
		}
	}
	return nullptr;
}

RBT* GetUncle(RBT* pRoot)
{
	if (pRoot == NULL || pRoot->pFather == NULL || pRoot->pFather->pFather == NULL)
	{
		return nullptr;
	}

		if (pRoot->pFather->pFather->pLeft == pRoot->pFather)
		{
			return pRoot->pFather->pFather->pRight;
		}
		else
		{
			return pRoot->pFather->pFather->pLeft;
		}


}

void RightRotate(RBT* pRBT, RBT*& pBoot)
{
	if (pRBT == nullptr || pRBT->pLeft == nullptr)
	{
		return;
	}
	//标记不平衡节点  A
	RBT* pMark = pRBT;
	//标记不平衡节点的左  B
	RBT* pTemp = pRBT->pLeft;
	//x  pMark->pFather   E   pTemp->pRight

	//三个孩子
	//不平衡节点的左->不平衡节点的 左的右   A->左=E
	pMark->pLeft = pTemp->pRight;
	//不平衡节点左的右->不平衡节点       B->右=A
	pTemp->pRight = pMark;
	//不平衡节点是不是根

	  //是  不平衡的节点变为根
	if (pMark->pFather == nullptr)
	{
		pBoot = pTemp;
	}
	//不是 判断不平衡节点是父亲的左还是右   (A是父亲的左还是右)
	else
	{
		//左:
		  //不平衡节点的父亲的左孩子->不平衡节点   X->左=B
		if (pMark->pFather->pLeft == pMark)
		{
			pMark->pFather->pLeft = pTemp;
		}
		//右:
		  //不平衡节点的父亲的右孩子->不平衡节点   X->右=B
		else
		{
			pMark->pFather->pRight = pTemp;
		}
	}

	if (pMark->pLeft != nullptr)
	{
		pMark->pLeft->pFather = pMark;
	}

	pTemp->pFather = pMark->pFather;

	pMark->pFather = pTemp;
}


void LeftRotate(RBT* pRBT, RBT*& pBoot)

{
	if (pRBT == nullptr || pRBT->pRight == nullptr)
	{
		return;
	}

	RBT* pMark = pRBT;

	RBT* pTemp = pRBT->pRight;


	pMark->pRight = pTemp->pLeft;

	pTemp->pLeft = pMark;



	if (pMark->pFather == nullptr)
	{
		pBoot = pTemp;
	}
	else
	{

		if (pMark->pFather->pLeft == pMark)
		{
			pMark->pFather->pLeft = pTemp;
		}

		else
		{
			pMark->pFather->pRight = pTemp;

		}

	}



	if (pMark->pRight != nullptr)
	{
		pMark->pRight->pFather = pMark;
	}

	pTemp->pFather = pMark->pFather;

	pMark->pFather = pTemp;





}


void AddRBT(RBT*& rpBoot, int id)
{
	RBT* pFather = GetFather(rpBoot, id);
	RBT* pMark = new RBT;
	pMark->color = RED;
	pMark->id = id;
	pMark->pFather = pFather;

	pMark->pLeft = NULL;
	pMark->pRight = NULL;


	//判断根是否为空
  //空  pMark赋给根
	if (rpBoot == NULL)
	{
		pMark->color = BLACK;
		rpBoot = pMark;
		return;
	}
	//非空  添加
	if (pFather->id > pMark->id)
	{
		pFather->pLeft = pMark;
	}
	else
	{
		pFather->pRight = pMark;
	}
	//分析
	while (1)
	{
		//先给pFather和pUncle重新赋值
		pFather = pMark->pFather;

		//判断父亲的颜色
		  //黑 直接加

		if (pFather->color == BLACK)
		{
			return;
		}
		RBT* pUncle = GetUncle(pMark);
		//父亲为红 判断叔叔的颜色


			//叔叔为红
			  //父亲和叔叔都变黑
				//爷爷变红
				   //判断爷爷是否为根
					 //为根 爷爷变黑
					 //不为根  爷爷赋给标记  结束当前循环  重新对爷爷进行分析


		if (pUncle != nullptr && pUncle->color == RED)
		{
			pFather->color = BLACK;
			pUncle->color = BLACK;

			pFather->pFather->color = RED;
			pMark = pFather->pFather;

			if (pMark->pFather == NULL)
			{
				pMark->color = BLACK;
				return;
			}
			continue;

		}
		//叔叔为黑 (包含空)
		if (pUncle == NULL||pUncle->color==BLACK)

		{

			  //判断父亲是爷爷的左还是右孩子
				//左 判断标记是父亲的左还是由节点
				  //左 爷爷变红 父亲变黑   对爷爷节点右旋  结束

				  //右 爷爷变红 父亲赋值给标记 对标记左旋

				//右 判断标记是父亲的左还是由节点
				  //右 爷爷变红 父亲变黑   对爷爷节点左旋  结束

				  //左 爷爷变红 父亲赋值给标记 对标记右旋

			if (pFather == pFather->pFather->pLeft)
			{
				if (pFather->pRight == pMark)
				{

					pMark = pFather;

					LeftRotate(pMark, rpBoot);

				}

				else

				{

					pMark->pFather->pFather->color = RED;

					pMark->pFather->color = BLACK;

					RightRotate(pMark->pFather->pFather, rpBoot);

					return;

				}

			}
			//右
			if (pFather == pFather->pFather->pRight)

			{


				if (pFather->pLeft == pMark)

				{

					pMark = pFather;

					RightRotate(pMark, rpBoot);

				}

				else

				{

					pMark->pFather->pFather->color = RED;
					pMark->pFather->color = BLACK;
					LeftRotate(pMark->pFather->pFather, rpBoot);

					return;


				}




			}



		}

	}

}

RBT* GetBrother(RBT* rpBoot)
{
	if (rpBoot == NULL || rpBoot->pFather == NULL)

	{

		return NULL;
	}
	return rpBoot == rpBoot->pFather->pLeft ? rpBoot->pFather->pRight : rpBoot->pFather->pLeft;

}
RBT* GetDeleteNode(RBT* rpBoot, int id)
{
	while (rpBoot)
	{
		if (id > rpBoot->id)
		{

			rpBoot = rpBoot->pRight;
		}
		else if (id < rpBoot->id)
		{

			rpBoot = rpBoot->pLeft;
		}
		else if(id == rpBoot->id)
		{
			return rpBoot;
		}
	}
	return NULL;
}

void DeteleRBT(RBT*& rpBoot, int nId)
{


	RBT* pDel = GetDeleteNode(rpBoot, nId);

	if (pDel == NULL)
	{
		return;
	}

	if (pDel->pLeft != NULL && pDel->pRight != NULL)
	{
		RBT* pMark = pDel;

			pDel = pDel->pRight;
			while (pDel->pLeft!=NULL)
			{
				pDel = pDel->pLeft;
			}



		pMark->id = pDel->id;
	}



	if (pDel->pFather == NULL)
		//根
	{
		if (pDel->pLeft == NULL && pDel->pRight == NULL)
			//判断有没有一个孩子
		{
			rpBoot = NULL;
			//没有孩子

		}
		else

		{
			//有孩子
			rpBoot = pDel->pLeft != NULL ? pDel->pLeft : pDel->pRight;
			rpBoot->color = BLACK;
			rpBoot->pFather = NULL;

		}
		delete pDel;
		pDel = NULL;
		return;
	}

	RBT* pFather =pDel->pFather;
		//非根
		//分析节点颜色


		if (pDel->color == RED)
			//红  直接删
		{

			if (pDel == pFather->pLeft)
			{
				pFather->pLeft = NULL;
			}
			else
			{
				pFather->pRight = NULL;
			}
			delete pDel;
			pDel = NULL;
			return;
		}

			//黑  判断节点是否有孩子

			if (pDel->pLeft != NULL || pDel->pRight != NULL)
				//有孩子  一定是红孩子
			{


					//红孩子变黑  与爷爷相连
					RBT* pChild = pDel->pLeft != NULL ? pDel->pLeft : pDel->pRight;
					pChild->color = BLACK;
					pChild->pFather = pFather;
					if (pFather->pLeft==pDel)
					{
						pFather->pLeft = pChild;
					}
					else
					{
						pFather->pRight = pChild;
					}
					delete pDel;
					pDel = NULL;
					return;




			}



				//没孩子
				//先获得兄弟  删除节点
					RBT* pBrother = GetBrother(pDel);
					if (pFather->pLeft == pDel)
					{
						pFather->pLeft = NULL;
					}
					else
					{
						pFather->pRight = NULL;
					}



					//分析兄弟颜色 loop
					while (1)

					{


						if (pBrother->color == RED)
							//兄弟为红
						{
							//父亲变红  兄弟变黑  分析兄弟方向
							pFather->color = RED;
							pBrother->color = BLACK;
							if (pFather->pLeft == pBrother)//兄弟为父亲的左
							{
								//以父亲为支点  右旋
								RightRotate(pFather, rpBoot);
								pBrother = pFather->pLeft;

							}
							else //兄弟为父亲的右
							{
								//以父亲为支点  左旋
								LeftRotate(pFather, rpBoot);
								pBrother = pFather->pRight;

							}
							continue;
						}

						if (pBrother->color == BLACK)
							//兄弟为黑
							 // 分析两个侄子的颜色

						{
							if ((pBrother->pLeft == NULL && pBrother->pRight == NULL) ||
								((pBrother->pLeft != NULL && pBrother->pLeft->color == BLACK) &&
									(pBrother->pRight != NULL && pBrother->pRight->color == BLACK)))
							{
								//两个侄子全黑(包括全为空)  分析父亲颜色
								if (pFather->color == RED)
								{
									//父亲为红  :父亲变黑  兄弟变红 结束
									pFather->color = BLACK;
									pBrother->color = RED;
									return;
								}
								else
								{
									//父亲为黑  : 兄弟变红  父亲为新的标记 更换兄弟 标记为根的时候结束 不为根继续分析

									pBrother->color = RED;
									pDel = pFather;

									if (pDel->pFather == NULL)
									{
										return;
									}

									continue;

								}
							}
							//左侄子红右侄子黑(空)  分析兄弟方向
							if ((pBrother->pLeft != NULL && pBrother->pLeft->color == RED) &&
								(pBrother->pRight == NULL || pBrother->pRight->color == BLACK))
							{
								//兄弟是父亲的右  兄弟变红  左侄子变黑  一兄弟为支点右旋 继续分析
								if (pBrother == pFather->pRight)
								{
									pBrother->color = RED;
									pBrother->pLeft->color = BLACK;
									RightRotate(pBrother, rpBoot);
									pBrother = pFather->pRight;
									continue;
								}
								//兄弟是父亲的左 父亲的颜色给兄弟 父亲变黑 左侄子变黑 以父亲为支点右旋 结束
								if (pFather->pLeft == pBrother)
								{
									pBrother->color = pFather->color;
									pFather->color = BLACK;
									pBrother->pLeft->color = BLACK;
									RightRotate(pFather, rpBoot);
									return;
								}
							}

							//右侄子红  分析兄弟方向
							if (pBrother->pRight != NULL && pBrother->pRight->color == RED)
								//兄弟是父亲的左  兄弟变红  右侄子变黑 以兄弟为支点左旋  继续分析
								if (pBrother == pFather->pLeft)
								{
									pBrother->color = RED;
									pBrother->pRight->color = BLACK;
									LeftRotate(pBrother, rpBoot);
									pBrother = pFather->pLeft;
									continue;
								}
							//兄弟是父亲的右 父亲的颜色给兄弟 父亲变黑 右侄子变黑 以父亲为支点左旋 结束
							if (pFather->pRight == pBrother)
							{
								pBrother->color = pFather->color;
								pFather->color = BLACK;
								pBrother->pRight->color = BLACK;
								LeftRotate(pFather, rpBoot);
								return;
							}
						}

					}


}






ostream& operator <<(ostream& os, COLOR color)
{
	if (color == RED)
	{
		os << "红";
	}
	if (color == BLACK)
	{
		os << "黑";
	}
	return os;
}


void inorder(RBT*& Boot)
{
	if (Boot == NULL)
	{

		return;
	}
	inorder(Boot->pLeft);
	cout << Boot->id << " " << Boot->color << endl;
	inorder(Boot->pRight);
}


int main()
{
	RBT* Boot = NULL;

	int arr[] = { 11,2,14,1,7,15,5 ,8};
	for (int i = 0; i < sizeof(arr) / sizeof(arr[0]); i++)
	{
		AddRBT(Boot, arr[i]);
	}
	inorder(Boot);
	cout << "----------" << endl;
	AddRBT(Boot, 4);
	/*RBT* pBrother = GetBrother(Boot->pRight);
	cout << pBrother->id << endl;*/
	inorder(Boot);
	cout << "----------" << endl;
	//存疑 :
	// Add节点4 之后  8的节点的父亲应该是11  代码中的8 的父亲是7  未能找到原因  ??
	//  解决这个问题  代码就差不多没问题了
	//DeteleRBT(Boot, 1);
	DeteleRBT(Boot,7);
	inorder(Boot);
	return 0;
}

van9527
关注
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
