要求：

1.全网可达

2.pc通过DHCP

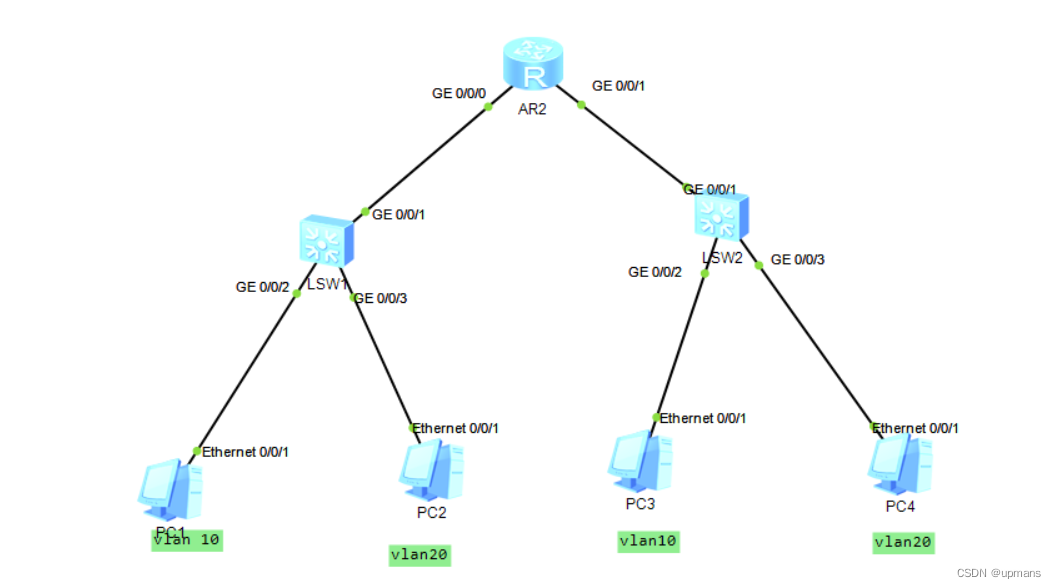

分析：图中原本有2个广播域，但是经过vlan划分，一共有4个广播域，通过dhcp下放ip，所以需要4个地址池，由于只有2个物理接口，所以需要4个子接口来管理不同的vlan下放ip

路由器配置

[Huawei]int GigabitEthernet 0/0/0.1
[Huawei-GigabitEthernet0/0/0.1]ip address 192.168.1.254 24
[Huawei-GigabitEthernet0/0/0.1]dot1q termination vid 10

[Huawei-GigabitEthernet0/0/0.1]arp broadcast enable

[Huawei]interface GigabitEthernet 0/0/0.2
[Huawei-GigabitEthernet0/0/0.2]ip address 192.168.2.254 24

[Huawei-GigabitEthernet0/0/0.2]dot1q termination vid 20

[Huawei-GigabitEthernet0/0/0.2]arp broadcast enable

[Huawei]int GigabitEthernet 0/0/1.1
[Huawei-GigabitEthernet0/0/1.1]ip address 192.168.3.254 24
[Huawei-GigabitEthernet0/0/1.1]dot1q termination vid 10

[Huawei-GigabitEthernet0/0/1.1]arp broadcast enable

[Huawei]int GigabitEthernet 0/0/1.2
[Huawei-GigabitEthernet0/0/1.2]ip address 192.168.4.254 24
[Huawei-GigabitEthernet0/0/1.2]dot1q termination vid 20

[Huawei-GigabitEthernet0/0/1.2]arp broadcast enabl

交换机1

[Huawei]vlan batch 10 20

[Huawei]int GigabitEthernet 0/0/2
[Huawei-GigabitEthernet0/0/2]port link-type access

[Huawei-GigabitEthernet0/0/2]port default vlan 10

[Huawei]int GigabitEthernet 0/0/3
[Huawei-GigabitEthernet0/0/3]port link-type access
[Huawei-GigabitEthernet0/0/3]port default vlan 20

[Huawei]int GigabitEthernet 0/0/1
[Huawei-GigabitEthernet0/0/1]port link-type trunk

[Huawei-GigabitEthernet0/0/1]port trunk allow-pass vlan 10 20

交换机2

[Huawei]vlan batch 10 20

[Huawei]int GigabitEthernet 0/0/2
[Huawei-GigabitEthernet0/0/2]port link-type access
[Huawei-GigabitEthernet0/0/2]port default vlan 10

[Huawei]int GigabitEthernet 0/0/3
[Huawei-GigabitEthernet0/0/3]port link-type access
[Huawei-GigabitEthernet0/0/3]port default vlan 20

[Huawei]int GigabitEthernet 0/0/1
[Huawei-GigabitEthernet0/0/1]port link-type trunk

[Huawei]int GigabitEthernet 0/0/1
[Huawei-GigabitEthernet0/0/1]port trunk allow-pass vlan 10 20

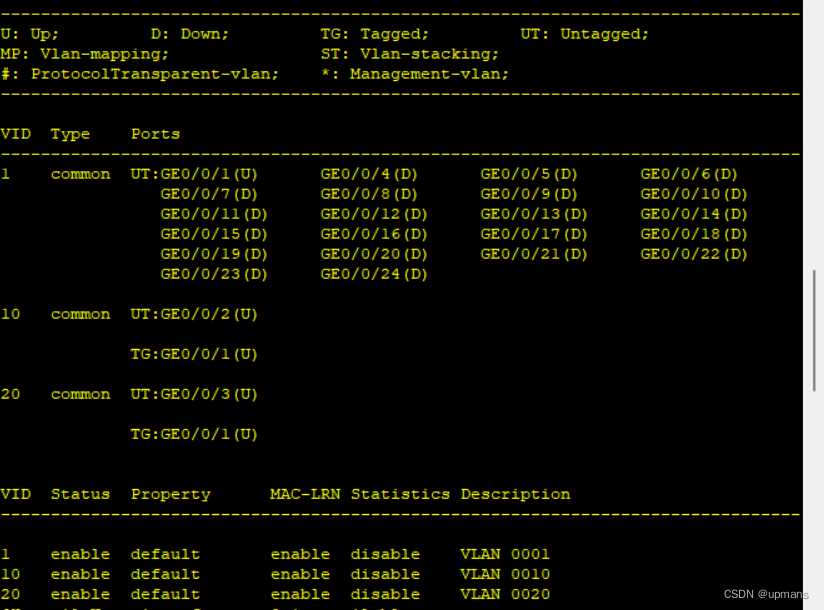

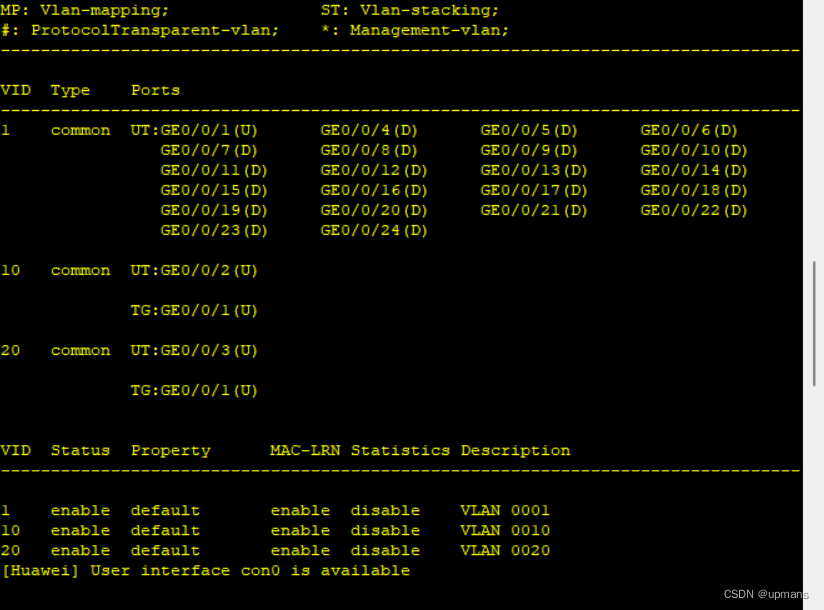

查看vlan表

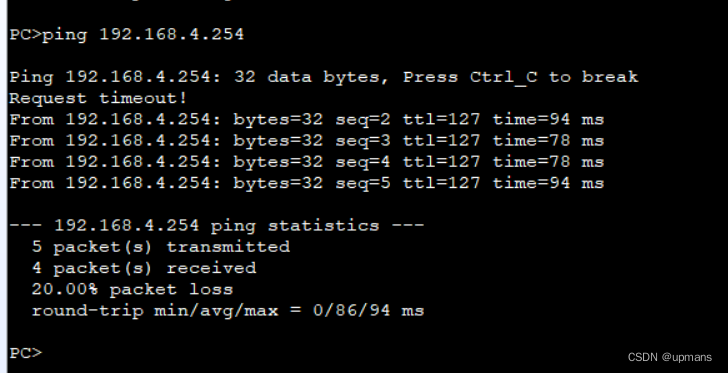

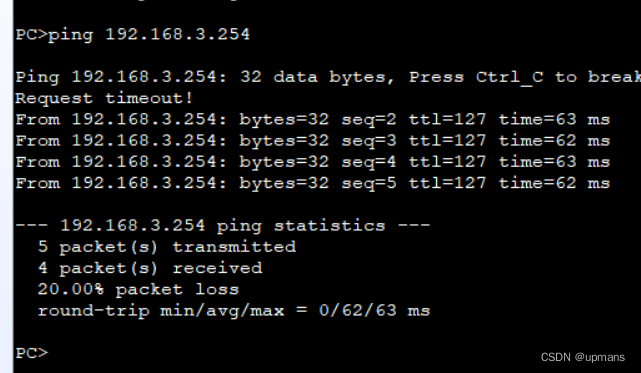

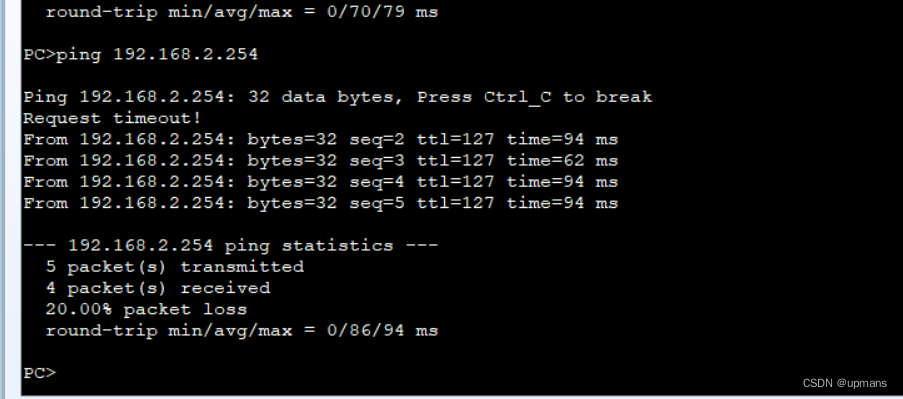

测试
